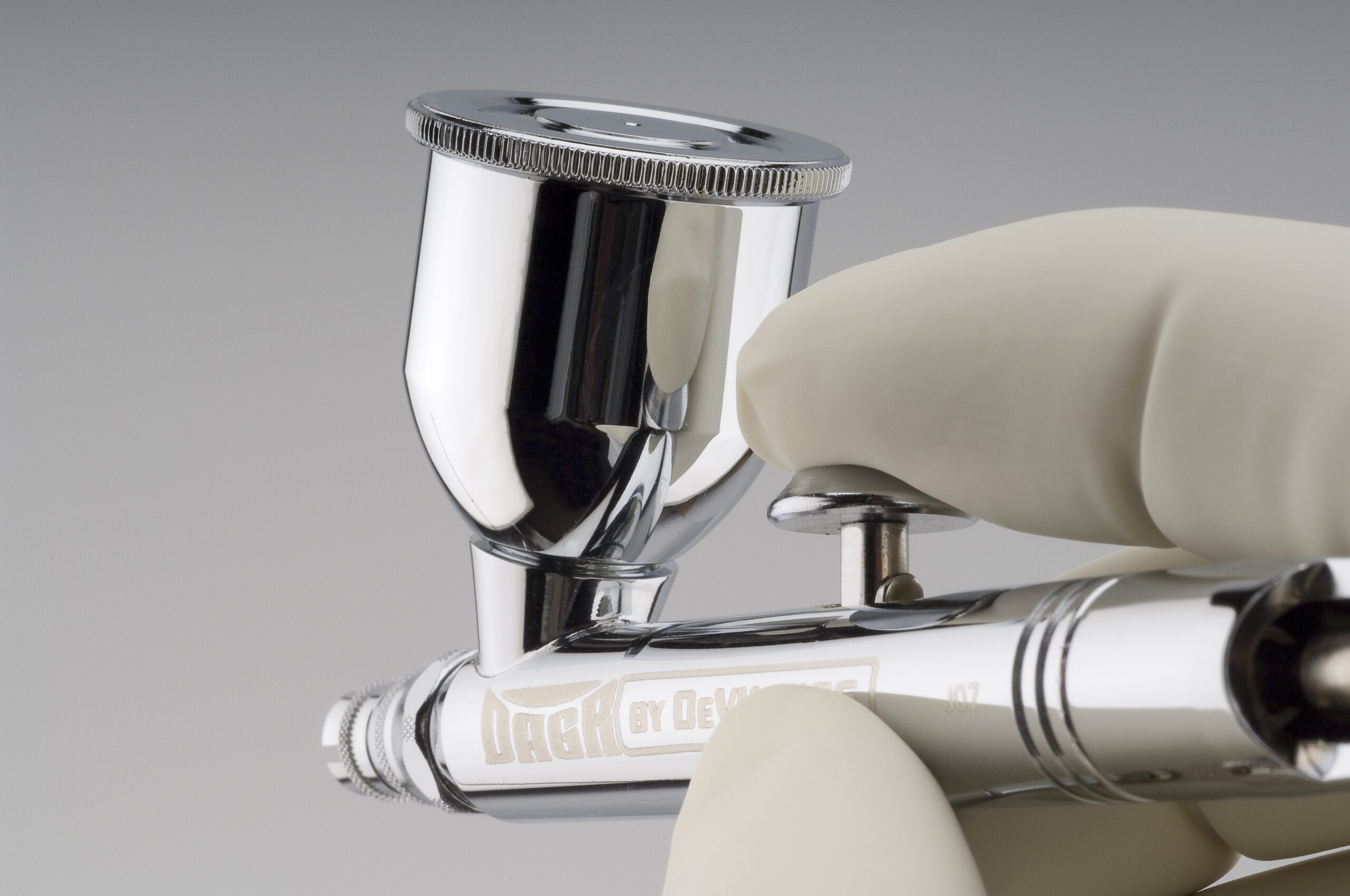

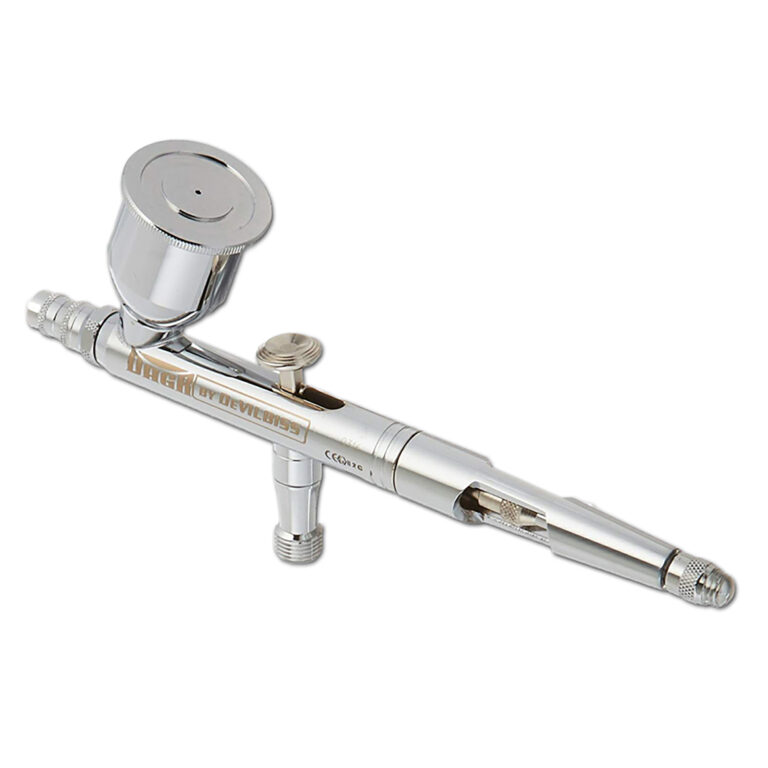

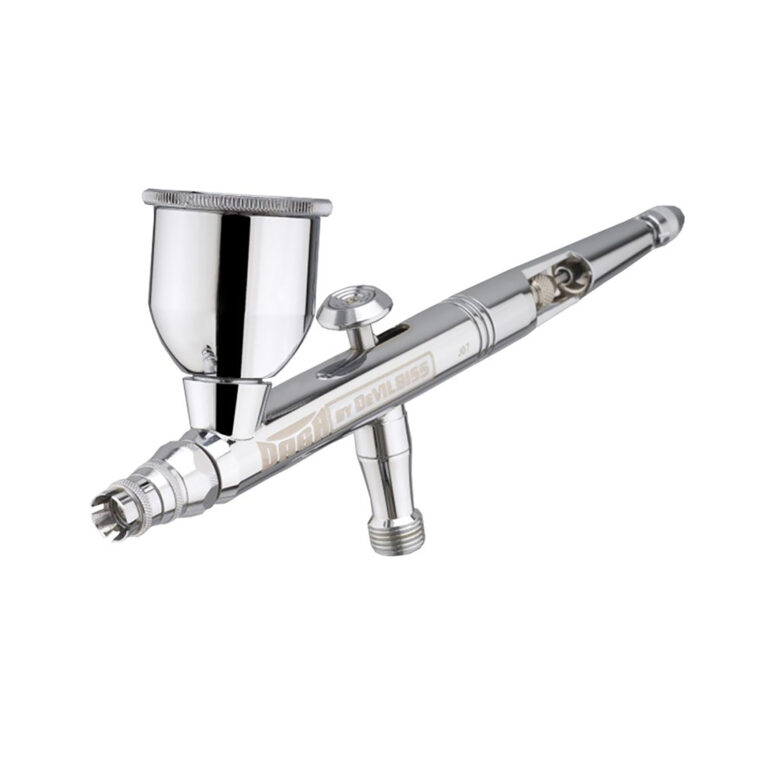

DeVilbiss DAGR Airbrush

DeVilbiss Product Catalogue

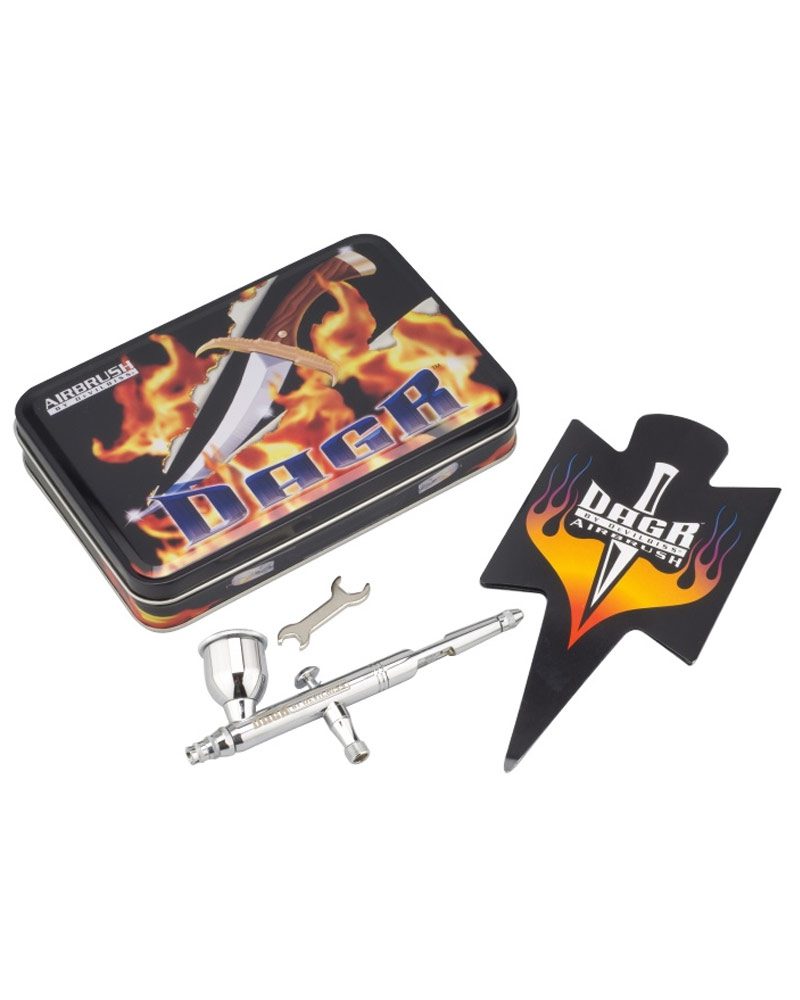

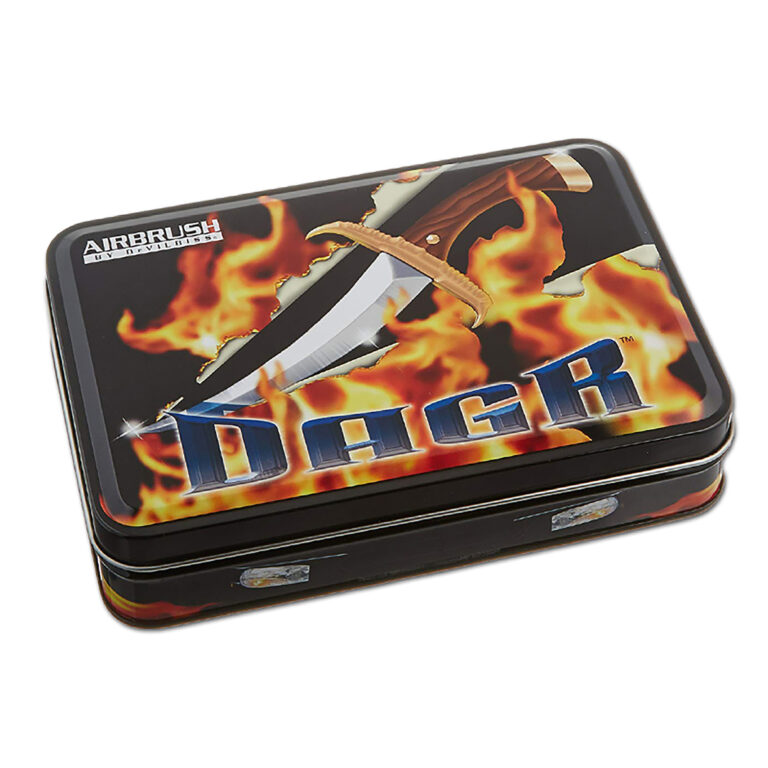

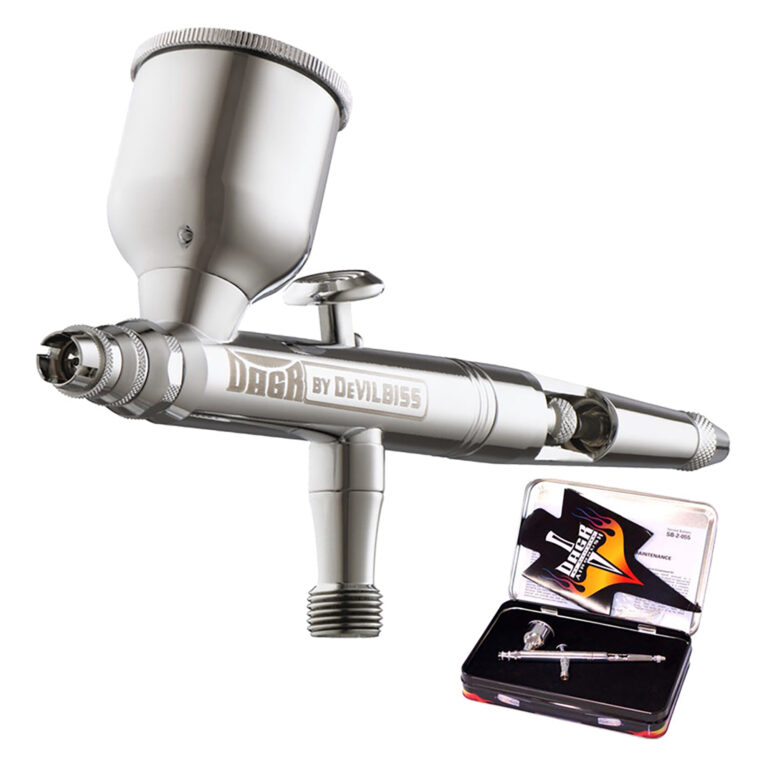

DAGR airbrushes are precision made with micro machining and high quality materials. Each airbrush is spray tested before being packaged in its collectors tin, assuring that it meets the tough quality standards you have come to expect from DeVilbiss. With proper care, your DAGR airbrush will provide you with excellent performance to express your creativity.

The DAGR sprays most automotive paints and lacquers, hairline detail to paint-flow shading and gradual shades. Lightweight, well balanced with smooth double action trigger, crown cap standard for fine lines and needle protection.

• Copper, nickel and chrome plated body
• Pre-set handle for precise control of paint flow
• Removable 9ml (1/3rd oz) gravity cup
• Solvent proof fluid passages
• Teflon needle packing
• Precision made and hand tested in the U.S.A.

Technical Specifications

• Operating pressure: 1.3 – 3.5 bar (20-50psi)
• Max inlet pressure: 12 bar (175psi)
• Fluid tip: 0.35mm
• Cup capacity: 9ml (1/3 floz)
• Airbrush plating: Nickel, copper, chrome
• Needle packing: PTFE (solvent proof)
• Hose inside diameter: 3.2mm (1/8″)
• Air hose connection: 1/4″ NPS (Male)
• Universal fluid threaded connector: 3/8″
