Parts

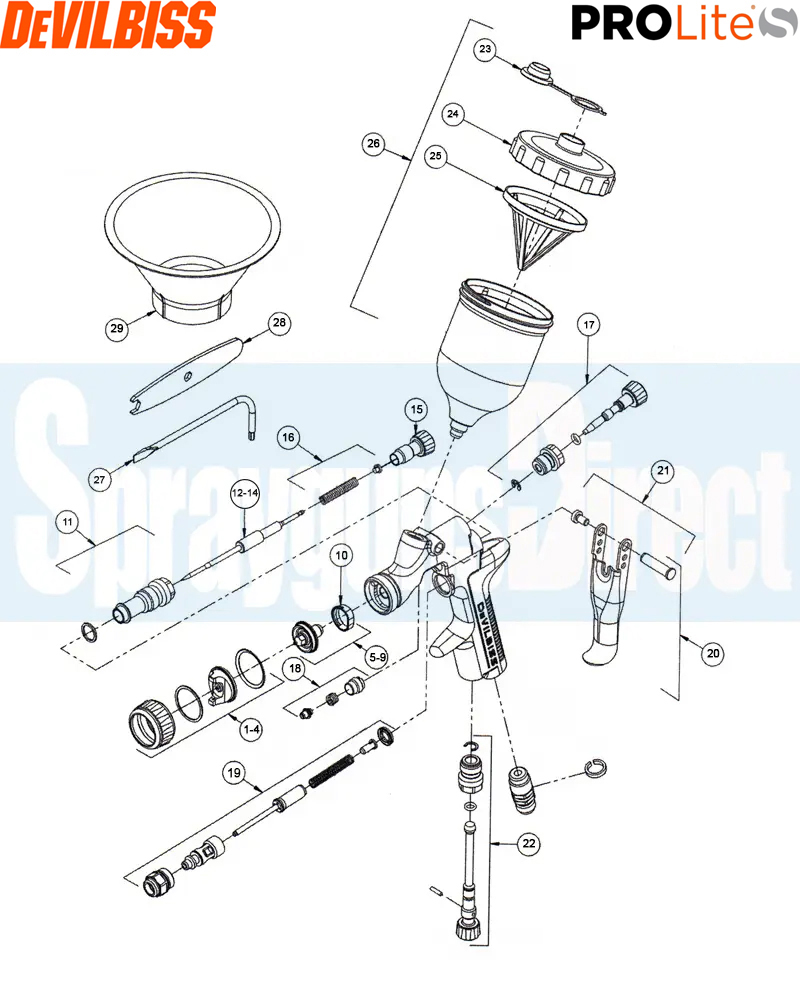

DeVilbiss PROLITE S Mini Spray Gun Spares and Parts Breakdown

Scroll down to view parts table below image

devilbiss pro lite s mini spray gun parts breakdown spray guns direct
IndexImageNameSKUPriceBuyWishlist
DeVilbiss 1/4" BSP Female HVLP/Euro Swivel Tailpiece (MPV-60-K1)
DeVilbiss 1/4" BSP Female HVLP/Euro Swivel Tailpiece (MPV-60-K1)MPV-60-K1£35.40
Quantity
DeVilbiss 1/4" BSP Female HVLP/Euro Swivel Tailpiece (Pack of 3)
DeVilbiss 1/4" BSP Female HVLP/Euro Swivel Tailpiece (Pack of 3) (MPV-60-K3)MPV-60-K3£88.50
Quantity
DeVilbiss PROLite-S Air Valve Assembly SN-402-K
DeVilbiss Air Valve Assembly (905293) [SN-402-K]905293£80.60
Quantity
devilbiss drip check lid gfc 2 k5
DeVilbiss Drip Check Lid (905202) [GFC-2-K5]905202£4.95
Quantity
DeVilbiss Gravity Cup (4 oz) (905311) (SRI-510)
DeVilbiss Gravity Cup (4 oz) (905311) (SRI-510)905311£27.09
Quantity
Devilbiss Packing Spring & Packing Nut Kit-0
DeVilbiss Needle Packing, Spring & Packing Nut Kit (905294) [SN-404-K]905294£14.19
Quantity
Devilbiss SRI PRO Fluid Nozzle (0.8mm)-0
DeVilbiss PROLite-S 0.8mm Fluid Nozzle (905317) [SRIPRO-200-08-K]905317£79.50
Quantity
Devilbiss SRI PRO Fluid Nozzle (1.0mm)-0
DeVilbiss PROLite-S 1.0mm Fluid Nozzle (905318) [SRIPRO-200-10-K]905318£79.50
Quantity
DeVilbiss Fluid Nozzle (1.2mm) for SRi Pro Lite Spraygun -0
DeVilbiss PROLite-S 1.2mm Fluid Nozzle (905319) [SRIPRO-200-12-K]905319£79.50
Quantity
Devilbiss SRI PRO Fluid Nozzle (1.4mm)-0
DeVilbiss PROLite-S 1.4mm Fluid Nozzle (905320) [SRIPRO-200-14-K]905320£79.50
Quantity
Devilbiss Body Brushing & Seal-0
DeVilbiss PROLite-S Body Brushing & Seal Kit (905300) [SN-6-K]905300£30.50
Quantity
DeVilbiss PROLite-S Cup Filter (kit of 3) (905309)
DeVilbiss PROLite-S Cup Filter (kit of 3) (905309)905309£14.19
Quantity
DeVilbiss PROLite-S Fluid Adjusting Knob (905304) [SN-81-K]
DeVilbiss PROLite-S Fluid Adjusting Knob (905304) [SN-81-K]905304£30.00
Quantity
DeVilbiss PROLite-S Fluid Needle for 0.8mm & 1.0mm Nozzles (905323) [SRIPRO-300-08-10-K]
DeVilbiss PROLite-S Fluid Needle for 0.8mm & 1.0mm Nozzles (905323) [SRIPRO-300-08-10-K]905323£28.50
Quantity
DeVilbiss PROLite-S Fluid Needle for 1.2mm & 1.4mm Nozzles (905324) (SRIPRO-300-12-14-K)
DeVilbiss PROLite-S Fluid Needle for 1.2mm & 1.4mm Nozzles (905324) (SRIPRO-300-12-14-K)905324£28.50
Quantity
Devilbiss SRI Funnel (pack of 12)-0
DeVilbiss PROLite-S Funnel (Pack of 12) (905312) [SRI-51-K12]905312£27.04
Quantity
DeVilbiss PROLite-S Gravity Cup Lid (pack of 2) (905308) [SRI-414-K2]
DeVilbiss PROLite-S Gravity Cup Lid (pack of 2) (905308) [SRI-414-K2]905308£20.58
Quantity
DeVilbiss PROLite-S HV5 Air Cap with Retaining Ring Assembly (905313) [SRIPRO-102-HV5-K]
DeVilbiss PROLite-S HV5 Air Cap with Retaining Ring Assembly (905313) [SRIPRO-102-HV5-K]905313£99.50
Quantity
DeVilbiss PROLite-S MC1 Air Cap with Retaining Ring Assembly (905314) [SRIPRO-102-MC1-K]
DeVilbiss PROLite-S MC1 Air Cap with Retaining Ring Assembly (905314) [SRIPRO-102-MC1-K]905314£99.50
Quantity
DeVilbiss PROLite-S Micro Fluid Needle for 0.6mm Nozzle (905325) [SRIPRO-310-06M-K]
DeVilbiss PROLite-S Micro Fluid Needle for 0.6mm Nozzle (905325) [SRIPRO-310-06M-K]905325£28.50
Quantity
DeVilbiss PROLite-S Micro Fluid Nozzle MC1 0.6mm (905321) [SRIPRO-210-06M-K]
DeVilbiss PROLite-S Micro Fluid Nozzle MC1 0.6mm (905321) [SRIPRO-210-06M-K]905321£79.50
Quantity
DeVilbiss PROLite-S RS1 Air Cap with Retaining Ring Assembly (905315) [SRIPRO-102-RS1-K]
DeVilbiss PROLite-S RS1 Air Cap with Retaining Ring Assembly (905315) [SRIPRO-102-RS1-K]905315£99.50
Quantity
DeVilbiss PROLite-S Separator (Kit of 5) (905322) (SRIPRO-2-K5)
DeVilbiss PROLite-S Separator (Kit of 5) (905322) (SRIPRO-2-K5)905322£15.23
Quantity
DeVilbiss PROLite-S Spreader Valve Assembly
DeVilbiss PROLite-S Spreader Valve Assembly (905326) [SRIPRO-402-K]905326£54.50
Quantity
DeVilbiss PROLite-S Spring & Pad (Kit of 3) (905299) [SN-423-K3]
DeVilbiss PROLite-S Spring & Pad (Kit of 3) (905299) [SN-423-K3]905299£13.36
Quantity
Devilbiss Trigger Stud & Torx Screw (kit of 5)-0
DeVilbiss PROLite-S Stud & Screw Kit (Kit of 5) (905295) [SN-405-K5]905295£64.50
Quantity
DeVilbiss PROLite-S TE5 Air Cap with Retaining Ring Assembly (905316) [SRIPRO-102-TE5-K]
DeVilbiss PROLite-S TE5 Air Cap with Retaining Ring Assembly (905316) [SRIPRO-102-TE5-K]905316£99.50
Quantity
Devilbiss Trigger Stud & Screw-0
DeVilbiss PROLite-S Trigger, Stud & Screw Kit (905298) [SN-42-K]905298£44.00
Quantity
DeVilbiss Spray Gun Service Kit (Multiple Sprayguns)-0
DeVilbiss Spray Gun Service Kit (Multiple Spray Guns) (905279) [PRO-415-1]905279£36.00
Quantity
Devilbiss Spreader Valve Assembly
DeVilbiss Spreader Valve Assembly (905278) [PRO-408-K]905278£54.50
Quantity
DeVilbiss SRI Spanner (pack of 2) (905310) [SRI-50-K2]
DeVilbiss SRI Spanner (pack of 2) (905310) [SRI-50-K2]905310£13.00
Quantity
Devilbiss Torx Key (kit of 2)-0
DeVilbiss Torx Key (kit of 2) (905307) [SPN-8-K2]905307£9.10
Quantity

Need help finding your part?

please contact our sales team on :

+44 (0) 1332 611893 info@spraygunsdirect.co.uk
