Posted on

What is a spray gun?

What is a spray gun? How to get started?

A spray gun (paint sprayer) is a tool used to spray liquid coatings – Paint, Varnish and Lacquer in particular. The spray gun uses air pressure from a compressor to force the paint to become a mist (atomize). A spray gun will achieve a smooth consistent finish when applied to surface, preparation is very important when wanting to acheive a professional finish. Used by professional spray painters and hobbyists.

The more you use & adjust your spray gun the better your finish will become. “Practice makes perfect”

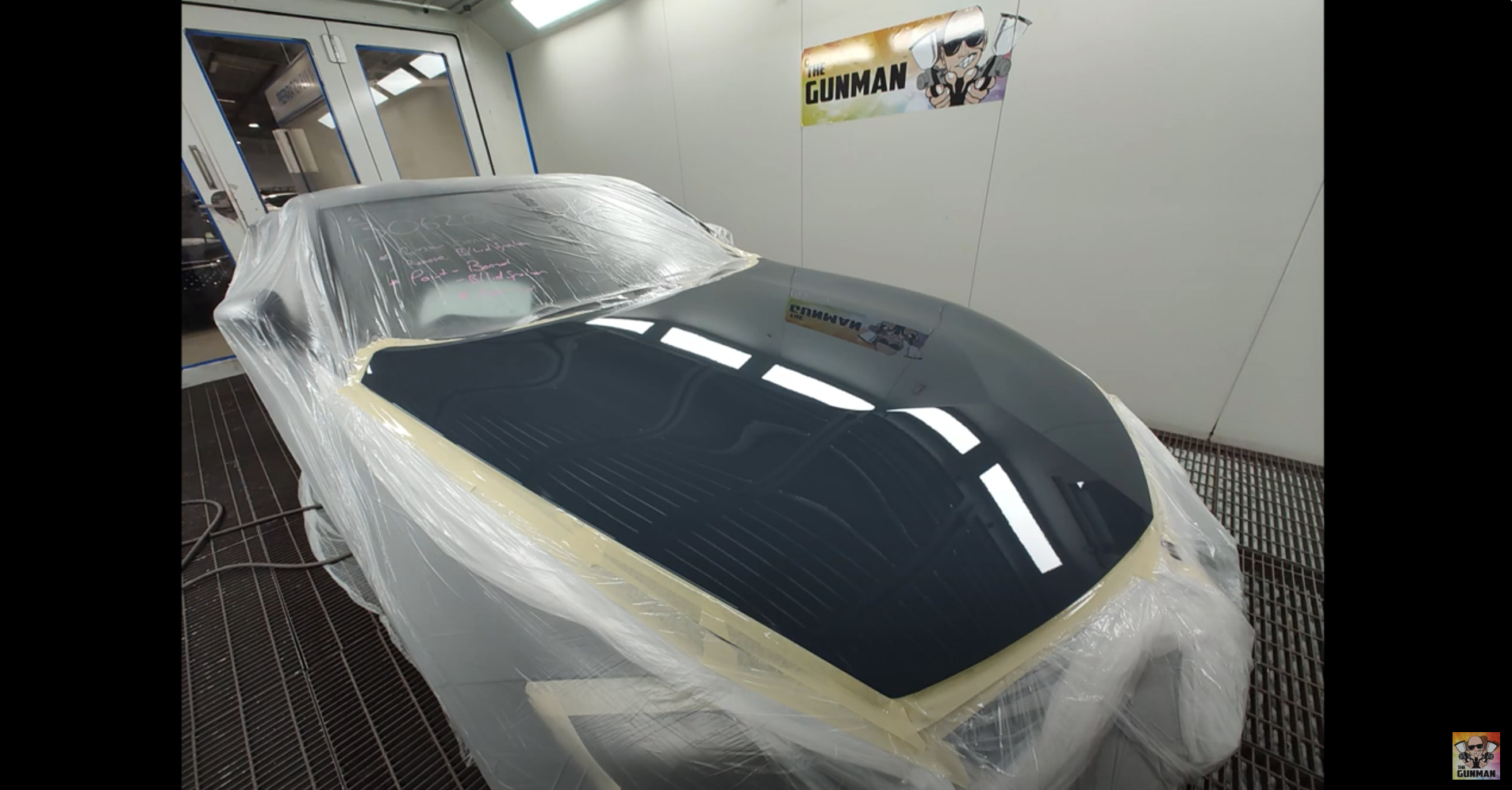

There’s loads of videos posted on the gunman YouTube channel giving an independent review on many of our best selling spray guns so be sure to give them a view before committing to buying online.

Spray guns are used for respraying cars, commercial vehicles, agricultural machinery and equipment, boats, woods, decorating & pvc. Paint & Colour is everywhere and in most cases a spray gun would of been used with compressed air.


what is a spray gun? spray guns direct

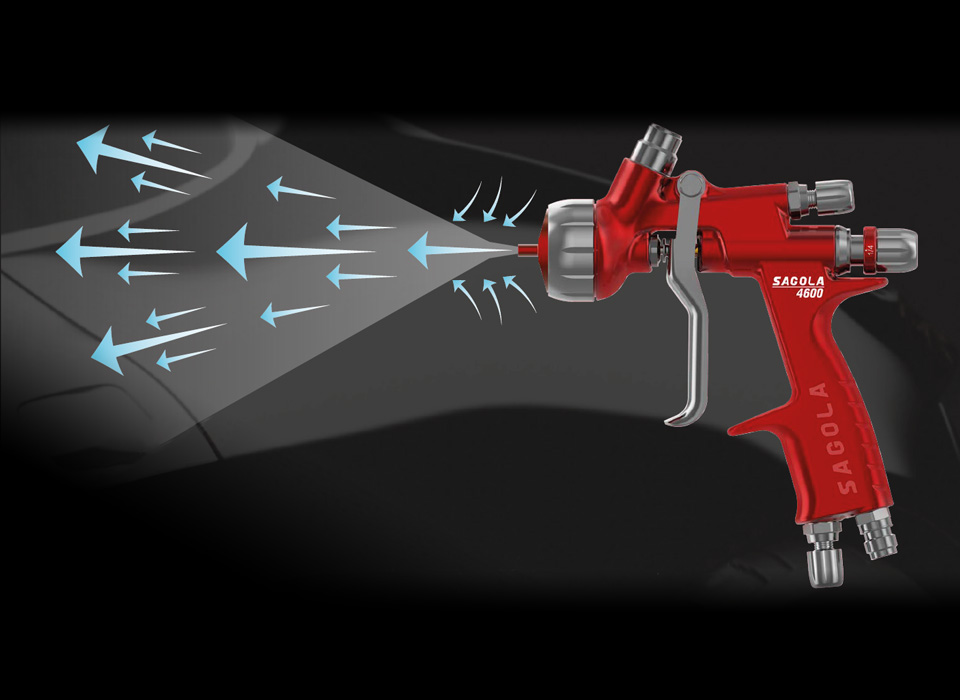

Sagola elcometer 4600 Spray Gun sprayguns direct



When paint spraying the spray gun can be adjusted and set up to achieve the desired application finish.

Read more about What type of spray gun do I need to paint with? >>


ANi COMPACT Spray Gun Full Sized Mini Kit (AH1521009A) Any compressor & any job** Includes - A.N.I. (ANI) HPS COMPACT Midi Gravity Spray Gun c/w 1.3 tip, additional 1.0 tip and needle.  500 & 250ml cup +  Gauge in a carry case. *Low Air Consumption – Can run off 24ltr Compressor, requires less than 4.5 CFM (125 litres per minute)* DeVilbiss DV1 GAMBLER Clearcoat *Limited Edition* Spray Gun (Digital / Non-Digital) with Cup

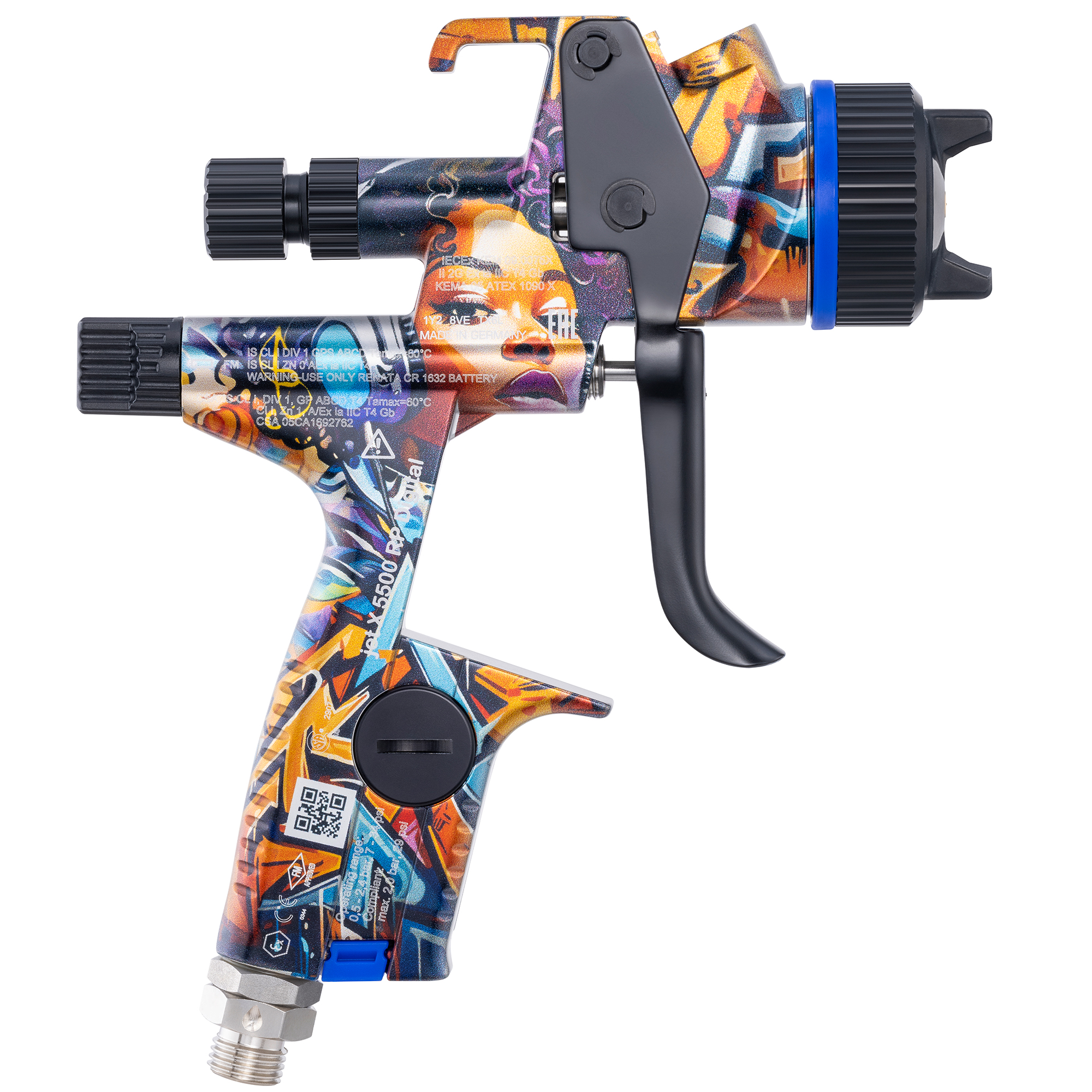

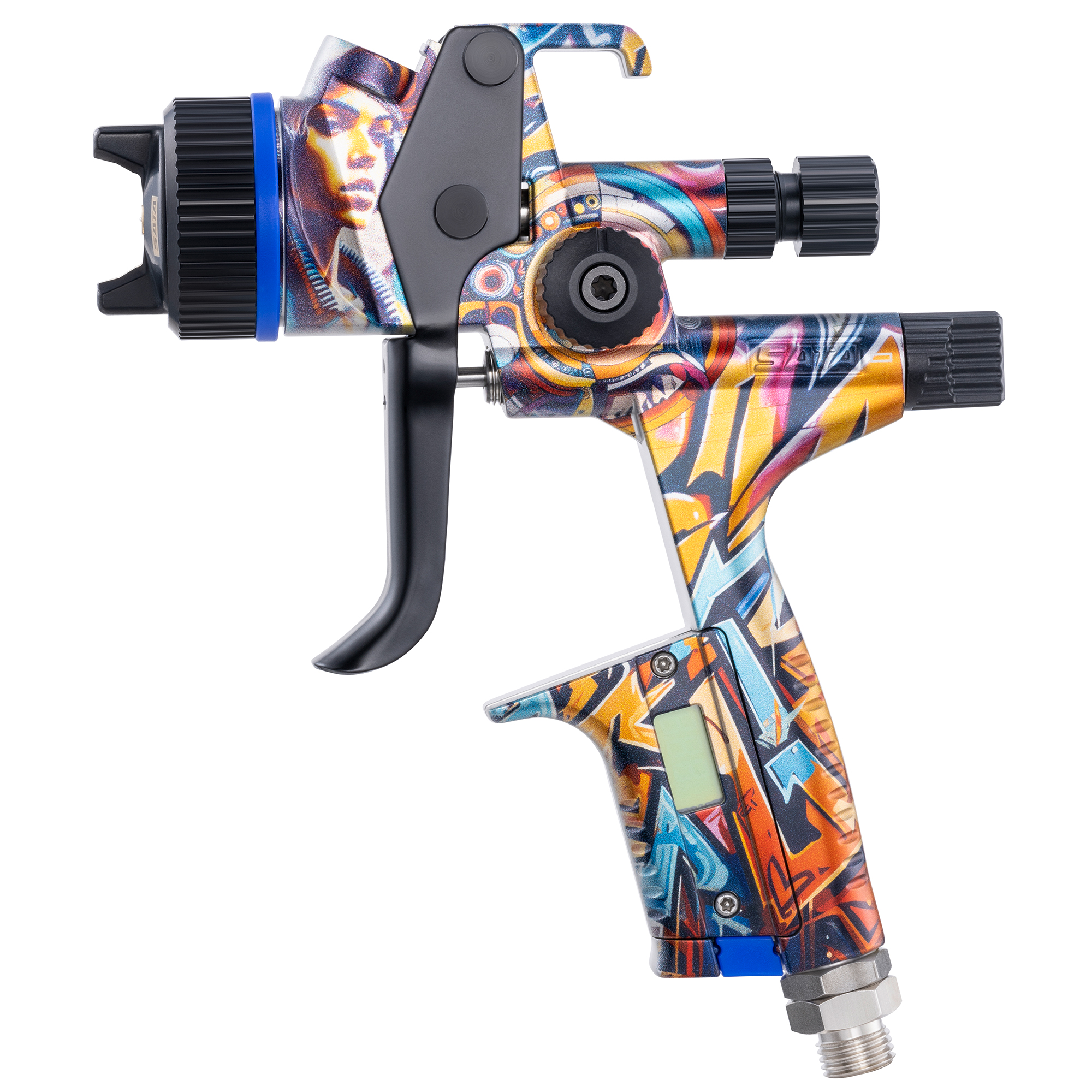

Iwata LPH80 Touch-Up Gravity Spray Gun (LUXURY EDITION) SATAjet X 5500 RP Clearcoat 1.3I CC Non-Digital Spray Gun (1174573) with RPS Multi Purpose Cup 0.6 l / 0.9 l

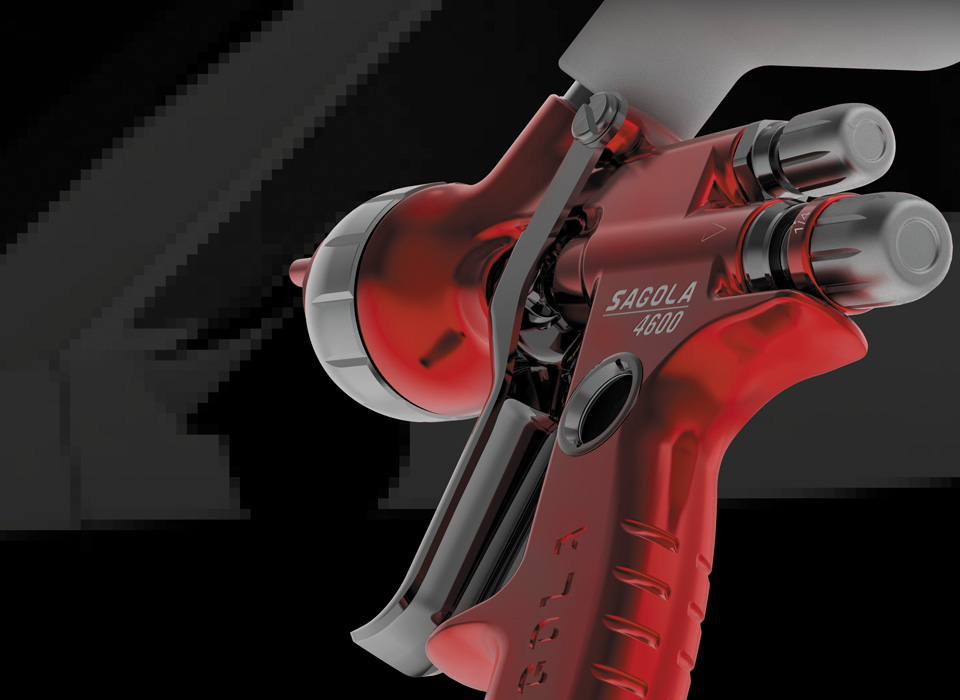

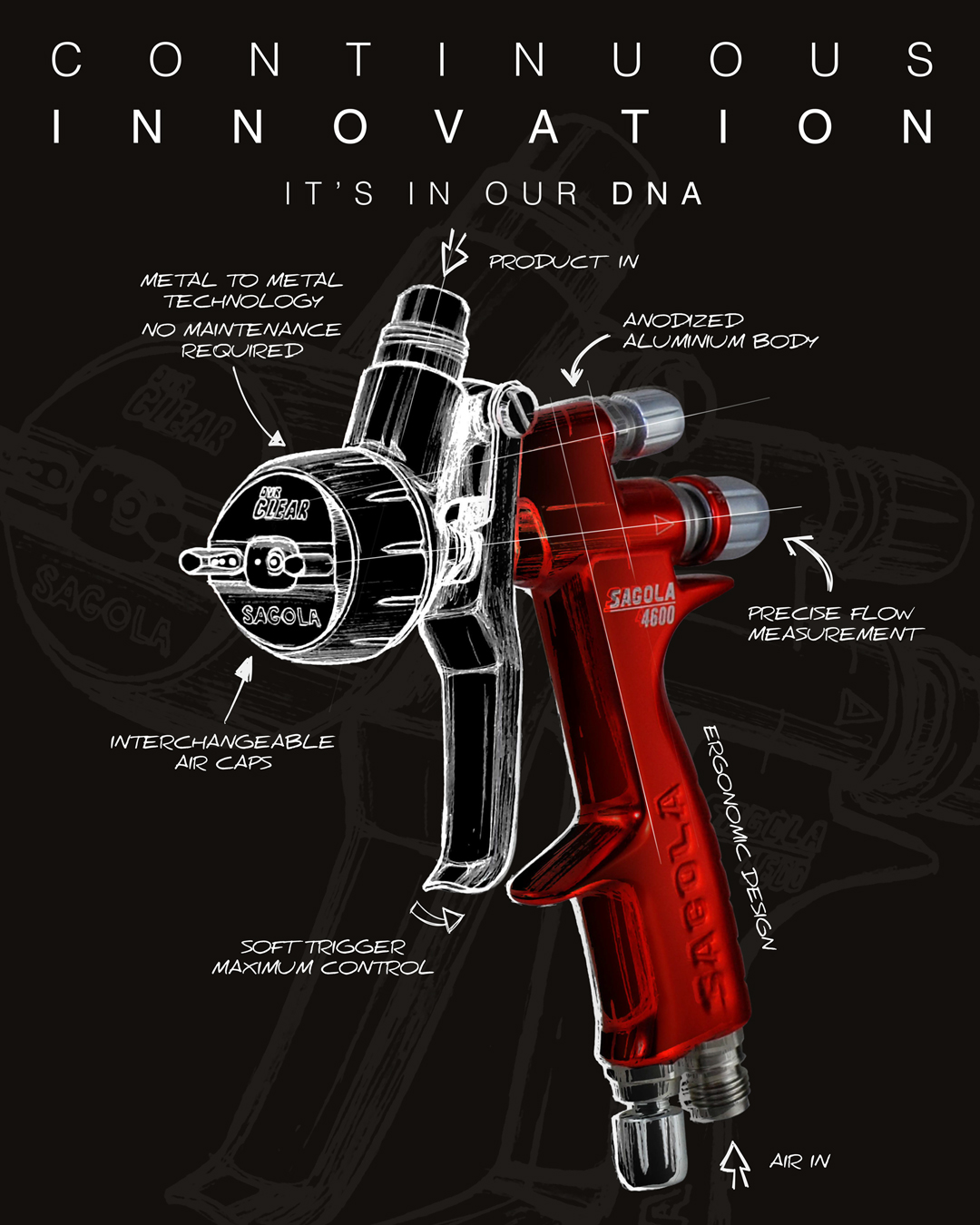

Sagola 4600 Non-Digital Spray Gun (In Stock Very Soon) (10142401 / 10142410) 3M spray gun pps series 2






What are the benefits to a spray gun?

Using a spray gun with your compressor >> will cover an area much faster and with a much better finish, though you need to mask >> / protect the surrounding area; you also need a mask to protect your lungs >>.



Spray Gun Parts and Accessories

When purchasing a spray gun its longevity is usually reflected in the price. Less parts are available when looking at spray guns under £100.00 whilst high end professional finish spray guns usually have all parts and spares available giving future life to your spray gun.

The below image shows the ANi Skull parts breakdown where all parts and spares are available to order.

ANi Skull Spray Gun Spare Parts Breakdown




Posted on Leave a comment

Can I use a spray gun (paint sprayer) with my compressor?

Can I use a spray gun (paint sprayer) with my compressor?

Yes, size matters.
Large compressor = many spray gun options
Small compressor = mini/midi spray guns.

A 24 litre compressor is suitable for *low free air spray guns or airbrushes* (<4.5 cfm).
A 50 Litre compressor would be suitable for most smart repair mini midi spray applications.
A typical full sized spray gun would require a larger compressor >50 litre.



what compressor do I need for my spray gun?spray guns direct



Posted on

How to choose the correct air compressor for my spray gun (paint sprayer)?

How to set up a compressor for my spray gun (paint sprayer)?



Connect the compressor and wait for full working pressure. you can then adjust the pressure via a gun gauge which is connected to your spray gun.



Compressors are measured by their displacement in CFM (Cubic Feet per Minute). Spray guns are measured by the free air they use, the maths is for example a 12cfm displacement less a third equals the free air available.

The simple sum is (12cfm displacement minus 1/3 = 8cfm free air).






How to use a spray gun with an air compressor?

A spray gun that is driven by compressed air must be connected via an airline; it can be directly screwed to a threaded airline but is usually used with quick release connectors.

Low Noise / Screw Compressors >>

Standard Compressors >>

Compressor Kits >>

Portable Compressor Systems & Kits >>

Lubricant / Oil >>



Iwata 200 litre Belt Drive Air Compressor, 12.5 CFM

For a full sized gravity spray gun used for full respray and larger areas.



Sealey 50 litre Compressor, 2hp, 6.8cfm Displacement

For smaller areas, panel, alloy wheel and smart repairs.

Buy Online



Sealey Air Compressor 50 Litre SAC5020E

Buy Online








What connectors do I need to connect my spray gun to air hose and compressor?



What airline and connectors do I need for my spray gun?

  • Typically 3/8” (8mm) is the minimum airline internal diameter/bore. We recommend using pre-made airline that includes ¼” BSP female threaded nuts at either end.
  • Quick release connectors screw in to the end of the airline primarily to pair/interconnect with a tail-piece. The spray gun tail-piece would have a female thread.
  • View Airline & connectors >>

What are the different airline connectors?

  • Male and Female thread (originates from the animal kingdom).

Example: ¼” BSP male thread screws into ¼” BSP female thread and forms a seal. Spray guns and fittings supplied by us in BSP >> with NPT >>

  • Quick release coupling connectors tube type tails that push in to small barrel like receivers (sometimes confused or described as male and female BUT not in SprayGunsDirect language).
  • Euro (HVLP) high flow connectors are best practice for use with a spray gun. Traditional / old-fashioned British connectors (often misleadingly referred to as PCL style) do not suit optimal air delivery for a spray gun.

Below shows the HVLP connector used to connect the spray gun to air hose and then to the compressor. This method is quick release which is simple and very easy to use especially when changing devices using compressed air. For a full compressed air system a second air hose would be included along with a filter regulator. Air flow would follow this direction.



Compressor >> Air Hose >> Filter Regulator (1,2 or 3 stage) >> Air Hose >> Spray Gun Gauge (non-digital) >> Spray Gun

HVLP Explained - compressed air spray gun and connectors

HVLP Explained

High Volume Low Pressure has no restrictions on airflow with a wider male and female connection. This is the choice for most professional paint sprayers.

PCL Explained

PCL Connectors are usually used for air tools such as sanders, polishers, drills and grinders as 100% air flow can differ. The below image shows the Prevost Flexair 10m Hose *British Style PCL Connector* with Prevost Air Blow Gun.

HVLP compressed air quick connectors for spray gun and compressor air hose 5m 10m 20m PCL compressed air quick connectors for air tools and compressor air hose 5m 10m 20m
Above image shows (compressor connectors)

Prevost Flexair 20m Hose (Male) connecting to a Female HVLP Coupling/Receiver



Below & bottom right image shows the Prevost ESI 07 (female) HVLP quick connector with DeVilbiss MPV-5 (male) tailpiece. This is connected to the spray gun gauge and spray gun.

HVLP compressed air quick connectors for spray gun and compressor air hose 5m 10m 20m

HVLP compressed air quick connectors for spray gun and compressor air hose 5m 10m 20m



Back to #welovesprayguns >>

Posted on

What type of spray gun do I need to paint with?

What type of spray gun do I need to paint with?

Do I need an HVLP spray gun or an LVLP spray gun?



Usually a gravity spray gun, HVLP, LVLP, Compliant and Conventional are options. Full sized and mini/midi spray guns would be selected depending on the scale of work and the size of the compressor.



Style/type choice

Compliant Spray Guns – for balance of finish with control of over spray – See DeVilbiss FLG for example >>

HVLP (High Volume Low Pressure) describes the correct air delivery for modern spray guns, but full HVLP guns doesn’t suit most applications as they produce an uneven, ‘orange peel’ finish. HVLP spray guns mainly suit water-based basecoat car paint.

LVLP (Low Volume Low Pressure) spray guns are designed to operate with less air but also produce a sub-optimal finish. We advise the ANi Compact Spray Gun when less air is available.

View ANi Compact Spray Gun (ideal for beginner & professional use) >>



Size choice

Mini/Midi spray gun >> – a popular choice for all compressor size 24 litre (6.34 gallons) and over; there are spray gun options that are capable of even a full respray.
Full sized spray gun >> – the typical choice where larger areas are being painted. Usually requires at least 7cfm free air.



Tip size choice & fan control and Knob functions on a spray gun.




What type of spray gun do I need to paint with? spray gun fan pattern


Spray Gun Fan Pattern Adjustment






Iwata WS400 Fan Pattern

(adjustable by changing spray gun controls)



The below – example shows the fan pattern typically achieved with the SATAjet X 5500 spray gun.

spray gun nozzle help rp tip and setup size - spray guns direct

Below shows the SATAjet X 5500 Digital Spray Gun internals, paint & airflow creates atomization which can be adjusted according to right application needed.

sata jet 5500 spray gun spray gun control and knob functions


Choosing the right spray gun for your paint? >>



Back to #welovesprayguns >>



Posted on

Do I need to use a spray gun gauge?

Do I need to use a spray gun gauge?

A spray gun gauge controls the amount of air, this enables accurate predictable atomisation so works in combination with spray fan pattern size control (knob adjustment). This means you can work slowly with a small fan or faster with a larger fan. Air control is usually in conjunction with wall filter regulators.



ANi COMPACT Spray Gun Full Sized Mini Kit (AH1521009A) Any compressor & any job** Includes - A.N.I. (ANI) HPS COMPACT Midi Gravity Spray Gun c/w 1.3 tip, additional 1.0 tip and needle.  500 & 250ml cup +  Gauge in a carry case. *Low Air Consumption – Can run off 24ltr Compressor, requires less than 4.5 CFM (125 litres per minute)*
Iwata AFV-1 Air Pressure Regulator (14378610)

SATA Adam 2 Removable Digital Gauge with Docking Pod
  View all Spray Gun Gauges >>

Posted on

What size nozzle tip for car paint?

What size nozzle tip for car paint?



What size nozzle tip for primer?



Car primer – 1.8 for gravity full sized; 1.2/1.4 for mini spray gun



What size nozzle tip for basecoat?



1.2/1.3 for gravity full sized; 1.0/1.2 for mini spray gun



What size nozzle tip for clearcoat?



1.2/1.3 for gravity full sized; 1.0/1.2 for mini spray gun



Posted on

Choosing the right spray gun for your paint?

Choosing the right spray gun for your paint?

Difference between gravity, suction, pressure and mini spray gun?





what is a spray gun - spray guns direct


Gravity Spray Gun

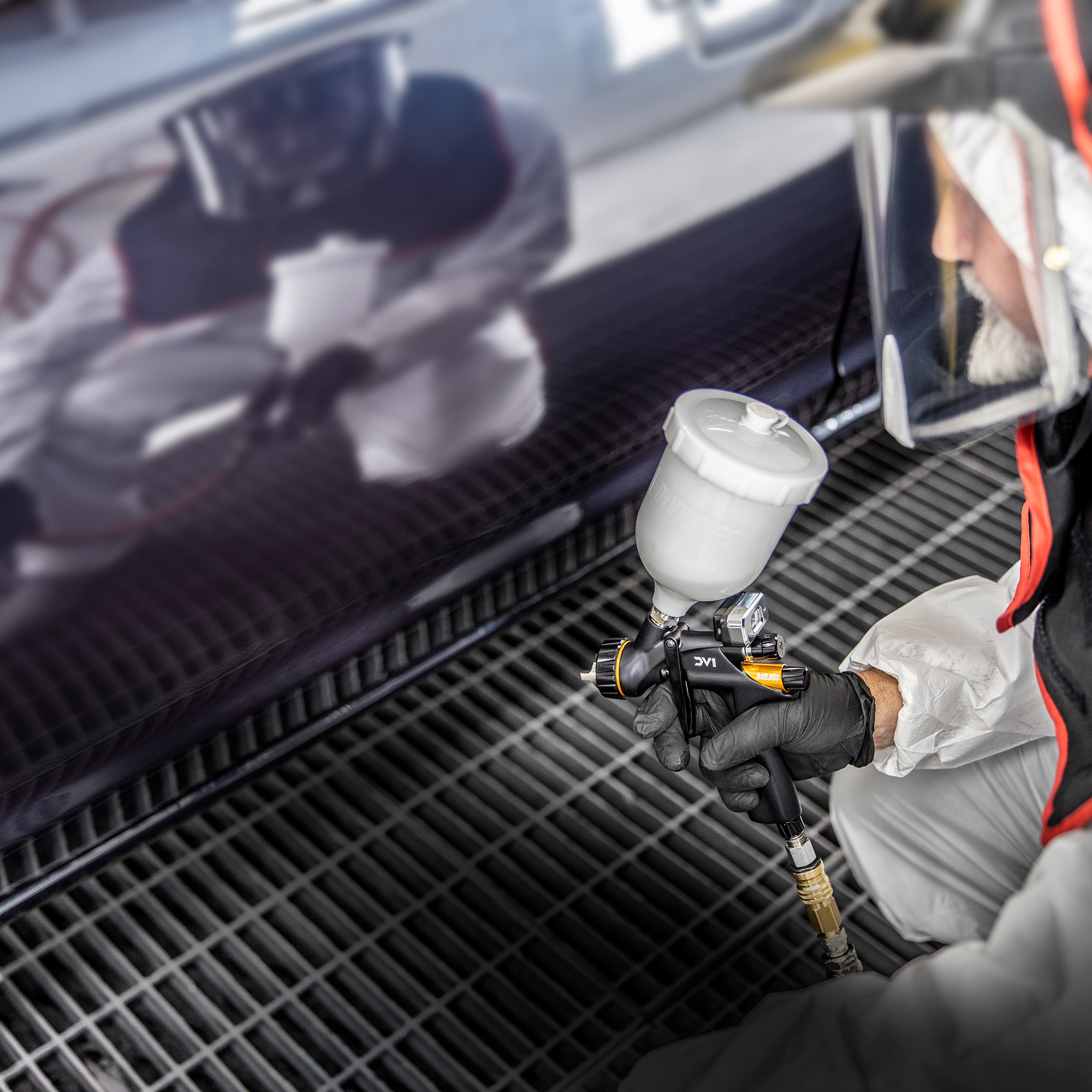

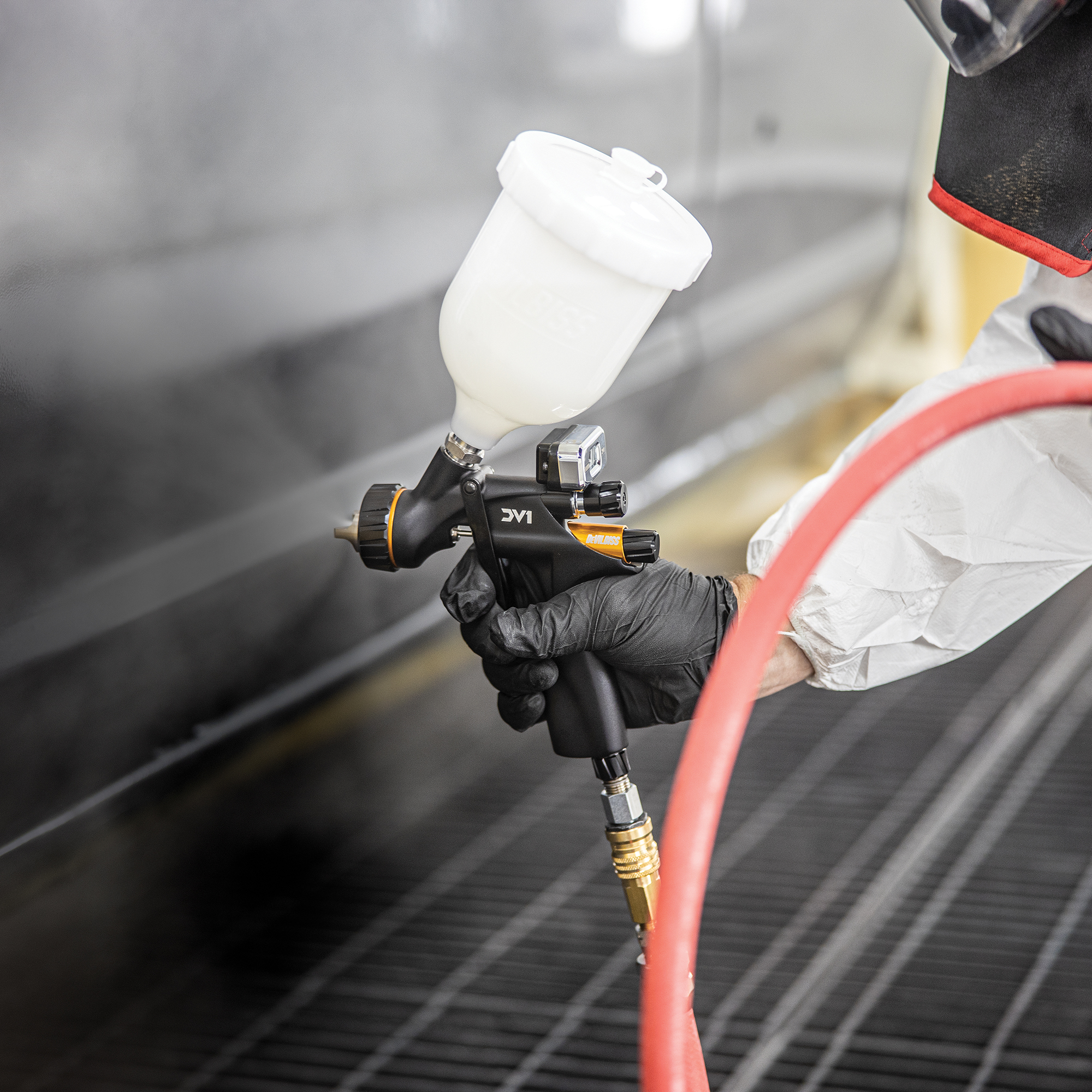

Sprayer using DeVilbiss Dv1 Clearcoat Digital Spray Gun, a full sized gravity spray gun used for full respray and larger areas.

View Gravity Spray Guns

spray gun fan pattern - DeVilbiss DV1S Spray Gun


Mini / Midi Spray Gun

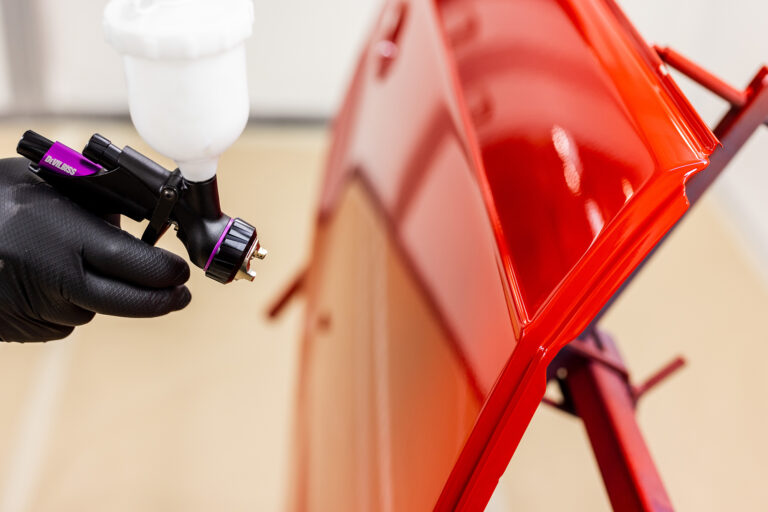

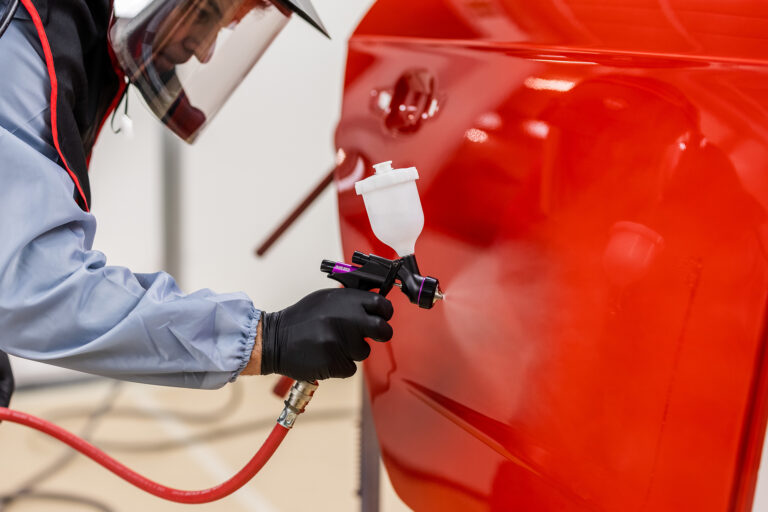

DeVilbiss DV1S Mini/Midi Spray Gun showing fan pattern when applying lacquer. (adjustable by changing spray gun controls) mini spray guns are used for smaller areas, panel, alloy wheel and smart repairs.

View Mini / Midi Spray Guns

Sagola X 4100 Gravity Spray Gun (PG10142004 / PG10142011)


Pressure Spray Gun

Sprayer using the Sagola X 4100 Series Pressure Spray Gun in most cases used for commercial vehicles,  trains, coaches, lorries or large panel sections.

View Pressure Spray Guns

Sealey Suction Feed Spray Gun (SSG2) *Cheap enough to throw away*


Suction Spray Gun

Suction spray guns usually come with a 1 litre capacity pot so used if you have a larger surface paint area (old school sprayers some times prefer this method).

View Suction Spray Guns



Follow Spray Gun selector  >>



Which spray gun brand is best?

European or Japanese?
ANi, DeVilbiss, Iwata, SATA & Sagola are the main tools of choice amongst bodyshop professionals. Read more >>




Back to #welovesprayguns >>




Posted on

How to filter compressed air for spray painting?

How to filter compressed air for spray painting?

You must install a wall mounted filter regulator to remove water and oil otherwise paint defects e.g. craters emerge. A simple solution is to run a 10-metre airline >>  from the compressor to the wall filter then add another line to the outlet to run to the spray gun.

What filter regulator do I need?

  • Single stage brings the air down to 0.5 microns which is clean enough to spray with.
  • Two stage 0.01 micron and greater capacity for long life span. Sufficient for 1-man air fed mask.
  • Three stage for minimal contaminants including odour; so the ultimate for air fed mask operation.
  • View All Filter Regulators >>
Posted on

What spray gun brand is best?

What spray gun brand is best?

European made spray guns are the best and Iwata from Japan.

The gun brands that are used by most body shop professionals are ANi (Italian) DeVilbiss (UK except the SLG), SATA (German), Iwata, Sagola (Spain).



Arguments over which is best are common; SprayGunsDirect offer all the main brand contenders.  There are characteristics that suit specific requirements that may make direction a no-brainer, but a similar question would be: which is best?  BMW, Mercedes, Audi, Jaguar or Lexus?



If you have evolved your style around one and it has worked for you then avoid switching brands unless you have the budget to experiment, we do encourage variety if you want to test drive scenarios, you can always sell on via an online preloved sales platform.



All gun manufacturers have multiple options that go way beyond simplification but if we are going to be forth right and opinionated then here it is.  All robust challenges with feedback are welcomed.



ANi – exceptional value for money, the Volkswagen option at Dacia prices.  Perfect for beginners and the price conscious.  Flagship guns now stand up with the top tier priced options.



DeVilbiss – straightforward and predictable, easy to get started with.



Iwata – often a little slower so patience is its nature and your requirement.



Sagola – the new contender at the upper end.  Adapting and evolving existing technology.  Fast and full.  For the professional in a rush.



SATA – considered precision engineering with dedicated loyalist users.  Many bespoke options.



Employees of SprayGunsDirect have been at one time or other users of all five and cannot be shifted from their favourite spray gun brand.  We have career sprayers, ex-employees of spray gun manufacturers and ex-managers of body shops resident.  We have 3 spray rooms for trials.  We test everything.  For fully independent guru level testing, reviews and engagement, we recommend the videos section of The Gunman on YouTube.



















ANi COMPACT Spray Gun Full Sized Mini Kit (AH1521009A) Any compressor & any job** Includes - A.N.I. (ANI) HPS COMPACT Midi Gravity Spray Gun c/w 1.3 tip, additional 1.0 tip and needle.  500 & 250ml cup +  Gauge in a carry case. *Low Air Consumption – Can run off 24ltr Compressor, requires less than 4.5 CFM (125 litres per minute)* DeVilbiss DV1 GAMBLER Clearcoat *Limited Edition* Spray Gun (Digital / Non-Digital) with Cup Iwata LPH80 Touch-Up Gravity Spray Gun (LUXURY EDITION) SATAjet X 5500 RP Clearcoat 1.3I CC Non-Digital Spray Gun (1174573) with RPS Multi Purpose Cup 0.6 l / 0.9 l Sagola 4600 Non-Digital Spray Gun (In Stock Very Soon) (10142401 / 10142410)



Back to #welovesprayguns >>



Posted on

#WELOVESPRAYGUNS

Below were sharing the love for limited edition and new Spray Guns, for the professional and hobbyist featuring spray guns from 3M, ANi, DeVilbiss, Iwata, Sagola and SATA. Yes we have our favourites, but that’s our secret that we can not share with you 🙂



If you would like to talk to us about “anything spray guns” “airbrush” “compressors” “air systems” get in touch by email info@spraygunsdirect.co.uk
or call +44 (0)1332 611893  “we’re here to help”

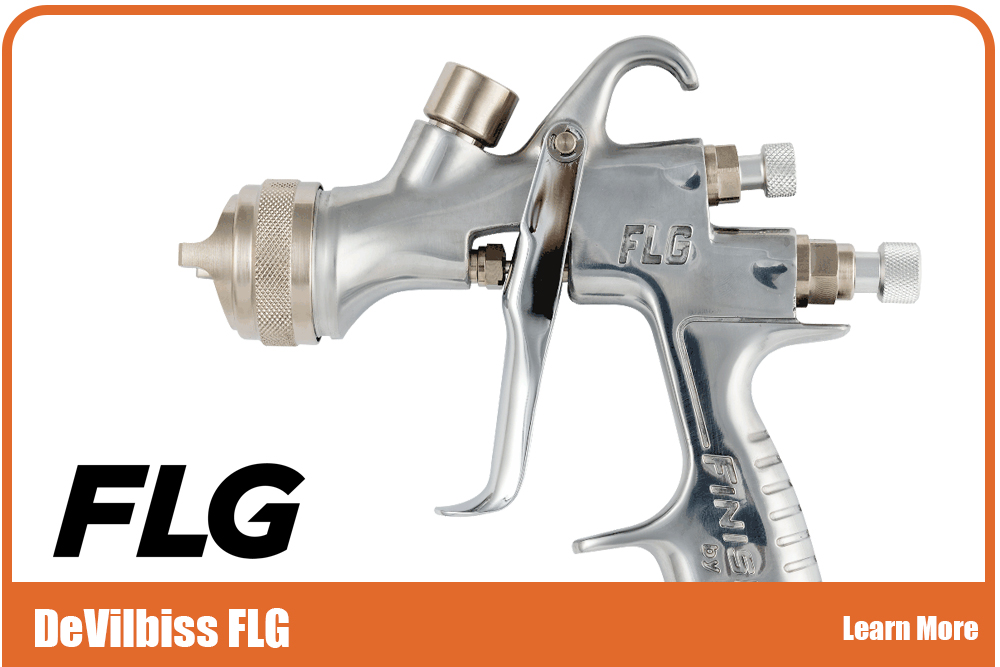

DeVilbiss FLG5 (FLG-G5) Compliant Spray Gun

Our opinion:  Best selling spray gun.  Best performer under £145 + VAT.



DeVilbiss FLG5 (FLG-G5) Compliant Spray Gun (905166 / 905167 / 905168 / 905169) *Best Seller*

DeVilbiss FLG5 (FLG-G5) Compliant Spray Gun (905166 / 905167 / 905168 / 905169) *Best Seller*



It’s the LOW COST solution from DEVILBISS!

FLG-5 is suitable for most routine spray jobs in the workshop and can also be used by DIY enthusiasts. This budget range of spray guns are available as spray gun kits in Suction and Gravity versions and there is a Pressure gun option for the larger areas requiring fast coverage without the added down time of re-filling small cups.

DeVilbiss FLG5 (FLG-G5) Compliant Spray Gun (905166 / 905167 / 905168 / 905169) *Best Seller*



Typical Applications

• Many General Industry applications
• Small Workshops
• DIY Enthusiasts
• Jobbers – Stove Enamellers
• Furniture Manufacturers (Wood and Metal)

DeVilbiss FLG5 (FLG-G5) Compliant Spray Gun (905166 / 905167 / 905168 / 905169) *Best Seller*



Suitable for these fluids

• Solvent Based Paints and Materials
• Lacquers
• Adhesives
• Oils
• Stains and Varnishes
• Sealers and Undercoats
• Wax Based Materials
• Plus Many Others

DeVilbiss FLG5 (FLG-G5) Compliant Spray Gun (905166 / 905167 / 905168 / 905169) *Best Seller* • Low cost spray guns for use with a wide range of general industrial paints and materials



• FLG-5 employ DeVilbiss Trans-Tech® atomisation for paint saving efficiency, superb finishes plus compliance with EPA legislation



• Ultra lightweight, strong, cast aluminium gun body



• Ergonomically shaped gun handle for balance, grip and comfort



• Precision engineered brass air cap and stainless steel fluid tips and needles for long service life



For More Information Please Click Here.






Iwata WS400 and LS400 Showcase Spray Gun Kits

The Showcase of Spray Guns.



Iwata WS400 Showcase Spray Gun Kit



Anest Iwata WS400 Clear



Buy Now



Fantastic performance from the designers of almost every modern Ferrari and more, Pininfarina!



Tailored set ups for all applications. An easy gun to get on with – never seems to have a critic.



New HD (High Delivery) ideal for solvent application.



Supernova has a long flat fan pattern with paint material delivered evenly across it, this gives you a superb overlap on modern paints. Essential for mottle-free basecoat application and a flat and even lay down on clears.



Fluid control is essential for colour reproduction of waterbourne basecoats, the combination of consistent stable fluid output and flat even fan pattern gives you an unmatched appilcation of modern paints. The new responsive trigger action makes application of basecoats even easier.



Weight and balance makes this spray gun an excellent choice for a comfortable repetitive strain free day in a busy modern body shop enviroment. The SUPERNOVA state of the art ergonomic design helps you achieve the results you require in todays demanding work place.



This superb spray gun delivers a consistent droplet size when atomizing, combine this with the spray guns flat even fan pattern and this will help reduce the common issues ie: boil and pin holing on HS clear coats. These issues are due to too much clear coat in one area caused by centre heavy fan patterns.



This gun takes spraying modern day HS clear coats to another level.

iwata supernova spray gun

Iwata LS400 Showcase Spray Gun Kit



Anest Iwata LS400 Base



Buy Now



Fantastic performance from the designers of almost every modern Ferrari and more, Pininfarina!



Tailored set ups for all applications. An easy gun to get on with – never seems to have a critic.



When we talked about a new spray gun, we decided we needed to be innovative, and our customers needed something new, so we enlisted the help of the world-renowned design firm Pininfarina famous for their state-of-the-art automobile design. Anxious to see how they would handle a spray gun, the Pininfarina design far exceeded our expectations. After the gun design was complete, we incorporated our advanced atomising technology, and the Supernova was born. This premium gun combines our superior atomisation control with production speed and ergonomics.



Performance: The Supernova delivers a consistent droplet size when atomising. This, combined with the flat even Supernova pattern, helps reduce common application issues. All Supernova guns are equipped with stainless steel fluid passages ideal for any type of material, solvent-borne or waterborne.



Perfect Balance: The Supernova cup angle design guarantees perfect balance regardless of what cup size you choose.



Quick Release Air-Cap: The larger thread pattern of the air cap makes it both robust and easy to remove and is designed with low maintenance in mind. The new larger grip points outside the air cap ring facilitate quick removal and refitting after cleaning.



Responsive Trigger: The responsive trigger action gives the painter stable air flow control during application. Accurate air pressure can now be set with either the air stroke or the fluid stroke.



Ergonomic Grip: An in-depth study by the University of Pavia into perfect balance and optimal ergonomics was closely considered by Pininfarina designers and Anest Iwata engineers to produce this state-of-the-art spray gun. The slim ergonomic grip of the Supernova spray gun helps distribute weight and balance through the wrist, reducing the risk of repetitive strains.





anest iwata spray guns

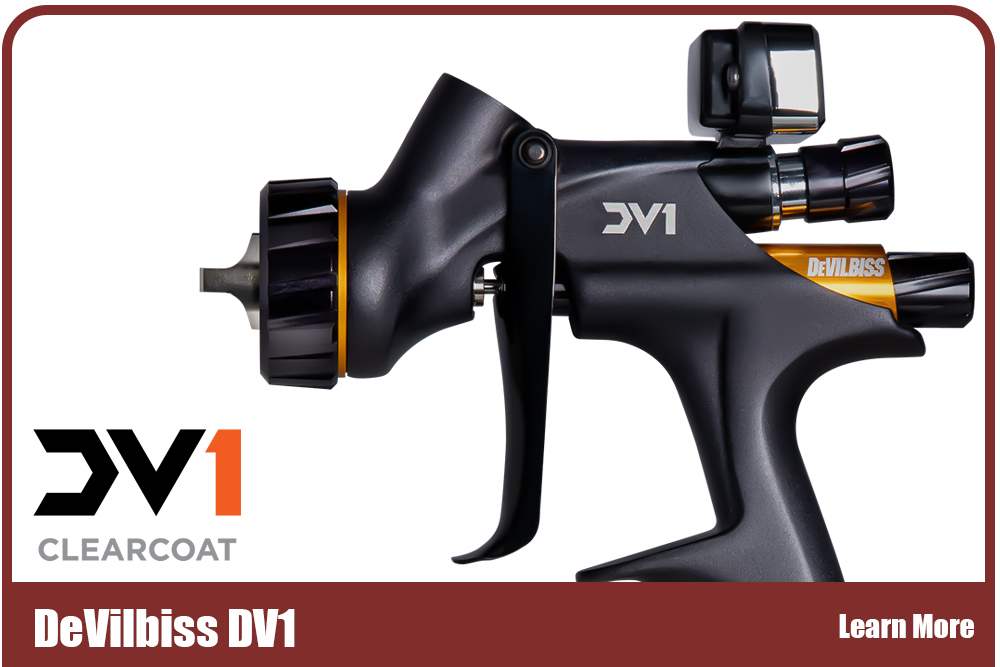

DeVilbiss DV1 Spray Gun Family

devilbiss dv1 hvlp clearcoat spray gun sprayguns directDeVilbiss DV1 HVLP Clearcoat Spray Gun






our opinion – The DeVilbiss DV1 Clearcoat Spray Gun is one of the leading clearcoats in spraying that’s on the market. offers the most refined spray pattern yet and a top spray gun if you want consistency.






View Spray Gun



devilbiss dv1 hvlp clearcoat spray gun sprayguns direct



devilbiss dv1 basecoat spray gun sprayguns directDeVilbiss DV1 Basecoat Spray Gun






our opinion – DeVilbiss DV1 Basecoat Spray Gun is the perfect spray gun for basecoat spray painting. Grade A in its category, a reliable spray gun.








View Spray Gun



devilbiss dv1 basecoat spray gun sprayguns direct



devilbiss dv1s smart repair spray gun sprayguns directDeVilbiss DV1s Smart Repair Spray Gun






our opinion – Revolutionary new airflow design for 2021 in mini form, taking the proven efficiencies from the established DV1 full-sized. THE premium choice for the auto refinishes shop for factory finish replication.






View Spray Gun



devilbiss dv1s smart repair spray gun sprayguns direct

For a more in-depth & detailed analysis of all DeVilbiss DV1 Spray Guns Please Click Here.



devilbiss dv1 spray gun clearcoat basecoat dv1s smart repair spot repair hvlp sprayguns direct






DeVilbiss DV1 Basecoat Spray Gun Silver/Olive Edition

Joining the lineup of DeVilbiss DV1’s is the DV1 Basecoat in its silver / olive design.

devilbiss dv1 basecoat spray gun silver olive sprayguns direct devilbiss dv1 basecoat spray gun silver olive sprayguns direct



Professional painters understand the importance of proven spraying equipment. It is critical to have tools that not only deliver optimal performance, but also enable painters to be more successful at their trade.



The leading technicians, engineers, and designers at DeVilbiss have worked with these professional painters to create a spray gun designed specifically for painters who demand consistent, exceptional performance from their spray gun.



Introducing the DV1 – a revolutionary spray gun platform from DeVilbiss Automotive Refinishing – and a new standard in basecoat spray painting equipment.



For a more in-depth & detailed analysis of all DeVilbiss DV1 Spray Guns Please Click Here.



devilbiss dv1 basecoat spray gun silver olive sprayguns direct






The Brand New Sagola 4600

The Sagola 4600 Gravity Spray Gun – Our best spray guns just got better!

Sagola elcometer 4600 Spray Gun sprayguns direct

Efficient

Ultra-fine atomization and less overspray for an industry leading transfer efficiency.

Easy

Stable fan pattern, uniform from top to bottom, for precise colour matches, seamless transitions, and blends with easier overlapping.

Effortless

It’s so easy to use, you get a professional finish every time, with minimal effort.

Sagola elcometer 4600 Spray Gun sprayguns direct

Even

A flawless finish with even particle distribution with minimal patching.

Ergonomic

Designed to be so comfortable you forget you are holding it.

Economic

Less air, less bounce back for the same
flawless result with Dynamic Flow Technology™



Sagola elcometer 4600 Spray Gun sprayguns direct

Dynamic Flow Technology™

Dynamic Flow Technology™ harnesses the ambient air around the aircap allowing the Sagola 4600 spray gun to provide a flawless finish even at lower working pressures.

DFT ™ Gives you:

• Greater fan stability.
• Superior atomization.
• Uniform fan from top to bottom.
• Less bounce back, less overspray.
• A more precise application with easier overlapping.
• Less painting defects such as shadowing, patch coats and striping.
• An even paint distribution – ideal for difficult base colours such as metallics, silvers, pearls.



New Sagola 4600 BASE CLEAR CLEAR PRO HVLP Spray Gun - Spray Guns Direct

New Sagola 4600 BASE CLEAR CLEAR PRO HVLP Spray Gun - Spray Guns Direct

Dynamic Flow Technology™:



Dynamic Flow Technology (DFT™) harnesses the ambient air around the aircap allowing the Sagola 4600 spray gun to provide a flawless finish even at lower working pressures.



Experience enhanced performance with the Sagola 4600, featuring greater fan stability, superior atomization, and a uniform fan pattern from top to bottom. Benefit from less bounce back and overspray, allowing for a more precise application with easier overlapping. Say goodbye to painting defects like shadowing, patch coats, and striping, as the Sagola 4600 ensures an even paint distribution, perfect for challenging base colors such as metallics, silvers, and pearls.



Metal to Metal Technology (M2M™):



With fewer joints and wear parts, M2M™ technology ensures easy maintenance and low costs over time, offering reliability and robustness in every application.

Sagola elcometer 4600 Spray Gun sprayguns direct

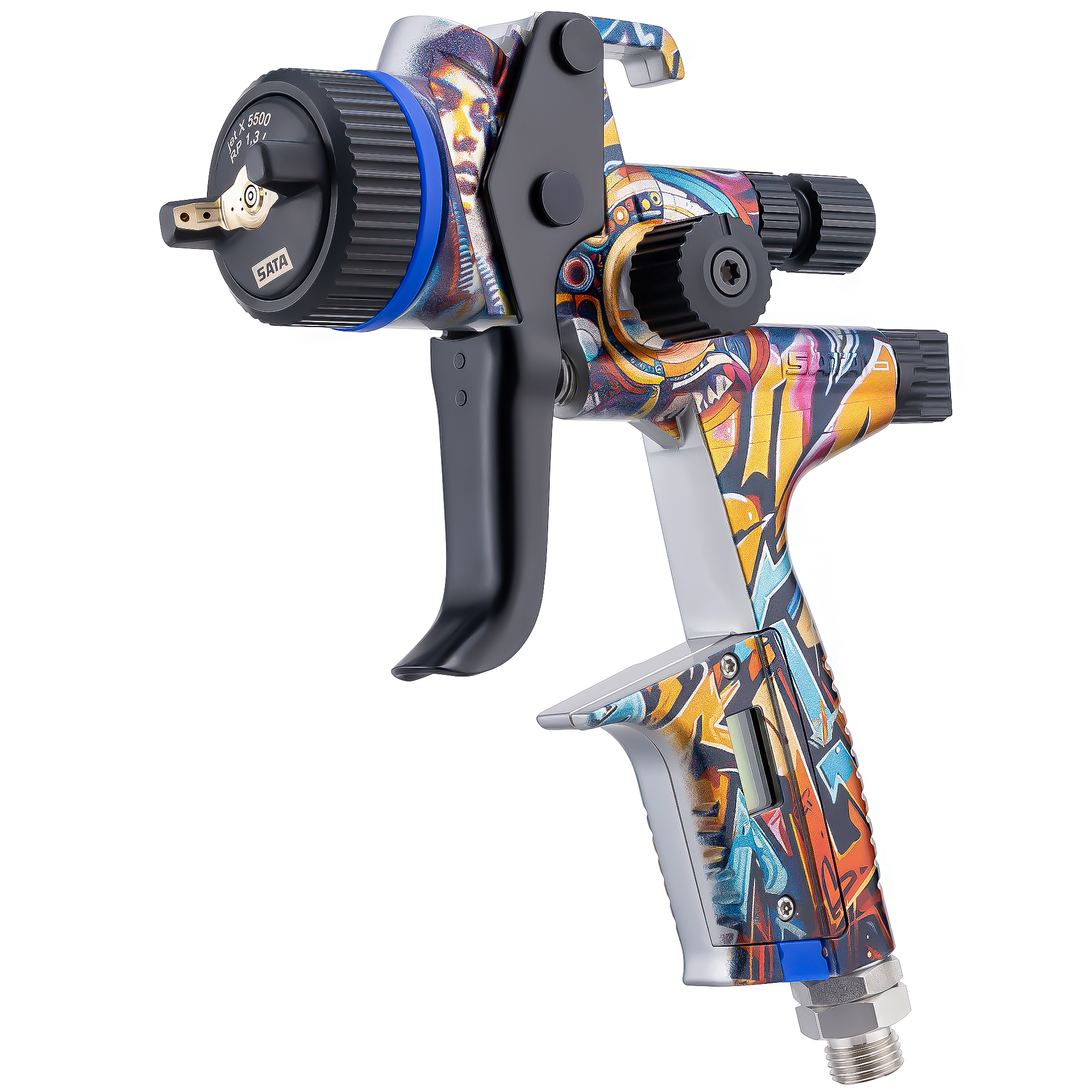

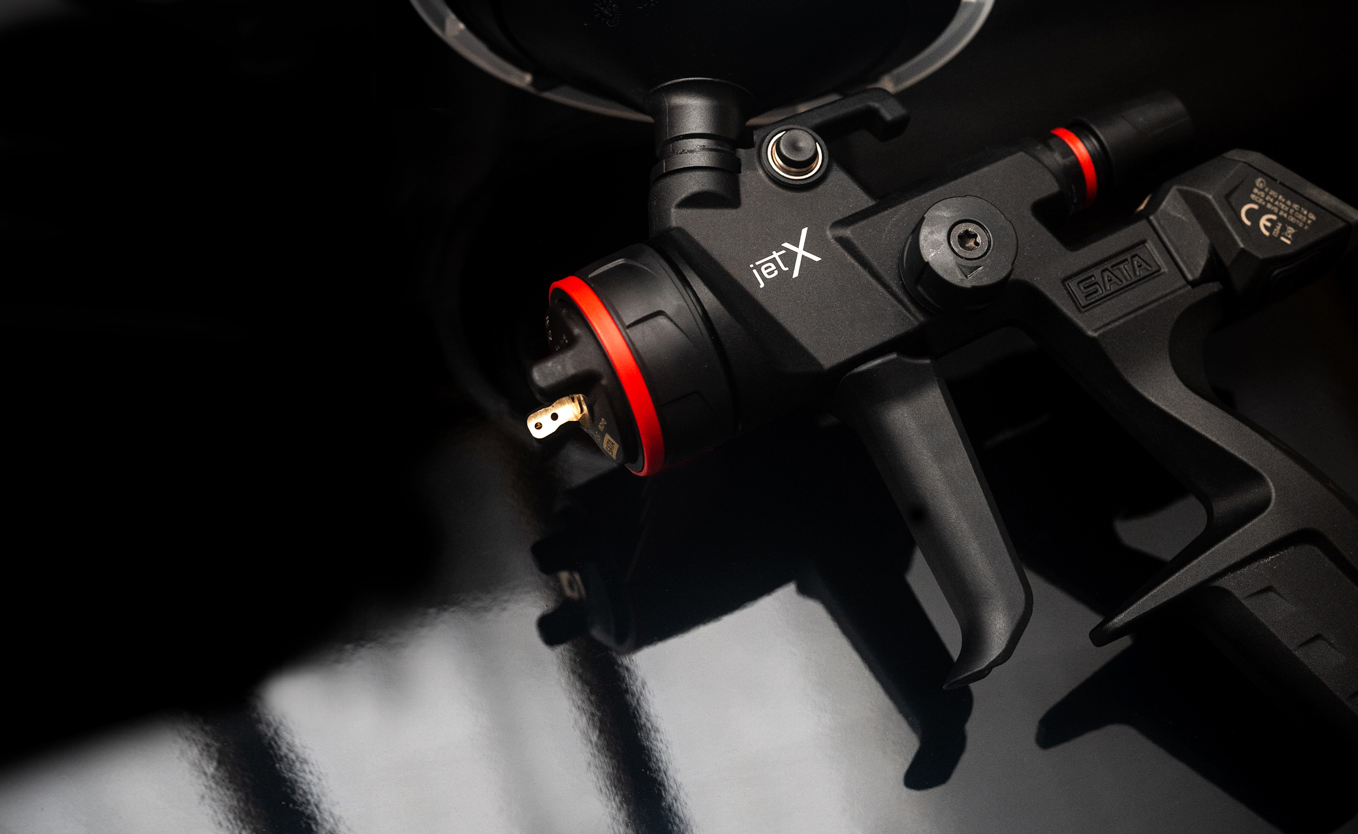

SATAjet 5500 Spray Guns

Solidly Engineered for Factory Finish Replication



SATAjet 5500 digital spray gun



SATAjet X 5500
Digital with RPS Cup



The latest SATA paint spray gun for highest demands. With the X nozzle system, painters are able to cope with all paint systems and application recommendations. In addition, the whispering nozzle significantly reduces noise and gives bodyshops a more pleasant painting experience – all while using less material.



View Spray Gun

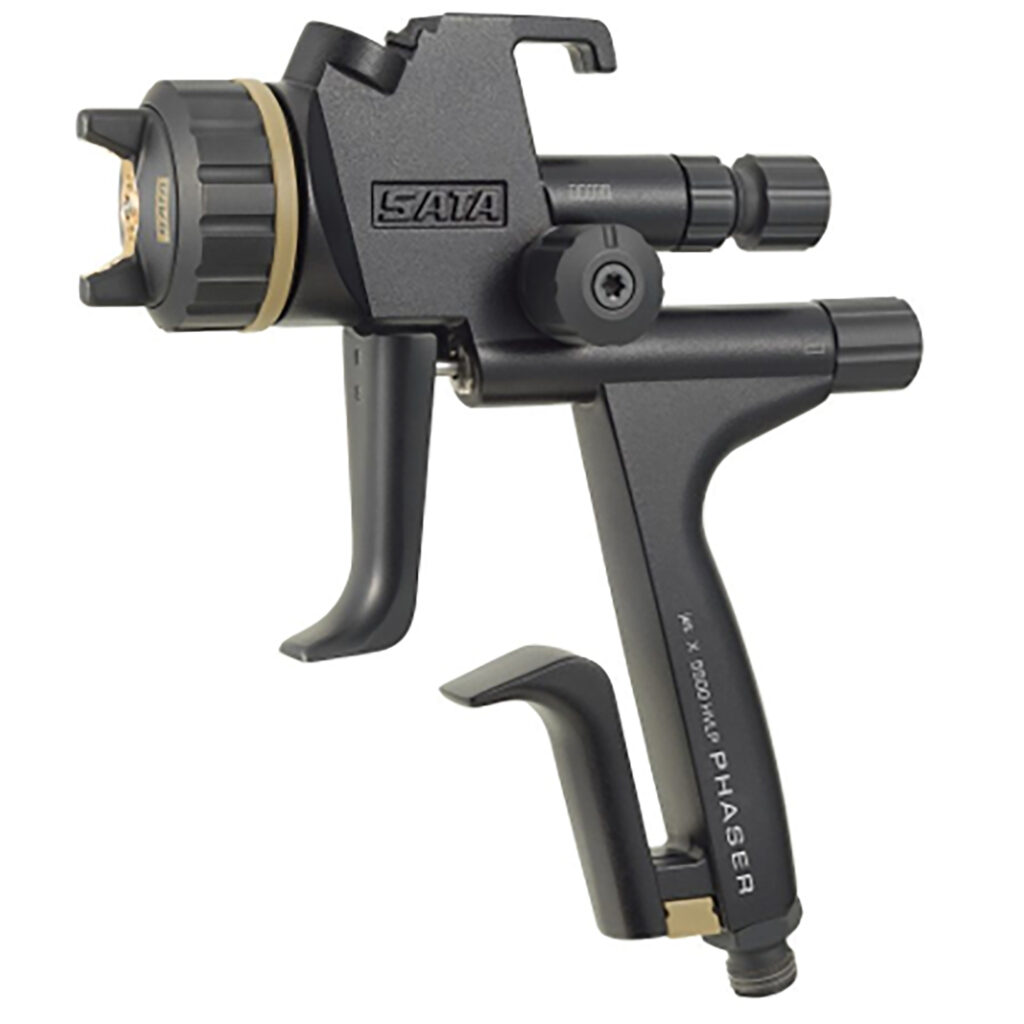

SATAjet 5500 digital spray gun Phaser designed by Porsche



SATAjet X 5500 PHASER Spray Gun Designed by Porsche



Developed with its outstanding design, materials and a unique concept for your very special projects. The unusually elegant design was developed in cooperation with Porsche Design Studio. Technically the PHASER is identical to the top model SATAjet X 5500. It has the same nozzle concept and all the other convincing features that make the SATAjet X 5500 an outstanding spray gun.



View Spray Gun

SATAjet 5500 spray gun Clear Coat



SATAjet X 5500 Clear Coat Edition



Impresses with its newly developed, special nozzle set for clear coat application. The optimised material distribution in combination with a finer atomisation allows users to achieve closed wetting even at a low layer thickness.



View Spray Gun






The ANi Compact 1.3mm Spray Gun “The GAME CHANGER”



It’s Small Compressor Friendly* A Midi Gravity Spray Gun – Sprays Custom-Smooth like a £300 gun, the real gem is this Midi Spray Gun performs like a full size Spray Gun with very nice fan pattern consistency for a professional finish.





Our opinion: A compliant (passes transfer efficiency regulation tests) superbly engineered mid sized spray gun with a fan that opens up beyond 20 cm yet runs off a small compressor.  The only gun of its type: smooth applier that is engineered to require less air yet at a sensible price.  P.S. appealing to owners of even bigger compressors, a game-changer.



Suitable for Water Based & Solvents paints, 1K & 2K Clearcoats.

A.N.I. (ANI) HPS COMPACT Spray Gun *Low Air Consumption*Midi Gravity - Italian Quality, Sprays like Guns 3x the Price ANi COMPACT *Small Compressor Friendly* Midi Gravity Spray Gun – Sprays Custom-Smooth like a £300 gun



A.N.I. (ANI) HPS Compact Midi Gravity Spray Gun is a medium sized, lightweight and highly detailed Spray gun that is designed for spraying jobs of a scope and scale that is as good as you can get from a small compressor whilst still spraying custom smooth. Comes complete with a 500ml cup.



Top-quality product at this price point.



ANi COMPACT *Small Compressor Friendly* Midi Gravity Spray Gun – Sprays Custom-Smooth like a £300 gun






LUXURY GOLD – The Iwata LPH-80



In the field of painting equipment, the extraordinary LPH-80 spray gun stands out, an icon of performance and precision in the world of Spot Repair. Today we focus on its special edition, the “Luxury Edition”, a masterpiece that combines the technical excellence of the classic LPH-80 with a touch of unparalleled luxury.



The LPH-80 Luxury Edition presents itself with an extraordinary design and a golden coating, a symbol of refinement and exclusivity. Every detail, from the ergonomic grip to the articulated body of the gun, has been carefully shaped to combine elegance and functionality. This jewel is not just a working tool, but a work of art that reflects commitment to aesthetics and performance.



our opinion – A spray gun which is ideal for backgrounds, spot repair, blending, shading and touch up. The best selling touch up spray gun.

Anest Iwata LPH-80 LUXURY Edition SprayGun LPH-80 LUXURY Edition Spray Gun Anest Iwata



Anest Iwata LPH-80 Gold Luxury Spray Gun Iwata LPH80 Touch-Up Gravity Spray Gun (LUXURY EDITION) Iwata LPH80 Touch-Up Gravity Spray Gun (LUXURY EDITION) Anest Iwata LPH-80 Gold Luxury SprayGun



Anest Iwata LPH-80 LUXURY Edition Spray Gun






Three Brand New Additions to the DeVilbiss DV1 Family.

SHOW YOUR TRUE COLOURS.

devilbiss dv1 new school and old school clearcoat basecoat digital and non-digital spray guns sprayguns direct

devilbiss dv1 limited edition old school spray gun sprayguns direct



DeVilbiss DV1 Old School *Limited Edition* Spray Gun



The DeVilbiss Old School Spray Gun with a throwback, taking inspiration from the DeVilbiss GTi Pro Lite VIGILANTE Spray Gun.

An Old School Vigilante



View Spray Gun



devilbiss dv1 limited edition new school spray gun sprayguns direct



DeVilbiss DV1 New School *Limited Edition* Spray Gun



A Familiar Design from the DeVilbiss GTi Pro Lite NEBULA Spray Gun, this time in the form of the DV1 New School. A Fan Favourite.

A New Nebula



View Spray Gun

devilbiss dv1 limited edition gambler spray gun sprayguns direct



DeVilbiss DV1 Gambler *Limited Edition* Spray Gun



Insipred by the Casinos of Los Vegas the DV1 Gambler has an all new stunning full body wrap.

Double Down & Gamble.



View Spray Gun

devilbiss dv1 gambler spray gun sprayguns direct








Circuit Edition – DeVilbiss DV1 Clearcoat Spray Gun



A new addition to the DV1 Family, this time in the form of a limited edition spray gun with a ‘circuit’ design etched into the distinctive matte black body of the original DV1 Clearcoat.



Each kit featured a 1.2mm and 1.3mm fluid nozzle, tool kit, a digi pro digital BAR gauge and a choice between C1+ and a C2+ Aircaps.

The C1+ is a slower, controlled application and it is easy to get a flat, glasslike finish – ideal for lower viscosity clears. The C2+ has a faster application speed and it is easier to achieve an OEM finish with – ideal for higher viscosity clears.



EXPERIENCE THE NEXT GENERATION OF CLEARCOAT APPLICATION

Silent-action trigger designed to remove sideways and rotary play to deliver a soft, smooth pullQuick-release air cap for quick and easy changes and easy access to the fluid tip Integrated digital gauge placed in-line at eye level for quick, easy checking while providing precise inlet pressures for optimal gun performance Streamlined gun body with an ultra-comfortable ergonomic fit and feel to provide sprayers balance, optimal control and less fatigue Reconfigured air adjusting valve placed in an ergonomic location for more comfort and 12 times the sensitivity for precise air control adjustments and smoother air flow Simplified air valve for maximized fluid needle alignment and durability, minimized component wear and easier removal and serviceability

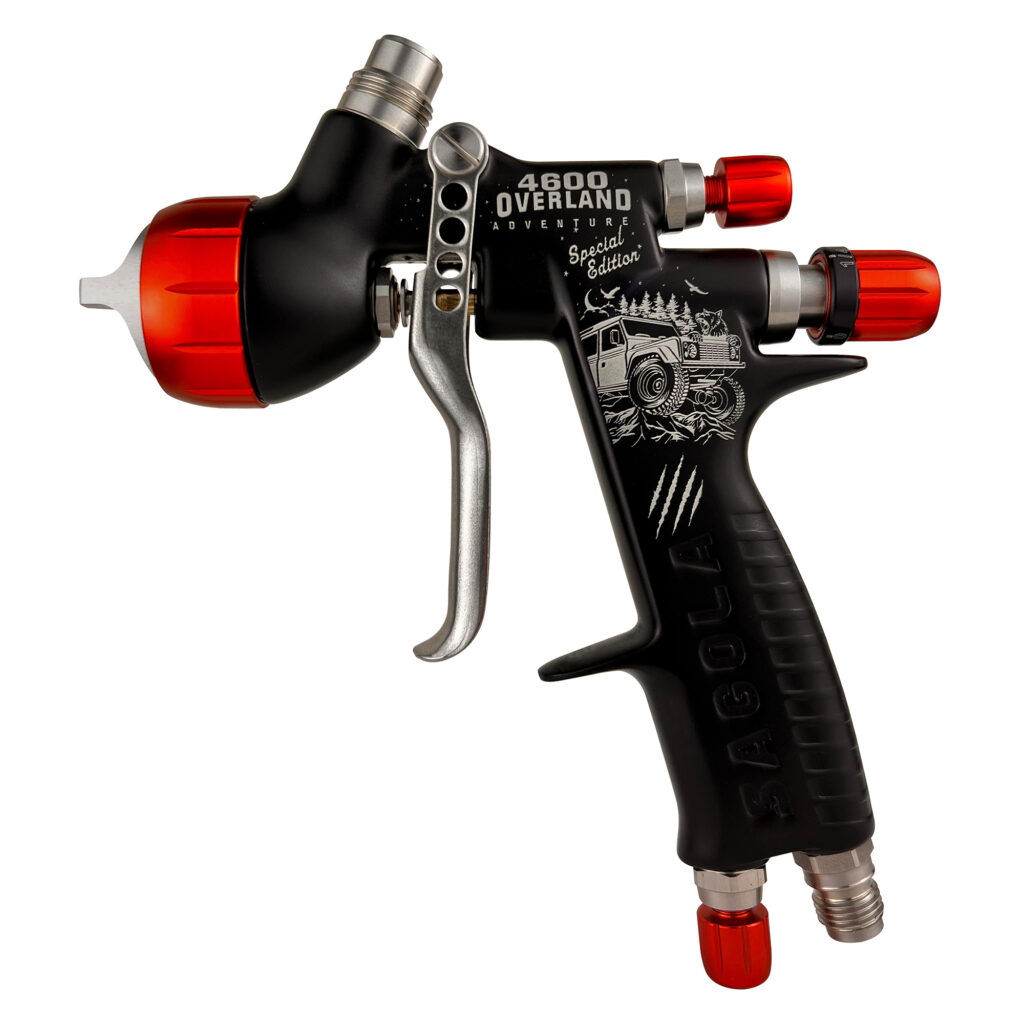

Overland Adventure – Sagola 4600 Limited Edition Spray Gun

Welcome to Sagola’s new special edition 4600 Overland Adventure. Designed to replace the successful 4600 Trophy Truck.

This gun features different fluid tips, including the 1.2, 1.2XL, 1.3, 1.3XL, 1.4 and the Titania Pro aircap, which is highly appreciated by professional painters due to its large fan and mirror finish, especially suitable for fast drying and last generation clears.



Sagola 4600 Overland Adventure Limited Edition Spray Gun Sagola 4600 Overland Adventure Limited Edition Spray Gun



Sagola 4600 Overland Adventure Limited Edition Spray Gun

Welcome to the Overland Adventure.

The Sagola 4600 Overland Adventure has all the qualities of the Sagola 4600 Xtreme, such as excellent atomisation, precise control system and low noise level. In addition, thanks to Sagola’s Metal To Metal technology, it has no plastic seals, making it extremely easy to clean and maintain in top condition.

But what makes this gun unique and special is its design inspired by overland culture and adventure. If you are a lover of automotive paint and the great outdoors, the Sagola 4600 Overland Adventure is the perfect gun for you. Plus, its overland-inspired design will make you feel like you’re on an epic adventure every time you use it.



So don’t wait any longer and get the Sagola 4600 Overland Adventure gun to take your paint job to new territories.






ANi Skull Spray Gun

An Exclusive Limited Edition Spray Gun to us here at SprayGunsDirect.



ANi Skull Spray Gun











An Exclusive to us here at SprayGunsDirect. This Spray Gun is unique to us and is not available to purchase anywhere in the world.





ANi Skull Spray Gun















This new paint gun designed by ANi, allows you to have professional painting in 3 different ways, simply by changing the cap and adjusting the air pressure according to the cap used. It works like a classic gun, except that with a simple gesture it is possible to change the painting mode, optimizing working times as much as possible. With this innovation, ANi is increasingly responding to the multiple demands of today’s bodybuilders.

ANi Skull Spray Gun















Available to purchase as the spray gun on its own or as a kit which comes with the 1.3mm Skull Spray Gun, a WB (Water-Based) Aircap, a HVLP (High Voltage Low Pressure) Aircap, a Clear (Clearcoat) Aircap, a TMD1 Digital Gauge, 600ml Gravity Cup, a service kit and the ANi Skull Carry Case.



An ANi Skull Trucker Cap and T-Shirt are also available with some variants of this spray gun.









THE WORLD’S FIRST THREE FOR ONE SPRAY GUN WB – CLEAR – HVLP! This new paint gun designed by ANI, allows you to have professional painting in 3 different ways, simply by changing the cap and adjusting the air pressure according to the cap used. It works like a classic gun, except that with a simple gesture it is possible to change the painting mode, optimizing working times as much as possible. With this innovation, ANI is increasingly responding to the multiple demands of today’s bodybuilders.



ANI SKULL SPRY GUN SPRAYGUNS DIRECT

Posted on

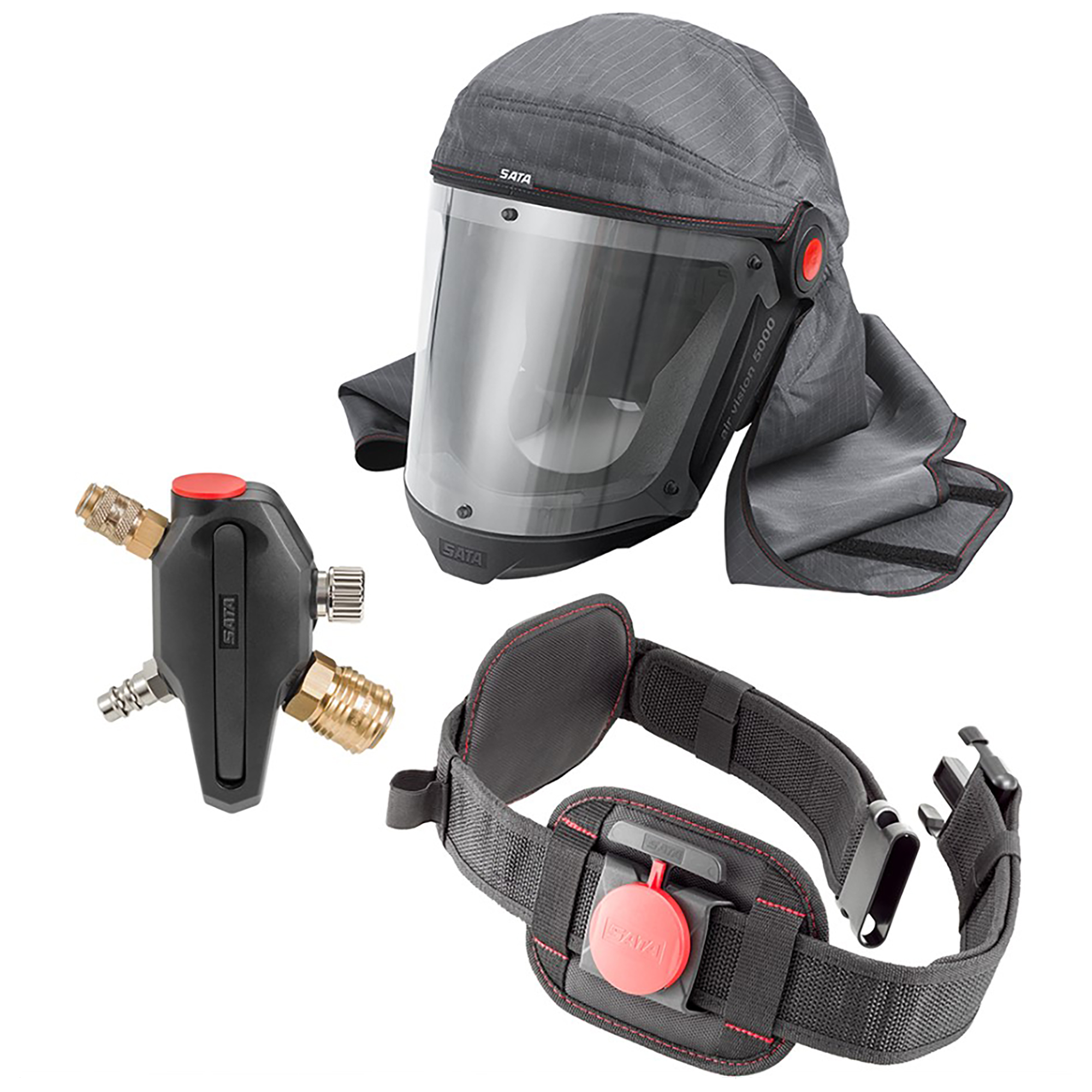

Spray Gun and Airfed Equipment

Disposable Paint Spraying Systems



What are the benefits to disposable paint preparation and spraying systems?



Hygiene & Cleanliness

There are many benefits to disposable paint spraying systems for use with spray guns such as disposable cups eliminate the need for solvent cleaning, reducing exsposure to potentially harmful chemicals and also promoting a cleaner work environment.



Versatility

Disposable paint spraying systems are very versatile as they are compatible with various types of paint such as water-based, oil-based or solvent-based which makes them suitable for a wide range of paint projects.



Reduce Waste & Environmental Impact

While disposable paint cup systems generate waste, they can also contribute to reducing overall waste production. Traditional paint cups require regular cleaning, which consumes water and cleaning agents. Disposable cups eliminate the need for these resources and reduce the environmental impact associated with cleaning and maintenance.



Cost Effective & Time Saving

Designed to offer a cost-effective and time-saving option, this paint systems provide quick colour changes and exceptional convenience.



What are the different disposable paint spraying systems available?



3M PPS (Paint Preparation System) Series 1



Innovation. Efficiency. Productivity. These are the values you’ve come to expect from 3M.



A well establised and trusted system for the mixing and preparation of refinish paint prior to spraying. Disposable, closed paint mixing system which eliminates the need for separate traditional spray gun mixing pots and paper filters.



Disposable liners and lids with built-in filters form a closed system allowing the spray gun to function at any angle. No cup cleaning, only the spray gun needs cleaning, saving time and cleaning fluid, increasing paintshop efficiency.



3m pps paint preparation spraying system series 1 for spray guns sprayguns direct 3m pps paint preparation spraying system series 1 for spray guns sprayguns direct



3M delivers all 3 values with the PPS™ Paint Preparation System. This innovative system increases efficiency by eliminating the need for traditional mixing cups and paint strainers.



– Unlike traditional spray cups, paint is mixed and sprayed out of the same PPS™ liner with a lid and built-in filter.

– Specifically designed adapters allow painters to use the PPS™ system with virtually any spray gun.

– Safe from outside contamination, the PPS™ system offers a cleaner, more efficient solution for all repairs.



The key benefits of the 3M PPS Paint Preparation System include:



• Only one PPS™ cup for mixing and spraying

• Enables painters to mix less paint

• Used for all painting applications such as Primer, Base Coat and Top Coat

• Up to 70% saving of cleaning solvent

• Closed system – no outside contamination

• Faster system – from mixing to disposal

• Less operator exposure to solvents and reduction in VOCs

• Spray gun functions at any angle

• Available in 4 sizes: 180, 400, 650 & 850ml



3m pps1 paint preparation system for use with spray guns sprayguns direct






3M PPS (Paint Preparation System) Series 2







Innovation. Efficiency. Productivity. Upgraded. These are the values you’ve come to expect from 3M.



3M™ PPS™ Series 2.0 Kits is our next generation, highest performing disposable spray cup system for mixing/measuring, filtering, spraying in any direction (360° spray rotation) and protecting coatings not in use. Each lid and liner kit contains 50 disposable lids with integrated collars and full diameter filters, 50 disposable liners, 1 reusable hard cup and 32 sealing plugs.

3M™ PPS™ Series 2.0 Kits contains 50 disposable lids with 200 micron or 125 micron filters, 50 disposable liners, 1 reusable hard shell cup and 32 sealing plugs. They are great for mixing/measuring, filtering and spraying in any direction (360° spray rotation) and for temporary sealing and protection of sprayable coatings. Lid and liner sizes include: 3M™ PPS™ Series 2.0 Lid & Liner Kit Mini Size for use with 200 ml 3M™ PPS™ Cups Series 2.0 – excellent for spot repairs and 1-panel repairs 3M™ PPS™ Series 2.0 Lid & Liner Kit Midi Size for use with 400 ml 3M™ PPS™ Cups Series 2.0 – great for 2-panel repairs 3M™ PPS™ Series 2.0 Lid & Liner Kit Standard Size for use with 650 ml 3M™ PPS™ Cups Series 2.0 – excellent for 3-panel repairs 3M™ PPS™ Series 2.0 Lid & Liner Kit Large Size or use with 850 ml 3M™ PPS™ Cups Series 2.0 – ideal for 4-panel repairs.



3m pps paint preparation spraying system series 2 for spray guns sprayguns direct 3m pps paint preparation spraying system series 2 for spray guns sprayguns direct
3m pps paint preparation spraying system series 2 for spray guns sprayguns direct






Colad Snap Lid System

colad snap lid system for spray guns sprayguns direct



colad snap lid system for spray guns sprayguns directLets Make it Simple



Are you ready to speed up your paint process and achieve high-quality results? Our Snap Lid System® offers the fastest and easiest solution for preparing and spraying paint.







colad snap lid system for spray guns sprayguns directLay it on Thick or Thin

Snap Lid System is suitable for any type of paint, thanks to the four different types of filters. Use one system for clear coat, waterborne & conventional base coat and primer. With Snap Lid System you can choose the right micron filter for the desired paint result.



colad snap lid system for spray guns sprayguns direct





















Size Does Matter

Colad Snap Lid System comes in different sizes, making it a paint application system suitable for every job. With our medium cup for smaller paint surfaces, our standard cup for average paint jobs and the large cup for the big jobs there’s an efficient solution for every paint job.

colad snap lid system for spray guns sprayguns direct

colad snap lid system for spray guns sprayguns directConnect Any Spray Gun

Our Snap Lid System is suitable for almost all types of spray guns. Use our Snap Lid Adapter tool to find the right adapter for your spray gun. Can’t find the right adapter? Contact us and we’ll help you connect Snap Lid to your spray gun!





Find Your Adaptor Here

colad snap lid system for spray guns sprayguns direct
colad snap lid system for spray guns sprayguns direct






DeVilbiss DeKups

devilbiss dekups paint mixing and spraying system for spray guns sprayguns direct











The DeVilbiss DeKups disposable cup system is the quick, easy and secure way to spray. The lightweight cup liner collapses easily providing a constant paint flow and minimal paint wastage which is better for your spray shop and the environment. With the full DeKups disposable cup system kit available, we also stock adaptors.

devilbiss dekups paint mixing and spraying system for spray guns sprayguns direct

The ultimate in productivity – Saves Time and Moneydevilbiss dekups paint mixing and spraying system for spray guns sprayguns direct



• Better fluid fow for great color match



• Positive locking gun connection



• Refill without opening the cup



• Increase productivity and efficiency with DeKups



devilbiss dekups paint mixing and spraying system for spray guns sprayguns direct






DeVilbiss Snap ‘N’ Flow

devilbiss snap and flow snap n flow for use with spray guns sprayguns direct



devilbiss snap and flow snap n flow for use with spray guns sprayguns direct









Snap-n-Flow is as quick as the blink of an eye!



By using the Snap-n-Flow disposable mug system, your automotive refinishing work will be faster, more efficient, and easier.



The system offers many benefits to workshops and painters, including:



• Requires fewer steps

• Improves colour matching

• Minimizes ink usage

• Creates less mess and cleaning is faster

• Provides easy options for storing paint

• Offers greater savings in materials and time

devilbiss snap and flow snap n flow for use with spray guns sprayguns direct





devilbiss snap and flow snap n flow for use with spray guns sprayguns direct



1) Mix
Mix the paint inside the mug. Use the flat lid to shake.

devilbiss snap and flow snap n flow for use with spray guns sprayguns direct



2) Connect
Fit the lid onto the mug. Install the adapter on the spray gun, if necessary. Hold the trigger, and adjust the gun into the cover by turning it to the lock position.

devilbiss snap and flow snap n flow for use with spray guns sprayguns direct



3) Paint
Turn the gun to normal position and start painting. You already know how to do this very well!



devilbiss snap and flow snap n flow for use with spray guns sprayguns direct devilbiss snap and flow snap n flow for use with spray guns sprayguns direct
devilbiss snap and flow snap n flow for use with spray guns sprayguns direct






SATA RPS (Rapid Preparation System)

sata rps cups for use with spray guns sprayguns direct













Multi-functional. Simple. No compromises.sata rps cups for use with spray guns sprayguns direct



The SATA RPS (Rapid Preparation System) multi-purpose cup system fulfils four functions: mixing, painting, refilling and storing. The handling of SATA RPS is so simple because it consists of only three parts: SATA RPS fits directly onto your SATA spray gun with QCC connector (Quick Cup Connector) without any disturbing adapters. Due to the short colour channel and without unnecessary corners and edges, material deposits in the colour channel are prevented.



Product Benefits



♦ Bendable – allows the painting of sill areas or wheel arches “overhead” ♦ Stable – due to the screw connection between cup and lid, the cup always remains on the lid and gun even when touching obstacles. ♦ Easy removal of the lid in case of emergency – without soiling the working area ♦ Clean removal of the cup – by pressing the cup in, vacuum is created, which empties the material passage when pulling the trigger. ♦ Constant material flow – helps the painter to achieve perfect coating results just like child’s play ♦ Very quick colour change – Cleaning becomes a minor matter ♦ Available in 3 cup sizes: 0.3 l, 0.6 l and 0.9 l ♦ Available as UV version: 0.6 l





     Suitable Areas of Application



sata rps cups for use with spray guns sprayguns direct sata rps cups for use with spray guns sprayguns direct
sata rps cups for use with spray guns sprayguns direct






Sagola DPC (Disposable Paint Cup) System

Sagola DPC (Disposable Paint Cup) System for use with spray guns sprayguns direct







The Sagola DPC™ Disposable Paint Cup System by Elcometer offers a cost effective, time saving, quick colour change solution for today’s busy spray shop professionals.



Sagola DPC (Disposable Paint Cup) System for use with spray guns sprayguns direct







Sagola DPC™ Disposable Paint Cup System



Easy to Use: On-cup ratios and fill markings reduce the reliance on traditional mixing cups, just fill, mix and spray!



Easy to Store: To store unused paint between coats simply fit the Cup Seal Plug and store it upside down to keep the filter wet.



Easy to Change: With a range of adaptors to fit Sagola Gravity Spray Guns as well as other manufacturers’ guns, starting to use Sagola DPC™ System couldn’t be easier



Easy to Clean: Compared to traditional gravity cups the Sagola DPC™ System significantly reduces cleaning time and solvent use.





Sagola DPC (Disposable Paint Cup) System for use with spray guns sprayguns direct











1 – Tough Plastic ABS Cup
with integrated measuring guides. Available in a range of volumes from 100ml – 800ml (3.38 – 27 fl oz).



2 – Disposable Liner
recyclable and designed to collapse evenly.



3 – Screw Collar

with integrated cup seal.



4 – Domed Lid & Filter
integrated, full-diameter filter for consistent paint flow.



5 – Adaptor
with enhanced twist lock connector. Compatible with all Sagola spray guns as well as other manufacturers’ guns.



6 – Cup Seal Plug
for storing paint whilst not in use.

Sagola DPC Size Guide
Sagola DPC (Disposable Paint Cup) System for use with spray guns sprayguns direct

Sagola DPC (Disposable Paint Cup) System for use with spray guns sprayguns direct



Switching to the Sagola DPC™ System is hassle-free with a range of adaptors available to fit Sagola Gravity Spray Guns as well as other manufacturers’ guns. Start enjoying the benefits of this innovative paint cup system today.



Choose Sagola DPC™ for a cost-effective, time-saving, and easy-to-use solution that meets the demands of busy spray shop professionals. Experience the convenience and efficiency it offers, and take your painting projects to the next level.

Sagola DPC (Disposable Paint Cup) System for use with spray guns sprayguns direct

Sagola DPC (Disposable Paint Cup) System for use with spray guns sprayguns direct



The disposable liner is not only recyclable but also designed to collapse evenly, making clean-up a breeze. With the domed lid and integrated full-diameter filter, you can enjoy consistent paint flow for seamless spraying results.



The screw collar with an integrated cup seal ensures a secure and leak-free connection, while the enhanced twist lock connector on the adaptor guarantees compatibility with all Sagola spray guns. You can rely on the Sagola DPC™ System to work seamlessly with your equipment.



For those who prefer efficiency, the Sagola DPC™ System allows you to store unused paint by simply fitting the Cup Seal Plug and storing the cup upside down to keep the filter wet. No more wasted paint or messy clean-ups between applications.

Sagola DPC (Disposable Paint Cup) System for use with spray guns sprayguns direct



Featuring a tough plastic ABS cup with integrated measuring guides, the Sagola DPC™ ensures accurate paint mixing every time. Available in a range of volumes from 100ml to 800ml (3.38 – 27 fl oz), you can choose the perfect size for your specific needs.



When it comes to storage, the cup seal plug allows you to store paint safely between coats, while the easy-to-clean design reduces cleaning time and solvent use significantly compared to traditional gravity cups.



Using the Sagola DPC™ System is a breeze. The on-cup ratios and fill markings eliminate the need for traditional mixing cups. Just fill, mix, and spray! Its user-friendly features make it suitable for both experienced professionals and beginners.

Sagola DPC (Disposable Paint Cup) System for use with spray guns sprayguns direct
Posted on

Air Fed Masks – Spray Guns Direct

DeVilbiss Pro Visor Air Fed Mask



View Air Fed Mask

Iwata 2020 Full Face Air Fed Mask

Anest Iwata Full Face Air Fed Mask Kit. Great value. (NEW 2020 KIT) (VIUAF2020KIT)

View Air Fed Mask

SATA Vision 2000 Air Fed Mask

SATA Vision 2000 Respirator Complete Kit (with Belt Unit and 1.2m Hose) (1108936)

View Air Fed Mask



DeVilbiss | Iwata | SATA  Full Face Air Fed Masks.



DeVilbiss PROV-650 Complete Air Fed Visor With Waistbelt (PROV-650)

Iwata Full Face Airfed Mask Kit. Great value. (NEW 2020 KIT) (VIUAF2020KIT)

SATA Air Vision 5000 Air Fed Mask. Ingenious design, light, compact belt. Superb comfort. (213819 / 1000124)

SATA Vision 2000 Respirator Complete Kit (with Belt Unit and 1.2m Hose) (1108936)

SATA Vision 2000 Respirator (69500)

SATA Air Star C Respirator Set with Charcoal Filter. Air Fed Half Mask. The choice of experts. (137554 / 137588)

Buy Online

Posted on

Sagola 4600 Overland Adventure Limited Edition Spray Gun

spray gun sagola overland adventure limited edition sprayguns direct

The new very latest Sagola 4600 Overland Adventure Limited Edition Spray Gun.

Sagola Product Catalogue

Welcome to Sagola’s new special edition 4600 Overland Adventure. Designed to replace the successful 4600 Trophy Truck, this gun features different fluid tips, including the 1.2, 1.2XL, 1.3, 1.3XL, 1.4 and the Titania Pro aircap, which is highly appreciated by professional painters due to its large fan and mirror finish, especially suitable for fast drying and last generation clears.

The Sagola 4600 Overland Adventure has all the qualities of the Sagola 4600 Xtreme, such as excellent atomisation, precise control system and low noise level. In addition, thanks to Sagola’s Metal To Metal technology, it has no plastic seals, making it extremely easy to clean and maintain in top condition.

But what makes this gun unique and special is its design inspired by overland culture and adventure. If you are a lover of automotive paint and the great outdoors, the Sagola 4600 Overland Adventure is the perfect gun for you. Plus, its overland-inspired design will make you feel like you’re on an epic adventure every time you use it.

So don’t wait any longer and get the Sagola 4600 Overland Adventure gun to take your paint job to new territories.



Buy Online

Posted on

Mini Midi Spray Guns – Spray Guns Direct

Devilbiss DV1S Spray gun mini midi smart repair spray guns direct

A.N.I. Mini Midi Spray Guns

ANi COMPACT *Small Compressor Friendly* Midi Gravity Spray Gun – Sprays Custom-Smooth like a £300 gun

A.N.I. GF3 Mini Spot Repair Spray Gun (AH1519012A / AH1519009A)

A.N.I. R160 Q HPS Mini/Midi Gravity Spray Gun – Italian quality, sprays like guns 3x the price *FORMERLY R150*



DeVilbiss Mini Midi Spray Guns

DeVilbiss DV1S Smart Repair Spray Gun (704531 / 704533)

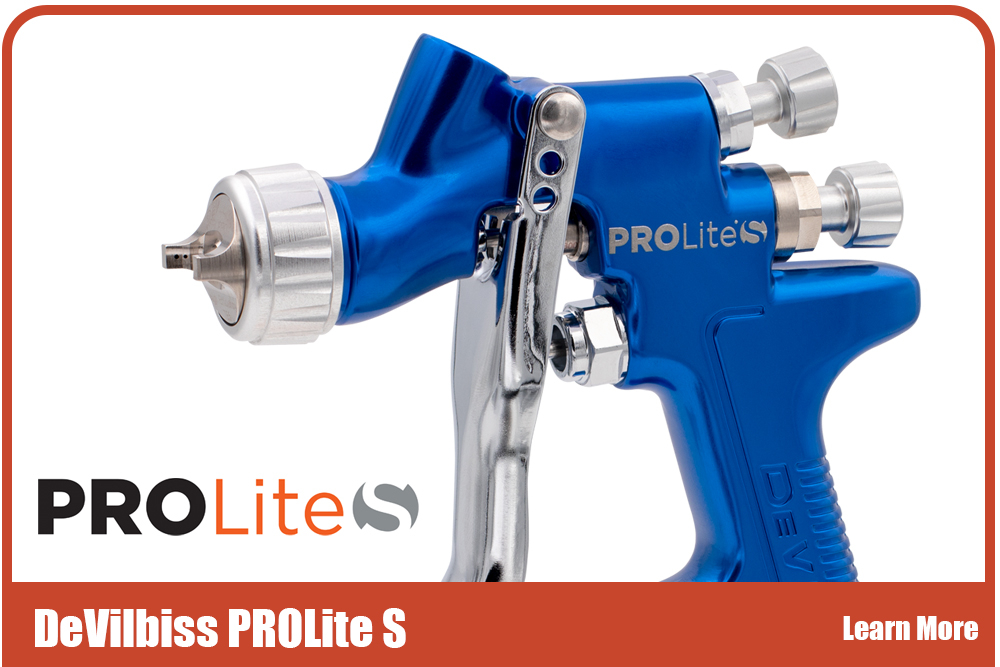

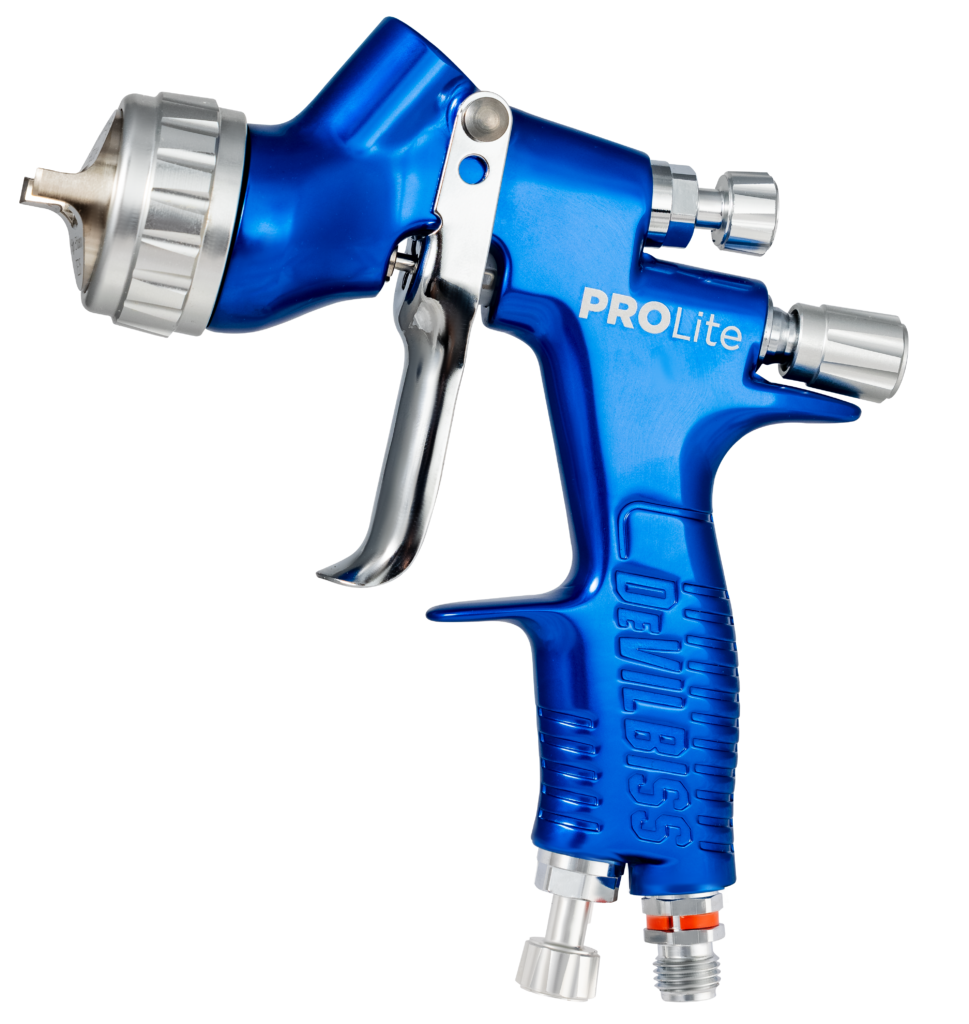

DeVilbiss PROLite-S Mini / Micro Spot Repair Spray Gun (905083 / 905095)

DeVilbiss StartingLine Painting and Touch Up Kit (SLG-650)





Iwata Mini Midi Spray Guns

Iwata AZ4 HTE-S Impact Spray Gun (taking over from AZ40) (13000710 / 13001150)

Iwata AZ4 HTE-S Impact Spray Gun (taking over from AZ40) With Anodized Grey Air Cap for Industry use (13001160 / 13000980)

Iwata Eclipse G3 Miniature Spray Gun (IW-ECL-G3)

Iwata LPH50 Spot Repair Gravity Spray Gun (130 or 200ml) (Lead Time 10-14 Days)

Iwata LPH80 Touch-Up Gravity Spray Gun (131807072P / 131807371)

Iwata RG3L Spot Repair side mount Gravity Gun (with 130 or 200ml cup)

Iwata W300 Gravity Spot Repair Spray Gun (W300)







Sagola Mini Midi Spray Guns

Sagola Mini Xtreme Easy clean SMART Gun (SA10111801 / SA10111808)







SATA Mini Midi Spray Guns

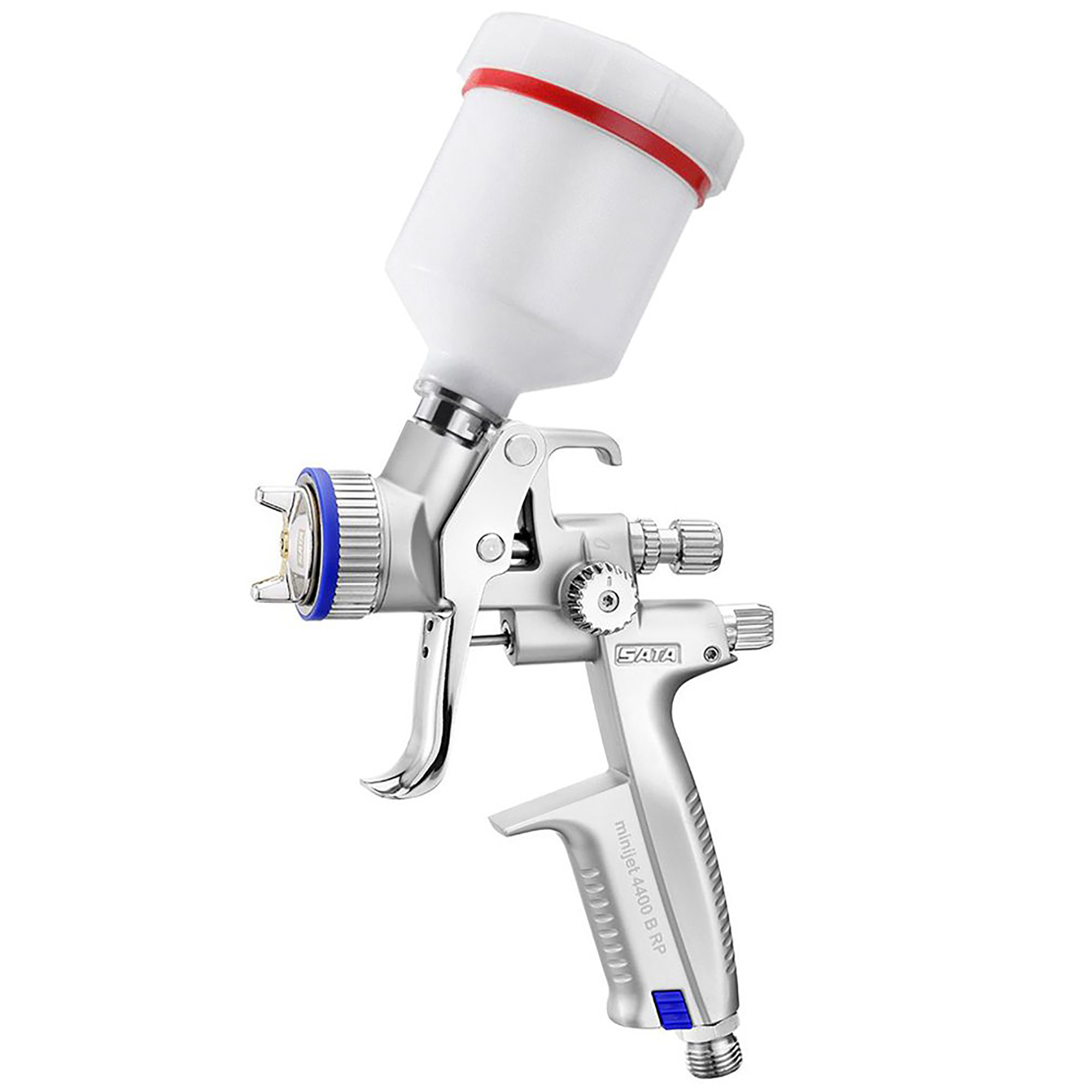

SATA 4400 minijet B HVLP / RP Mini/Midi Gravity Spray Gun (202390 / 198226 )

SATAjet 20 B Mini Spray Gun (65ccm Plastic Cup) (65078 / 86223)

SATAminijet 3000 B HVLP Design Spray Gun Set (125773)

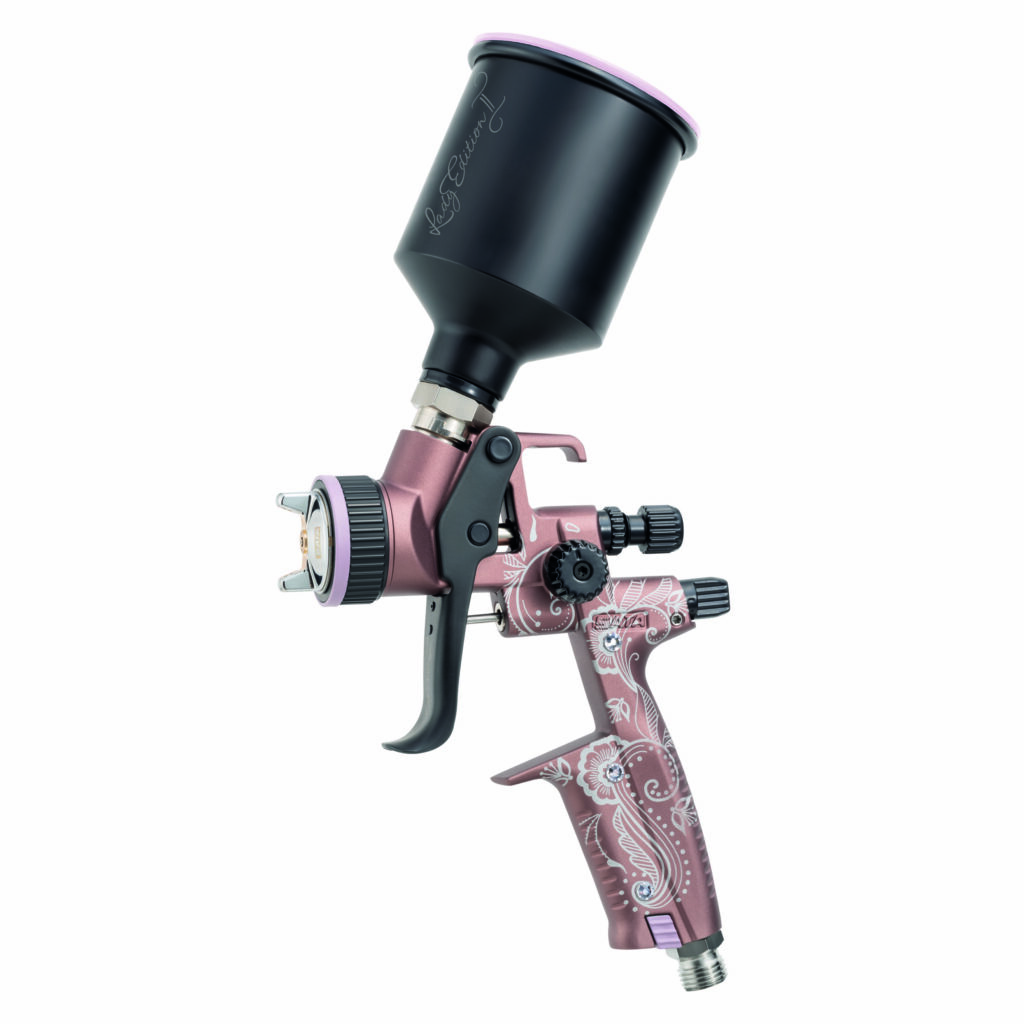

SATAminijet RP Lady Edition II *Nozzle size 1.2 SR, 0.15 | Reusable Aluminium Cup (1160390)





View all Mini Midi Smart Repair Spray Guns.





Posted on

DeVilbiss Compliant Spray Gun FLG5 (FLG-G5)

DeVilbiss FLG 5 Pressure Feed Spray Gun (905170 / 905171 / 905172)

DeVilbiss FLG5 Compliant Spray Gun – Best Seller

Our opinion:  Bestseller.  Best performer under £145 + VAT.

The FLG5 is a fantastic value spray gun with the assurance of the DeVilbiss brand. As popular as a gun can be – never a dissatisfied customer.

DeVilbiss FLG5 gravity feeds a general-purpose spray gun for a wide range of automotive materials and coatings.

  • An all-metal construction includes a high-grade aluminium drop-forged gun body.
  • The FLG5 employs compliant technology, ensuring low overspray and reduced consumption.
  • Proven DeVilbiss controls and a light, smooth trigger action.



Spare FLG Gravity Cup is available for this gun, please see GFC-501 (1PT) in parts breakdown.

devilbiss flg spray gun directdevilbiss flg pressure spray gun parts breakdown sprayguns direct

Suitable for solvent and water-based materials.

This gun is made from a cast and is not milled (machined) like the DeVilbiss guns that cost hundreds of pounds. This keeps the cost down but means that there are minor imperfections where the casts are joined together. This is merely aesthetic. The functionality of the internals is top class.

Setups available:

  • 1.3mm – suits clearcoat / thinner basecoats
  • 1.4mm – suits basecoat / cellulose / synthetic / 2K and lower viscosity material; a great all-rounder.
  • 1.8mm – suits higher build materials such as thick topcoats application and primers.

Technical Specifications

  • Air Inlet Thread: 1/4″ Universal
  • Cup Capacity: 560ml
  • Weight Gun & Cup: 692g
  • Air Cap: Brass
  • Retaining Ring: Aluminium
  • Fluid Tip: Stainless Steel
  • Fluid Needle: Stainless Steel
  • Air Inlet Pressure: 1.6 bar (23 psi)
  • Air Consumption: only 9.8 cfm 277l/min



For Spray Gun Adapters please follow the links below.

3M PPS adapter Series 1.0 No.3 (16033)

3M PPS Preparation System Adaptor (Choice of 25 Adaptors) (16032 / 16759)

3M PPS adapter Series 2.0 No. S03 (26033)

3M PPS Preparation System Adaptor Series 2.0 (26003 / 26139)

– DeVilbiss (DPC-43)

DeVilbiss DeKup System Adaptor (Choice of 8 Adaptors)

– SATA RPS (125252)

SATA RPS Adapters for non-SATA Spray Guns (25211 / 147272)

– Colad No.14 (9370A14)

Colad Snap Lid Adaptor (choose in drop down. refer to ‘tech’ for right one) (9370A02 / 9370A22)





 Buy Online

Posted on

Sagola 4600 Xtreme Digital Gravity Spray Gun

Sagola 4600 gravity spray gun Sagola 4600 gravity spray gun

Our opinion:  Sagola steps up a level to compete at the very highest level with no design issues we can see.  Rated highly by ‘The Gunman’ (see video link above).

Sagola presents its top technological expression in bodywork finishing spray guns. With a smaller and lighter design, it gives the end-user optimal weight distribution and a more comfortable feel.

The new shiny and modern design looks the part. The carefully designed ergonomics offer enviable balance and usability and perfect mechanisation.

The 4600 Xtreme offers the widest range of solutions for all the new paints launched by the main paint brands for refinishing. It has one of the highest Sagola manufacturing standards, and competitive prices whilst maintaining a superb service.

– Perfect waterborne paint uniformity

– Economic in paint consumption

– Easy and smooth handling

– Maximum product transfer

Industry leading transfer efficiency

Independent testing* proves the Sagola 4600 Xtreme’s Conventional HTE aircaps provide significantly higher transfer efficiencies than traditional HVLP systems, whilst maintaining a very high quality finish.

Versatile – one gun does it all

The extensive range of needle, nozzle, and aircaps enables the Sagola 4600 to convert to an HVLP gun by quickly changing the aircap.

Extremely easy to clean and maintain

The Sagola 4600 has no air diffusers, blind chambers or threads in contact with paint, and no gaskets, seals or plastic parts in the product area – just metal on metal contact making it easier to clean and maintain.

Sagola 4600 Xtreme Kit Contents

Each Sagola 4600 Xtreme is supplied complete with:

  • Aircap, needle & nozzle kit (supplied fitted)
  • 650ml (22fl oz) Reusable plastic gravity cup
  • Wrench for removing and fitting the nozzle and all servicing needs
  • Colour code identifiers perfect for identifying guns when there are multiple painters (x3)
  • Cleaning brush
  • Key Assembly for changing the air valve

Buy Online



Posted on

Latest Spray Guns

Gravity Spray Gun Index

ANi Gravity Spray Guns – Spray Guns Direct
DeVilbiss Gravity Spray Guns – Spray Guns Direct
Iwata Gravity Spray Guns – Spray Guns Direct
SATA Gravity Spray Guns – Spray Guns Direct
Sagola Gravity Spray Guns – Spray Guns Direct
Graco Gravity Spray Guns – Spray Guns Direct
3M Gravity Spray Guns – Spray Guns Direct
Sealey Gravity Spray Guns – Spray Guns Direct
Optiflow Gravity Spray Guns – Spray Guns Direct
Deltalyo Gravity Spray Guns – Spray Guns Direct



Mini-Midi (Smart Repair) Spray Gun Index

ANi Mini-Midi Spray Guns – Spray Guns Direct
DeVilbiss Mini-Midi Spray Guns – Spray Guns Direct
Iwata Mini-Midi Spray Guns – Spray Guns Direct
SATA Mini-Midi Spray Guns – Spray Guns Direct
Sagola Mini-Midi Spray Guns – Spray Guns Direct
Graco Mini-Midi Spray Guns – Spray Guns Direct



Suction Spray Gun Index

ANi Suction Spray Guns – Spray Guns Direct
DeVilbiss Suction Spray Guns – Spray Guns Direct
Iwata Suction Spray Guns – Spray Guns Direct
SATA Suction Spray Guns – Spray Guns Direct
Sagola Suction Spray Guns – Spray Guns Direct
Graco Suction Spray Guns – Spray Guns Direct
Sealey Suction Spray Guns – Spray Guns Direct



Pressure Spray Gun Index

ANi Pressure Spray Gun – Spray Guns Direct
DeVilbiss Pressure Spray Gun – Spray Guns Direct
Iwata Pressure Spray Gun – Spray Guns Direct
SATA Pressure Spray Gun – Spray Guns Direct
Sagola Pressure Spray Gun – Spray Guns Direct
Graco Pressure Spray Gun – Spray Guns Direct



Limited Edition Spray Gun Index

ANi Limited Edition Spray Gun – Spray Guns Direct
DeVilbiss Limited Edition Spray Gun – Spray Guns Direct
Iwata Limited Edition Spray Gun – Spray Guns Direct
SATA Limited Edition Spray Gun – Spray Guns Direct
Sagola Limited Edition Spray Gun – Spray Guns Direct



Industrial Spray Gun Index

DeVilbiss Industrial Spray Gun – Spray Guns Direct
SATA Industrial Spray Gun – Spray Guns Direct
Graco Industrial Spray Gun – Spray Guns Direct
3M Industrial Spray Gun – Spray Guns Direct



Spray Gun Kits Index

ANi Spray Gun Kits – Spray Guns Direct
DeVilbiss Spray Gun Kits – Spray Guns Direct
Iwata Spray Gun Kits – Spray Guns Direct
SATA Spray Gun Kits – Spray Guns Direct
Sagola Spray Gun Kits – Spray Guns Direct
Sealey Spray Gun Kits – Spray Guns Direct
Deltalyo Spray Gun Kits – Spray Guns Direct
