Description

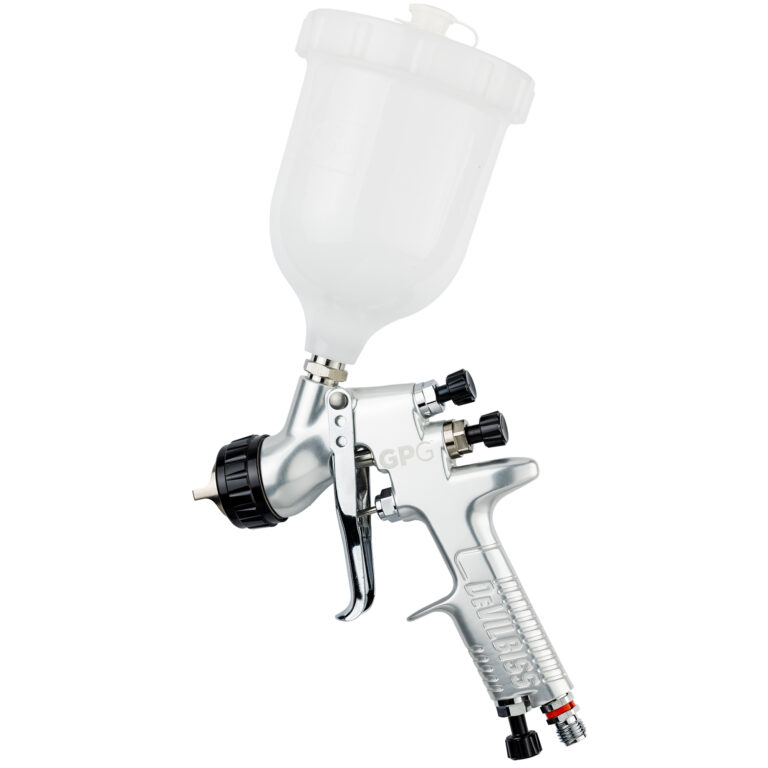

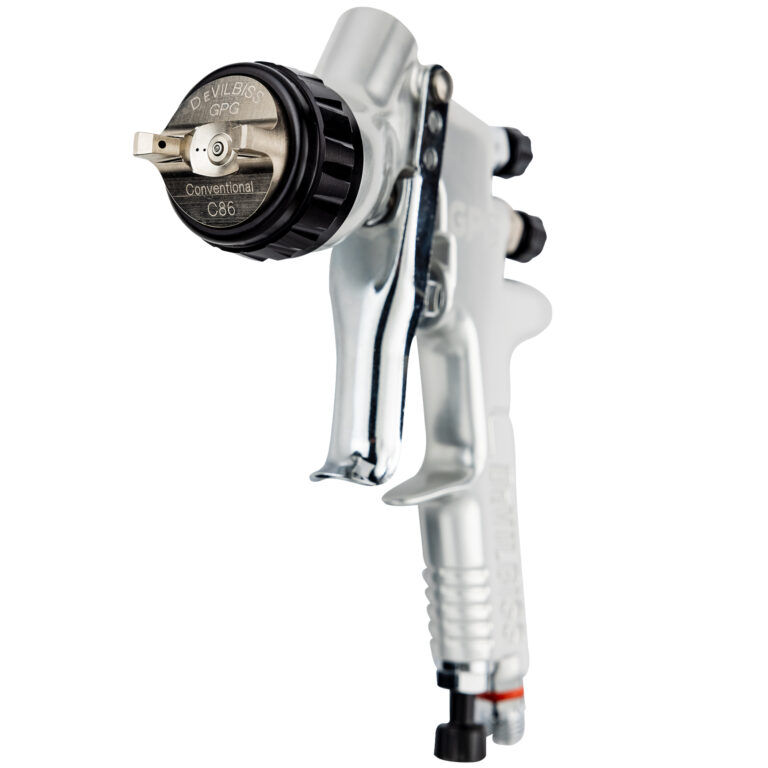

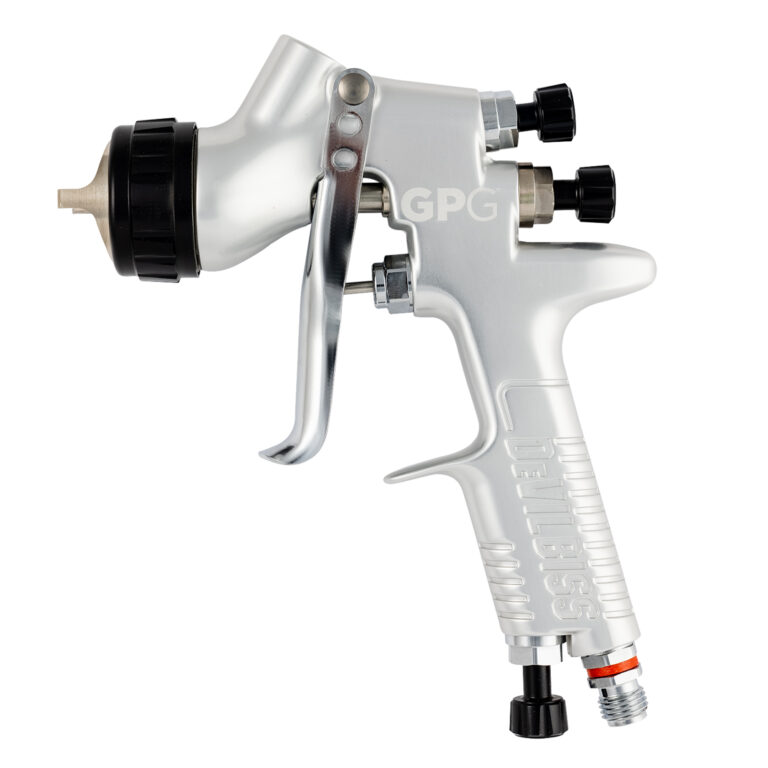

DeVilbiss GPG *Top Class Premium Value* Gravity Spray Gun *Previously DeVilbiss PRi Pro Lite* (905029 / 905030 / 905031 / 905032 / 905033)

Our opinion: We cannot believe the price for the level of refinement. DeVilbiss have pushed the boat out with this DeVilbiss gravity spray gun.  Worth splashing out to get 1st world build quality.  Treat yourself – this gun could satisfy for a lifetime.

DeVilbiss gravity spray gun has been at the forefront of developing spray guns specific to applications around the body shop, including meeting the market’s demand for a cost-effective, multi-purpose spray gun. The DeVilbiss GPG addresses this requirement by providing solid performance that is durable and an exceptional value.

The anodized, drop-forged aluminium gun body of the DeVilbiss GPG gravity spray gun provides renowned ergonomics together with lightweight aluminium controls and smooth trigger action. It’s this legendary combination of fit, feel and performance that makes the DeVilbiss brand the professional automotive refinisher’s preferred choice.

The high-efficiency and HVLP air caps have been developed to provide excellent atomization of a wide range of automotive refinish paints and especially very high viscosity coatings like spray putty’s. The large array of fluid nozzles offers a wide range of flow rates allowing for rapid application rates for a multitude of coatings including clearcoats, basecoats, sealers, primers, enamels, synthetics and other common commercial paints.

Features

• Lightweight design delivers a uniform spray pattern and atomization distribution for an exceptional quality finish that professional painters demand
• Range of advanced air cap technologies for excellent application performance with the latest waterborne and solvent borne coatings
• Ergonomic handle design with reduced trigger travel to decrease operator fatigue
• Environmental legislation-compliant atomization with high transfer efficiency resulting in significant paint savings Drop-forged aluminium, anodized gun body with removable air baffle for a longer working life

Technical Specifications

• Air Supply Connection Universal: ¼” BSP and ¼” NPS male
• Maximum Static Air Inlet Pressure: P1 = 12 bar (175 psi)
• Air Inlet Pressure: 2.0 Bar inlet
• Air Consumption: 265 L/min (9.4 cfm)
• Cup Capacity: 560 mls
• Gun Weight: 500g (gun only) / 683g (with cup)
• Air Cap: Plated brass
• Fluid Tip: Stainless steel
• Fluid Needle: Stainless steel

For Spray Gun Adaptors please follow the links below for selected adaptor and select the correct part number (shown in the brackets) from the model part number dropdown.

• 3M PPS Series 1.0 No.3 (16033)  | 3M PPS Preparation System Adaptor (Choice of 25 Adaptors) (16032 / 16759)
• 3M PPS Series 2.0 No. S03 (26033) | 3M PPS Preparation System Adaptor Series 2.0 (26003 / 26139)
• DeVilbiss DeKup (DPC-43) | DeVilbiss DeKup System Adaptor (Choice of 8 Adaptors)
• SATA RPS (125252) | SATA RPS Adapters for non-SATA Spray Guns (25211 / 147272)
• Colad No.14 (9370A14) | Colad Snap Lid Adaptor (choose in drop down. refer to ‘tech’ for right one) (9370A02 / 9370A22)
