Parts

Iwata Super Nova WS400 Gravity Spray Gun SUPER KIT Spares and Parts diagram

Scroll down to view parts table below image

iwata ws400 spray gun parts breakdown spray guns direct
IndexImageNameSKUPriceBuyWishlist

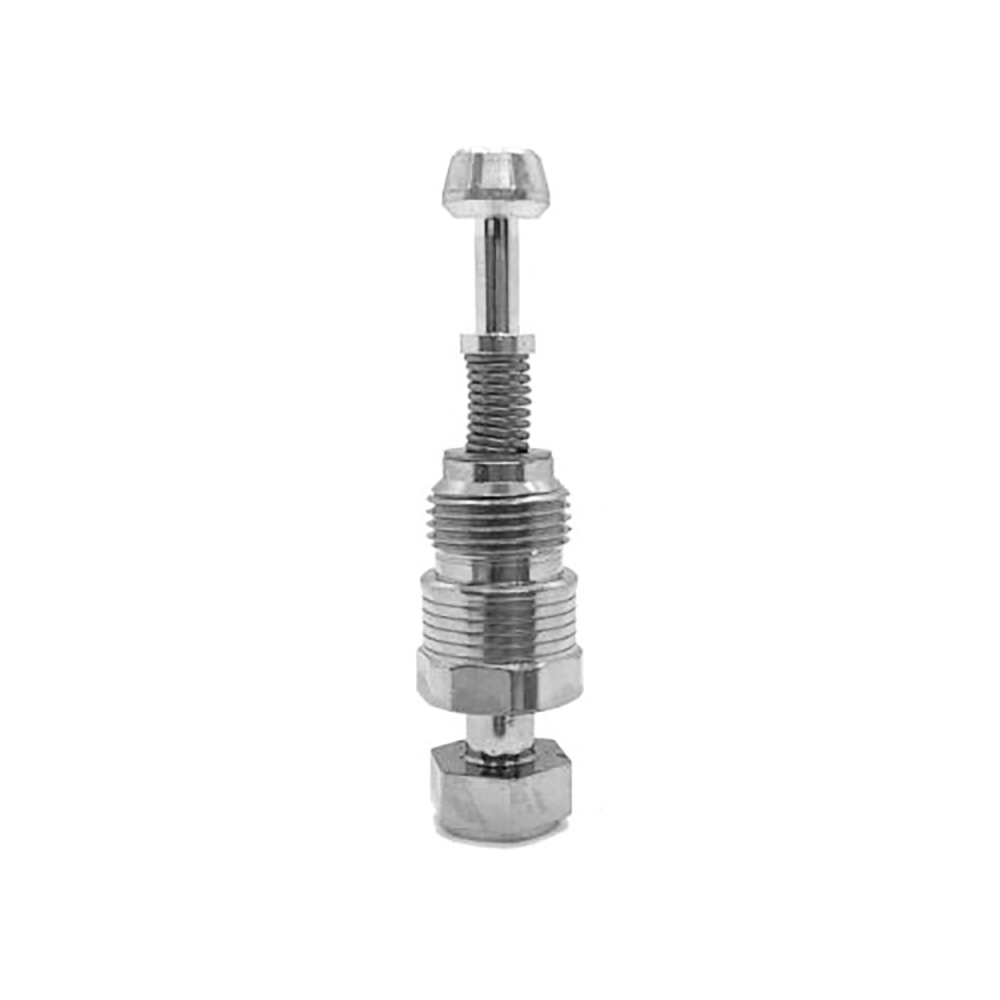

Iwata Air Adjustment Set (93505842)93505842£46.37
Quantity
Iwata Air Cap L Packing (Black)93505341£9.53
Quantity

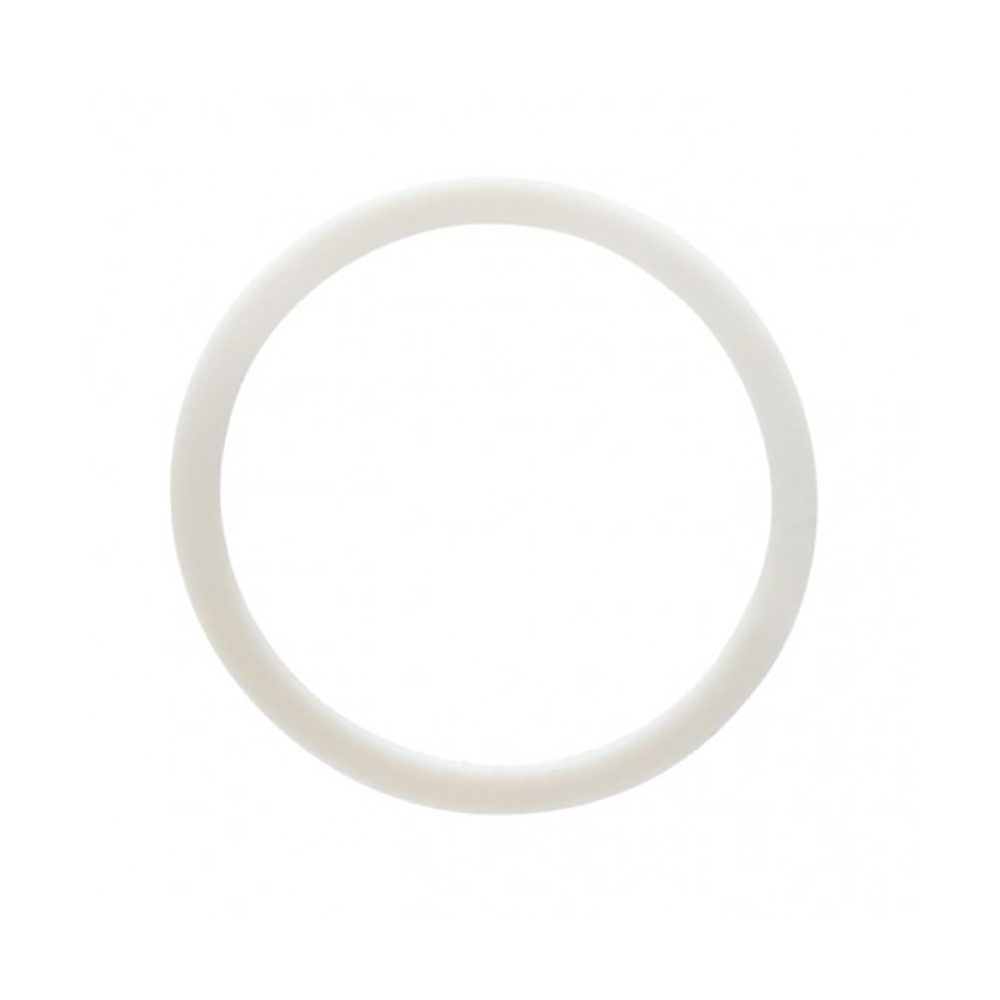

Iwata Air Cap Packing (White)93505330£7.41
Quantity

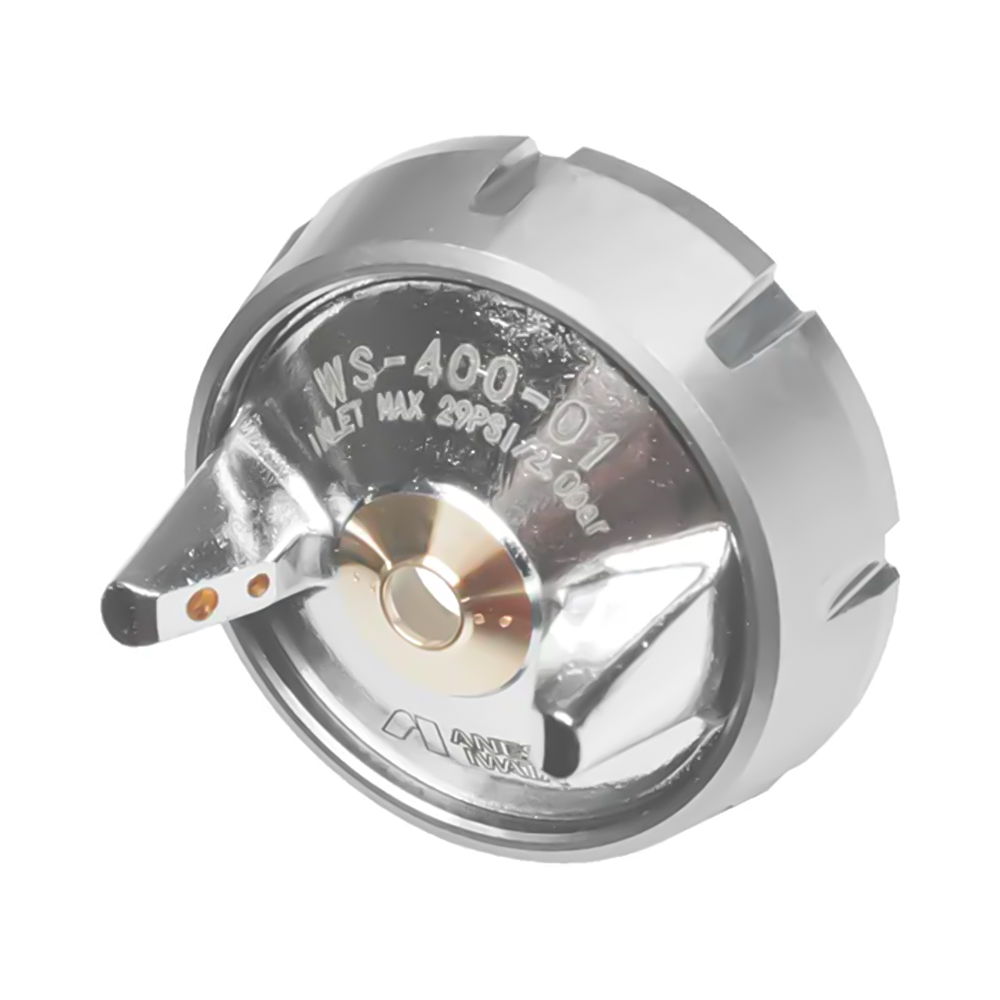

Iwata Air Cap Set WS-400-01 (93505300)93505300£131.21
Quantity
Iwata Air Valve (93505480)93505480£20.53
Quantity

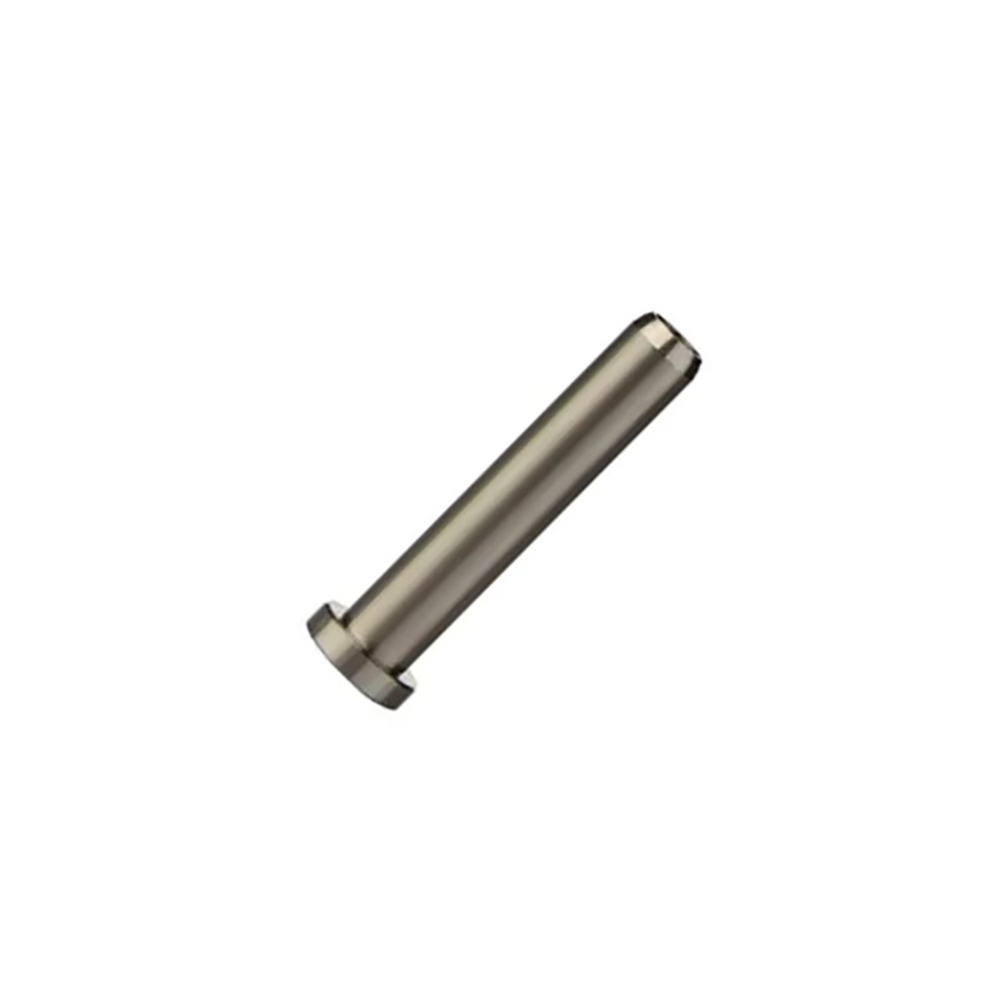

Iwata Air Valve Shaft (93935430)93935430£18.15
Quantity

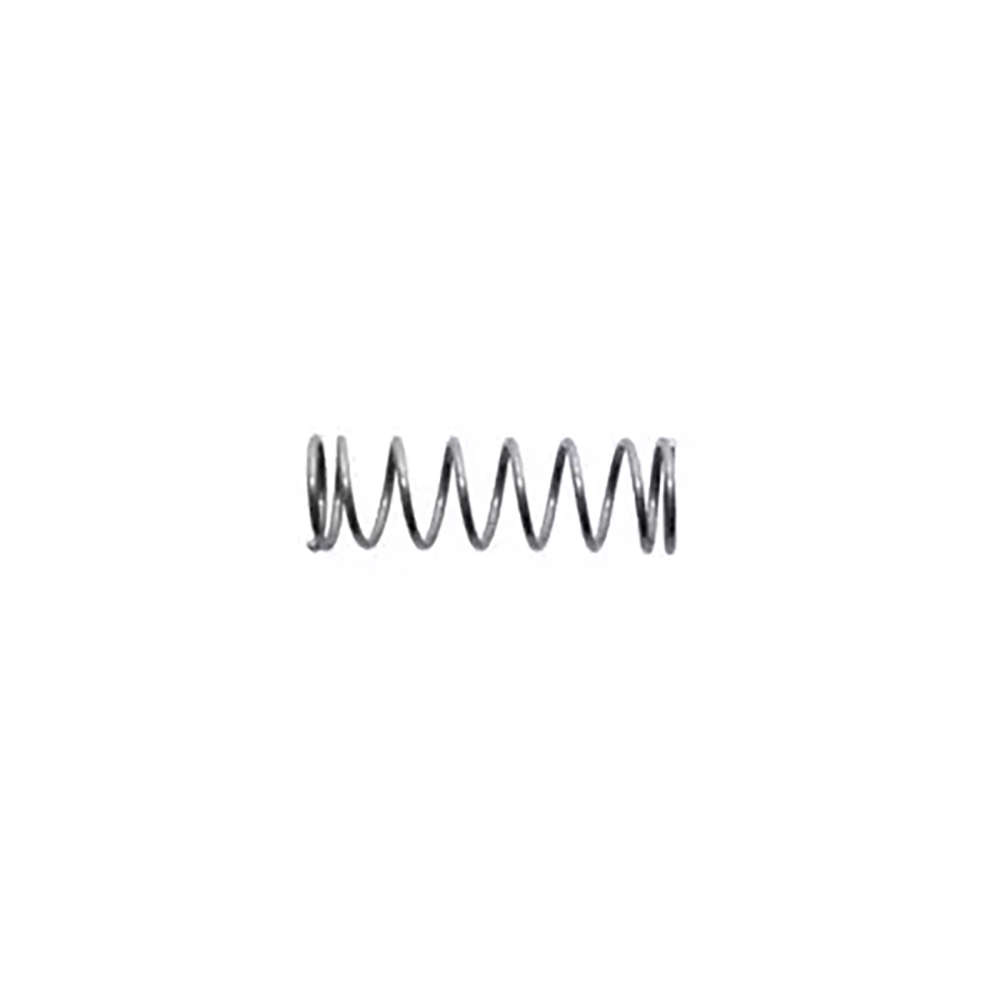

Iwata Air Valve Spring (93719530)93719530£8.81
Quantity

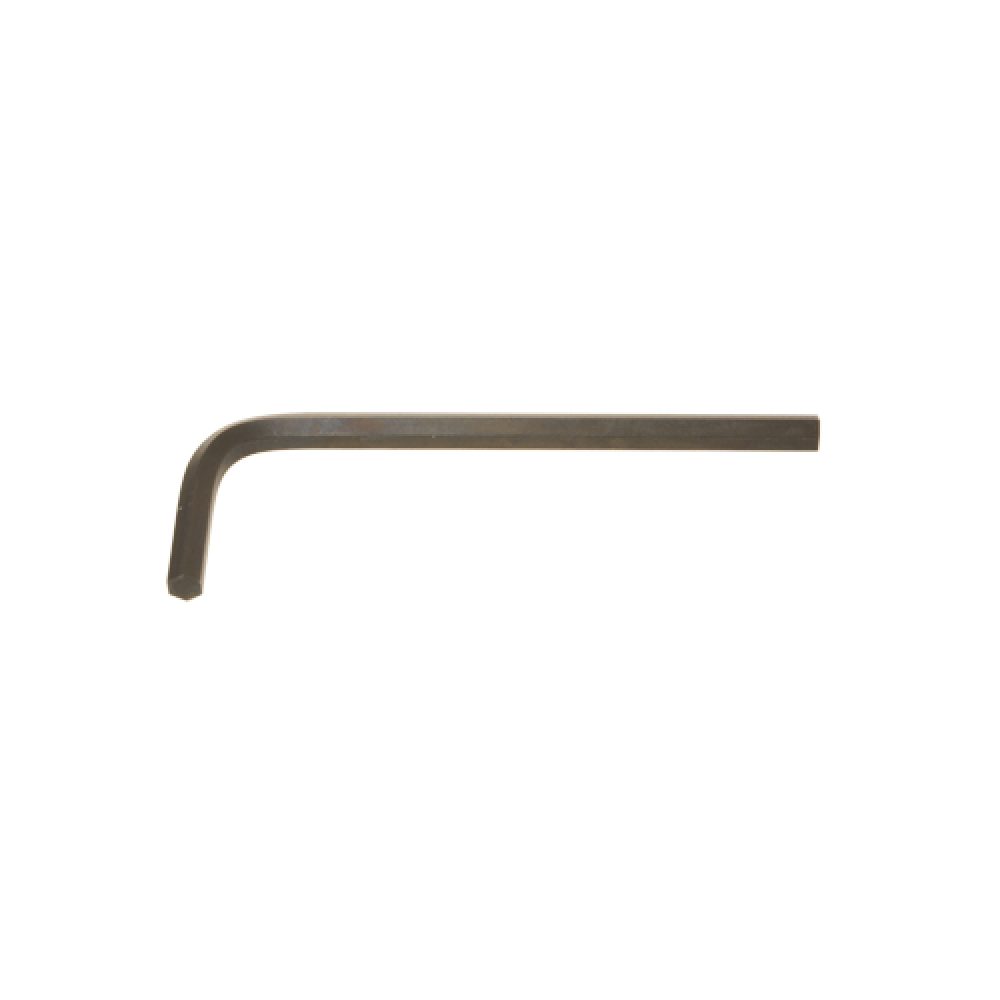

Iwata Allen Wrench 03506480K
Iwata Allen Wrench (03506480K)03506480K£6.11
Quantity

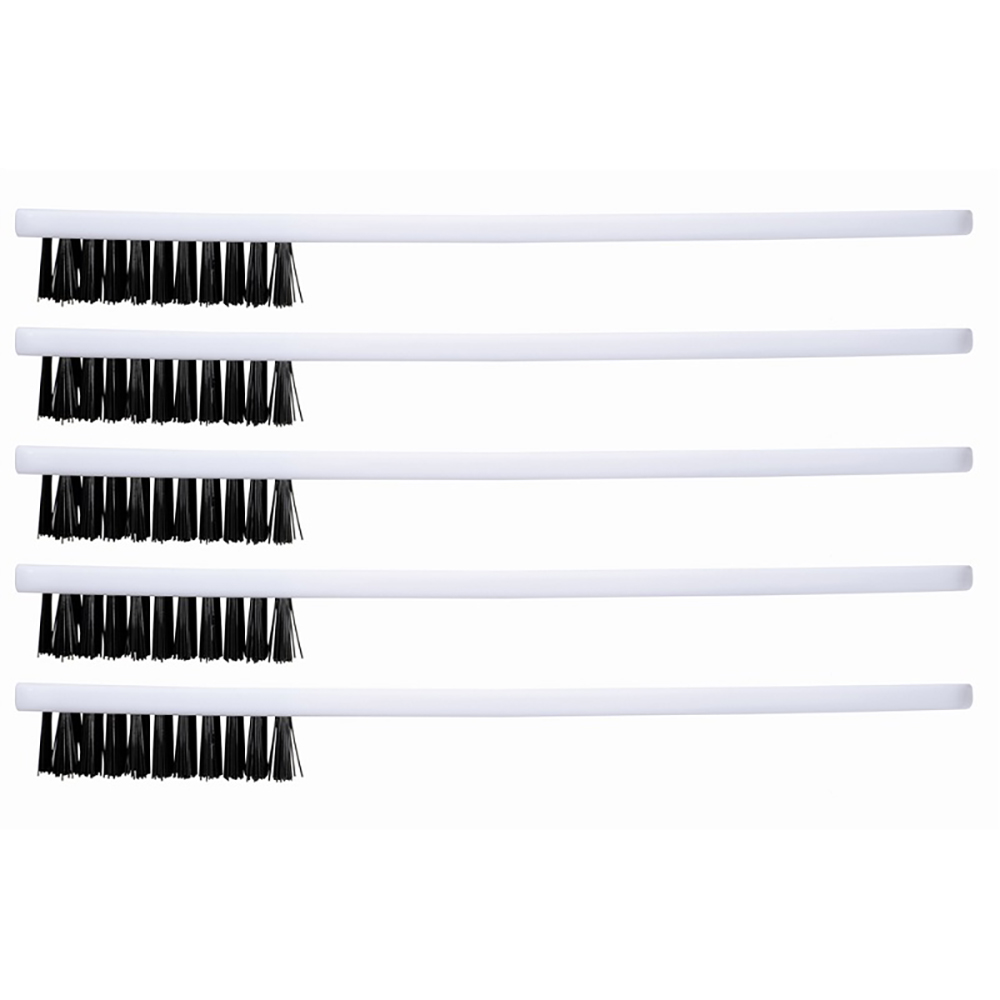

Iwata Brush (06990600)06990600£2.47
Quantity

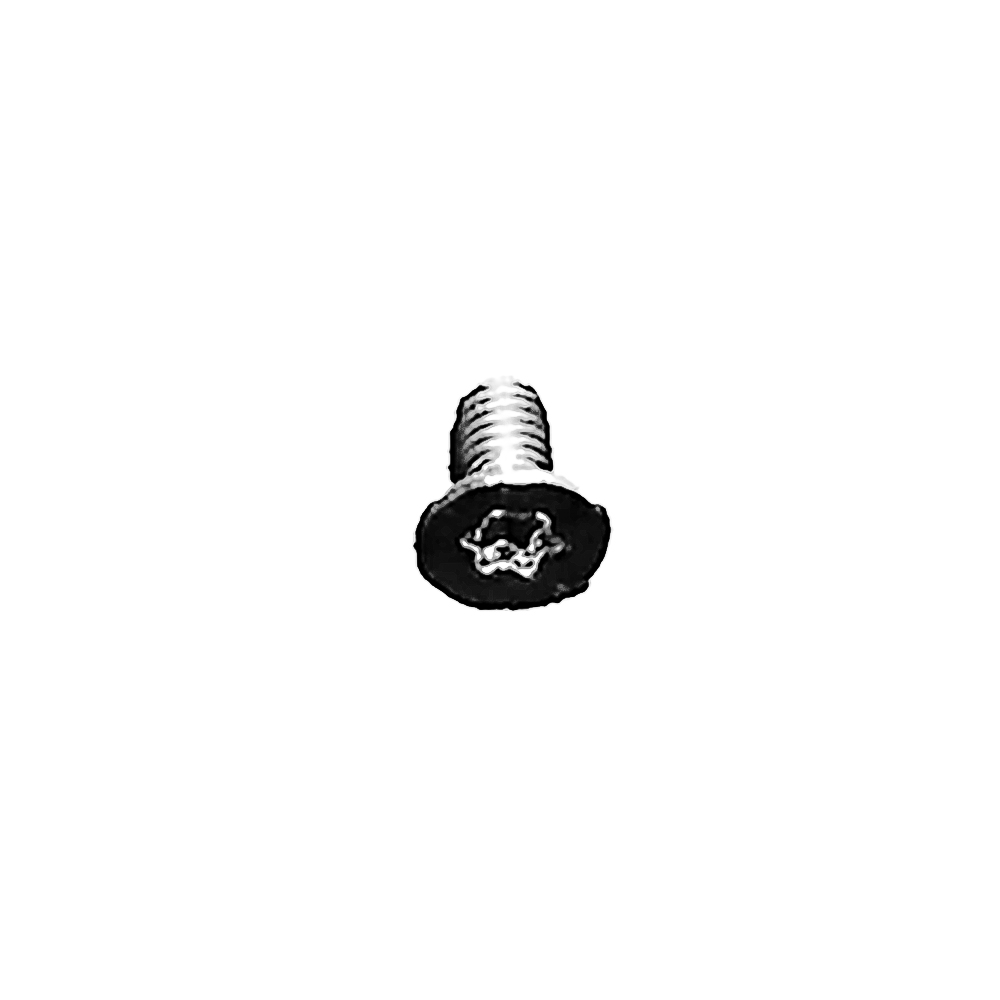

Iwata Countersunk Head Screws (3pcs/1pk) (93506970K)93506970K£11.00
Quantity
Iwata Countersunk Head Screws (Base (Gold Colour (3pcs/1pk) (93506980K)93506980K£15.78
Quantity
Iwata Countersunk Head Screws (Black (3pcs/1pk) (93512740K)93512740K£11.70
Quantity

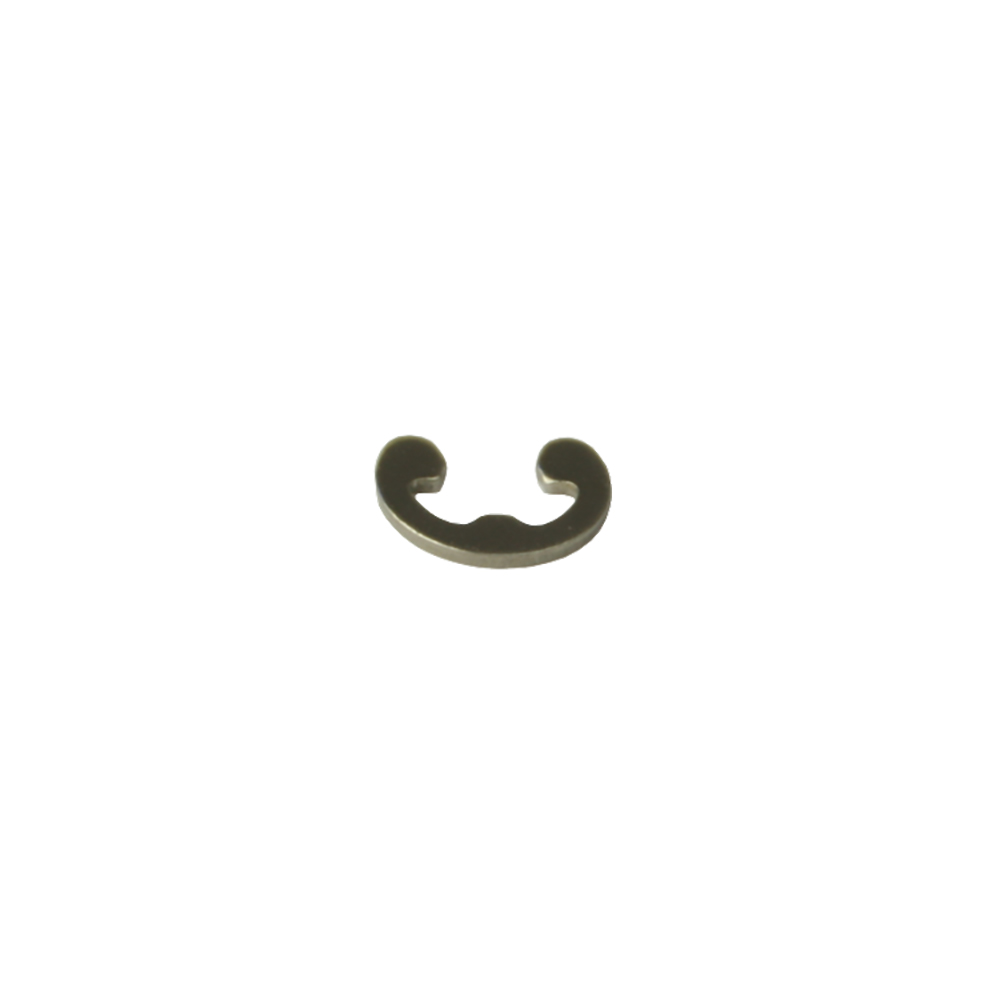

Iwata E Stopper 96612025
Iwata E Stopper (96612025)96612025£2.92
Quantity

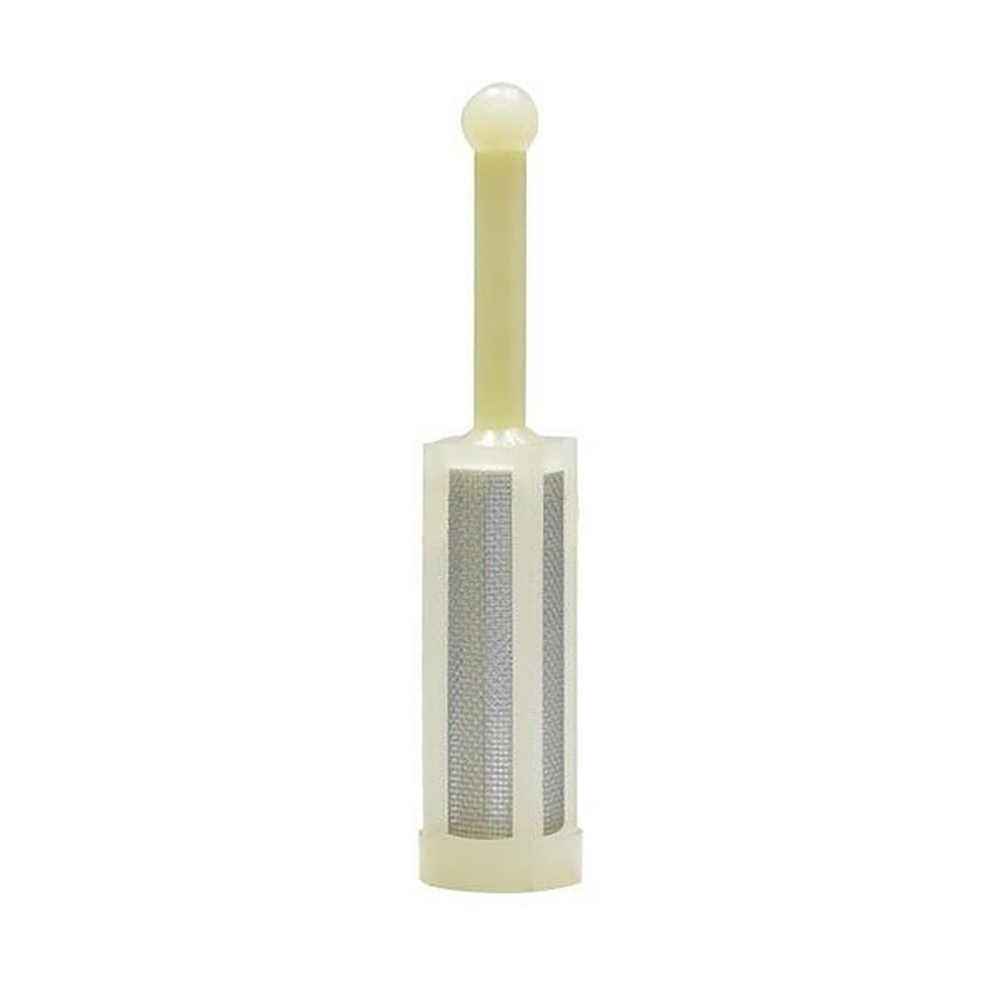

Iwata Filter 60 Mesh
Iwata Filter 60 Mesh (250 Micron) (optional) (94011240)94011240£2.59
Quantity

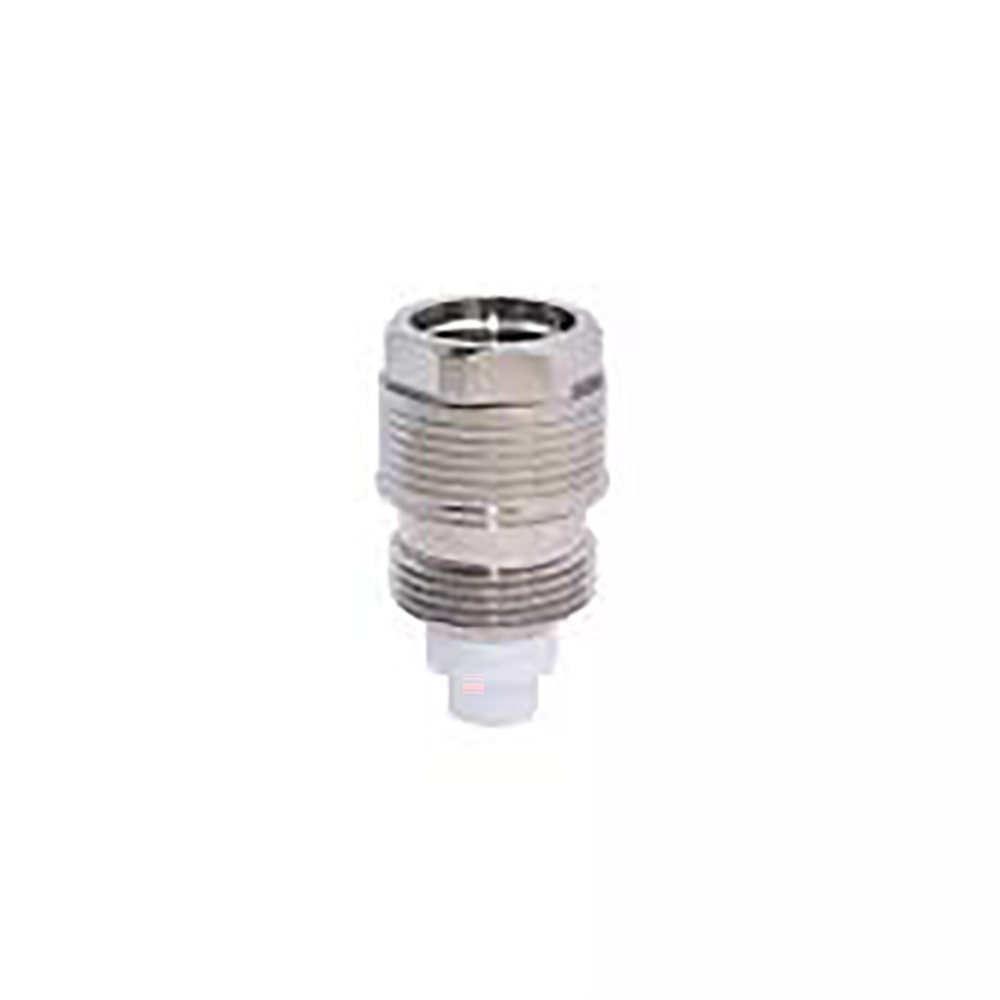

Iwata Fluid Adjustment Guide Set (93505491)93505491£33.54
Quantity
Iwata Fluid Adjustment Knob (Base) (Gold Colour) (93506471)93506471£12.00
Quantity

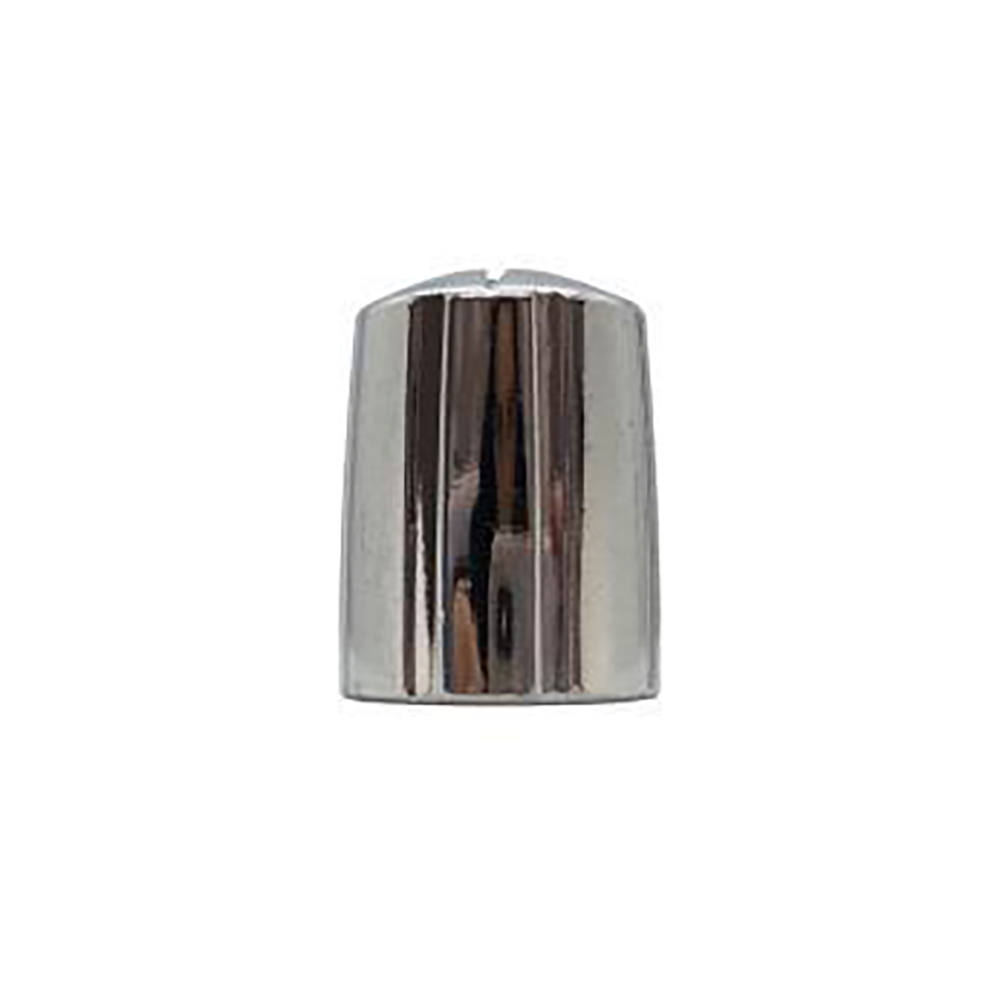

Iwata Fluid Adjustment Knob (Chrome) (93505831)93505831£11.46
Quantity
Iwata Fluid Adjustment Knob (Premium Green) (93512730)93512730£13.07
Quantity

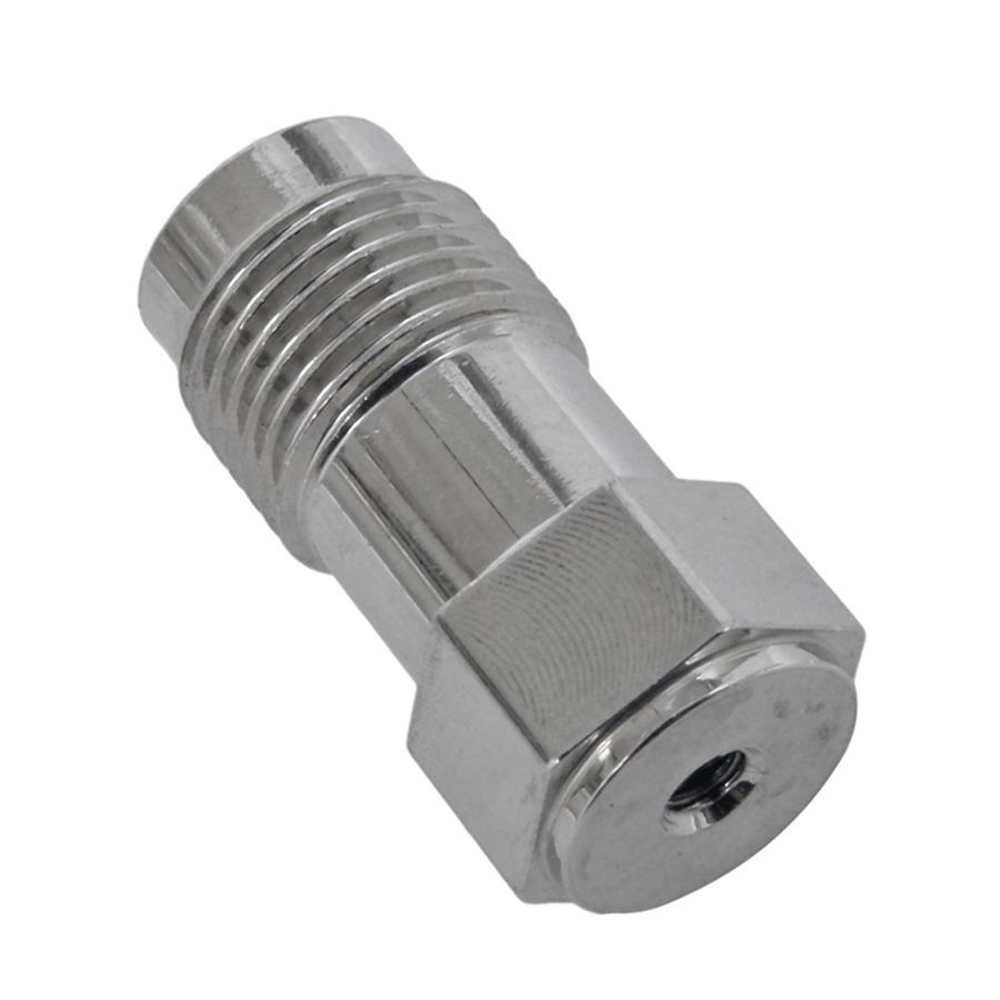

Iwata Fluid Adjustment Screw Set
Iwata Fluid Adjustment Screw Set (93505823)93505822£17.21
Quantity

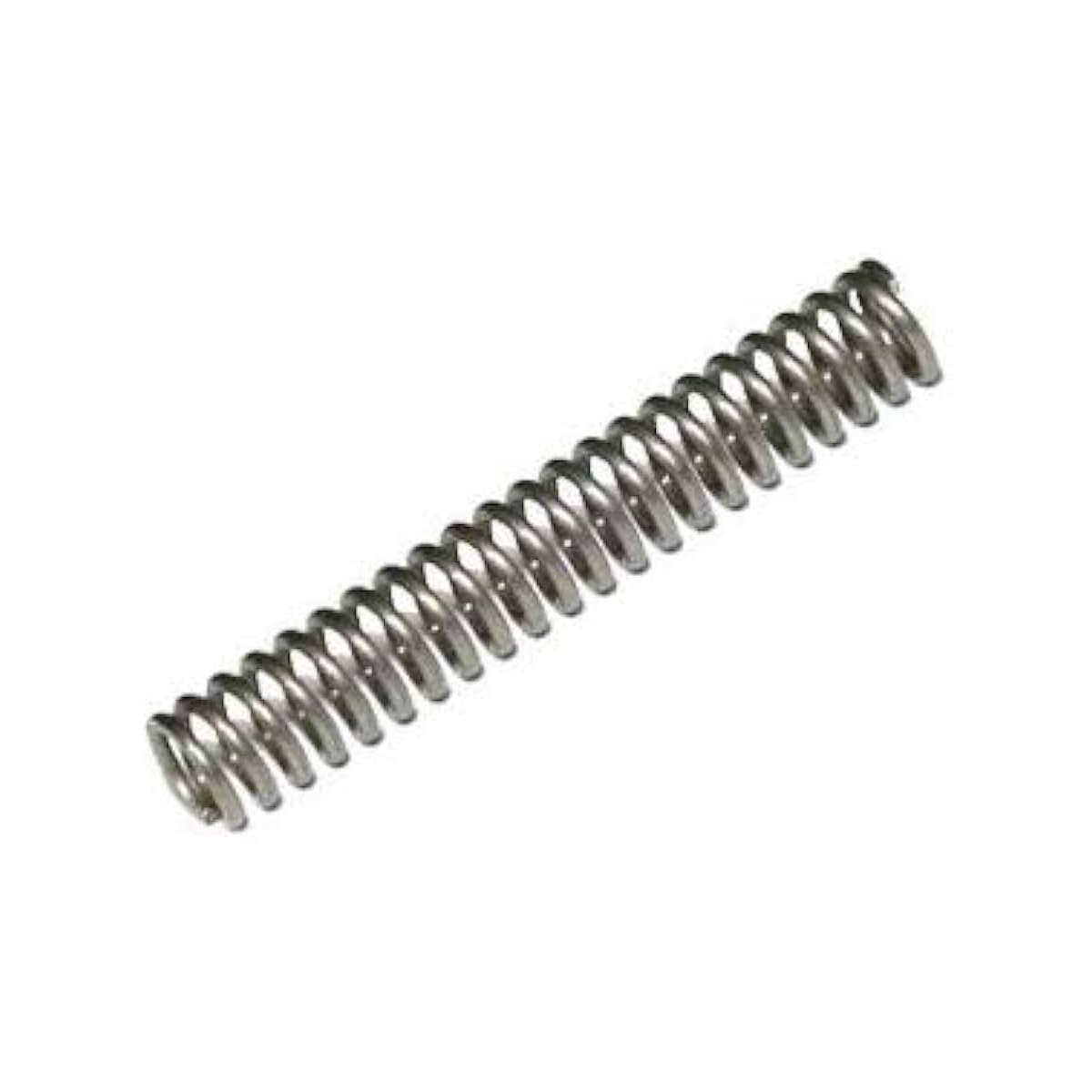

Iwata Fluid Needle Spring (03593530)03593530£9.22
Quantity
Iwata Fluid Nozzle & Needle Set Base (1.3mm) (93505350)93505350£111.21
Quantity
Iwata Fluid Nozzle & Needle Set Base (1.4mm) (93506800)93506800£111.21
Quantity

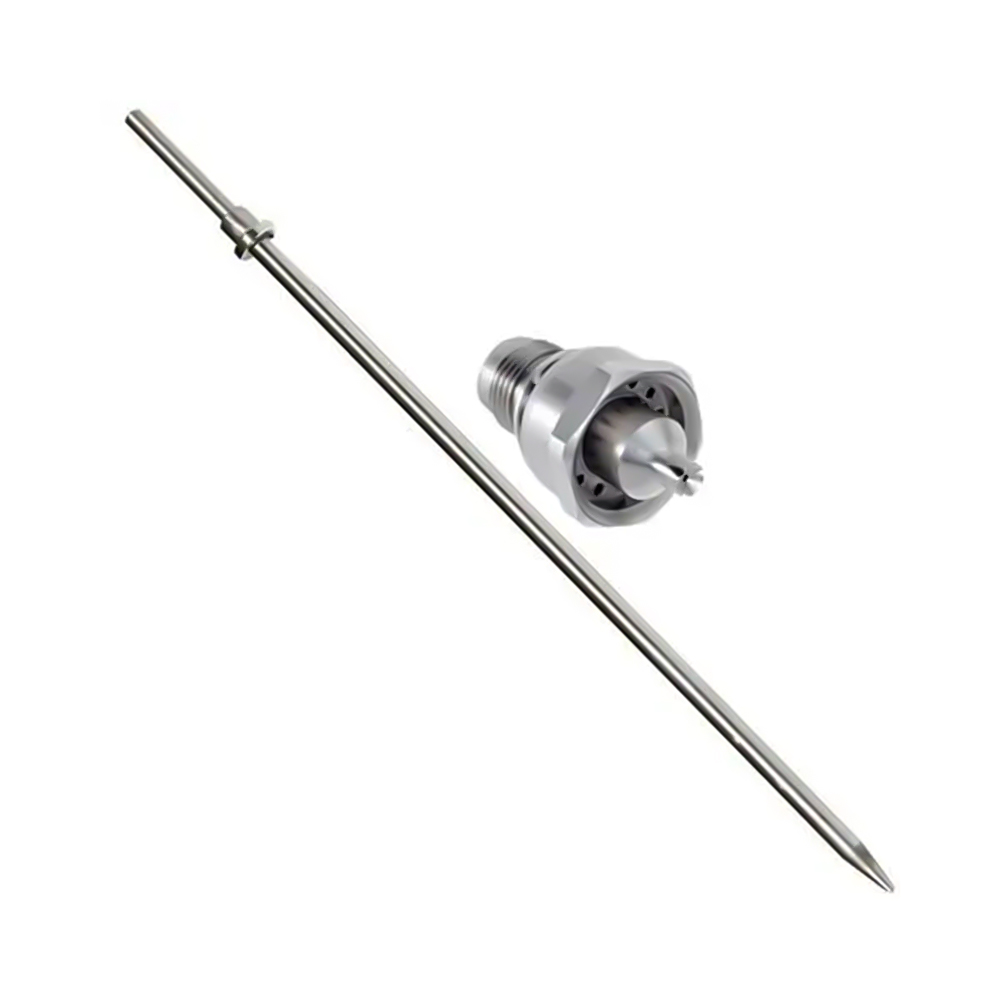

Iwata Fluid Nozzle & Needle Set Clear (1.3mm) (93506410)93506410£111.21
Quantity
Iwata Fluid Nozzle & Needle Set Clear (1.4mm) (93506820)93506820£111.21
Quantity
Iwata Fluid Nozzle & Needle Set Clear (1.2mm) (93506400)93506400£131.21
Quantity
Iwata Fluid Nozzle & Needle Set HD Clear (1.3mm) (93506910)93506910£111.21
Quantity
Iwata Fluid Nozzle & Needle Set HD Clear (1.4mm) (93506920)93506920£111.21
Quantity
Iwata Fluid Nozzle & Needle Set HD Clear (1.5mm) (93506930)93506930£111.21
Quantity

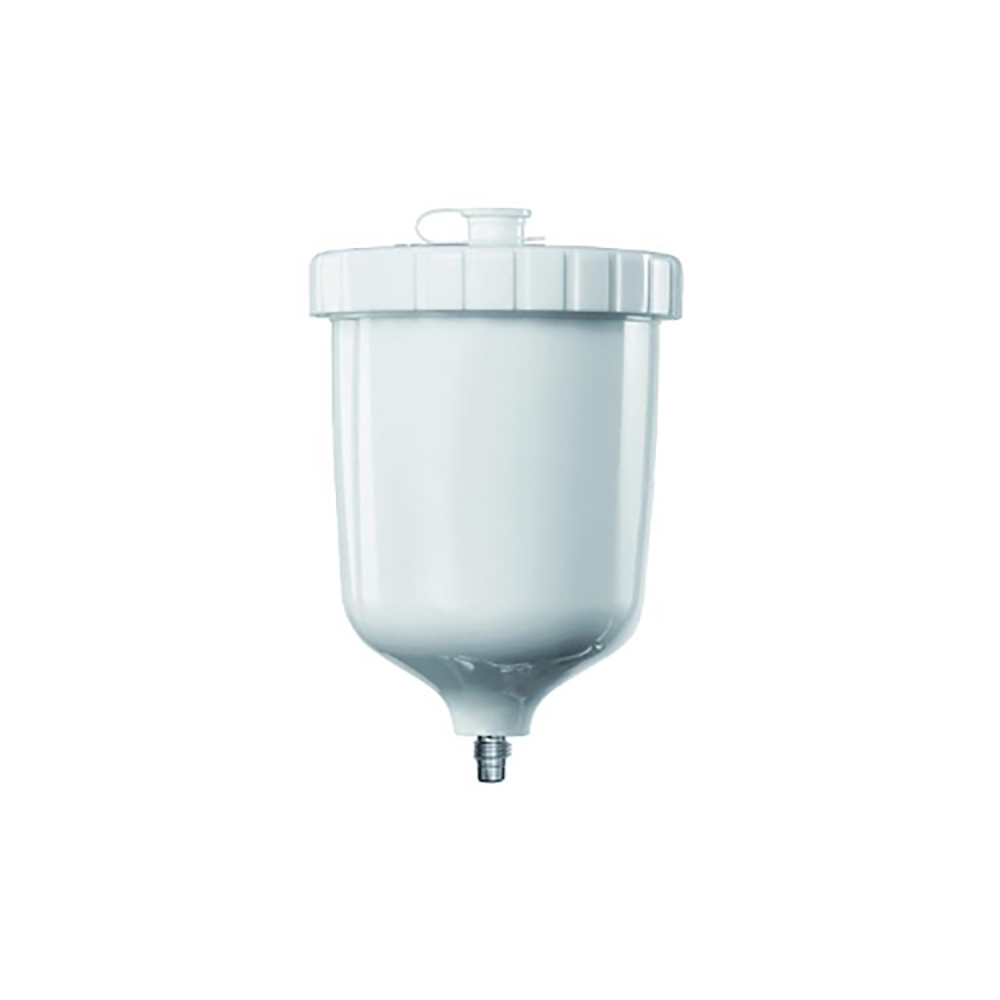

Iwata Gravity Cup PC-G600P-2
Iwata Gravity Cup PC-G600P-2 (600ml, Without Filter) (14019100)14019100£80.49
Quantity

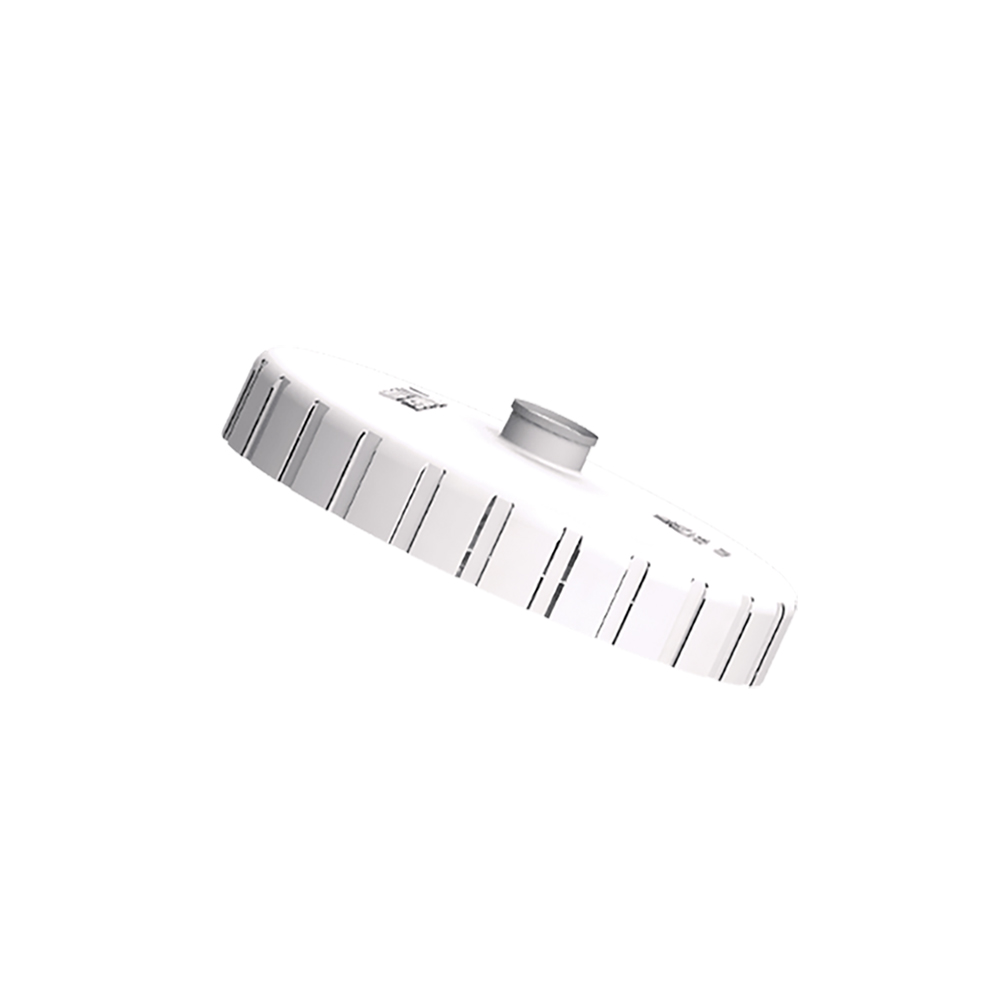

Iwata Lid for PC-G600P-2
Iwata Lid for (PC-G600P-2 (600ml, Without Filter) (94011220)94011220£44.26
Quantity
Iwata LS-400/WS-400 Adjustment Knob (Base) (Gold Colour) (93506461)93506461£12.00
Quantity
Iwata LS-400/WS-400 Adjustment Knob (Premium Green) (93512290)93512290£17.33
Quantity

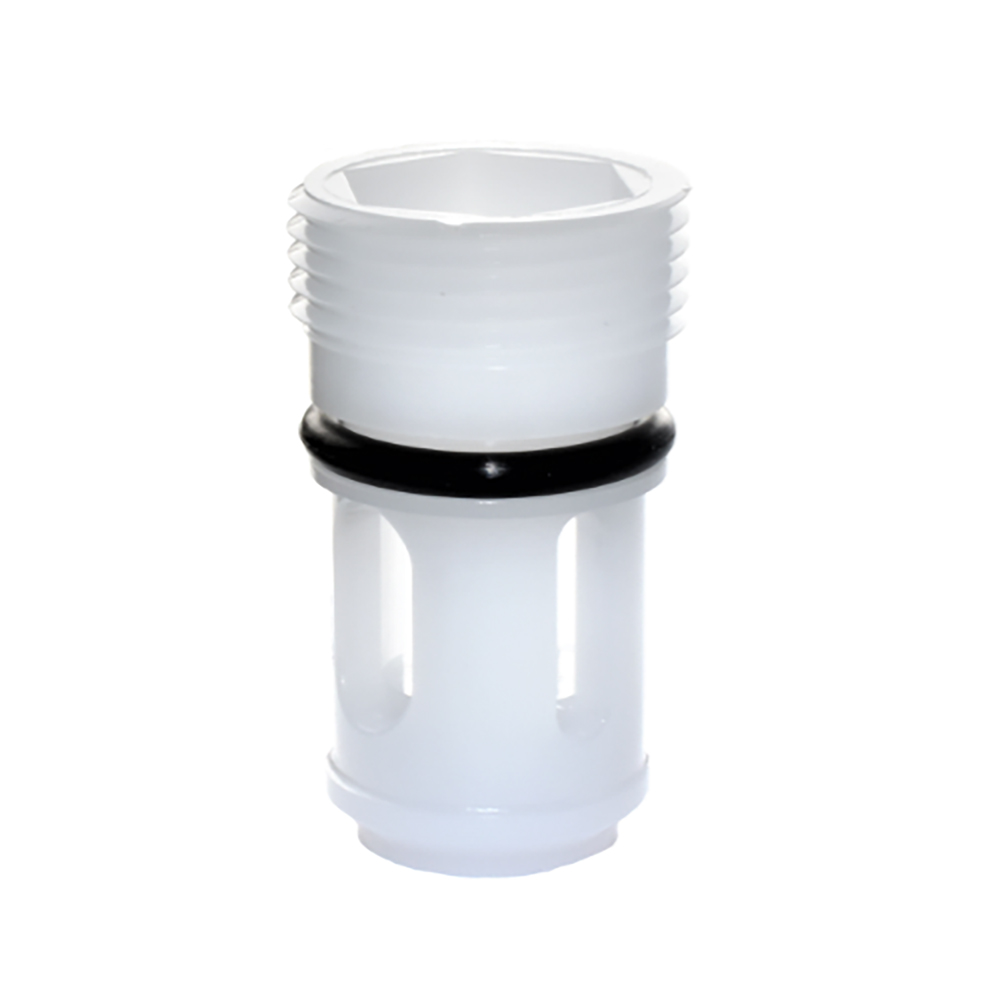

Iwata LS-400/WS-400 Air Valve Seat Set (03843530)03843530£29.10
Quantity

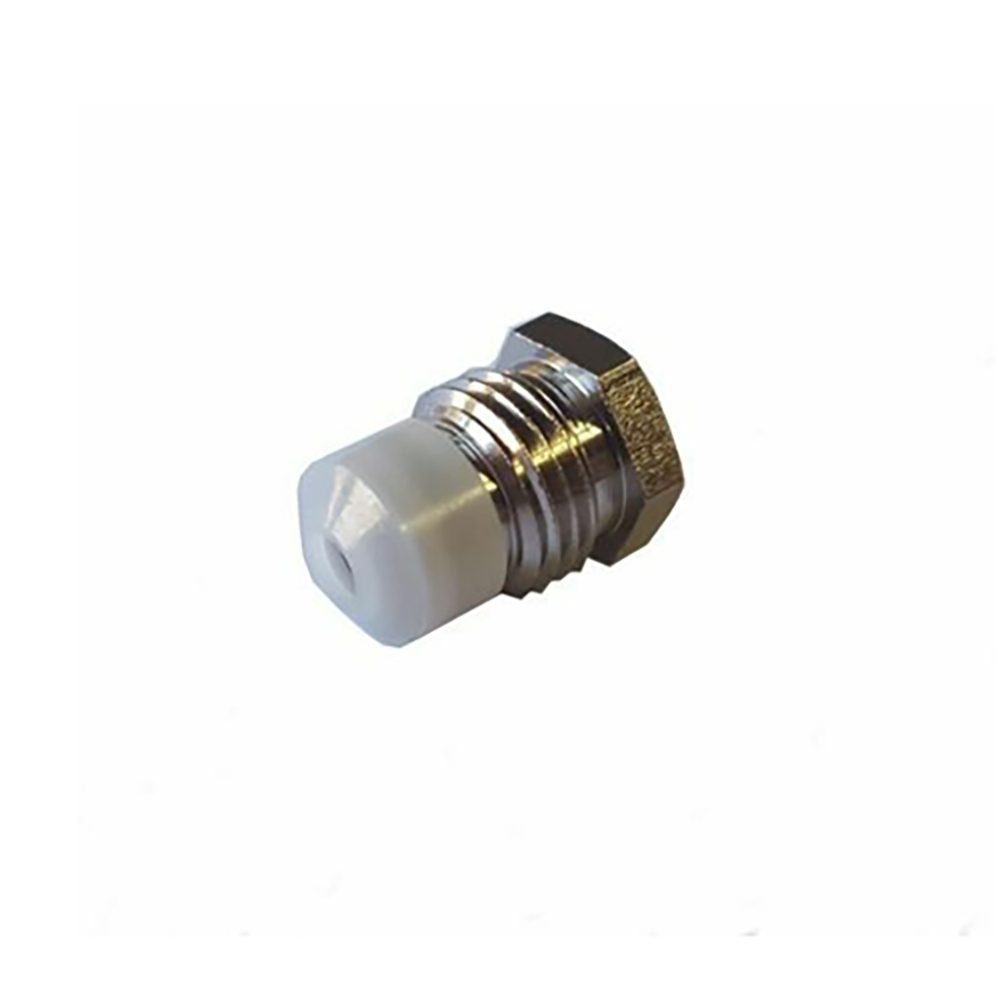

Iwata LS-400/WS-400 Needle Packing Cartridge (03810620)£26.25
Quantity

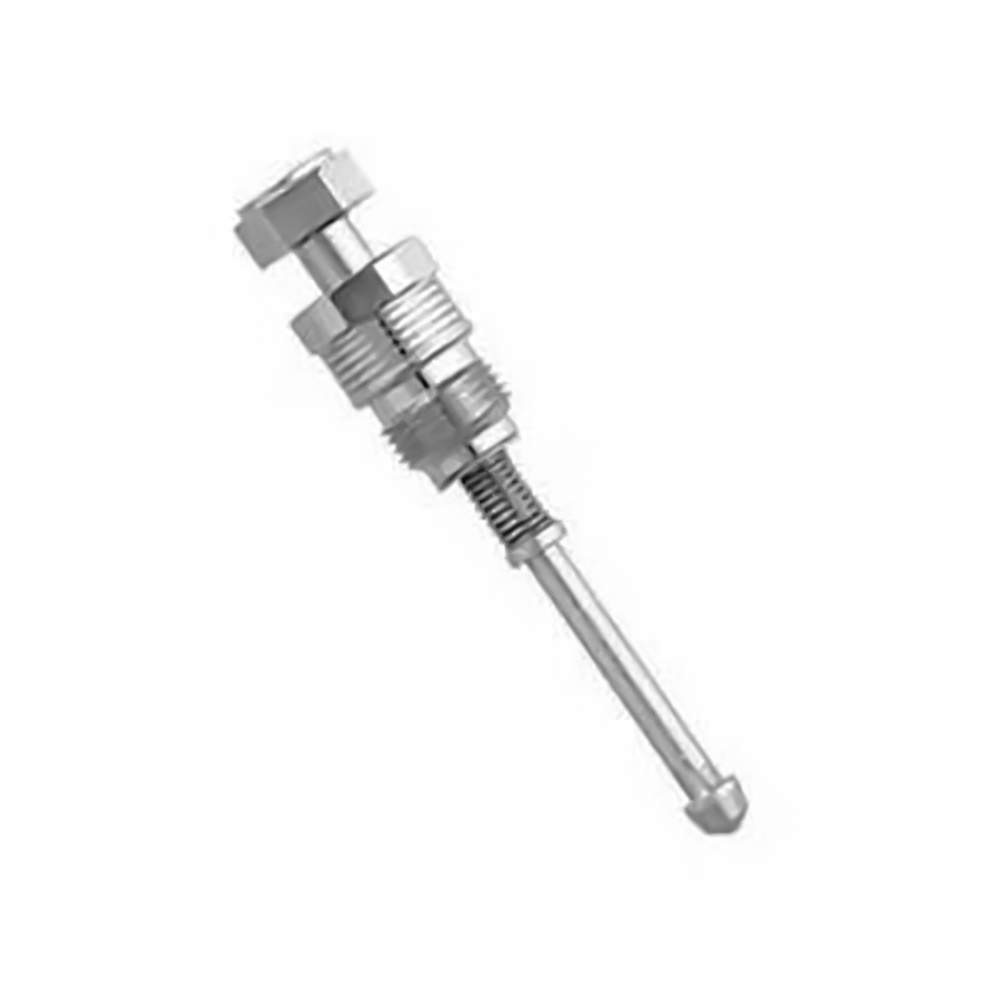

Iwata LS-400/WS-400 Pattern Adjustment Set (93505432)93505432£61.77
Quantity

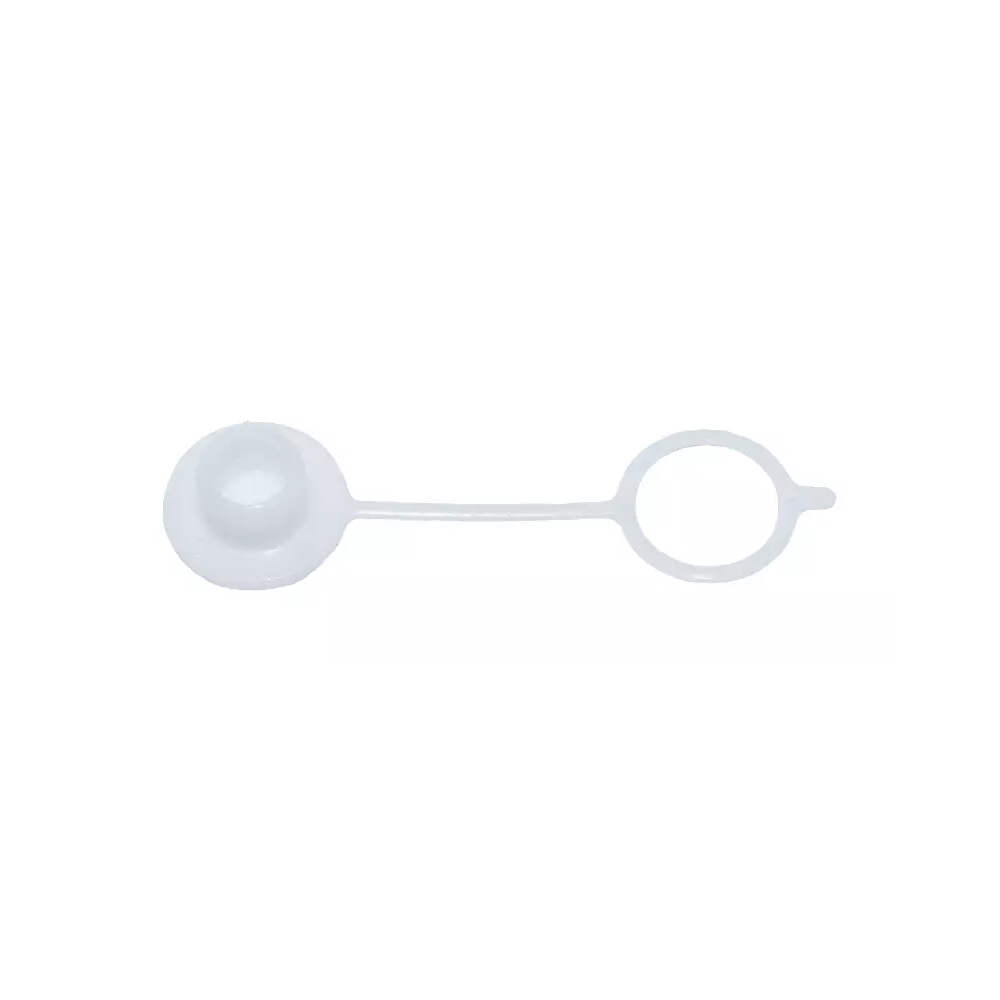

Iwata Non Drip Set
Iwata Non Drip Set for 600ml Gravity Cup (94011230)94011230£2.11
Quantity
Iwata O Ring (06638008)06638008£2.44
Quantity

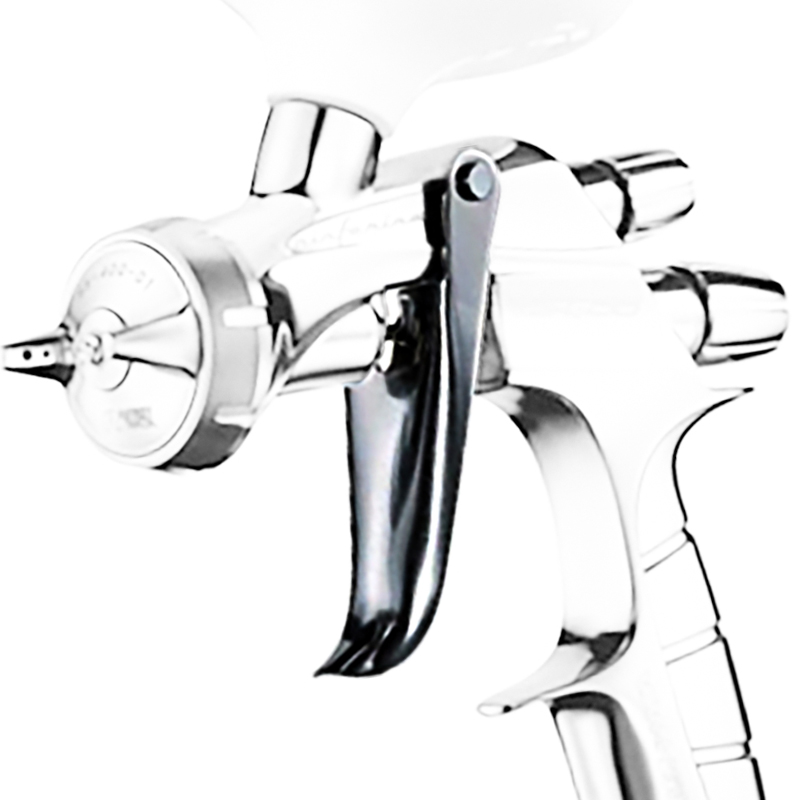

Iwata Trigger (93505850)93505850£20.53
Quantity

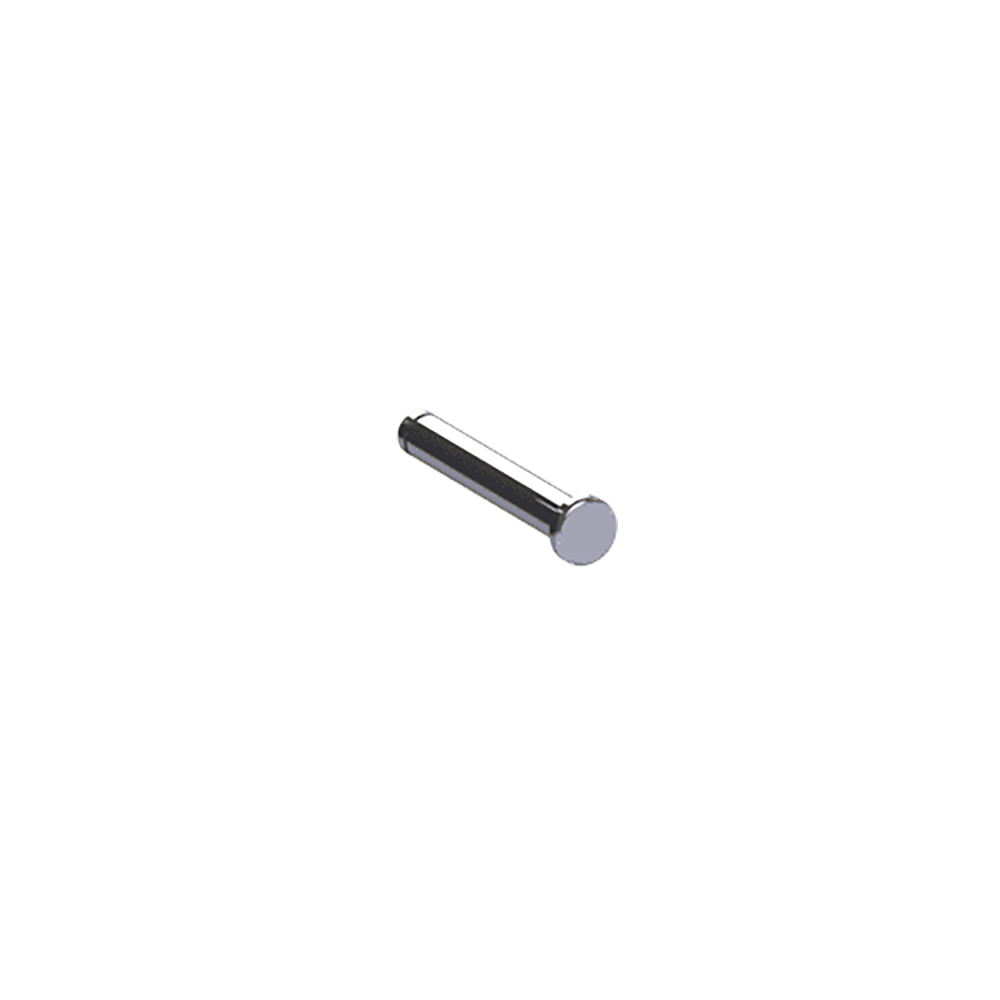

Iwata Trigger Stud (93505860)
Iwata Trigger Stud (93505860)93505860£6.18
Quantity

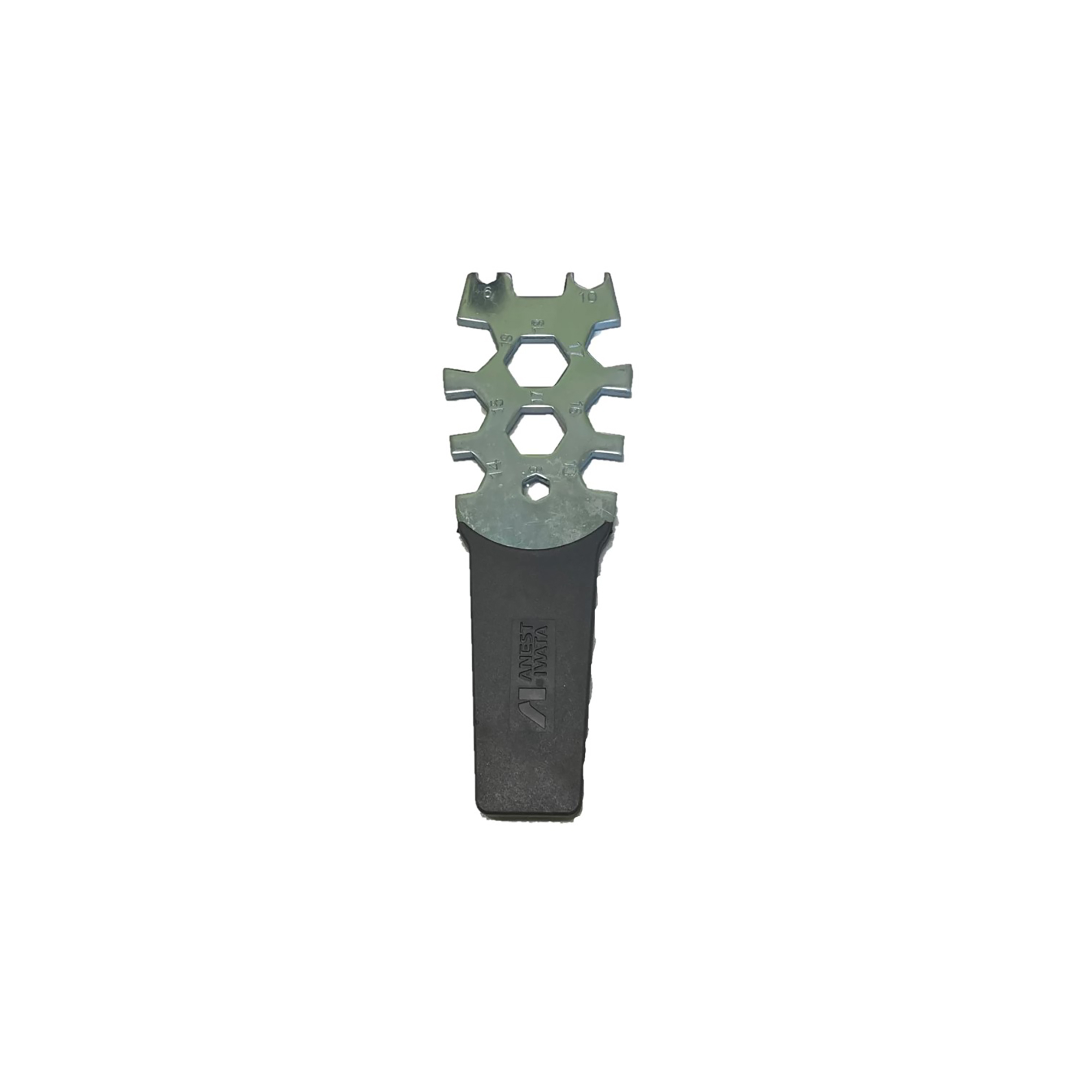

Iwata Universal Spanner (93505910)93505910£8.66
Quantity
Iwata WS-400 Clear Fluid Nozzle + Fluid Needle Set 1.4mm (93506820)93506420£120.07
Quantity
Iwata WS-400 Fluid Nozzle + Fluid Needle Set OBS Base 1.3mm (93506850)93506850£111.21
Quantity

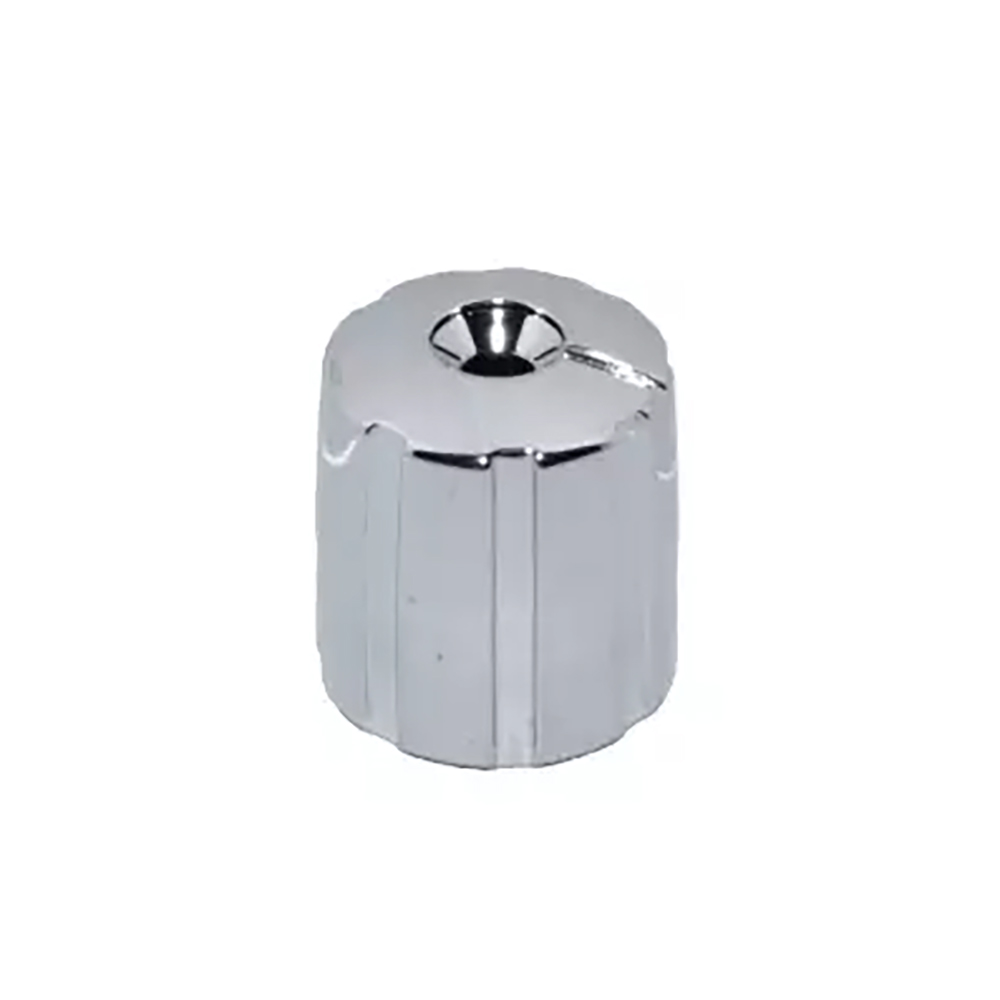

Iwata WS-400/LS-400 Adjustment Knob (Chrome) (93505471)93505471£12.31
Quantity
Iwata WS-400/LS-400 Air Nipple (03660300)03660300£10.50
Quantity

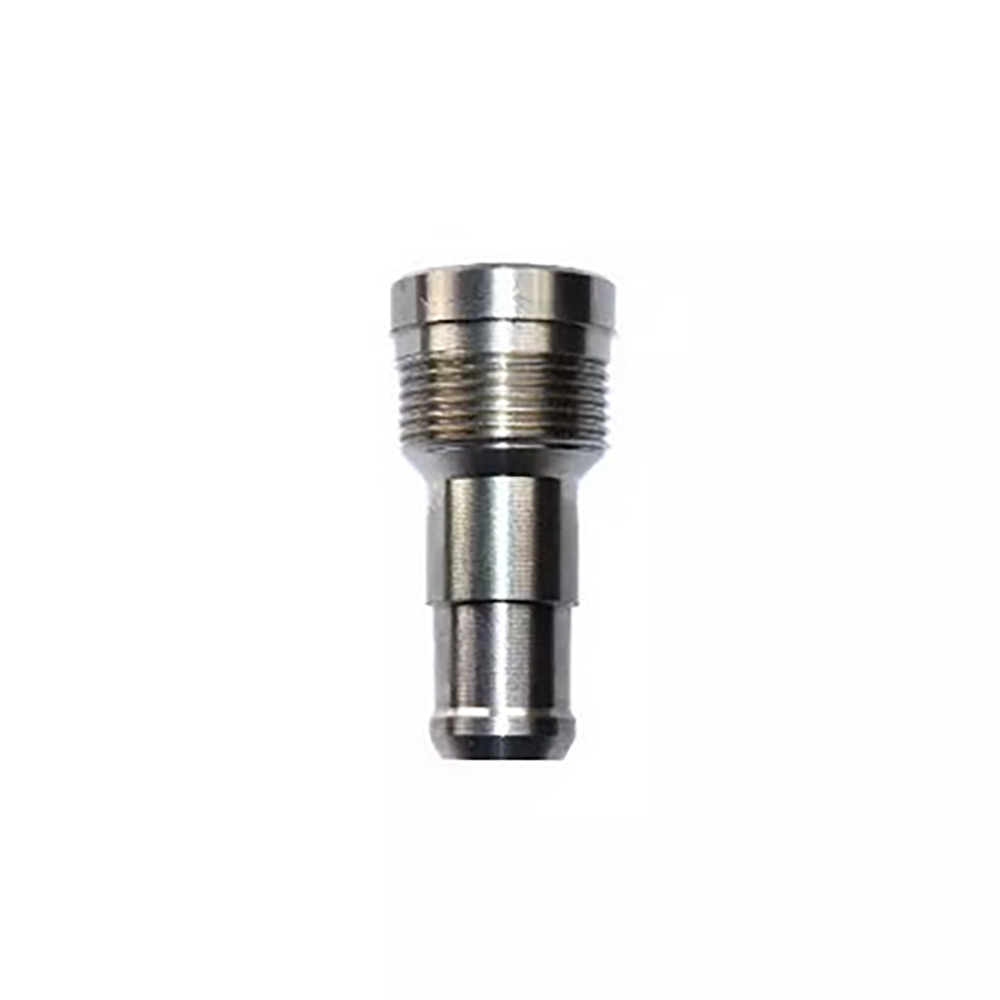

Iwata WS-400/LS-400 Fluid Nipple (93505421)93505421£76.27
Quantity
