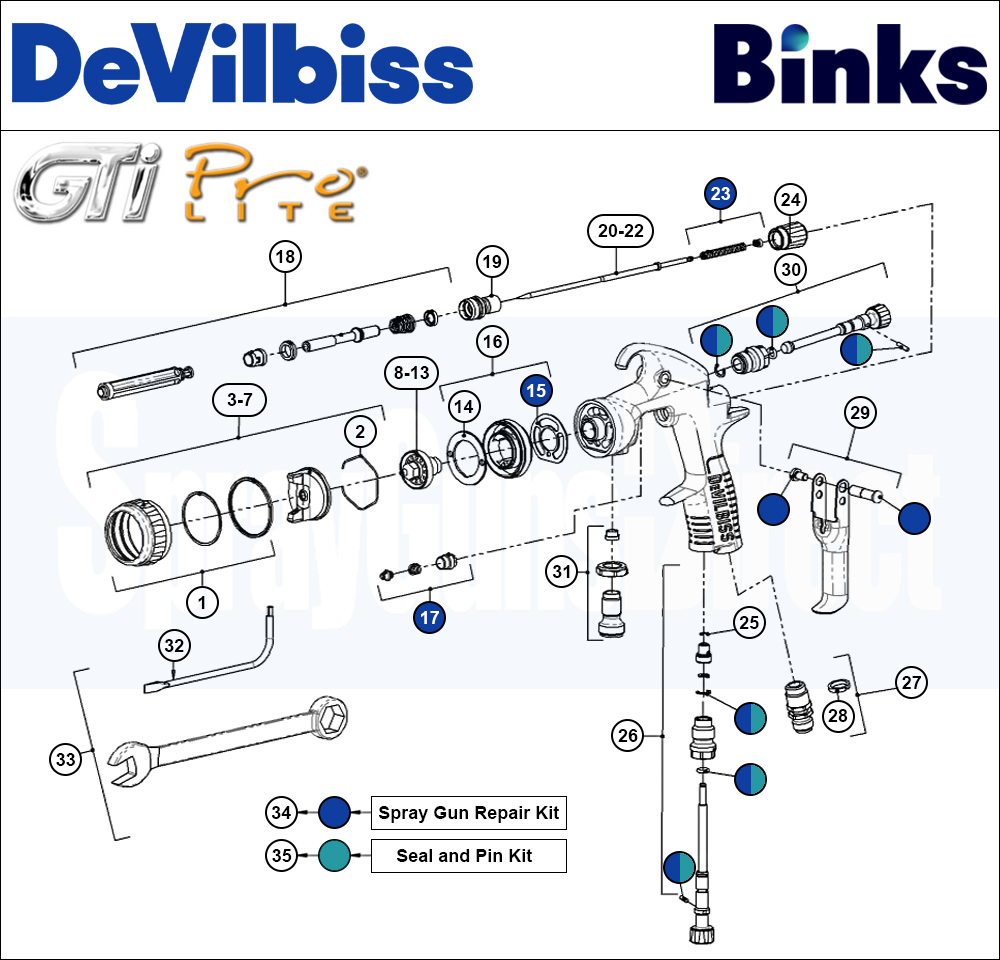

Binks DeVilbiss GTi PRO Lite Pressure Spray Gun Spare Parts Breakdown

Scroll down to view parts table below image

Binks DeVilbiss GTi PRO Lite Pressure Spray Gun Spare Parts Breakdown
ImageNameSKUPriceBuyWishlist
devilbiss gpg fluid tip PRO-205-12-K
DeVilbiss 1.6mm Fluid Nozzle (905263) [PRO-205-16-K]905263£114.00
Quantity
devilbiss gpg fluid tip PRO-205-12-K
DeVilbiss 1.8mm Fluid Nozzle (905264) [PRO-205-18-K]905264£114.00
Quantity
devilbiss retaining ring sub assembly PRO-420-K
DeVilbiss Air Cap Retaining Ring and Seal (905280) [PRO-420-K]905280£57.00
Quantity
DeVilbiss Air Inlet (905305)
DeVilbiss Air Inlet (905305) [SN-9-K]905305£19.95
Quantity
Devilbiss Air Valve Kit PRO-471 905282
DeVilbiss Air Valve Kit (905282) [PRO-471]905282£79.00
Quantity
DeVilbiss Airflow Valve (Cheater) (905276) [PRO-407-K]
DeVilbiss Airflow Valve (Cheater) (905276) [PRO-407-K]905276£71.00
Quantity
Devilbiss Baffle Plate-0
DeVilbiss Baffle Plate (905297) [SN-41-K]905297£7.75
Quantity
DeVilbiss Colour ID Ring Kit
DeVilbiss Colour ID Ring Kit (4 Colours) (905289) [SN-26-K4]905289£2.97
Quantity
DeVilbiss Fluid Inlet Kit for GTi Pro Lite (905201) [ADV-7-K]
DeVilbiss Fluid Inlet Kit for GTi Pro Lite (905201) [ADV-7-K]905201£22.90
Quantity
DeVilbiss Fluid Needle Adjusting Knob (905302)
DeVilbiss Fluid Needle Adjusting Knob (905302) [SN-67-C-K]905302£16.30
Quantity
DeVilbiss Housing & Seal Kit (SN-66-K)
DeVilbiss Housing & Seal Kit (905301) [SN-66-K]905301£22.60
Quantity
Devilbiss Packing Spring & Packing Nut Kit-0
DeVilbiss Needle Packing, Spring & Packing Nut Kit (905294) [SN-404-K]905294£15.75
Quantity
DeVilbiss Needle Spring Kit (905283)
DeVilbiss Needle Spring Kit (905283) [PRO-472-K3]905283£15.25
Quantity
devilbiss gpg fluid tip PRO-205-12-K
DeVilbiss Pressure Fluid Nozzle (1.2mm) (905259) [PRO-205-12-K]905259£114.00
Quantity
devilbiss gpg fluid tip PRO-205-12-K
DeVilbiss Pressure Fluid Nozzle (1.4mm) (905261) [PRO-205-14-K]905261£114.00
Quantity
DeVilbiss Pressure Fluid Tip (0.85mm) (905256) [PRO-205-085-K]
DeVilbiss Pressure Fluid Tip (0.85mm) (905256) [PRO-205-085-K]PRO-205-085-K£116.00
Quantity
DeVilbiss Pressure Fluid Tip (1.0mm) (905257) [PRO-205-10-K]
DeVilbiss Pressure Fluid Tip (1.0mm) (905257) [PRO-205-10-K]905257£114.00
Quantity
DeVilbiss Pro Lite Pressure Fluid Needle for 0.8mm & 1.0mm Nozzles (PRO-320-085-10-K) 905270
DeVilbiss Pro Lite Pressure Fluid Needle for 0.8mm & 1.0mm Nozzles (PRO-320-085-10-K) 905270905270£32.05
Quantity
DeVilbiss Pro Lite Pressure Fluid Needle for 1.2mm & 1.4mm Nozzles (PRO-320-12-14-K) (905271)
DeVilbiss Pro Lite Pressure Fluid Needle for 1.2mm & 1.4mm Nozzles (PRO-320-12-14-K) (905271)905271£32.05
Quantity
DeVilbiss Fluid Needle (PRO-320-16-18-k) [905272]
DeVilbiss Pro Lite Pressure Fluid Needle for 1.6mm & 1.8mm Nozzles (PRO-320-16-18-k) [905272]905272£31.50
Quantity
DeVilbiss PROLite HV30 Air Cap & Ring
DeVilbiss PROLite HV30 Air Cap Assembly With Retaining Ring (905238) [PRO-102-HV30-K]905238£153.00
Quantity
Devilbiss TE10 High Efficiency Air Cap & Ring -0
DeVilbiss PROLite TE10 Air Cap Assembly With Retaining Ring (905240) [PRO-102-TE10-K]905240£153.00
Quantity
DeVilbiss PROLite TE20 Air Cap & Ring
DeVilbiss PROLite TE20 Air Cap Assembly With Retaining Ring (905241) [PRO-102-TE20-K]905241£153.00
Quantity
Devilbiss Circlip (pack of 5)-0
DeVilbiss Retaining Ring (Pack of 5) (905200) [25746-007-K5]905200£26.80
Quantity
Devilbiss Seal & Pin Kit (set of 5)-0
DeVilbiss Seal & Pin Kit (Set of 5) (905206) [GTI-428-K5]905206£19.80
Quantity
Devilbiss Spray Gun Repair Kit
DeVilbiss Spray Gun Repair Kit (905281) (Formally as PRO-470)905281£40.45
Quantity
Devilbiss Spray Head and Seal Kit (905303)
DeVilbiss Spray Head and Seal Kit (905303) [SN-69-K]905303£66.00
Quantity
DeVilbiss Spray Head Seal
DeVilbiss Spray Head Seal (Kit of 2) (905287) [SN-18-1-K2]905287£7.75
Quantity
DeVilbiss Spreader Valve Assembly (905275)
DeVilbiss Spreader Valve Assembly (905275) [PRO-406-K]905275£60.00
Quantity
devilbiss spring clip JGA-156-K5
DeVilbiss Spring Clip (Kit of 5) (905208) [JGA-156-K5]905208£22.90
Quantity
Devilbiss TE30 High Efficiency Air Cap
Devilbiss TE30 High Efficiency Air Cap & Ring (905243) [PRO-102-TE30-K]905243£153.00
Quantity
PRO-102-TE40-K
Devilbiss TE40 High Efficiency Air Cap & Ring (905244) [PRO-102-TE40-k]905244£153.00
Quantity
Devilbiss Torx Key (kit of 2)-0
DeVilbiss Torx Key (kit of 2) (905307) [SPN-8-K2]905307£9.90
Quantity
Devilbiss Torx Key & Spanner Kit
DeVilbiss Torx Key & Spanner Kit (905296) [SN-406]905296£24.45
Quantity
DeVilbiss Trigger, Stud & Screw Kit (905306) [SP-617-CR-K]
DeVilbiss Trigger, Stud & Screw Kit (905306) [SP-617-CR-K]905306£48.30
Quantity
