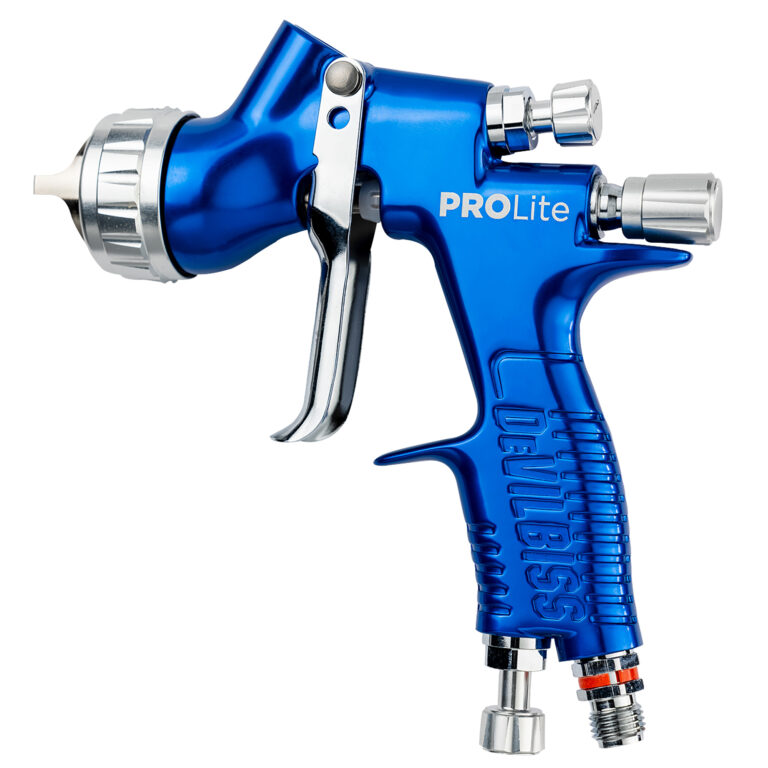

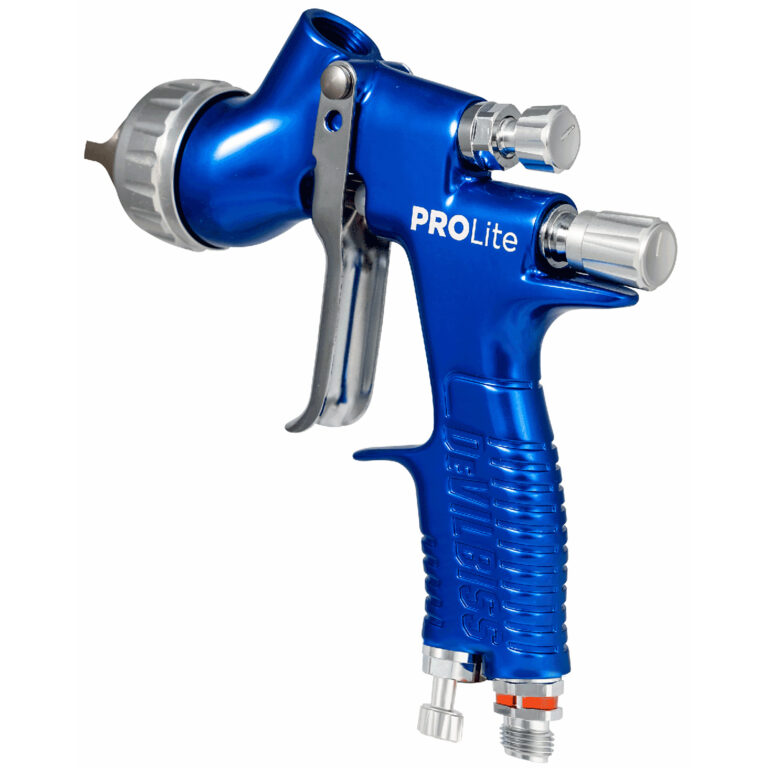

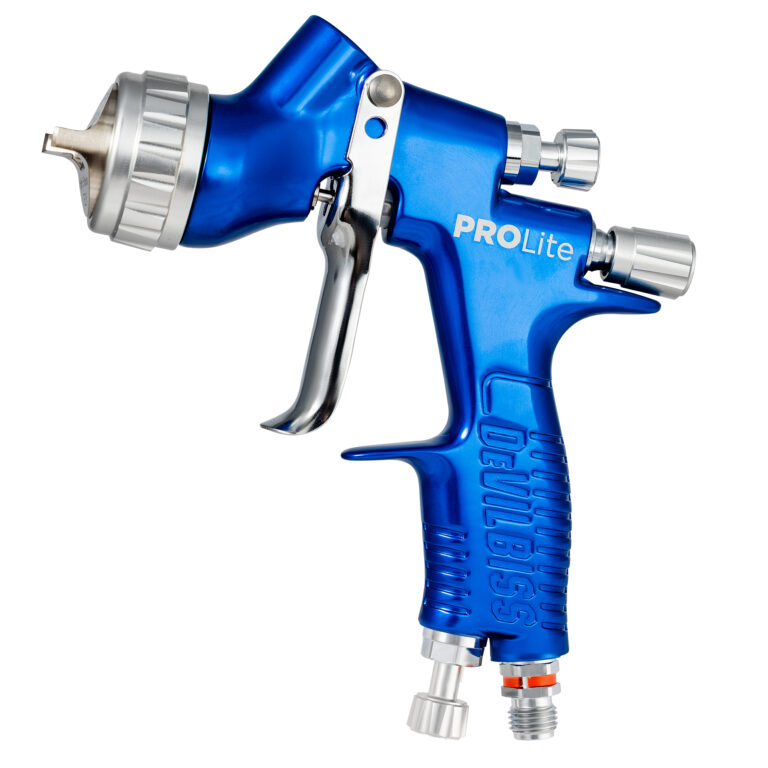

DeVilbiss PROLite Gravity Spray Gun *Cutting Edge Performance* UK’s no.1 most popular in bodyshops (Previously DeVilbiss GTI PRO LITE)

PRO Lite DeVilbiss spray guns are precision-built using the highest quality component materials for longer working life in all professional spray environments. The drop forged aluminium body, anodized finish, high-grade stainless steel fluid nozzles and needles, and nickel-plated brass air caps all contribute to a gun that will last in the most extreme environments. When routine maintenance is needed, the PRO Lite’s easy-to-maintain design ensures minimum production downtime.

Delivers exceptional performance and colour matching capabilities for today’s automotive refinish coatings that can be difficult to atomize, such as low VOC, high solids, pearls or metallic materials.

This PRO Lite Spray Gun performance is achieved utilizing high-capacity air passages and a linear air valve to provide an even and unrestricted flow of compressed air through the gun body, producing superior atomization with consistent droplet distribution throughout the entire spray pattern.

In approval testing with paint company technicians over the last decade, the PROLite has consistently met the highest colour match standards to ensure that you get the job done right — the first time and every time. nance is needed, the PRO Lite’s easy-to-maintain design ensures minimum production downtime. In approval testing with paint company technicians over the last decade, the PRO Lite has consistently met the highest colour match standards to ensure that you get the job done right — the first time and every time.

The lightweight design delivers a uniform spray pattern and atomization distribution for an exceptional quality finish that professional painters demand.
Range of advanced air cap technologies for excellent application performance with the latest waterborne and solvent-borne coatings.
Ergonomic handle design with reduced trigger travel to decrease operator fatigue.
Environmental legislation-compliant atomization with high transfer efficiency results in significant paint savings.
Drop-forged aluminium, anodized gun body with removable air baffle for longer working life.

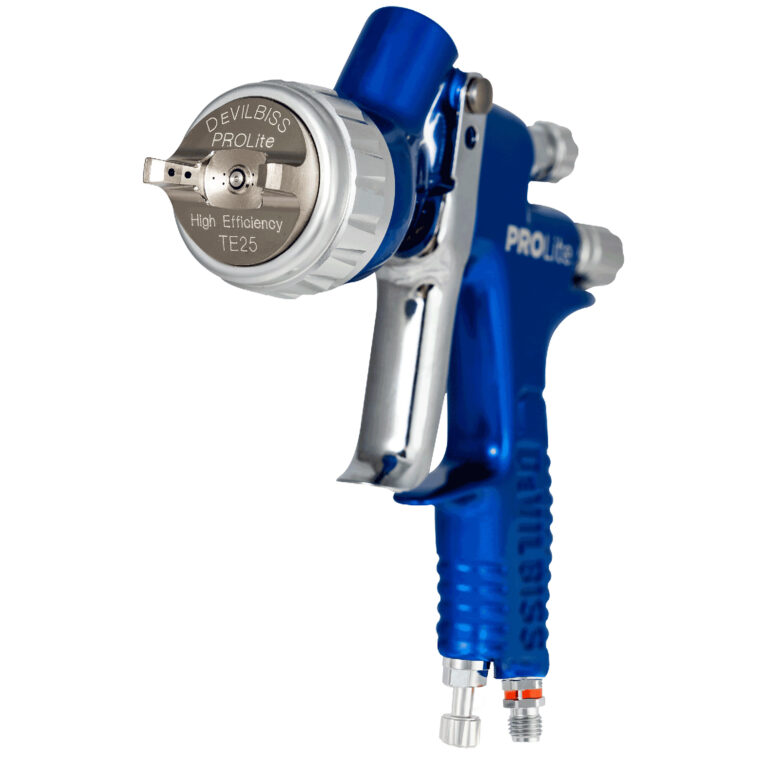

1.1mm only available in TE25 / TE10

PLEASE NOTE – there are four air caps to choose from that affect the way that the gun sprays. These are:

T110 – Clearcoat (higher solids) and super smooth finishing

• High-performance Trans-Tech atomisation technology best suited to clear coating and glosses.
• This aircap brings new levels of performance, particularly in the application of the latest compliant clearcoats.
• It also scores highly in its ability to eradicate dimple defects that can occur with low solvent clear coats; does not have the same transfer efficiency of the other caps though.
• As OEM finishes are not that smooth, does not always suit such as when using lower solid technology.
• Particularly suited to classic car finishers or industrial applications as it applies like glass.
• Air consumption: 9.4cfm- 265l/min.

TE20 – Faster flow gloss/lacquer

• All-round gloss/clearcoat gun.
• Flow rate and fan pattern lend themselves toward a wetter application style.
• Compliant trans-tech high transfer efficiency (but not HVLP)
• Fluid tip sizes available: 1.2, 1.3 and 1.4.  For 2K gloss / clear the 1.3 is by far the most popular choice and is recommended by the majority of paint manufacturers for their HS 2K products.
• Atomisation Technology: High Efficiency
• Air Flow L/min: 360 (12.7 cfm)
• Fluid g/m: 170 – 200
• Pattern Height: 285 – 300mm

HV30 – HVLP Max Transfer efficiency

• This aircap delivers maximum transfer efficiency rates so is particularly suitable for waterborne basecoat application.
• Air Flow L/min: 460 (16.3 cfm)
• Fluid g/m: 160 – 190
• Pattern Height: 300 – 325mm

TE10 – Solvent & all rounder

• Trans-tech high transfer efficiency, not HVLP and best suits solvent basecoat – though can be used for water-based and also lacquer – this is a good all-rounder to do multiple tasks.
• Suits basecoat application in a more traditional (non HVLP) style.
• Particularly suits solvent basecoats however is sometimes favoured/recommended by some paint companies for waterborne basecoat application.
• This is a ‘Trans-tech’ air cap, which is compliant but is not HVLP. This means the spray pattern is more elliptical (squat/rounded) than the open flat (wide fan width) pattern found on the H1 air cap. See the info pack button above for more info.
• Atomisation Technology: High Efficiency
• Air Flow L/min: 270 (9.5 cfm)
• Fluid g/m: 160 – 190
• Pattern Height: 290 – 310mm

The boxed kit includes:

• The complete anodized gun
• Gravity cup with paint filter
• Set of four coloured identification rings
• Torx driver/screwdriver
• Cleaning brush
• Combination spanner
• Instruction/spare parts manual

Technical Specifications

• Cup Capacity: 560ml
• Weight (gun only): 446g
• Weight (gun & cup): 629g
• Air Cap: Plated Brass
• Air Cap Retaining Ring: Clear Anodised aluminium
• Fluid Tips: Stainless Steel
• Fluid Needle: Stainless Steel
• Air Inlet Thread: 1/4” Universal
