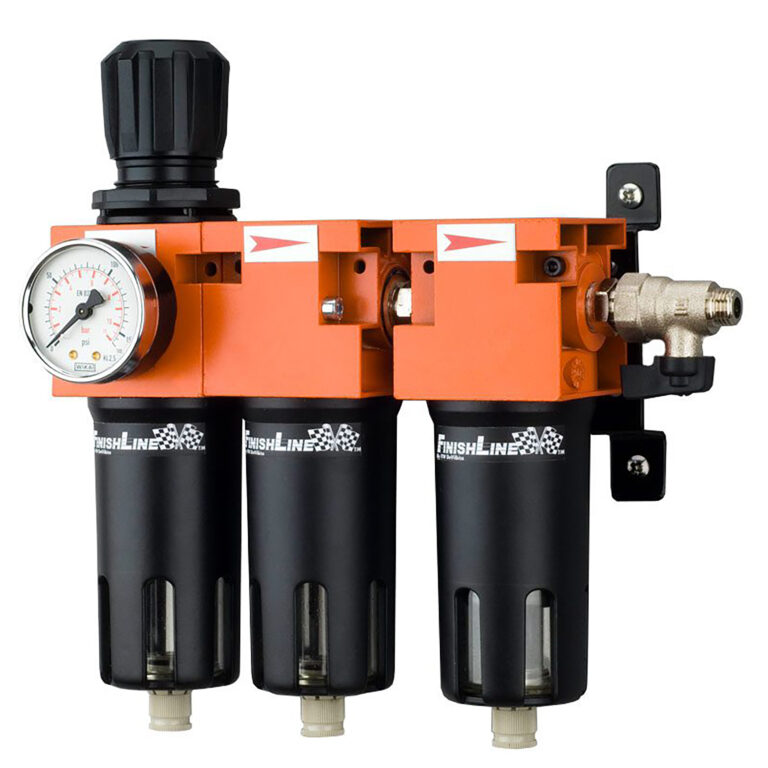

    DeVilbiss FLRCAC-1 Complete Triple Stage Breathing Air Filter Regulator Assembly

    This competitive filter regulator is the ideal partner to the Vizi-601 Air-Fed Vizor.

    With air filtration down to 0.01 microns and activated carbon removing contaminants down to 0.003 ppm for both breathing and spraying. It is designed to remove entrained dirt, liquid, oil and water from flowing compressed air.

    The self-locking regulator together with the clear analogue gauge provides accurate air pressure control. It is supplied with a wall mounted bracket and ball valve controlled air outlet.

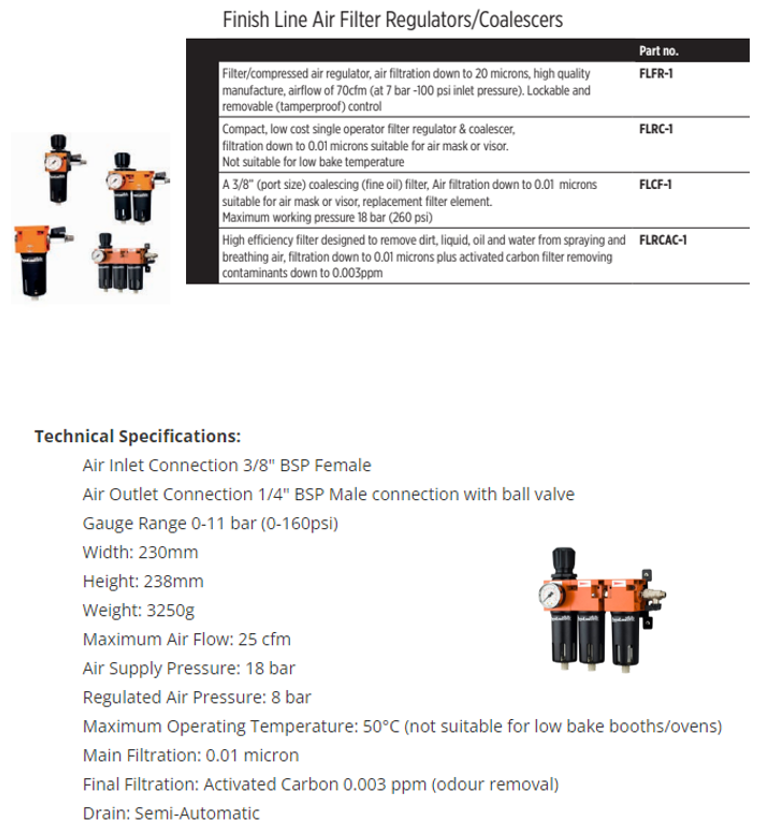

    Technical Specifications

    • Air Inlet Connection 3/8” BSP Female
    • Air Outlet Connection ¼” BSP Male connection with ball valve
    • Gauge Range 0-11 bar (0-160psi)
    • Width: 230mm
    • Height: 238mm
    • Weight: 3250g
    • Maximum Air Flow: 25 cfm
    • Air Supply Pressure: 18 bar
    • Regulated Air Pressure: 8 bar
    • Maximum Operating Temperature: 50 °C (not suitable for low bake booths/ovens)
    • Main Filtration: 0.01 micron
    • Final Filtration: Activated Carbon 0.003 ppm (odour removal)
    • Drain: Semi-Automatic

    3 Stage Filter Consists of:

    • 9450102: First stage, replacement filter element
    • XA12: Second stage, replacement coalescing filter element

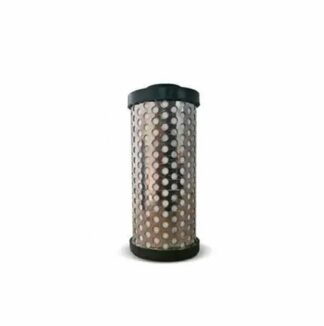

    • AC12: Final stage, activated carbon replacement filter element

    Additional information

    Weight 3.5 kg
