Description

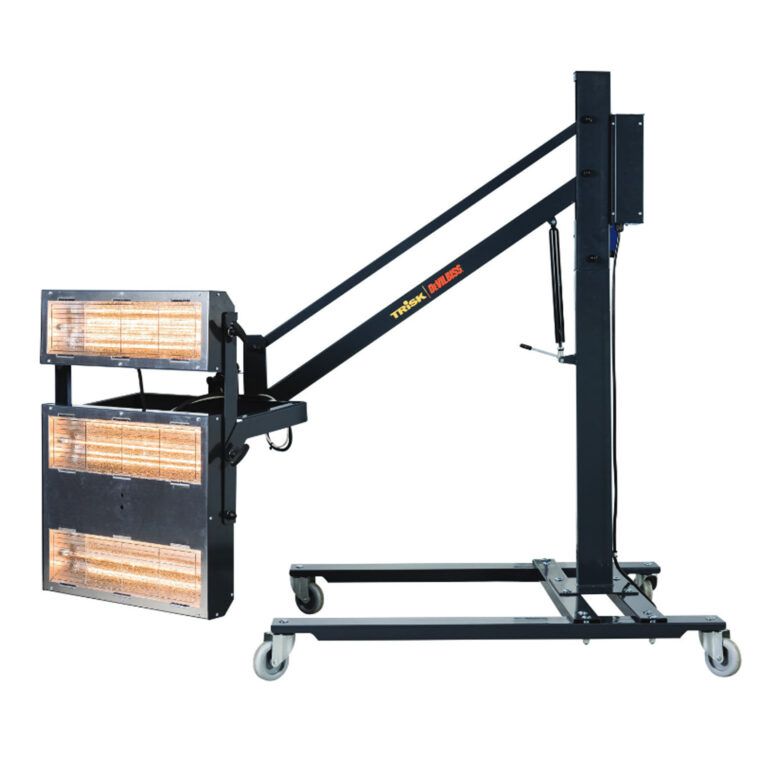

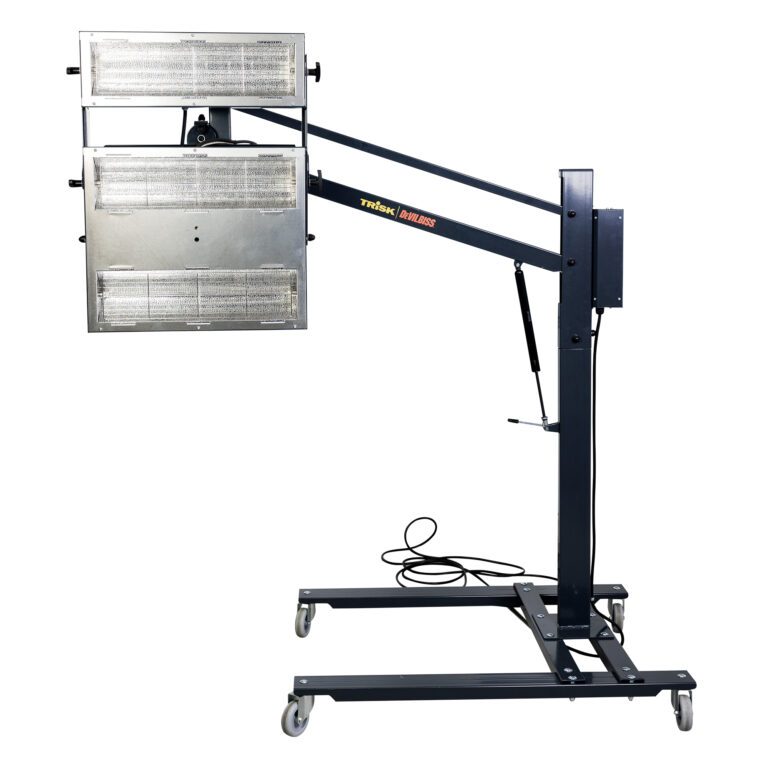

DeVilbiss Trisk TruCure IR3L, 220-240V Single Phase Infra-Red Lamp (TC-IR3L-02)

The Tru-Cure line of products are designed to provide an even cure of most automotive refinishing materials. The portable, low-cost system requires no installation allowing quick star-up.

Our stand-up infrared unit features a unique dimpled sheet reflector that generates extremely even curing intensity and temperature over entire surfaces This ensures the fastest possible curing time, while minimizing risk of over-curing or burning sections of your coating.

Additionally, the Trisk | DeVilbiss Tru-Cure IR lamp units feature an adjustment to allow it to be set for curing both horizontal and vertical without putting additional stress on the lamp itself if constantly changed by the operator.

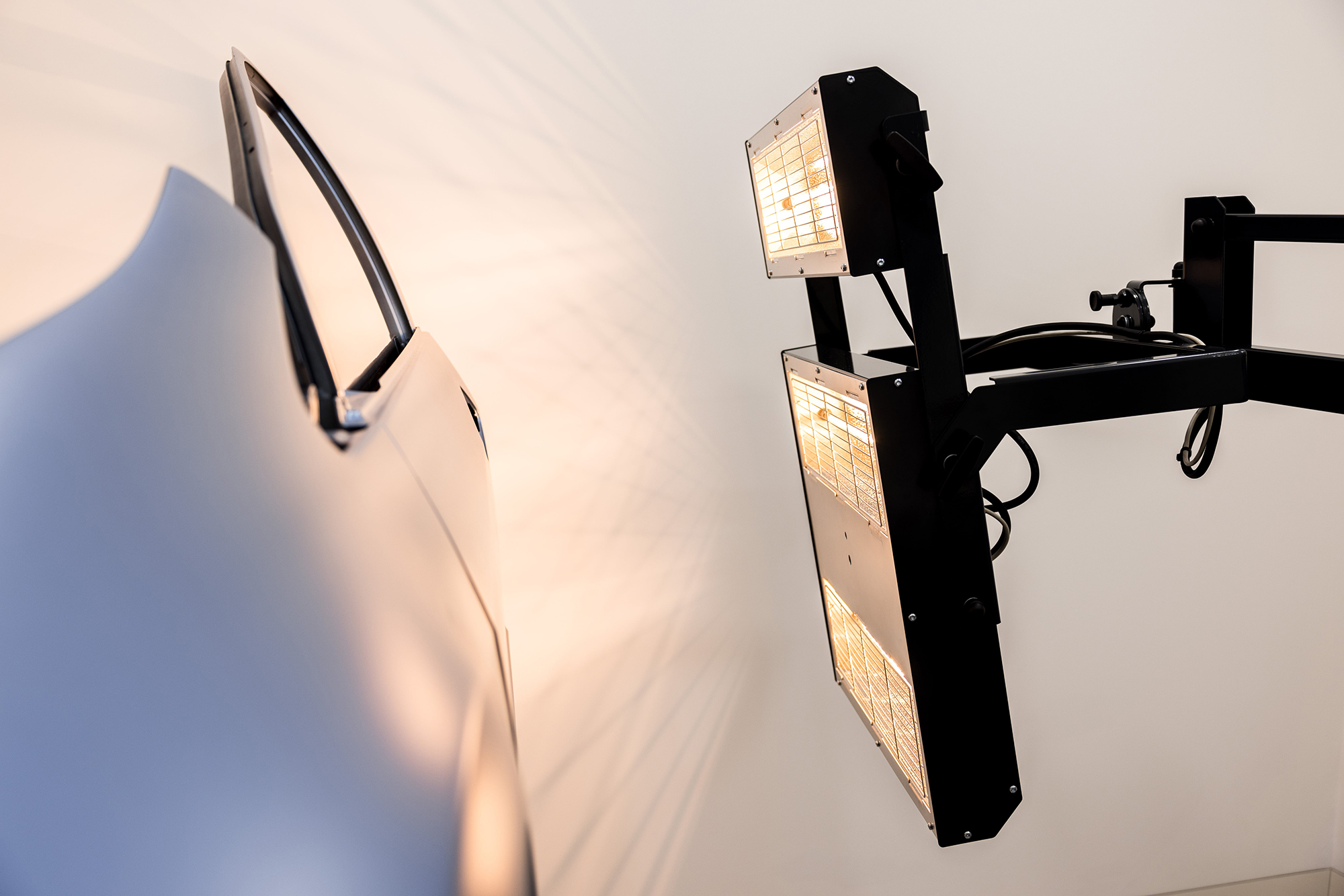

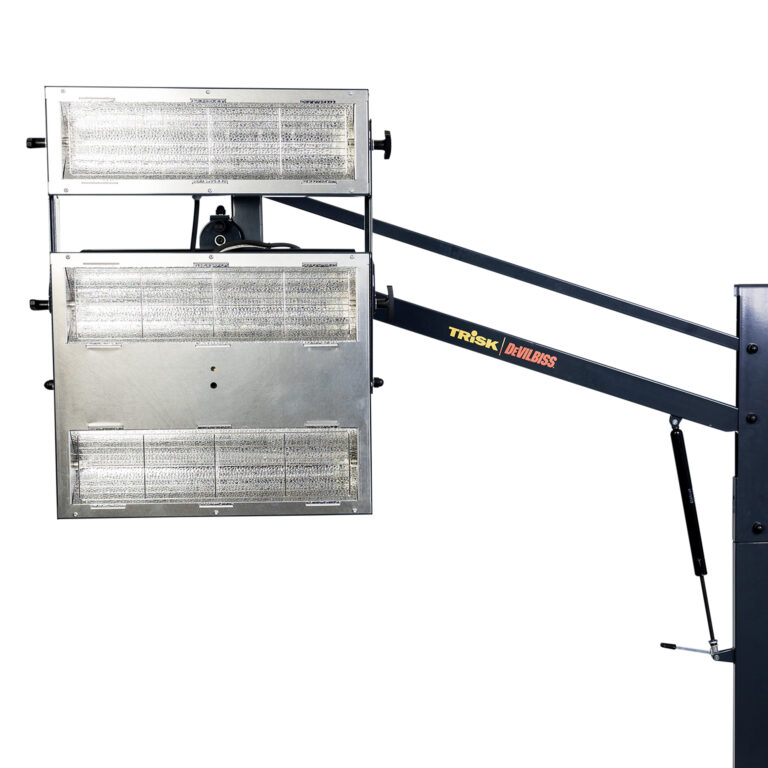

The easily manoeuvrable Trisk DeVilbiss IR3L/IR3LT are equipped with both dual and single lamp cassettes for easy adjustment and flexibility around curved parts without sacrifice to heat distribution. The design, combined with a gas spring, makes cassette adjustment simple. The IR lamps and reflectors are protected against mechanical damage with a mesh. The control unit enables flash off (50% power) and full bake (100% power). The time can be set individually for each mode (0-30 min). Additionally, the IR3LT unit is equipped with a contactless temperature control where the temperature can be set between 20°C and 99°C.

Advantages

Unique reflector design

The Trisk Devilbiss IR3L/IR3LT features a unique dimpled sheet reflector that generates extremely even curing intensity and temperature over entire surfaces. This ensures the fastest possible curing time, while minimizing risk of over-curing or burning sections of your coating.

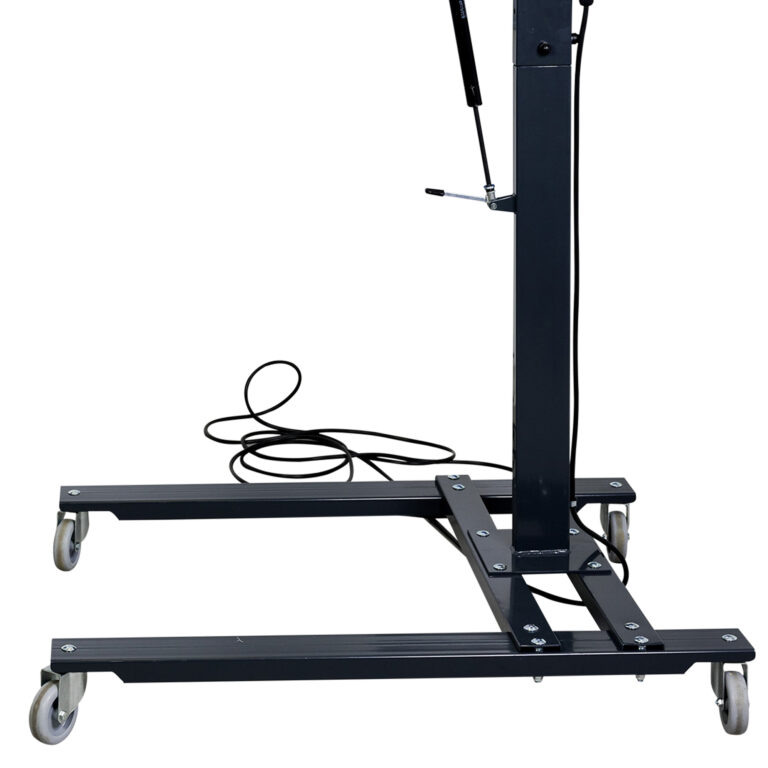

Good manoeuvrability

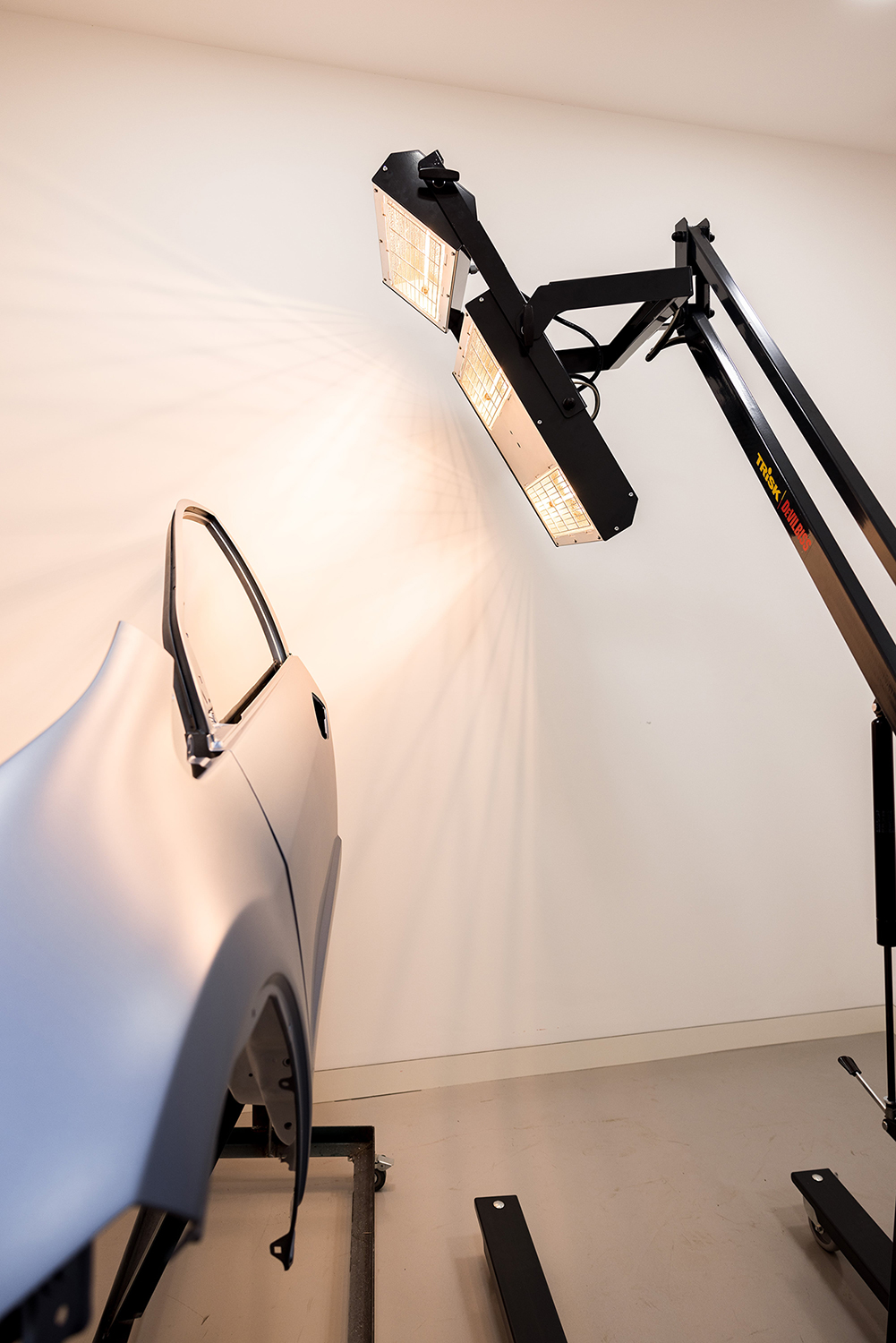

The Trisk DeVilbiss IR3L/IR3LT are sized to cure higher surfaces such as hood and roof. Lockable gas piston makes it very easy to set point of parallel arm. IR3LT has a laser guided pyrometer displaying surface temperature readout which make it even easier to properly position the lamps.

Technical Specifications

Additional information
