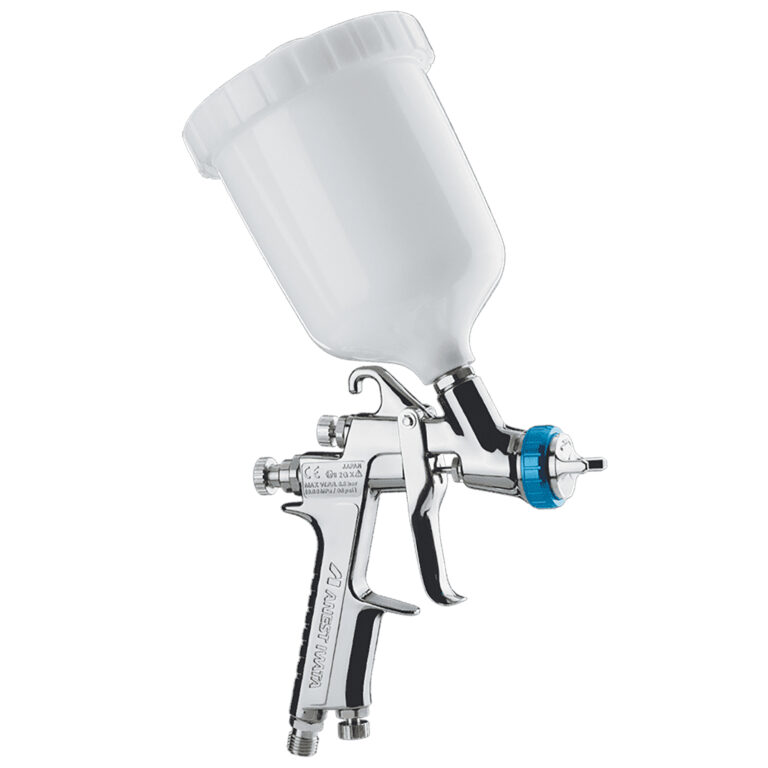

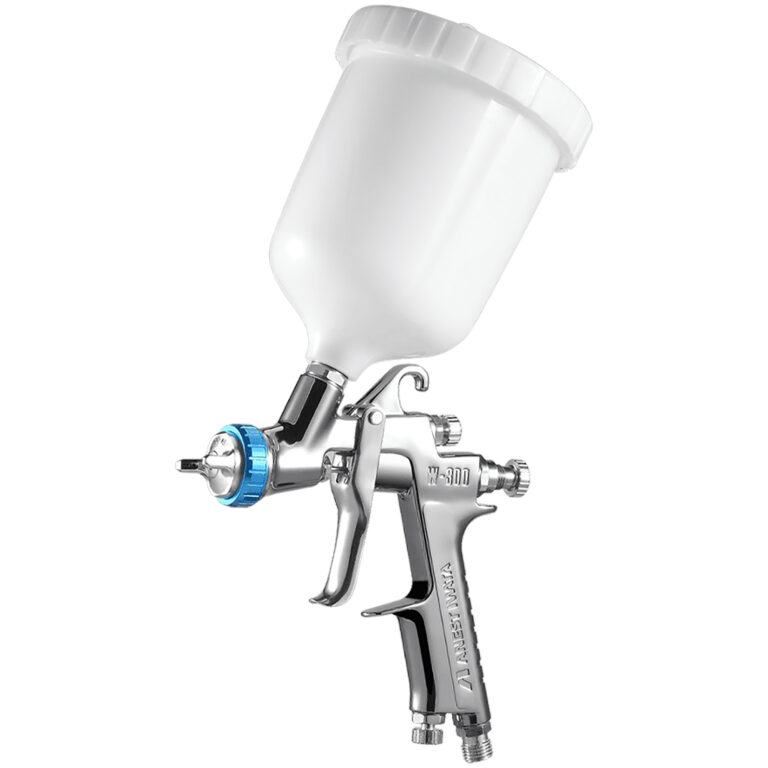

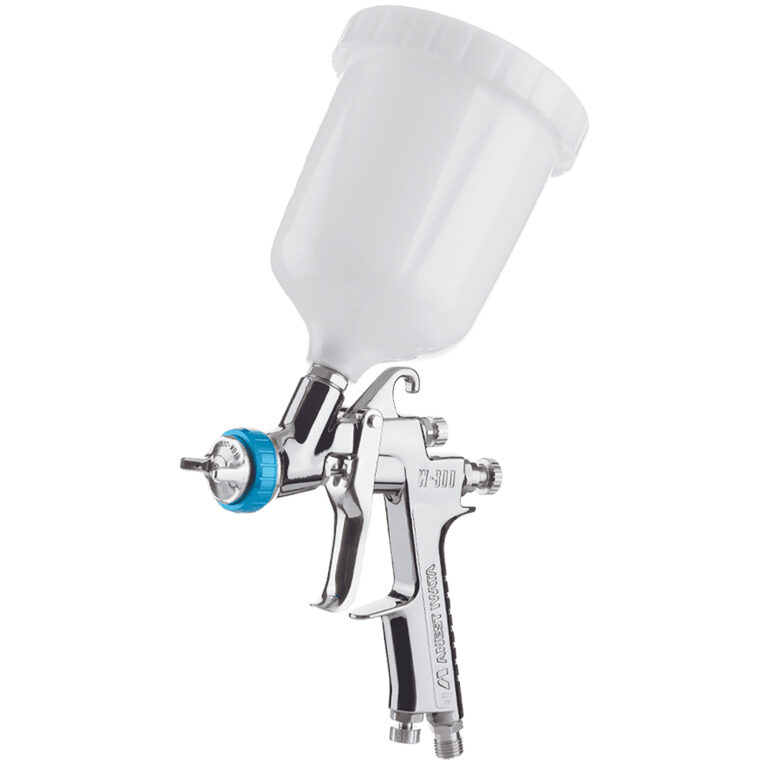

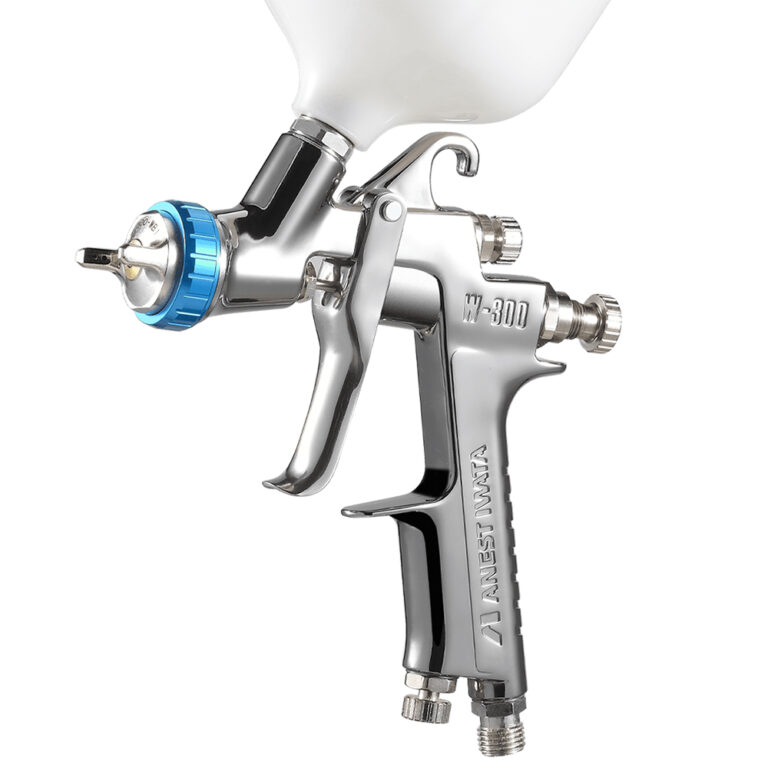

    Iwata W300wb Spray Gun (13241515P / 13241508P)

    Our Price


    Our Price: £ 344.68
    Trade: £ 430.84
    VAT/TAX: £68.94
    Total: £413.62
    View Parts


    Iwata W300wb Spray Gun (13241515P / 13241508P)

    An amazing spray gun with low air volume for water-based basecoats. The W300 WB is the latest addition to W-300 series.

    Iwata W300 WB smart repair spray gun. Specially designed for the atomising of water based coatings and this spray gun can also allow a very fine atomisation of solvent based paints.

    Pre-Atomization Technology

    The W-300 range of flat nozzles is ideal for detail work due to its shorter patterns and lower fluid outlets, making it a great all-rounder. The resistance piece is the W-300 WB which is equipped with the split nozzle. This technology helps achieve reduced orange peel in highlights and a flatter, streak-free application of difficult base coats.

    Fan Pattern

    W-300 has two types of fan pattern, the first one is W-300 WB with split nozzle technology. It has a longer, flatter pattern with tight, consistent drops for premium applications. The second is the flat nozzle fan pattern which are smaller and more elliptical, these are good for smaller applications in general industries.

    Transfer Efficiency

    W-300 works a transfer efficiency more than 65% with its recommended operating pressure reduced to 1.5 bar. This helps reduce costs and emissions in a busy auto body shop environment..


    • Perfect surfaces thanks to the Split Nozzle™ technology
    • Specific for blending, for example for side walls, bumper and smaller areas
    • Barely visible transitions thanks to the soft and fine spray pattern
    • Very fine atomization with low air consumption (190 l/min)
    • Extremely low material consumption
    • Low background noise
    • 320 g: one of the most lightweight Smart Repair spray guns on the market
    • Simple operation of the control knobs, for right and left handers
    • Conical seal nozzle, minimum wear parts
    • Clearer design, easy maintenance
    • Quality surface for easy cleaning

    For Spray Gun Adaptors please follow the Blue links below for selected adaptor.

    Brand Adaptor Number
    3M PPS Series 1 No.43 (50677)
    3M PPS Series 2 No. S43 (20677)
    DeVilbiss DeKups DPC-78
    SATA RPS No.4 (125278)
    Colad Snap Lid No.13 (9370A13)
    Sagola DPC PTDPC-32374-1

    Additional information

    Weight 1 kg

    Pro Kit (200ml Cup) 1.0, Pro Kit (200ml Cup) 1.2, Pro Kit (200ml Cup) 1.4, Pro Kit (600ml Cup) 1.0, Pro Kit (600ml Cup) 1.2, Pro Kit (600ml Cup) 1.4
