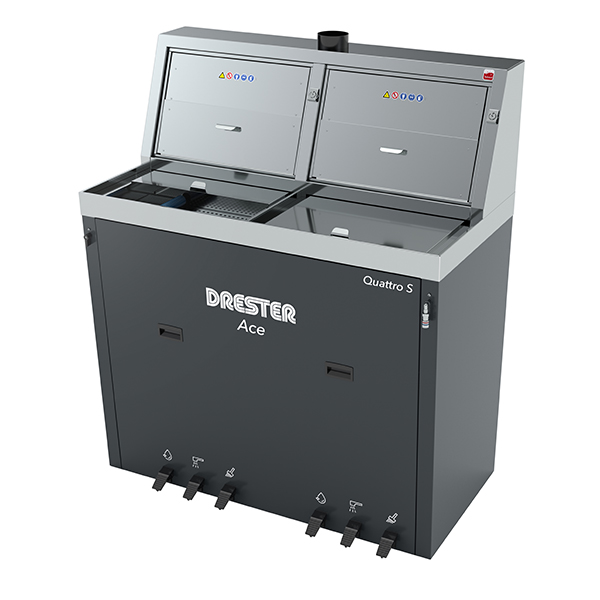

Redashe RDG4S Ace Quattro (RDG4S)

Description

This double capacity machine has all the same features as the ACE Double solvent machine, allowing up to 4 spray guns to be cleaned at the same time, 2 spray guns in the Automatic Wash Box’s and 2 manually making this the perfect machine for all large paint shops.

Features
■ Automatic washing station, using re-circulating solvent and clean rinse
■ Sink for manual cleaning, equipped with a flowthrough brush and clean rinse nozzle
■ The Quattro S can be ordered with stainless cabinet (RDI4S)
■ Ex II 2 G EEx c IIA T6
■ Air Purge Line (keeps solvent away from the airside of the gun while being cleaned)
■ Approved by major spray gun
■ Extraction capture at source
■ All Redashe spray gun cleaner pumps carry a lifetime guarantee against faulty materials and workmanship, this guarantee does not apply to fair wear and tear or damage caused by misuse or abuse of the product. Warranty limited to the original purchaser.

Specification
Air supply: 7-12bar (110 – 180psi), 250l/min (9cfm)
Extraction capacity: 360m3/hour (212cfm) (with a 10m extension) this increases the shorter the run
Overall dimensions: Height: 1488mm (58,58″) Width: 1190mm (46,7″) Max depth: 650mm (25,5″) Depth at the floor: 621mm (24.45″)
Extractor diameter: 100mm (4″)
Weight: 100kg (220lb)
Sound pressure level: <70db (A) Pump capacity: 10 Solvent pressure: 2bar/30psi#
