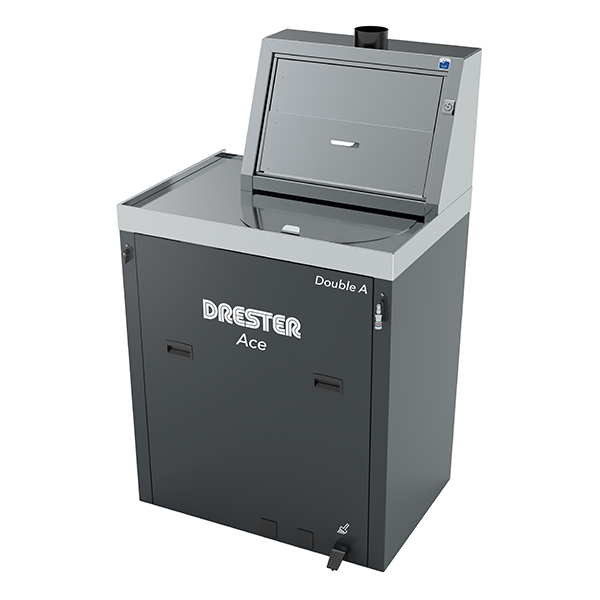

Redashe RDI2A Ace Double (RDI2A)

Description

The Automatic Wash Box provides a compact automatic cleaning area that is supplied by pump fed recirculating water or Aquasolve a second pump is used for the automatic clean rinse. Use the Automatic Wash Box to quickly and efficiently clean waterborne guns automatically. The machine is equipped with a manual cleaning area. This is equipped with a paint channel flush gun for the internals and a flow through brush to clean the externals; after cleaning, our well-tested water recovery system allows the water or Aquasolve to be recycled using a flocculating powder and filters so that it can be reused and disposed of with little to no cost.

Features
■ Automatic washing station, using recirculating waterborne solvent (recommended Drester AquaSolve)
■ Sink for manual cleaning, equipped with a paint channel rinse gun using clean water and a flowthrough brush using recycled water.
■ The Double A can be ordered with stainless cabinet (RDI2A)
■ Ex II 2 G EEx c IIA T6
■ Air Purge Line (keeps solvent away from the airside of the gun while being cleaned)
■ Extraction capture at source
■ Approved by major spray gun manufacturers

Specification
Air supply: 7-12bar (110 – 180psi), 250l/min (9cfm)
Extraction capacity: 200m3/hour (118cfm) (with a 10m extension) this increases the shorter the run
Overall dimensions: Height: 1488mm (58,58″), Width: 840mm (33.07″) Max depth: 675mm (26,7″), Depth at the floor:621mm (24.45″)
Extractor diameter: 100mm (4″)
Weight: 80kg (176lb)
Sound pressure level: <70db (A) Pump capacity: 10 Solvent pressure: 2bar/30psi
