Description

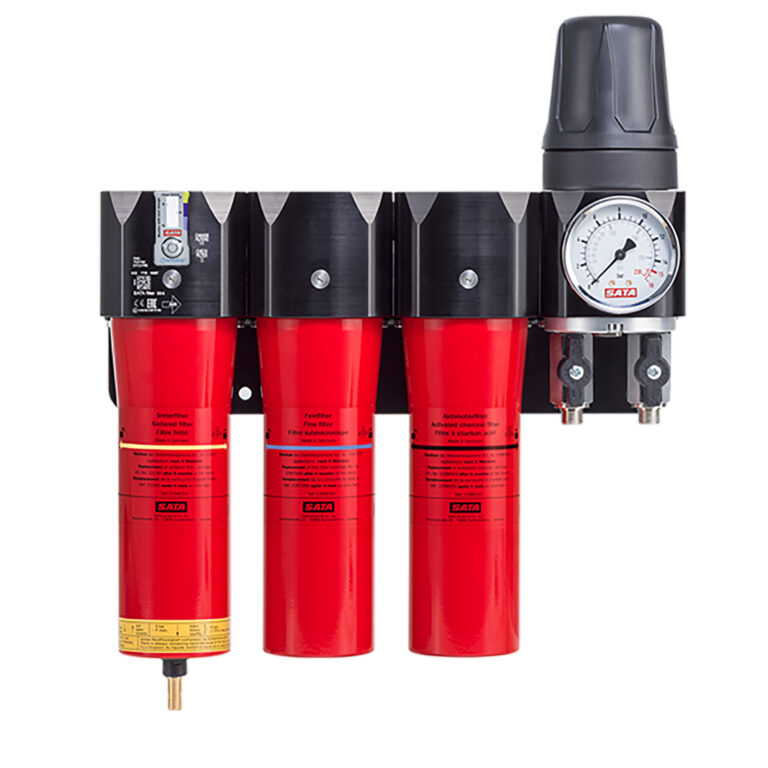

SATA Filter 584 Triple-Stage Fine Filter (1099953)

• Max. air inlet pressure: 15,0 bar
• Max. air inlet temperature: 60 °C
• Max. air outlet pressure: 15,0 bar
• Max. ambient temperature: 60 °C
• Direction of flow: missing translation ID 2757
• Exchange interval first filter stage: 6 Monate
• Exchange interval second filter stage: 6 Monate
• Exchange interval third filter stage: 6 Monate
• Thread connection inlet side: G 1/2″ (female thread)
• Installation variation: standard wall mounting
• Number of filter stages: 3
• Thread connection outlet side: 1/4″ (male thread)
• Max. storage temperature: +60 °C
• Min. storage temperature: -20 °C
• Max. air flow: 3800 Nl/min
• Art. No.: 1099953
• Product advantages: Higher absorption of contaminations (compared to SATA filter 484) due to the new sintered activated charcoal filter
• Name: SATA filter 584 triple-stage sinter filter/fine filter/activated charcoal with pressure regulator and outlet module (2 x 1/4″ male thread) (Int.)
• Previous product: 1101683
