Parts

DeVilbiss JGA Pro Suction / Pressure Spray Gun **DISCONTINUED** Spares and Parts Breakdown

Scroll down to view parts table below image

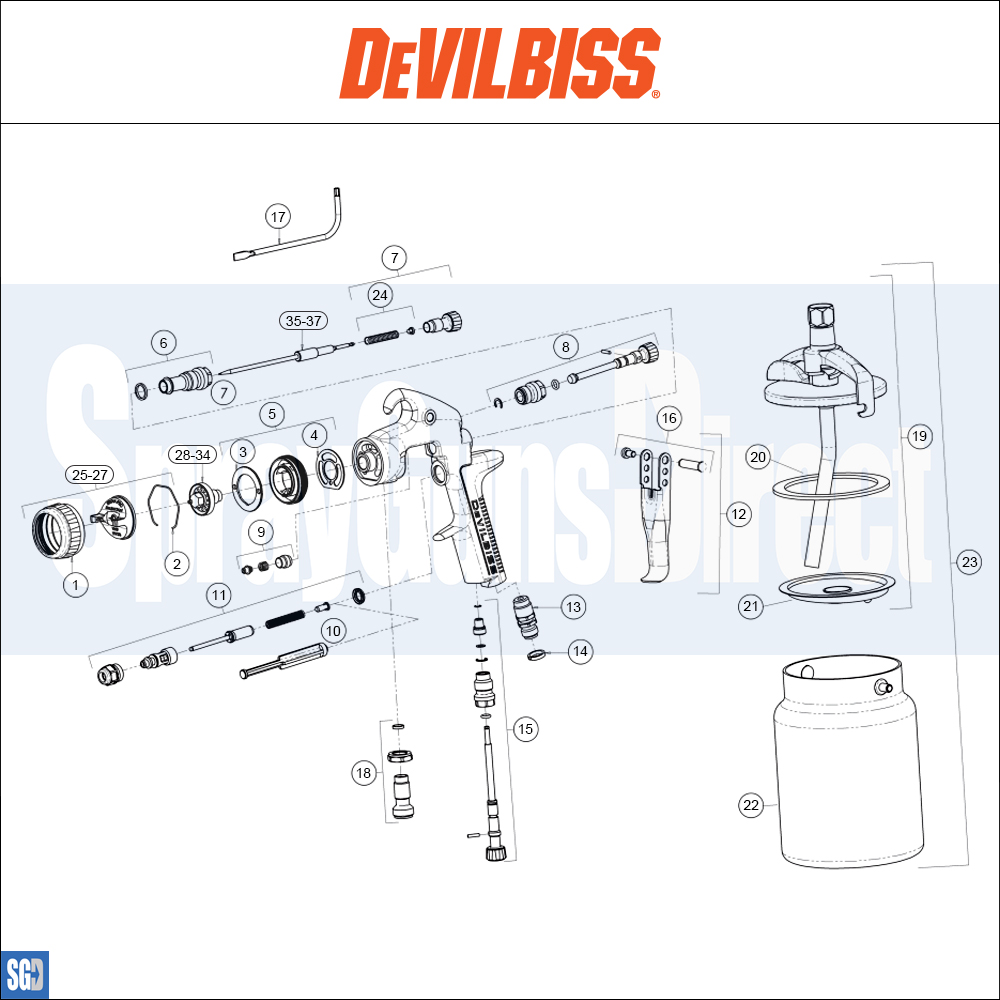

DeVilbiss JGA Pro Suction / Pressure Spray Gun **DISCONTINUED** Parts Breakdown
IndexImageNameSKUPriceBuyWishlist
Devilbiss Air Inlet-0
DeVilbiss Air Inlet (905292) [SN-40-K]905292£21.82
Quantity
DeVilbiss PROLite-S Air Valve Assembly SN-402-K
DeVilbiss Air Valve Assembly (905293) [SN-402-K]905293£85.26
Quantity
DeVilbiss Air Valve Seal (Kit of 5) (905290) [SN-34-K5]
DeVilbiss Air Valve Seal (Kit of 5) (905290) [SN-34-K5]905290£23.85
Quantity
DeVilbiss Airflow Valve (PRO-411-K)
DeVilbiss Airflow Valve (PRO-411-K)PRO-411-K£71.05
Quantity
Devilbiss Baffle Plate-0
DeVilbiss Baffle Plate (905297) [SN-41-K]905297£7.46
Quantity
Devilbiss C1 Air Cap & Retaining Ring-0
Devilbiss C1 Air Cap & Retaining Ring (PROC-120-C1-K)PROC-120-C1-K£153.27
Quantity
Devilbiss C2 Air Cap & Retaining Ring-0
Devilbiss C2 Air Cap & Retaining Ring (PROC-120-C2-K)PROC-120-C2-K£153.27
Quantity
Devilbiss C3 Air Cap & Retaining Ring (PROC-120-C3-K)
Devilbiss C3 Air Cap & Retaining Ring (PROC-120-C3-K)PROC-120-C3-K£153.27
Quantity
DeVilbiss Colour ID Ring Kit
DeVilbiss Colour ID Ring Kit (4 Colours) (905289) [SN-26-K4]905289£2.89
Quantity
DeVilbiss Cup Lid Assembly (905357) [KR-4001-B]
DeVilbiss Cup Lid Assembly (905357) [KR-4001-B]905357£105.56
Quantity
DeVilbiss Drip Free Diaphragms (kit of 5) (905355) [KR-115-K5]
DeVilbiss Drip Free Diaphragms (kit of 5) (905355) [KR-115-K5]905355£11.00
Quantity
Devilbiss Fluid Adjusting Knob, Spring & Pad-0
DeVilbiss Fluid Adjusting Knob, Spring & Pad (PRO-3-K)PRO-3-K£25.88
Quantity

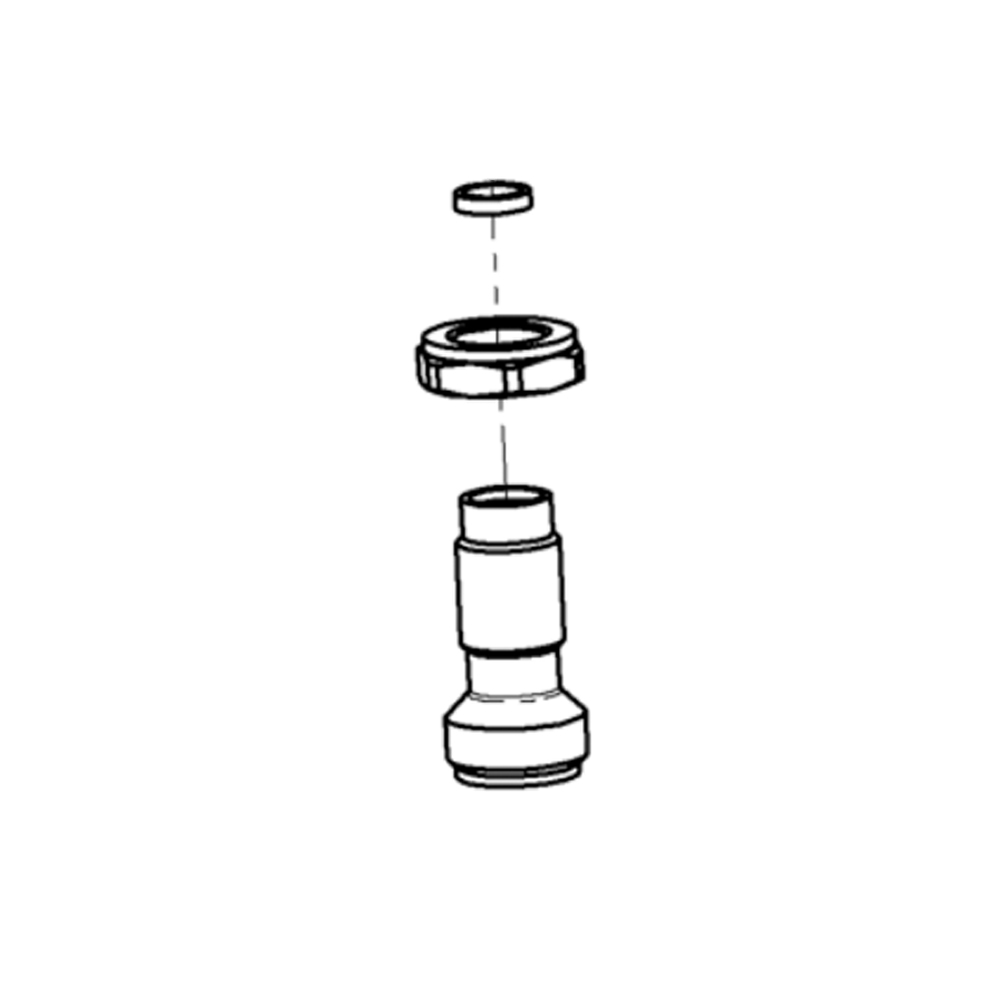

DeVilbiss Fluid Inlet Connector Kit (PRO-12-K)
DeVilbiss Fluid Inlet Connector Kit (PRO-12-K)PRO-12-K£25.88
Quantity
Devilbiss Fluid Tip (1.6mm)
Devilbiss Fluid Tip (1.6mm) (PROC-220-16-K)PROC-220-16-K£114.70
Quantity
DeVilbiss Fluid Tip 1.4 (PROC-230-14-K)
DeVilbiss Fluid Tip 1.4 (PROC-230-14-K)PROC-230-14-K£114.70
Quantity
DeVilbiss Fluid Tip 1.6 (PROC-230-16-K)
DeVilbiss Fluid Tip 1.6 (PROC-230-16-K)PROC-230-16-K£111.84
Quantity
Devilbiss JGA Air Cap Retaining Ring & Seals-0
DeVilbiss JGA Air Cap Retaining Ring & Seals (PRO-405-K)PRO-405-K£58.36
Quantity
Devilbiss JGA Fluid Tip (1.8mm)
Devilbiss JGA Fluid Tip (1.8mm) (PROC-220-18-K)PROC-220-18-K£114.70
Quantity
Devilbiss JGA Suction Fluid Needle (JGAPRO-330-K)
Devilbiss JGA Suction Fluid Needle (JGAPRO-330-K)JGAPRO-330-K£31.47
Quantity
Devilbiss Lid Gasket (kit of 3) -0
Devilbiss Lid Gasket (kit of 3) (905354) [KR-11-K3]905354£7.76
Quantity
Devilbiss Packing Spring & Packing Nut Kit-0
DeVilbiss Needle Packing, Spring & Packing Nut Kit (905294) [SN-404-K]905294£15.23
Quantity
Devilbiss Needle Spring and Pad Kit (set of 3)-0
DeVilbiss Needle Spring and Pad Kit (set of 3) (905291) [SN-4-K3]905291£11.17
Quantity
DeVilbiss Pressure Fluid Needle (0.85mm/1.0mm) (PRO-305-085-10-K)
DeVilbiss Pressure Fluid Needle (0.85mm/1.0mm) (PRO-305-085-10-K)PRO-305-085-10-K£31.97
Quantity
DeVilbiss Pressure Fluid Needle for (1.2mm/1.4mm) (PRO-305-12-14-K)
DeVilbiss Pressure Fluid Needle for (1.2mm/1.4mm) (PRO-305-12-14-K)PRO-305-12-14-K£31.97
Quantity
Devilbiss Pressure Fluid Tip (0.85mm) (PROC-230-085-K)
Devilbiss Pressure Fluid Tip (0.85mm) (PROC-230-085-K)PROC-230-085-K£114.70
Quantity
Devilbiss Pressure Fluid Tip (1.0mm) (PROC-230-10-K)
Devilbiss Pressure Fluid Tip (1.0mm) (PROC-230-10-K)PROC-230-10-K£114.70
Quantity
Devilbiss Pressure Fluid Tip (1.2mm) (PROC-230-12-K)
Devilbiss Pressure Fluid Tip (1.2mm) (PROC-230-12-K)PROC-230-12-K£114.70
Quantity
Devilbiss Body Brushing & Seal-0
DeVilbiss PROLite-S Body Brushing & Seal Kit (905300) [SN-6-K]905300£32.48
Quantity
Devilbiss Trigger Stud & Torx Screw (kit of 5)-0
DeVilbiss PROLite-S Stud & Screw Kit (Kit of 5) (905295) [SN-405-K5]905295£68.51
Quantity
Devilbiss Spray Head & Seal Kit-0
DeVilbiss Spray Head & Seal Kit (905286) [SN-17-1-K]905286£63.44
Quantity
DeVilbiss Spray Head Seal
DeVilbiss Spray Head Seal (Kit of 2) (905287) [SN-18-1-K2]905287£7.35
Quantity
DeVilbiss Spreader Valve Assembly (PRO-404-K)
DeVilbiss Spreader Valve Assembly (PRO-404-K)PRO-404-K£63.95
Quantity
devilbiss spring clip JGA-156-K5
DeVilbiss Spring Clip (Kit of 5) (905208) [JGA-156-K5]905208£22.00
Quantity
DeVilbiss Standard Suction Cup (1 Litre)
DeVilbiss Standard Suction Cup (1 Litre) (905353) [KR-566-1-B]905353£120.79
Quantity
Devilbiss Suction Cup Only-0
Devilbiss Suction Cup Only (905358) [KR-466-K]905358£76.63
Quantity
Devilbiss Torx Key (kit of 2)-0
DeVilbiss Torx Key (kit of 2) (905307) [SPN-8-K2]905307£9.64
Quantity
Devilbiss Trigger, Stud & Screw Kit-0
DeVilbiss Trigger, Stud & Screw Kit (905288) [SN-21-K]905288£46.69
Quantity
