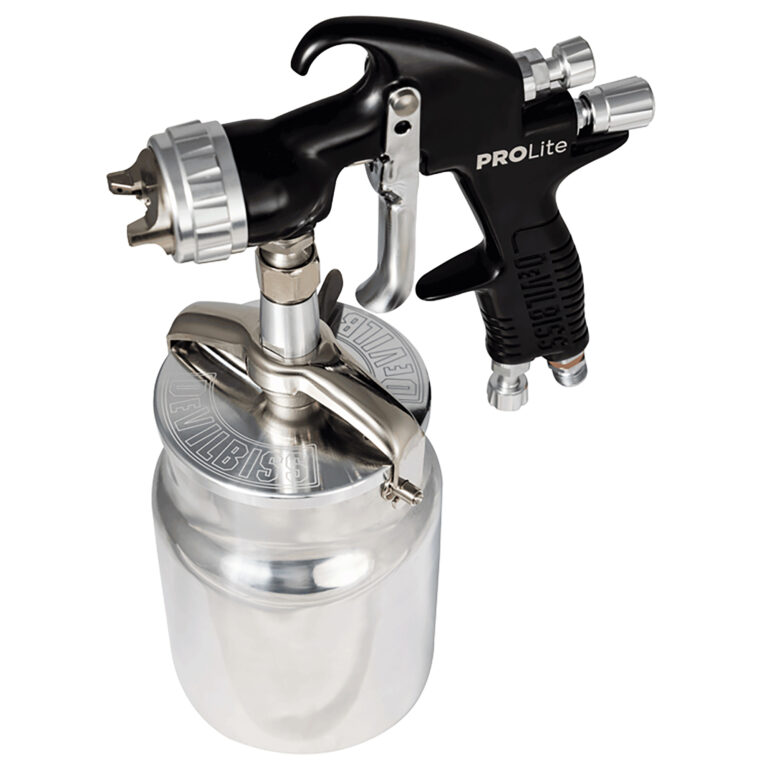

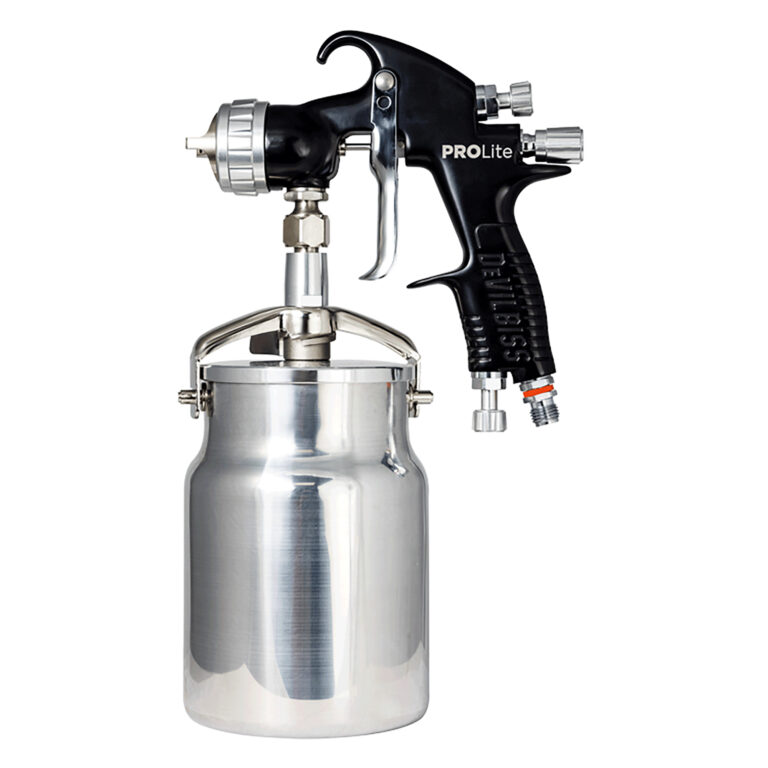

    DeVilbiss PRO-Lite Suction Spray Gun (Formerly known as JGA PRO Suction) (905118 / 905123)

    Our Price


    Our Price: £ 337.50
    Trade: £ 540.00
    VAT/TAX: £67.5
    Total: £405
    View Parts


    DeVilbiss PRO-Lite Suction Spray Gun (Formerly known as JGA PRO Suction) (905118 / 905123)

    The new 2021 PROLite Suction Spray gun is a totally redesigned spray gun with an ergonomic gun body with an improved fit, feel comfort and controls. Suitable for use with a suction cup or pump, tanks or remote feed cups. Balanced air valve design for ultra-smooth triggering and control.

    Perfect for any climate and paint, the DeVilbiss PROLite spray gun delivers exceptional performance and colour match capabilities for today’s automotive refinish coatings that can be difficult to atomize, such as low VOC, high solids, pearls or metallic materials.

    This PROLite performance is achieved utilizing high-capacity air passages and a linear air valve to provide unrestricted, even flow of compressed air through the gun body, enabling the precision engineered air caps to produce superior atomisation with consistent droplet distribution throughout the entire spray pattern.

    PROLite is precision built using the highest quality materials for a longer working life. The forged aluminium body features QuickClean™ coating with non-stick properties that reduce clean up time. The high-grade stainless steel fluid nozzles and needles, plus nickel plated brass air caps all contribute to a gun that will last in the most extreme professional spray environments. When routine maintenance is needed, the easy-to-maintain design ensures minimum production downtime. In approval testing with paint company technicians over the last decade, the PROLite has consistently met the highest colour match standards, ensuring that you get the job done right — the first time and every time.


    • Totally redesigned DeVilbiss JGA drop-forged aluminium gun body
    • Newly restyled ergonomic body with an improved fit, feel, comfort and controls
    • Suitable for use with a suction cup or pumps, tanks or remote feed cups
    • Two conventional air cap choices to suit the most car and CV refinish paints and materials
    • A range of four pressure and two suction fluid nozzle sizes of varying viscosities and control preferences
    • Utilises a new air valve design for ultra-smooth triggering and control
    • Renowned DeVilbiss atomisation quality and even paint distribution
    • Faster, easier maintenance from user-friendly fittings and adjustments
    • Rugged drop forged body with a red anodised finish for protection

    Choice of two air caps available:

    • C86 Aircap (Formerly C1 Aircap):

      • General-purpose solvent materials suits basecoat and gloss – equivalent to 186 on old JGA.
      • Gives a higher flow level so suits a smoother application on gloss materials.
      • Consumes 10.6 cfm @ 3.0bar
    • C30 Aircap (Formerly C2 Aircap):

      • Suits thicker higher viscosity materials and primers – equivalent to 30 on the old JGA.
      • Consumes 12.8cfm @ 3.0 bar

    As well as a choice of three fluid tips:

    • 1.4 is a rare choice as it only suits very thin watery type materials.
    • 1.6 suits gloss and basecoat whereas.
    • 1.8 suits thicker materials as an all-rounder.

    For Adaptors please follow the links below for selected adaptor and select the correct part number from the model part number dropdown.

    DeVilbiss PRO-Lite Suction Spray Gun (Formerly known as JGA PRO Suction) (905118 / 905123)

    Additional information

    Weight 1 kg
    Air Cap


    Nozzle Setup

    , ,
