    DeVilbiss Trisk TruClean Gun Wash Machine (TC-GC-01)

    Our Price

    £2020.46

    Our Price: £2020.46
    Trade: £2127.00
    VAT/TAX: £404.09
    Total: £2424.55
    Quantity

    Description

    DeVilbiss Trisk TruClean Gun Wash Machine (TC-GC-01)

    Quickly, safely, and efficiently cleans spray guns & application components with either waterborne or solvent-based cleaning media

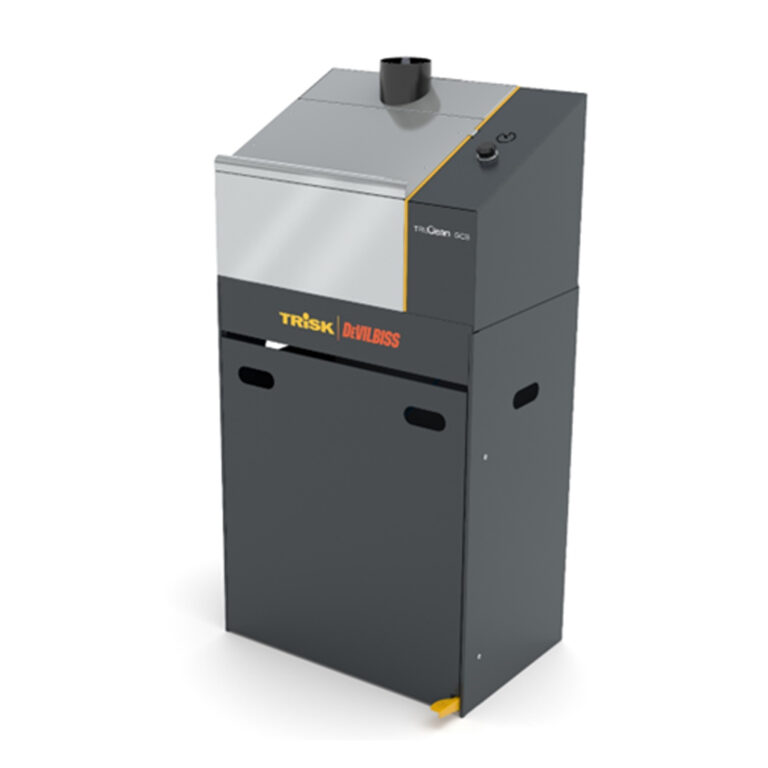

    The Trisk DeVilbiss freestanding Tru-Clean™ GCS gun cleaner unit allows for superior cleaning, proper maintenance, and longer life out of spray guns.
    Compact unit design provides flexibility of installation and requires minimal space in paint mixing rooms or dedicated cleaning areas.
    Powerful 10 l/min @ 6bar ( 2.6 gpm @ 87 psi) pump delivers effective cleaning of challenging paints.
    Convenient and simple user interface offers two activations: auto wash button or manual foot pedal control that allows for use of both hands during manual rinsing.
    The Tru-Clean GCS offers ability to wash application components used with solvent-based or waterborne materials. This option is operator selected by the washing media used with the gun cleaner. The unit is designed and suited to handle both media types.
    FEATURES & BENEFITS
    • Five-nozzle wash bay for powerful and efficient 90 second automatic cleaning cycles
    – Dedicated nozzle for gun paint channel cleaning featuring universal disposable cup adaption
    – Dedicated nozzle for air cap cleaning – Three additional nozzles positioned to clean all exterior surfaces of applicator & components
    • Robust & serviceable cleaning nozzle design – Five-nozzle washing bay allows for higher pressure through each nozzle for better cleaning and reduced cleaning time
    – Easy-to-service with quick release mechanism
    – Polyamide construction to prevent damage to guns and components supporting lower maintenance costs
    • Strong ventilation when lid is open keeps operators safe and paint kitchen free of VOC’s
    • Stainless Steel Washing Bay Construction
    • High flow pump for effective cleaning

    • Non-inverted cup mount
    – Washes full paint channel of cup (mount does not block gun inlet)
    – Washes outer top thread for cups with threaded lids (GFC-501)
    – Mount does not damage inside of gravity cups, creating pockets for coatings to build up
    • Centre mount exhaust port/vent – 100mm (4”) sizing is compatible with standard paint mixing rooms
    – Supports strong, effective volatile extraction when the lid is open (0.8m/sec.)



    Weight 30 kg (66 lbs.)
    Height 1120 mm (44.1”)
    Width 582 mm (22.9”)
    Depth 385 mm (15.2”)
    Air Consumption – Auto Cycle <100 l/min (<3.5 cfm)
    Air Consumption – Manual Cleaning 210 l/min (7.4cfm)
    Avg. Ventilation Air Speed 0.8 m/sec (160 ft/min)
    Extraction Capacity 10m (33ft) extr. duct 290m3/h (171cfm)
    Air Supply 6 bar (87 psi)
    Drum Size Up to 25L (6.6 gal) (depending on drum dimension)
    Flushing Media Types
    Solvent-Based or Waterborne
    Part # TC-GC-01
