Description

Graco Spray Gun G15 Air-Assisted Acetal Seat

Medium pressure spray gun includes a plastic seat, indexing air cap and choice of AAM or AAF Spray tips.

Air Tips Guide

• AAF Tips – Fine finish tips with a pre-orifice for soft spray increased transfer efficiency.
• AAM Tips – Fine finish tips for a high quality finish at low and medium pressures.

—————————————

The G15 air-assisted guns use the highest quality components for long-lasting reliable performance. Most importantly, the G15 guns deliver superior spray performance while improving transfer efficiency and reducing material usage.

The G15 Spraygun – 105 bar (1500 psi) models designed for the wood industry and other low and medium pressure applications.

—————————————

Quick Accurate Positioning
The G15 indexing air cap provides fast and accurate positioning in either the vertical or horizontal position.

Reduce Overspray and Increase Productivity
3/4 turn fan pattern adjustment allows you to change the spray width according to the size of parts

Increase Spray Performance
Enhance tip design provides uniform atomization and improved finish quality.

• High quality air-assisted spraying in a variety of applications
• All tips have a ring to retain the tip in the aircap
• Designed to minimize wear of replacement parts
• Improving transfer efficiency and material usage
• Trigger pull force is ultra-light, reducing operator fatigue and muscle stress

Materials

• Solvent or water-based materials
• Varnishes and stains
• Two component
• High solids
• UV-Curing
• Lacquers and topcoats

Applications

• Wood and furniture
• General metal
• Farm and construction
• Truck and bus
• Electronics

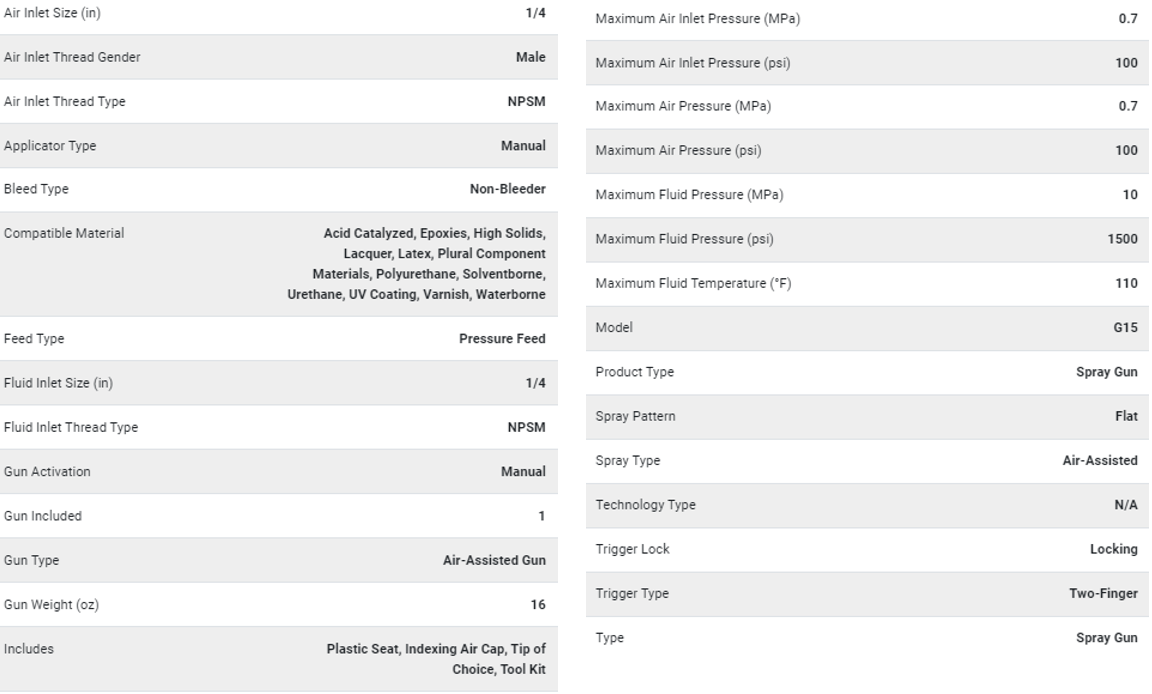

Technical Specification

• Maximum Working Fluid Pressure : 105 bar (10 MPa, 1500 psi)
• Maximum Working Air Pressure : 7 bar (0.7 MPa, 100 psi)
• Maximum Working Fluid Temperature : 43 °c (110° f)
• Fluid Inlet : 1/4-18 npsm
• Air Inlet : 1/4-18 npsm (R1/4-19) compound male thread
• Gun Weight : 450 grams (16 oz)
• Sound Pressure at 1.4 bar (140 kPa, 20 psi) : 66.9 dB(A)
• Gun Body : Forged Aluminum
• Fluid Filter : 100 mesh
• Trigger Pull : 3.9 Ib
• Wetted Parts : Stainless Steel, Carbide, Ultra High Molecular Weight Polyethylene, Acetal, PFTE, nylon
