• Anest Iwata

    Iwata LPH80 Touch-Up Gravity Spray Gun (131807072P / 131807371) *E4 Aircap*

    Our Price


    Our Price: £ 209.49
    Trade: £ 317.85
    VAT/TAX: £41.9
    Total: £251.39
    View Parts

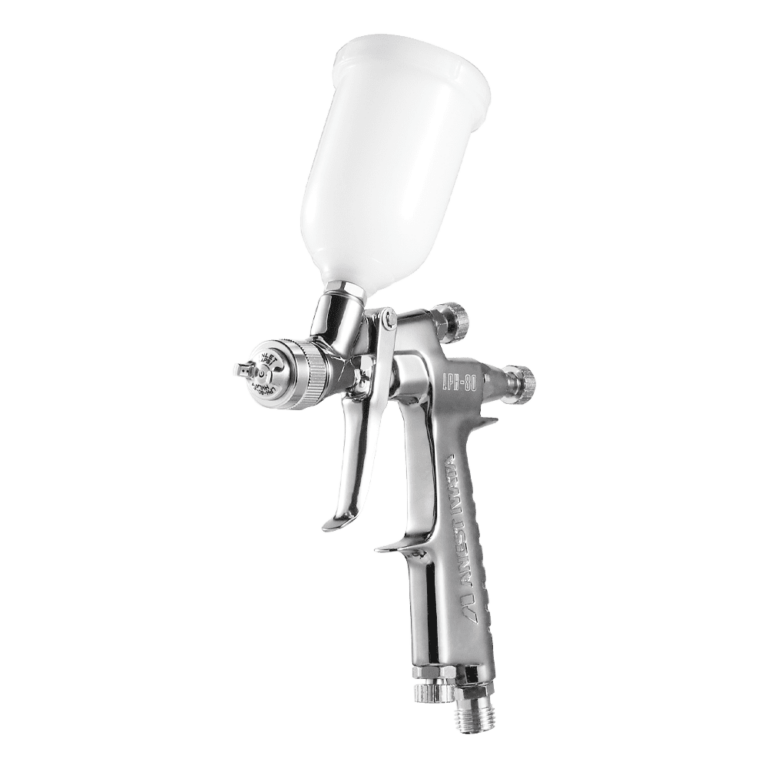

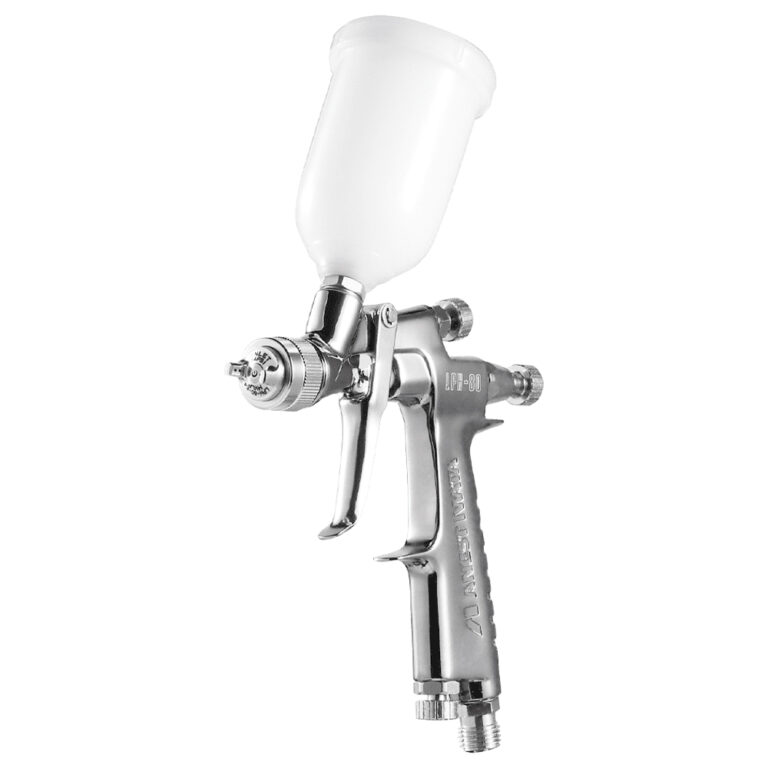

    Iwata LPH80 Touch-Up Gravity Spray Gun (131807072P / 131807371)

    our opinion – A spray gun which is ideal for backgrounds, spot repair, blending, shading and touch up. The best selling touch up spray gun.

    The Anest Iwata LPH80 spot repair gun has been designed and developed after a request from one of Europe’s largest car manufacturers.

    This remarkable, small, easy to handle gun has been such a success in OEM that it is now available to the general industry, and as part of the launch of the LPH80.

    Approximately 60 nl/min (2.0 cfm)

    Available with W0CUPAZ5IN 70ml cup, VPE250 250ml cup, or both

    Spray pattern ranges from 1.6 inch round pattern to a full 5.5 inch fan pattern, making the LPH-80 perfect for coating small pieces, spot repair, blending, shading, and touch-ups

    • Lightweight and compact, the LPH-80 is great for small surfaces and tight spaces that can be difficult with full size guns
    • Using only 1.8 cfm at 13 psi, this low-air-consumption gun provides high atomization with precise control of the spray pattern with very little overspray

    Atomisation Technology

    Whether spraying at 0.2bar/3psi to 1.0bar/14.5psi the atomisation of the LVLP (Low Volume Low Pressure) LPH80 stays consistent and uniform which is essential for achieving a successful small spot repair on both base and clears.

    Fan Pattern

    The LPH80 flat fan pattern distributes the fluid evenly meaning its never centre wet. This gives you an easy to blend application allowing smaller areas to be successfully repaired whilst still achieving excellent right first time colour match results.


    The LPH80’s compact size and 250g weight combined with the outstanding ergonomic body make the LPH80 ideal for long and productive days of spraying.

    Available with the following fluid tips:

    • 0.4
    • 0.6
    • 0.8
    • 1.0
    • 1.2

    Iwata manual included.


    For Spray Gun Adaptors please follow the Blue links below for selected adaptor.

    Brand Adaptor Number
    3M PPS Series 1 No.31 (50480)
    3M PPS Series 2 No.S31 (26480)
    SATA RPS No.19 (193276)
    Colad Snap Lid No.18 (9370A18)


    Iwata LPH80 Touch-Up Gravity Spray Gun (131807072P / 131807371)

    Additional information

    Weight 1 kg
    Nozzle Size + Cup Option

    0.4mm with 70ml Cup (131807072P), 0.6mm with 70ml Cup (131807172P), 0.8mm with 70ml Cup (131807472P), 1.0mm with 70ml Cup (131807272P), 1.2mm with 70ml Cup (131807372P), 0.4mm with 250ml Cup (13180707P), 0.6mm with 250ml Cup (13180717P), 0.8mm with 250ml Cup (13180747P), 1.0mm with 250ml Cup (13180727P), 1.2mm with 250ml Cup (13180737P), 0.4mm with 70ml+250ml Cup (131807071), 0.6mm with 70ml+250ml Cup (131807171), 0.8mm with 70ml+250ml Cup (131807471), 1.0mm with 70ml+250ml Cup (131807271), 1.2mm with 70ml+250ml Cup (131807371)
