    PCL 1/4″ BSP Male HVLP/Euro Coupling/Receiver MAS25006 (was AC71CM)

    Our Price

    £10.95

    Our Price: £10.95
    Trade: £16.43
    VAT/TAX: £2.19
    Total: £13.14
    Quantity

    Description

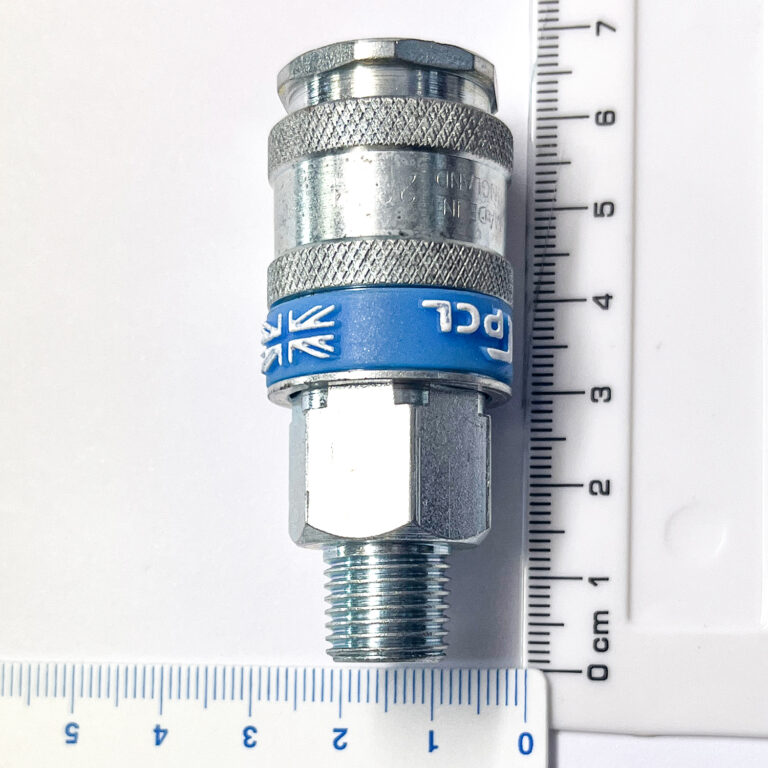

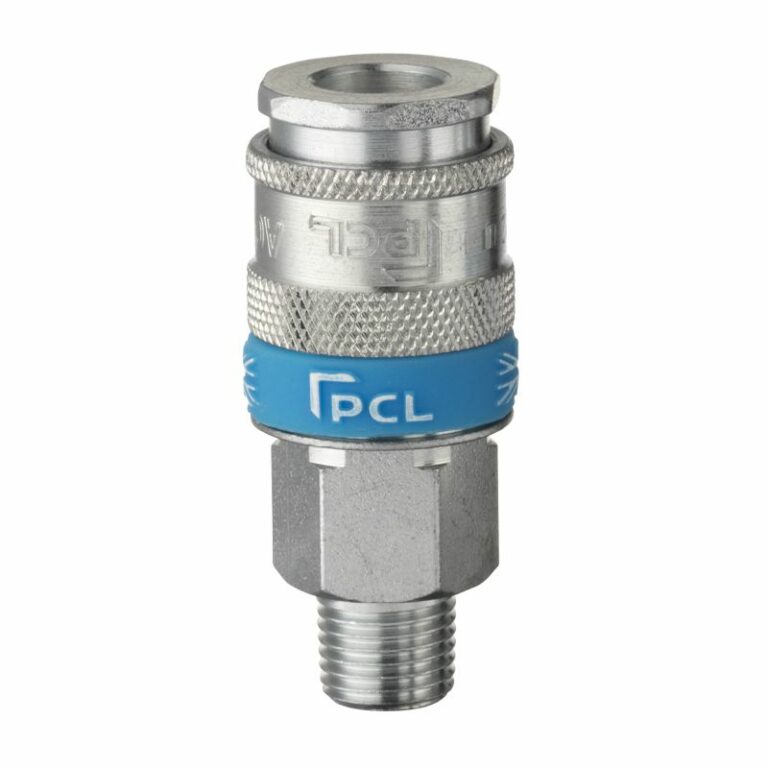

    PCL 1/4″ BSP Male HVLP/Euro Coupling/Receiver MAS25006 (was AC71CM)

    PCL XF 1/4″ BSPT Male Coupling – AC71CM, also commonly referred to as Euro Couplings, part of the XF-Euro series which boasts excellent flow characteristics, providing the workshop with increased airflow when required, giving enhanced tool efficiency.

    Features and Benefits

    • High flow rate – 130cfm @ 100psi
    • Enhances tool efficiency
    • Hardened steel construction with corrosive resistant finish for longer life
    • Steel shoulder prevents accidental disconnection
    • Compatible with XF-Euro Adaptors
    • Also known as Euro Adaptor Profile
    • Date stamping of each coupling to increase traceability and increase quality performance
    • Blue PCL silicone band for identification, protection and ease of use

    Specifications

    Coupling Style Coupling
    Thread Type Male
    Thread Size R 1/4
    Nominal Bore (mm) 7.4
    Flow Rate 2200 l/min @ 6 bar
    Maximum Working Pressure 35 bar / 508 psi
    Temperature Range -40°C to 100°C
    Material Steel
    Interchange Rectus 25/26, CEJN 320/326 & 320/326 eSafe, Legris 25/26, JWL 510/520/530/540/550/560/570, Tema 1600/1625, Norgren 234/238, Schrader Intercheck 35, Parker 35, Prevost ESC/ERC/ESI/ISC 07, OETIKER SC C, Hanson Auto-Flo 24, Kee 072/075 , Ludecke ES/ESI/ESI*/ESIS/ESIS*/ESPN

    Additional information

    Weight 0.13 kg
