Description

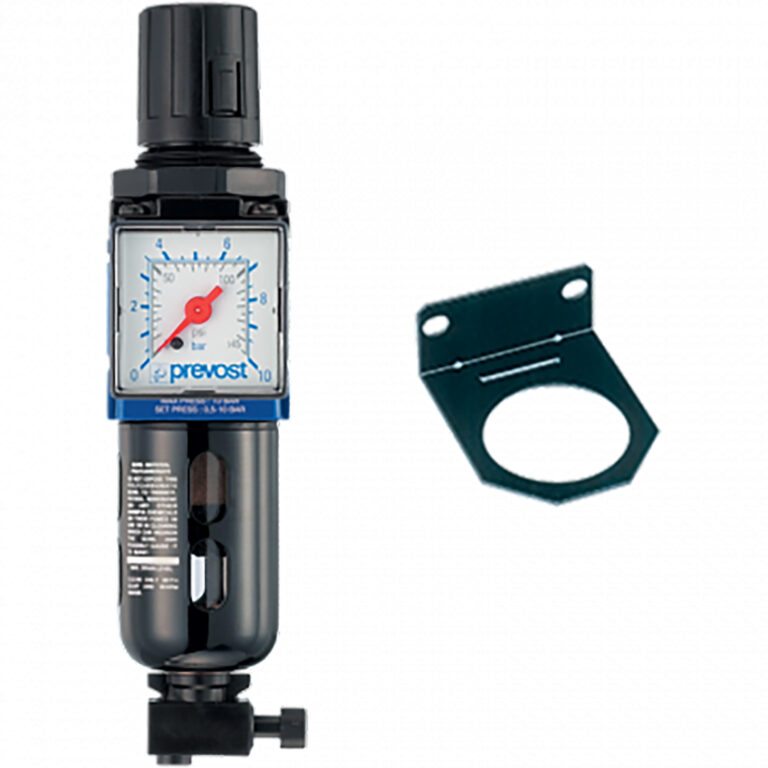

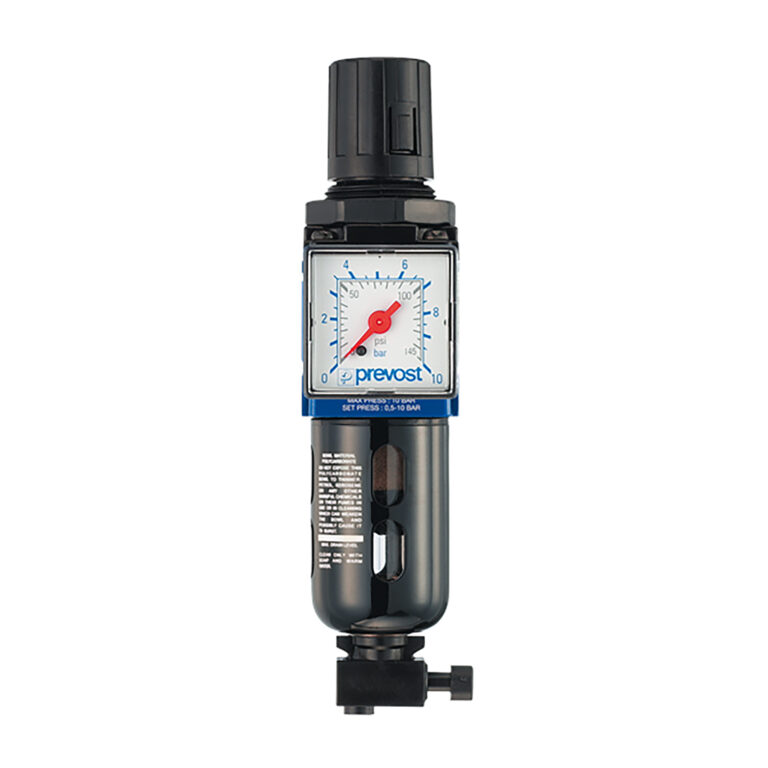

Prevost ALTO 1 Filter Regulator (gauge included) with wall bracket (KTM SM1)

Optimise the capacity of your equipment with the alto range. The Alto range ensures the optimum operation of your pneumatic tools and cuts maintenance costs.

Effective filtration – Elimination of pollutants + Preservation of pneumatic tools

Effective regulation – Accuracy + Correct rotation speed + Energy saving

Effective lubrication – Longer service life + Fewer internal and external leaks

Technical Characteristics

• Constant regulated pressure
• Easy oil flow rate adjustment
• Simple and reliable manual drain
• BSPP female thread – G 1/8
• Filtration (µm) – 25
• Equipped with Manual drain
• Flow rate (l/min at 7 bar ΔP: 1bar) 550
• Temperature +5°C to +50°C
• Operating pressure (bar) – Inlet: 12 Outlet: 0.5-10
• Construction – Body: Aluminium Polycarbonate bowl with metallic protection
