Description

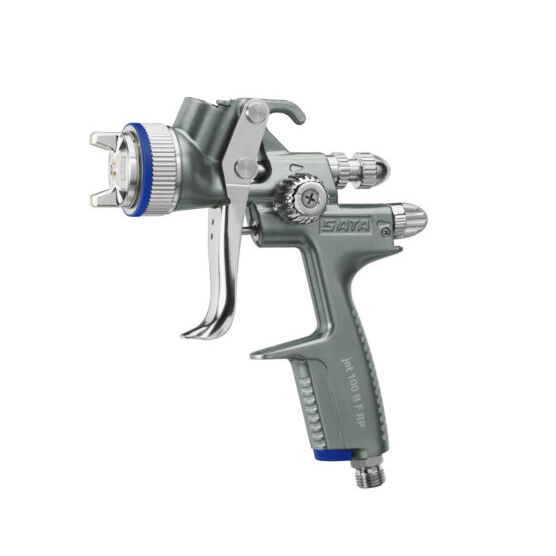

SATAjet 100 B F RP (UV) Spray Gun budget German quality (PVC or Aluminium Cup) (203125 / 182592)

Thrifty. Low maintenance. Economical.

Perfection & Performance – The SATAjet 100 B F RP UV Spray Gun used for UV application.

Ergonomically optimised SATA 100 B F RP spray gun body in state-of-the-art design with small dimensions and low weight for fatigue-free working nozzle size 1.1

Features

• Smoothly polished spray gun surface for easy and quick cleaning including material passages.
• Now with material-flow control with counter nut and enhanced thread, as with the topcoat spray guns
• Air micrometre with graduations to adjust atomisation air
• Suitable for waterborne paints – paint needle and nozzle are made of stainless steel and the spray gun body has been carefully anodized
• Self-adjusting air and material packings with a long lifetime significantly reduce the need for servicing
• Comfortable trigger with low trigger-pull resistance and integrated paint needle cover, minimising cleaning effort and increasing the lifetime of the needle packing
• CCS-Clip (Colour Code System) to mark each spray gun individually
• Single-handed round/flat control to adjust the spray pattern to the object which is to be painted
• QCC quick cup connector for quick cup changes and fast cleaning as well as for the use of the RPS disposable cup system without the need for an additional adaptor

Product Benefits

• • Fine atomisation even at low inlet pressure
  • Low overspray
  • Pressure adjustment from 0.5 – 2.0 bar is possible
  • Smoothly polished, ergonomically optimised gun body
  • QCC- cup connection
  • Self-adjusting sealings
