Automatic. Efficient. Powerful.

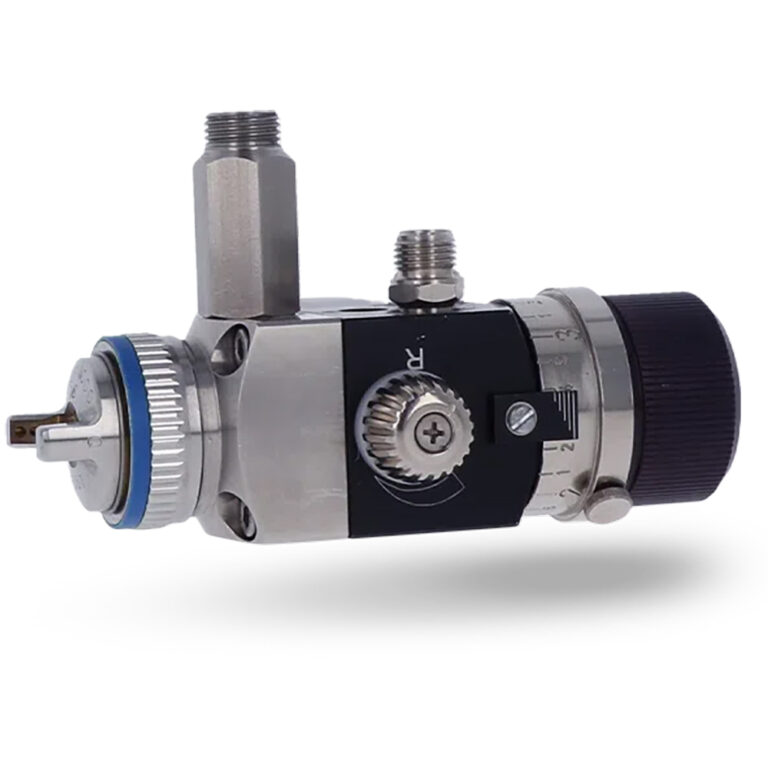

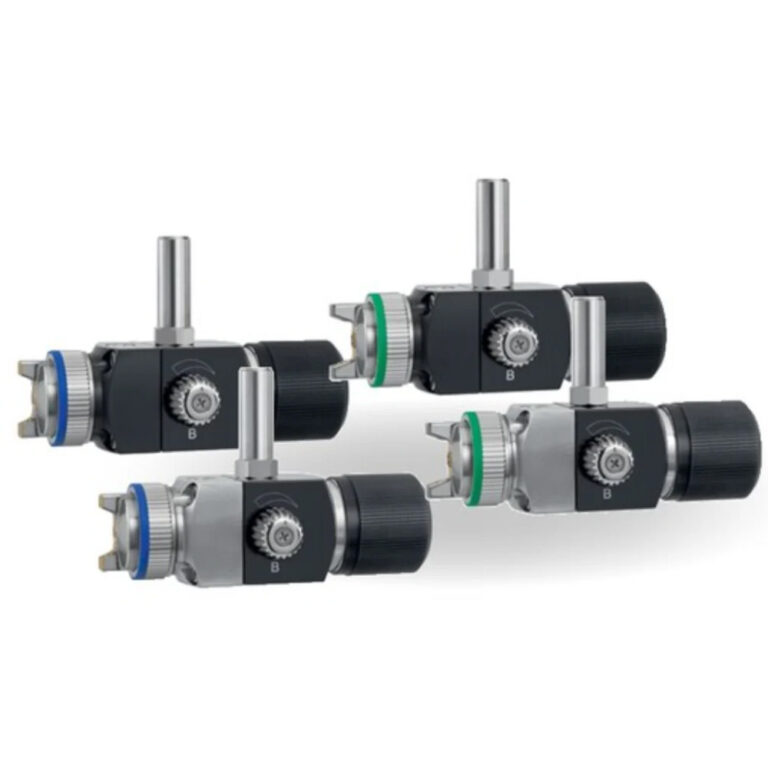

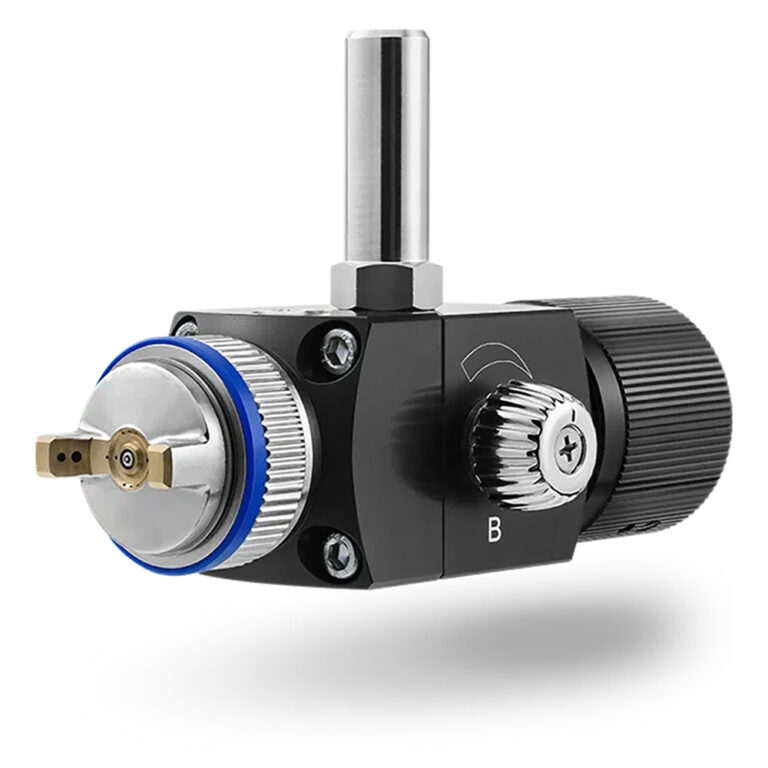

The SATAjet 3000 A RP is an extra fast, material-fed automatic gun for paint spraying machines and robots. The optimised RP high-pressure technology ensures fast and precise results. The high application efficiency of well over 65% complies with the VOC directive and saves material.
Product Benefits
High material transfer rate
Suitable for paint jobs where high application speed is required
Manual adjustment of round and flat fan with the adjustment screw
Adjustable material flow rate which can be also reproduced with the help of a detent
Various quick-change adapters available for a smooth flow in production, e.g. for maintenance or cleaning
Special test air nozzles are available for reproducibility of the atomisation parameters
Suitable areas of application
Industrial Applications
Yacht and Boat Building
Technical data (METRIC)
Technical Information – HVLP
Air consumption 450,0 Nl/min
Packaging unit 1,0 Pieces
Net weight 0,103 – 1,283 kg
Nozzle Size 0,5 / 0,8 / 1,0 / 1,2 / 1,6 / 2,0
Nozzle Technology HVLP
Control Internally controlled
Quick change ✓
Technical Information – RP
Air consumption 400,0 Nl/min
Packaging unit 1,0 Pieces
Net weight 0,103 – 1,300 kg
Nozzle Size 0,5 / 0,8 / 1,1 / 1,3 / 1,5 / 2,0
Nozzle Technology RP
Control Internally controlled
Quick change ✓
Technical Information – spray mix
Air consumption 220,0 Nl/min
Packaging unit 1,0 Pieces
Net weight 1,153 kg
Nozzle Size 0
Nozzle Technology spray mix
Control Internally controlled
Technical data (IMPERIAL)
Technical Information – HVLP
Air consumption 15.9 cfm
Packaging unit 1.0 Pieces
Net weight 0.227 – 2.829 lbs
Nozzle Size 0.5 / 0.8 / 1.0 / 1.2 / 1.6 / 2.0
Nozzle Technology HVLP
Control Internally controlled
Quick change ✓
Technical Information – RP
Air consumption 14.1 cfm
Packaging unit 1.0 Pieces
Net weight 0.227 – 2.866 lbs
Nozzle Size 0.5 / 0.8 / 1.1 / 1.3 / 1.5 / 2.0
Nozzle Technology RP
Control Internally controlled
Quick change ✓
Technical Information – spray mix
Air consumption 7.8 cfm
Packaging unit 1.0 Pieces
Net weight 2.542 lbs
Nozzle Size 0
Nozzle Technology spray mix
Control Internally controlled
HVLP versions
Nozzle Size
Stainless steel version
Standard version
0,5
156604
–
0,8
94490
94441
1,0
94508
94458
1,2
96941
124602
1,2 HM
179002
–
1,6
124552
124594
2,0
124560
124545
RP versions
Nozzle Size
Stainless steel version
Standard version
0,5
168559
220376
0,8
181008
94417
1,1
169011
94425
1,3
196378
94433
1,5
143289
220384
2,0
182378
220392
Spray mix versions
Product description
Spray Mix
SATAjet 3000 A spray mix with round / flat spray control, without material
144519
SATAjet 3000 A spray mix with round / flat spray control, without material, stainless steel
