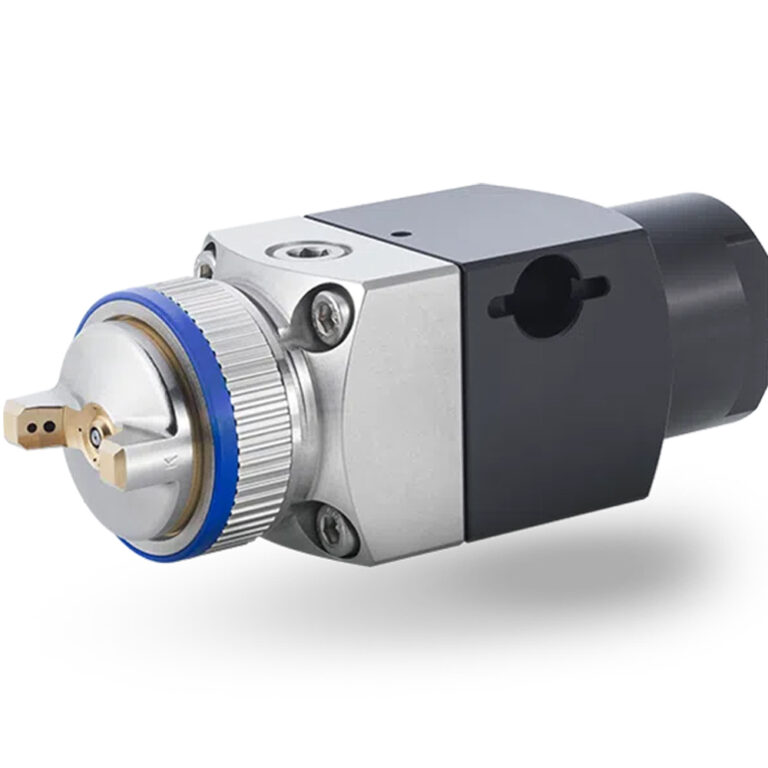

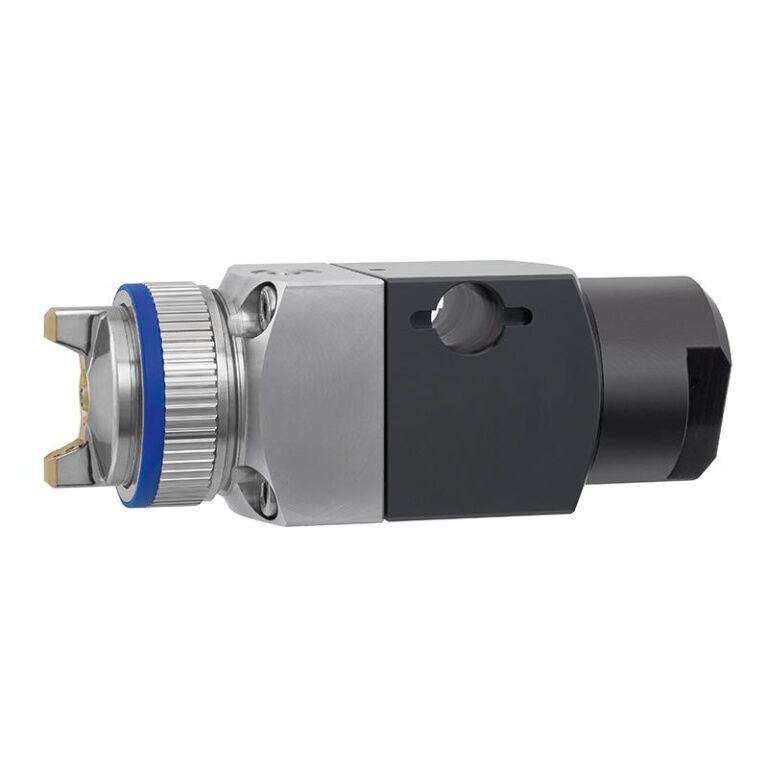

SATAjet 3000 ROB Spray Gun Head for Paint Spraying Machines and Robots
Made to order, Items usually take 3 weeks, for technical advice please call +44 (0)1332 611893 or email : info@spraygunsdirect.co.uk
Fully automatic. Efficiently. For perfect results.
Fully automatic, externally controlled high-performance gun for automatic painting machines and painting robots. Ideal for the highest demands on painting in terms of brilliance, flow, colour tone accuracy and gloss level.
Product Benefits
Can be integrated into existing control and application systems
Fully automatic, infinitely variable adjustment of the fan geometry via the external control unit
Circulation mode
Process reliability through self-adjusting sealing elements in the air and material area
Low maintenance requirements, easy replacement of components
Perfect surface results, homogeneous spray fan with maximum application efficiency through proven RP or HVLP technology
Suitable areas of application
Industrial Applications
Yacht and Boat Building
Two paths to the perfect result: HVLP and RP
HVLP: Extra Economical – HVLP paint spray guns achieve particularly high transfer rates with their low-pressure technology.
RP: Extra Fast – RP spray guns stand for maximum working speed with optimized high-pressure technology and low overspray.
Both variants can be used very flexibly, meet the highest demands on the painting result and clearly exceed the transfer rates of 65 % required by the VOC directive.
Technical data (METRIC)
Technical Information – HVLP
Air consumption 450,0 Nl/min
Packaging unit 1,0 Pieces
Net weight 0,041 – 0,965 kg
Nozzle Size 0,8 / 1,0 / 1,2 / 1,6 / 2,0
Nozzle Technology HVLP
Control Externally controlled
Quick change ✓
Technical Information – RP
Air consumption 450,0 Nl/min
Packaging unit 1,0 Pieces
Net weight 0,071 – 1,010 kg
Nozzle Size 1,5 / 0,8 / 1,3 / 0,5 / 1,1
Nozzle Technology RP
Control Externally controlled
Quick change ✓
Technical data (IMPERIAL)
Technical Information – HVLP
Air consumption 15.9 cfm
Packaging unit 1.0 Pieces
Net weight 0.090 – 2.127 lbs
Nozzle Size 0.8 / 1.0 / 1.2 / 1.6 / 2.0
Nozzle Technology HVLP
Control Externally controlled
Quick change ✓
Technical Information – RP
Air consumption 15.9 cfm
Packaging unit 1.0 Pieces
Net weight 0.157 – 2.227 lbs
Nozzle Size 1.5 / 0.8 / 1.3 / 0.5 / 1.1
Nozzle Technology RP
Control Externally controlled
Quick change ✓

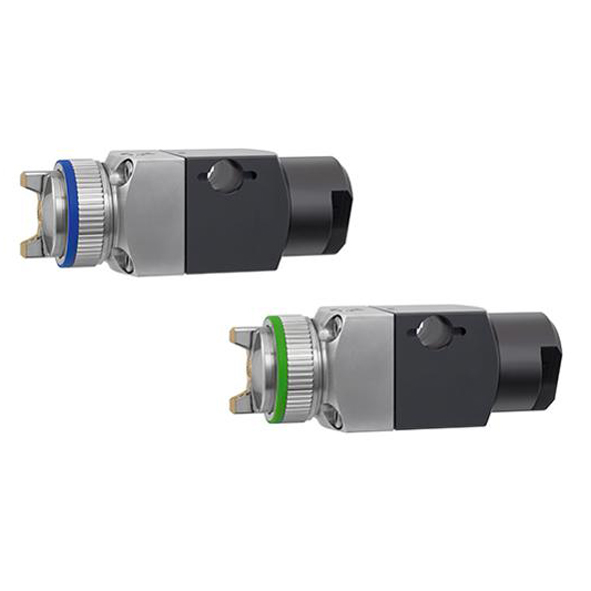

RP versions
Nozzle Size
Standard version
Stainless steel version without Material Circulation
Standard Version, Standard version without material Circulation, Stainless Steel Version, Stainless Steel Version with Volume Control, Stainless Steel Version with Material Circulation
