Unic UGC8005 Pressure Pot Washer (suitable for all guns) (UGC8005)

Description

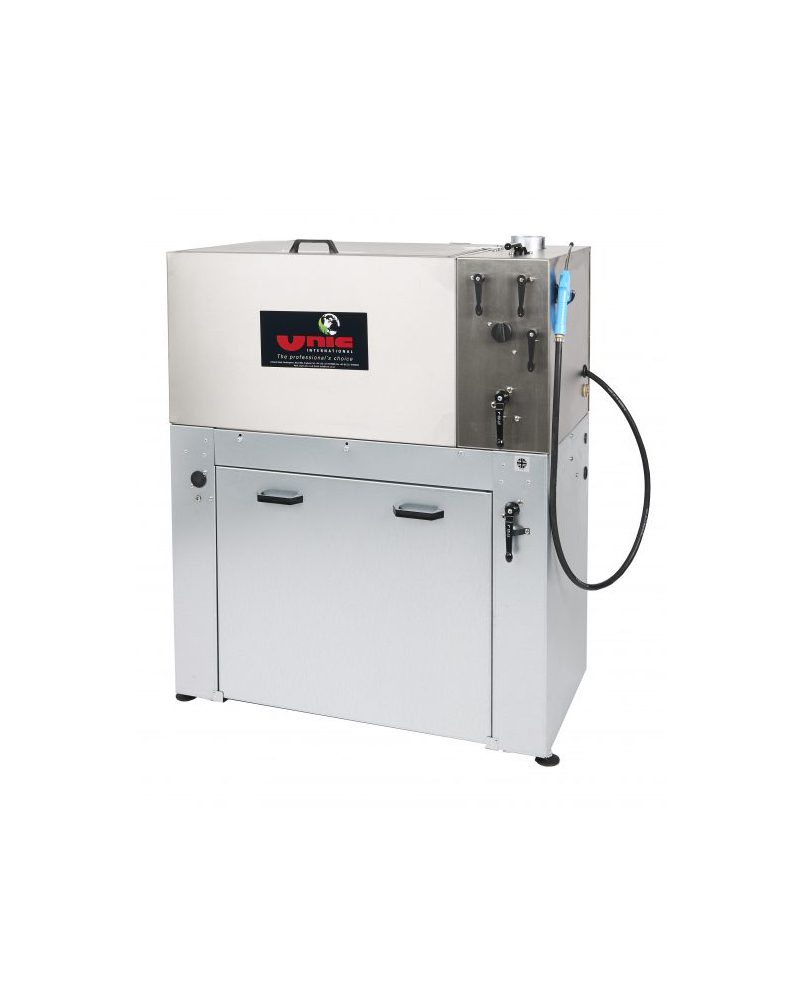

Unic UGC8005 Pressure Pot Washer (suitable for all guns)

A new larger Spray Gun Cleaning system for all types of spray guns but specifically designed for cleaning pressure pots up to 3lt capacity and paint hoses without dismantling.

High velocity air and liquid washing of paint hoses Manual Washing and Clean Rinsing facilities. Considerable solvent saving over conventional fill pot up and blow away method.

All of our Spray Gun Cleaners can be used with water for the cleaning of water-based paints but we recommend the UGC5005A and UGC6005A for this purpose as they have been specifically designed to overcome the problems associated with water cleaning ensuring satisfactory results.

The size of the cleaning tank on the UGC8005 lends itself to other uses such as the cleaning of silk-screening plates, printing rollers or paint masks. Various jet and spraying configurations can be offered to suit customer requirements and also one-off special tanks of any size with suitable pumps, etc. can be made within the UK. An extended 2 year warranty is available on all Spray Gun Cleaners.

• Timed operation
• Totally enclosed automatic wash tank

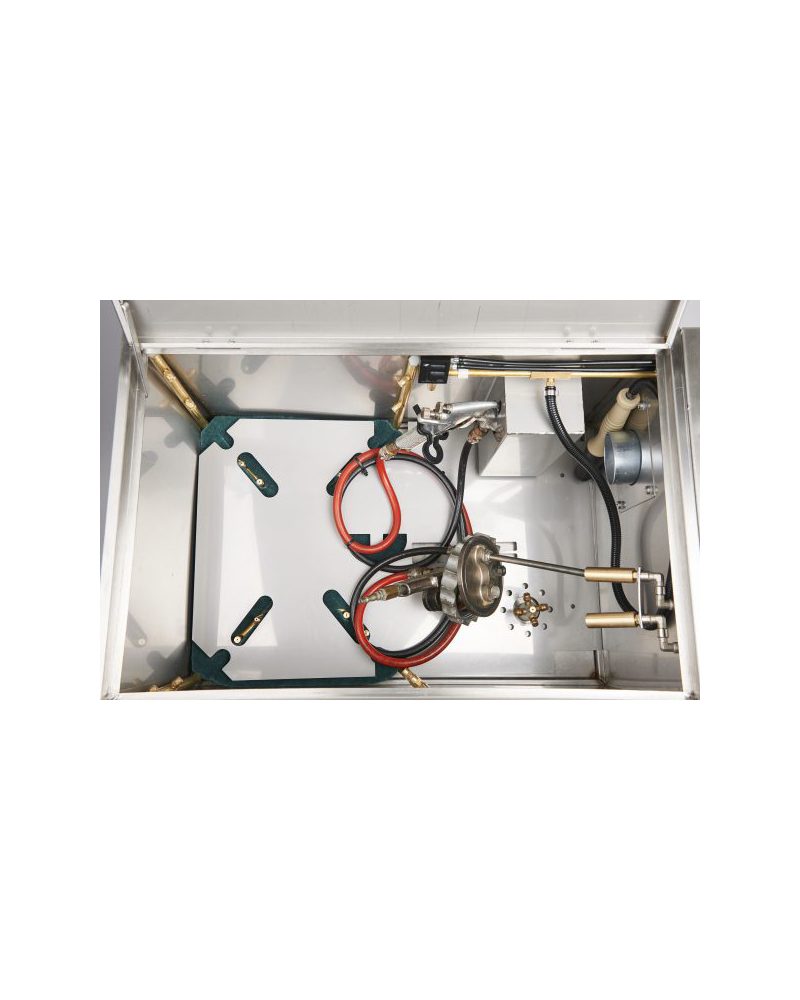

• Unique coupling for internal washing of hoses
• High velocity washing of hoses and sprayguns
• Manual wash facilities
• Manual clean rinse facility

Suitable for solvent and waterbased paints

Technical Specifications

• Air Input: 75/100 PSI. 5/7 BAR
• Air Consumption: 4/7 CFM 133/233 Lt/min
• Air Input Connection: 1/4 BSP
• Height: 1740mm
• Width: 1440mm
• Depth: 500mm
• Weight: 70kg

5 year pump warranty

Please note: all Unic products are made to order so expect 1-2 weeks before delivery
