Parts

Iwata LW-B Spray Gun Spares and Parts Breakdown

Scroll down to view parts table below image

iwata lwb spray gun parts breakdown sprayguns direct
IndexImageNameSKUPriceBuyWishlist
Iwata LW 10B Extension Nozzle Spray gun AirCap
Air Cap E1 for Iwata W300/W101/LW-10B (93012230)93012230£112.59
Quantity
iwata az3 hte2 spray gun air adjustment set sprayguns direct
Iwata Air Adjustment Set (93845531)93845531£51.47
Quantity
Iwata LW 10B Extension Nozzle Spray gun AirCap
Iwata Air Cap N1 for LW1-18N (93012270)93012270£112.59
Quantity
Iwata Air Nipple (93012660) for Iwata WS400, LS400
Iwata Air Nipple (Plug) (93012660) for Iwata WS400, LS400, W400 & LW1-10E / Lw1-018N Extension Nozzle Spray Guns03660300£42.99
Quantity

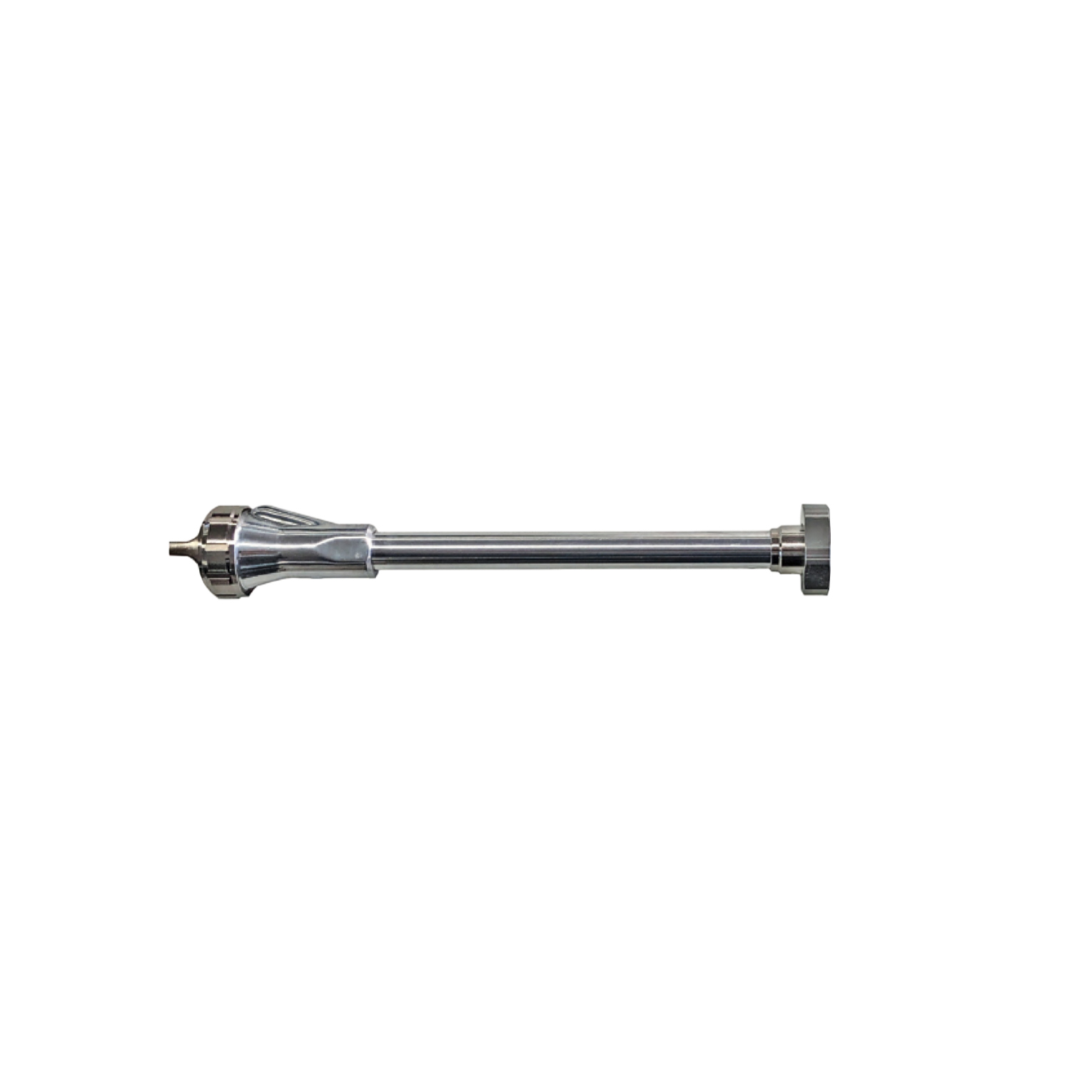

Iwata LW1-10E | LW1-18N Extension Spray Gun Air Pipe
Iwata Air Pipe Set (0° 150mm) for Iwata Extension Nozzle Spray Gun (LW1-10E1 0015) (LW1-18N1 0015) (93015200)93015200£547.44
Quantity
Iwata LW1-10E | LW1-18N Extension Spray Gun Air Pipe
Iwata Air Pipe Set (0° 300mm) for Iwata Extension Nozzle Spray Gun (LW1-10E1 0030) (LW1-18N1 0030) (93015210)93015210£547.44
Quantity
Iwata LW1-10E | LW1-18N Extension Spray Gun Air Pipe
Iwata Air Pipe Set (0° 500mm) for Iwata Extension Nozzle Spray Gun (LW1-10E1 0050) (LW1-18N1 0050) (93015230)93015230£547.44
Quantity
Iwata LW1-10E | LW1-18N Extension Spray Gun Air Pipe
Iwata Air Pipe Set (45° 150mm )for Iwata Extension Nozzle Spray Gun (LW1-10E1 4515) (LW1-18N1 4515) (93015180)93015180£547.44
Quantity
Iwata LW1-10E | LW1-18N Extension Spray Gun Air Pipe
Iwata Air Pipe Set (45° 300mm ) for Iwata Extension Nozzle Spray Gun (LW1-10E1 4530) (LW1-18N1 4530) (93015170)93015170£547.44
Quantity
Iwata LW1-10E | LW1-18N Extension Spray Gun Air Pipe
Iwata Air Pipe Set (45° 500mm ) for Iwata Extension Nozzle Spray Gun (LW1-10E1 4550) (LW1-18N1 4550) (93015190)93015190£547.44
Quantity
Iwata LW1-10E | LW1-18N Extension Spray Gun Air Pipe
Iwata Air Pipe Set (90° 150mm ) for Iwata Extension Nozzle Spray Gun (LW1-10E1 9015) (LW1-18N1 9015) (93015240)93015240£547.44
Quantity
Iwata LW1-10E | LW1-18N Extension Spray Gun Air Pipe
Iwata Air Pipe Set (90° 300mm ) for Iwata Extension Nozzle Spray Gun (LW1-10E1 9030) (LW1-18N1 9030) (93015250)93015250£547.44
Quantity
Iwata LW1-10E | LW1-18N Extension Spray Gun Air Pipe
Iwata Air Pipe Set (90° 500mm ) for Iwata Extension Nozzle Spray Gun (LW1-10E1 9050) (LW1-18N1 9050) (93015260)93015260£547.44
Quantity

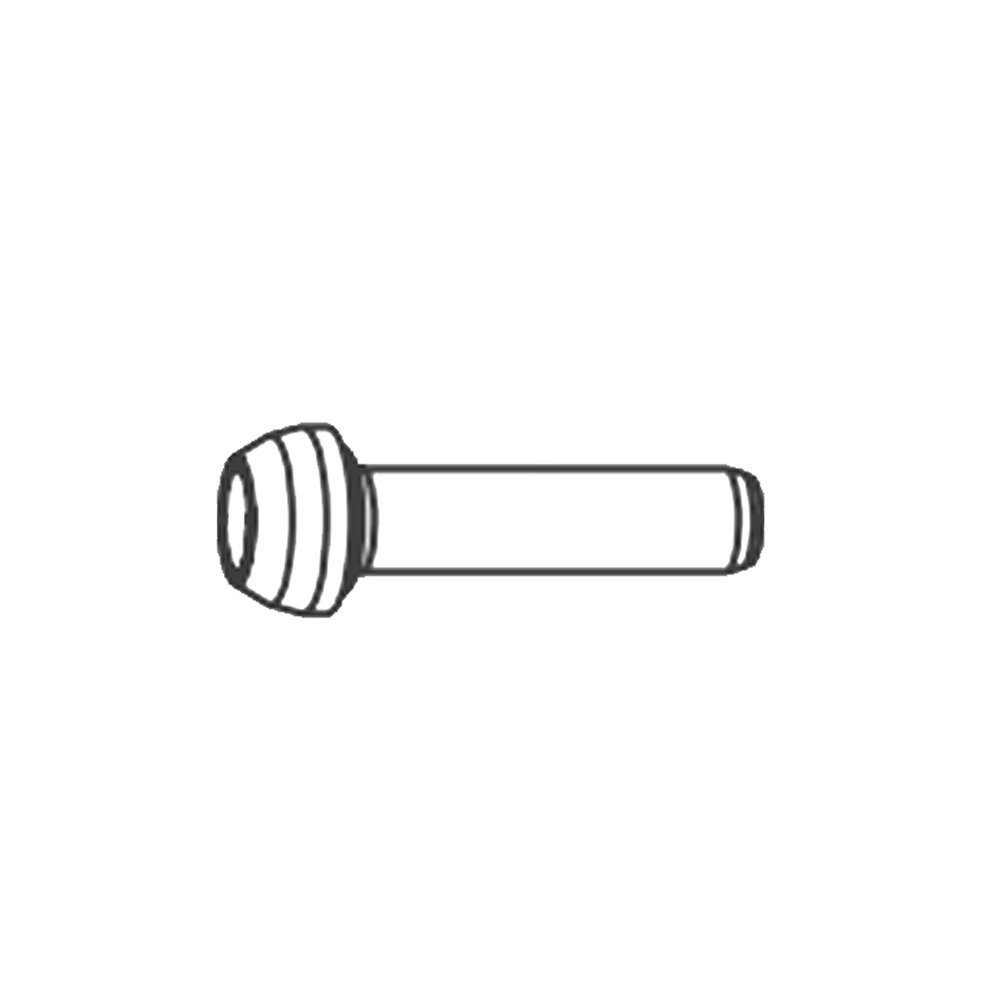

Iwata Air Valve (03591530)
Iwata Air Valve (03591530)03591530£22.68
Quantity
Iwata Air Valve Seat Set (03843530) for Iwata WS400, LS400
Iwata Air Valve Seat Set (03843530)03843530£32.09
Quantity

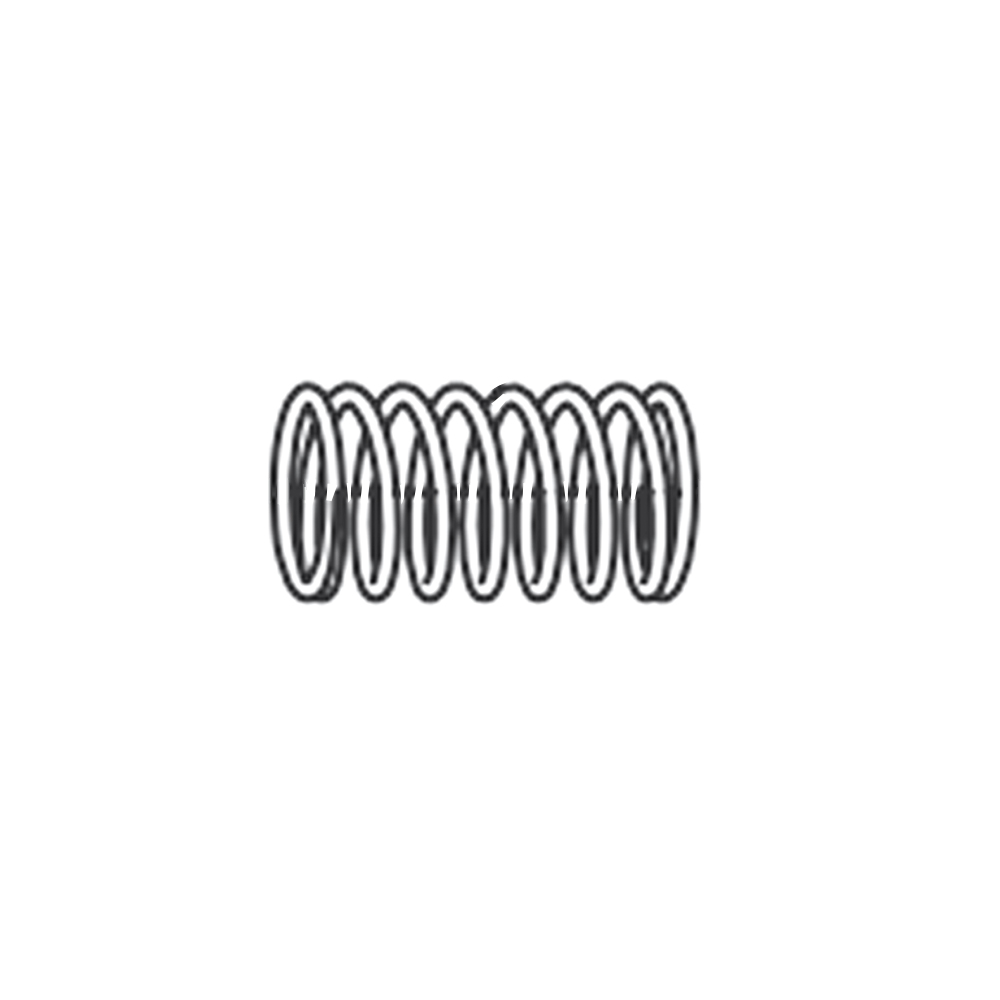

Iwata Air Valve Spring (93719530)
Iwata Air Valve Spring (93719530)93719530£9.71
Quantity

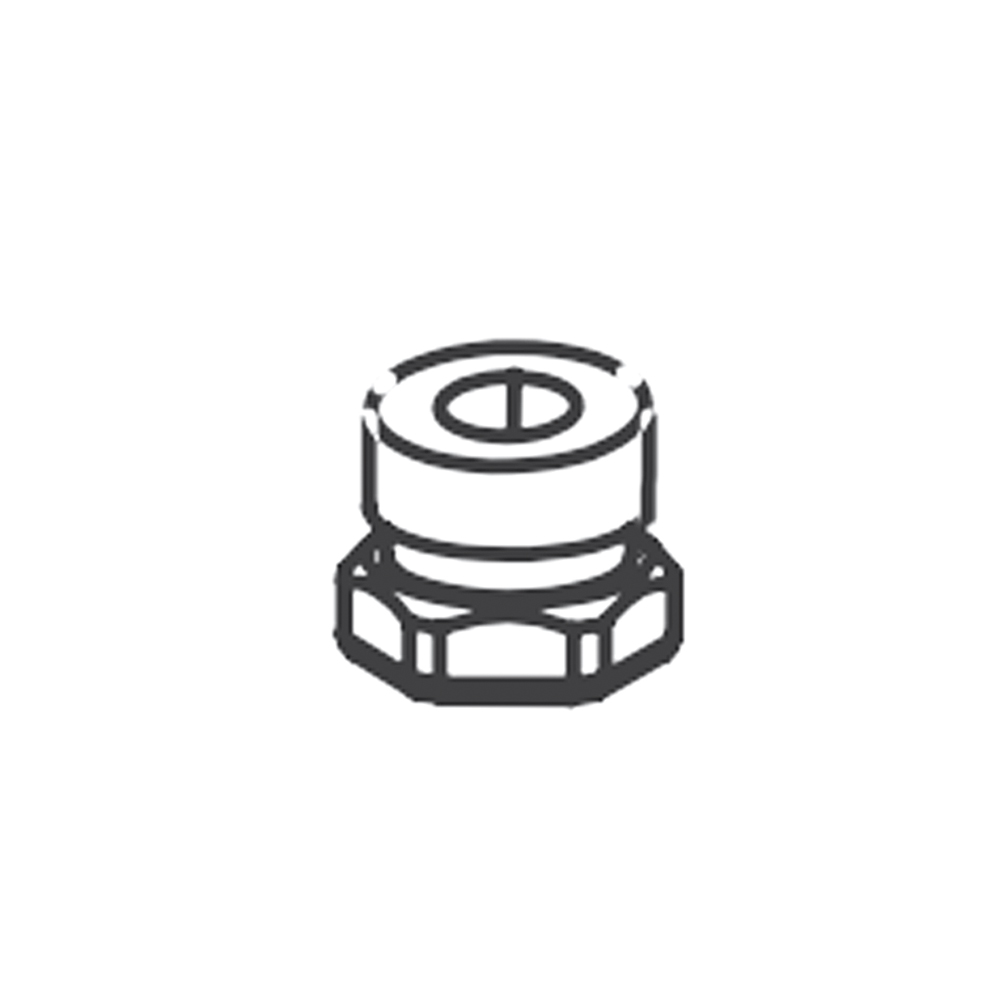

Iwata Blank Screw (93625370)
Iwata Blank Screw (93625370)93625370£29.76
Quantity
Iwata E Stopper (2pcs/1pk) (03912030)
Iwata E Stopper (2pcs/1pk) (03912030)03912030£4.84
Quantity

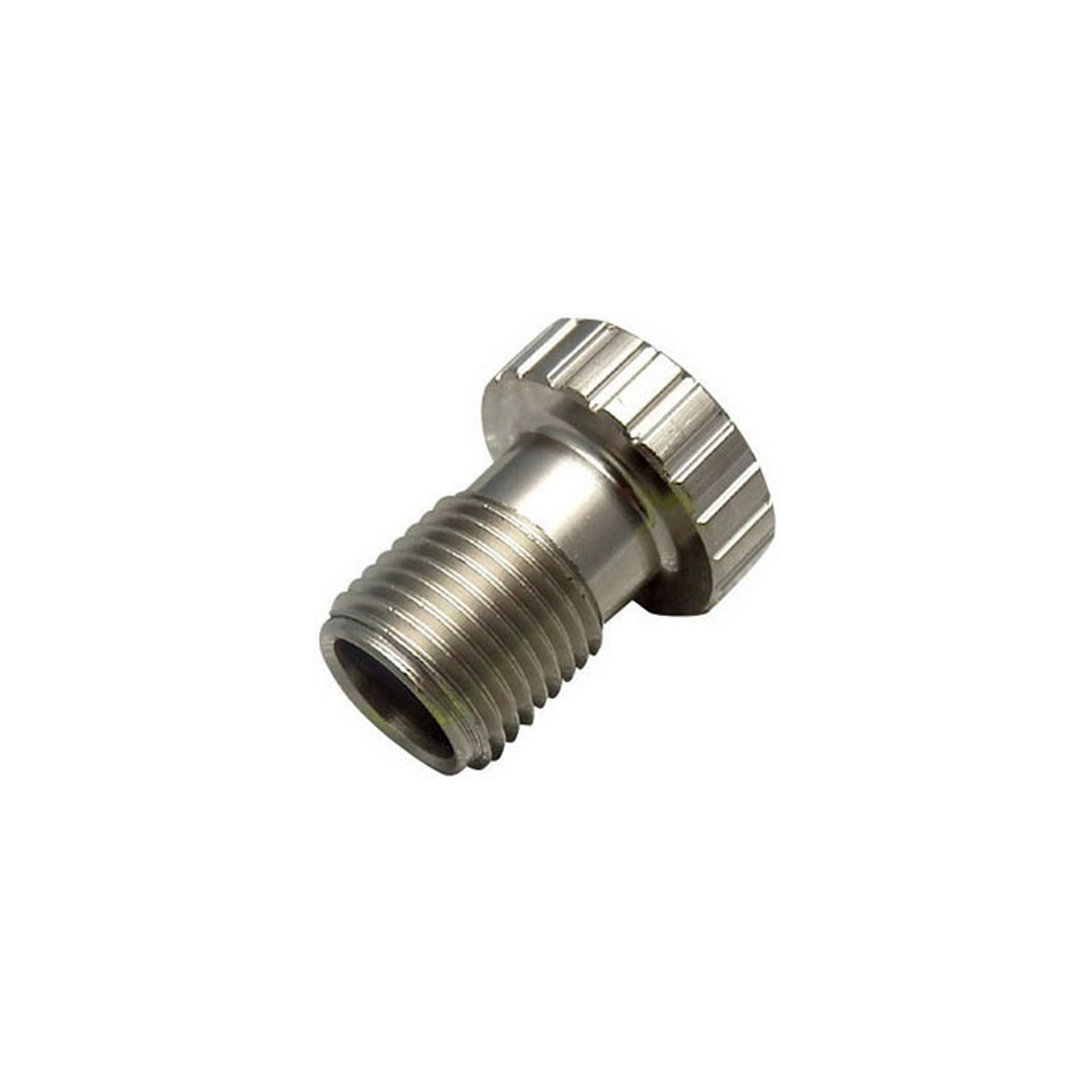

Iwata Fluid Adjusting Knob (93594532)
Iwata Fluid Adjusting Knob (93594532)93594532£20.01
Quantity
Iwata Fluid Needle Spring (03593530) for Iwata WS400
Iwata Fluid Needle Spring (03593530)03593530£10.68
Quantity
Iwata LW1 18N Extension Nozzle Spray gun Fluid Nozzle
Iwata Fluid Nozzle 1.0mm E1 for Iwata LW1-10E Extension Nozzle Gun (93012450)93012450£87.13
Quantity
Iwata LW1 18N Extension Nozzle Spray gun Fluid Nozzle
Iwata Fluid Nozzle 1.8mm N1 for Iwata LW1-18N Extension Nozzle Gun (93012490)93012490£87.13
Quantity
Iwata Fluid Pipe Set for Iwata Extension Nozzle Gun (LW-10/10B-0015) (LW-18/18B-0015) (93839610)
Iwata Fluid Pipe Set for Iwata Extension Nozzle Gun (LW-10/10B-0015) (LW-18/18B-0015) (93839610)93839610£183.50
Quantity
Iwata Fluid Pipe Set for Iwata Extension Nozzle Gun (LW-10/10B-0030) (LW-18/18B-0030) (93835610)
Iwata Fluid Pipe Set for Iwata Extension Nozzle Gun (LW-10/10B-0030) (LW-18/18B-0030) (93835610)93835610£188.74
Quantity
Iwata Fluid Pipe Set for Iwata Extension Nozzle Gun (LW-10/10B-0050) (LW-18/18B-0050) (93842610)
Iwata Fluid Pipe Set for Iwata Extension Nozzle Gun (LW-10/10B-0050) (LW-18/18B-0050) (93842610)93842610£192.76
Quantity
Iwata Needle Packing Assembly (93765610)
Iwata Needle Packing Assembly (93765610)93765610£24.99
Quantity
Iwata Needle Valve Guide for Iwata Extension Nozzle Gun (03596610)
Iwata Needle Valve Guide for Iwata Extension Nozzle Gun (03596610)03596610£12.03
Quantity
Iwata Needle Valve Set (LW-10/10B-0015) (LW-18/18B-0015) for Iwata Extension Nozzle Gun (93838610)
Iwata Needle Valve Set (LW-10/10B-0015) (LW-18/18B-0015) for Iwata Extension Nozzle Gun (93838610)93838610£144.56
Quantity
Iwata Needle Valve Set (LW-10/10B-0030) (LW-18/18B-0030) for Iwata Extension Nozzle Gun (03834610)
Iwata Needle Valve Set (LW-10/10B-0030) (LW-18/18B-0030) for Iwata Extension Nozzle Gun (03834610)03834610£157.71
Quantity
Iwata Needle Valve Set (LW-10/10B-0050) (LW-18/18B-0050) for Iwata Extension Nozzle Gun (03841610)
Iwata Needle Valve Set (LW-10/10B-0050) (LW-18/18B-0050) for Iwata Extension Nozzle Gun (03841610)03841610£141.13
Quantity
Iwata O Ring (06638008) for Iwata WS400
Iwata O Ring (06638008)06638008£2.84
Quantity
Iwata O Ring for Iwata Extension Nozzle Gun (06638004)
Iwata O Ring for Iwata Extension Nozzle Gun (06638004)06638004£13.44
Quantity
Iwata Trigger (03597530)
Iwata Trigger (03597530)03597530£25.17
Quantity

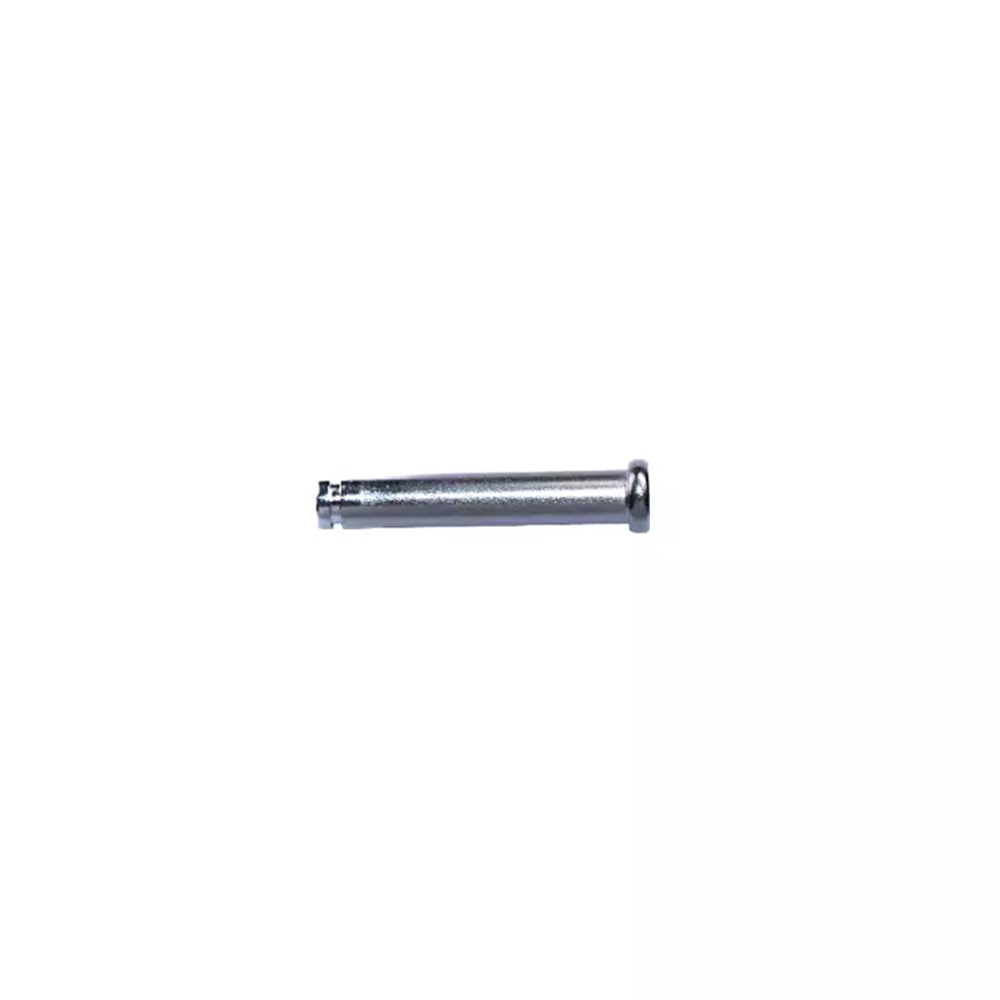

Iwata Trigger Stud (03667360)
Iwata Trigger Stud (03667360)03667360£4.91
Quantity
Iwata W101 Fluid Nipple (03584530)
Iwata W101 Fluid Nipple (03584530)03584530£17.82
Quantity

Need help finding your part?

please contact our sales team on :

+44 (0) 1332 611893 info@spraygunsdirect.co.uk
