Description

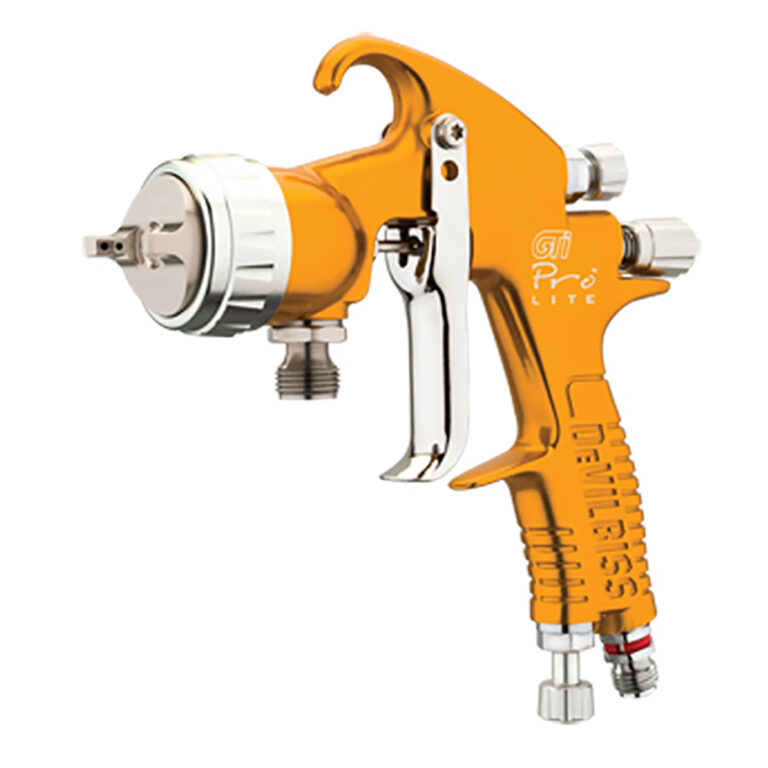

Binks DeVilbiss GTi PRO Lite Pressure Spray Gun

The GTi Pro Lite spray gun family ensures there’s a DeVilbiss spray gun to suit all types of industrial spray finishing applications. Pressure, Suction and Gravity feed, the range utilises a comprehensive range of new development Air Caps and fluid nozzles to provide outstanding atomisation for handling all types of Industrial solvent based and waterbased coatings. The superior Pro Lite performance is achieved with new and improved design technology utilising free breathing high capacity air passages and a coaxial linear air valve to provide unrestricted and even flow of compressed air through the gun body. This smooth air movement enables the precision-engineered air caps and fluid tips to produce superior atomisation with consistent droplet distribution throughout the spray pattern. The Pro Lite is precision built using the highest quality materials and component parts for a guaranteed, reliable, long and durable working life in all industrial markets. A drop forged aluminium body with tough anodised external finish, high grade stainless steel fluid tips and needles and nickel plated hard brass air caps all contribute to a gun that can last in the extreme environment of the spray shop. When routine maintenance is needed then the simple design and easy to maintain format ensures minimum down time and interrupted production.

TE10 – Solvent & all rounder

• Trans-tech high transfer efficiency, not HVLP and best suits solvent basecoat – though can be used for water-based and also lacquer – this is a good all-rounder to do multiple tasks.
• Suits basecoat application in a more traditional (non HVLP) style.
• Particularly suits solvent basecoats however is sometimes favoured/recommended by some paint companies for waterborne basecoat application.
• This is a ‘Trans-tech’ air cap, which is compliant but is not HVLP. This means the spray pattern is more elliptical (squat/rounded) than the open flat (wide fan width) pattern found on the H1 air cap. See the info pack button above for more info.
• Atomisation Technology: High Efficiency
• Air Flow L/min: 270 (9.5 cfm)
• Fluid g/m: 160 – 190
• Pattern Height: 290 – 310mm

TE20 – Faster flow gloss/lacquer

• All-round gloss/clearcoat gun.
• Flow rate and fan pattern lend themselves toward a wetter application style.
• Compliant trans-tech high transfer efficiency (but not HVLP)
• Fluid tip sizes available: 1.2, 1.3 and 1.4.  For 2K gloss / clear the 1.3 is by far the most popular choice and is recommended by the majority of paint manufacturers for their HS 2K products.
• Atomisation Technology: High Efficiency
• Air Flow L/min: 360 (12.7 cfm)
• Fluid g/m: 170 – 200
• Pattern Height: 285 – 300mm

HV30 – HVLP Max Transfer efficiency

• This aircap delivers maximum transfer efficiency rates so is particularly suitable for waterborne basecoat application.
• Air Flow L/min: 460 (16.3 cfm)
• Fluid g/m: 160 – 190
• Pattern Height: 300 – 325mm

Typical Applications

• Woodworking
• Metal fabrication
• Adhesives
• Aerospace
• Yacht & Marine
• Railway & Rolling stock
• Truck & Vehicle Manufacture
