Description

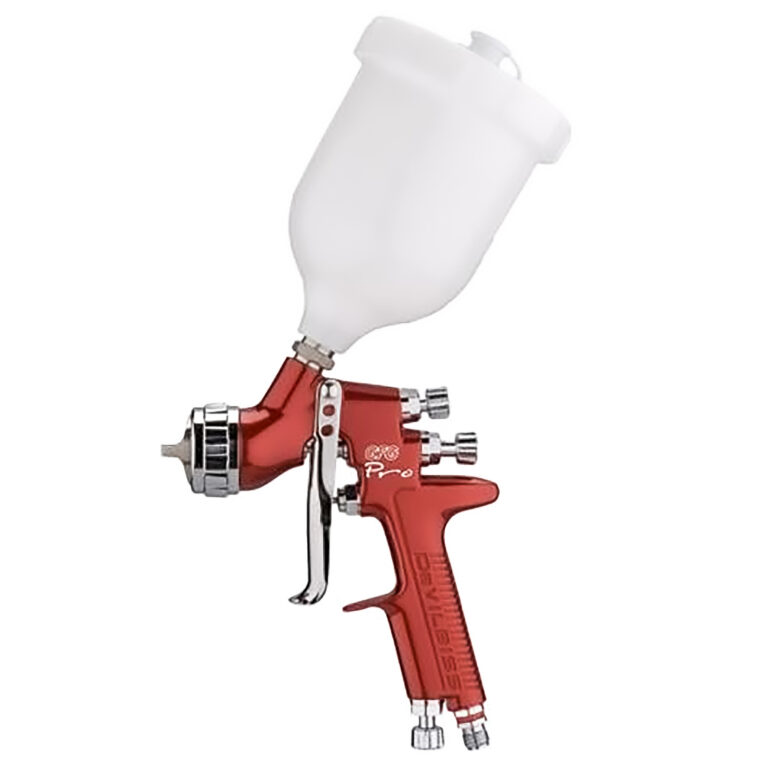

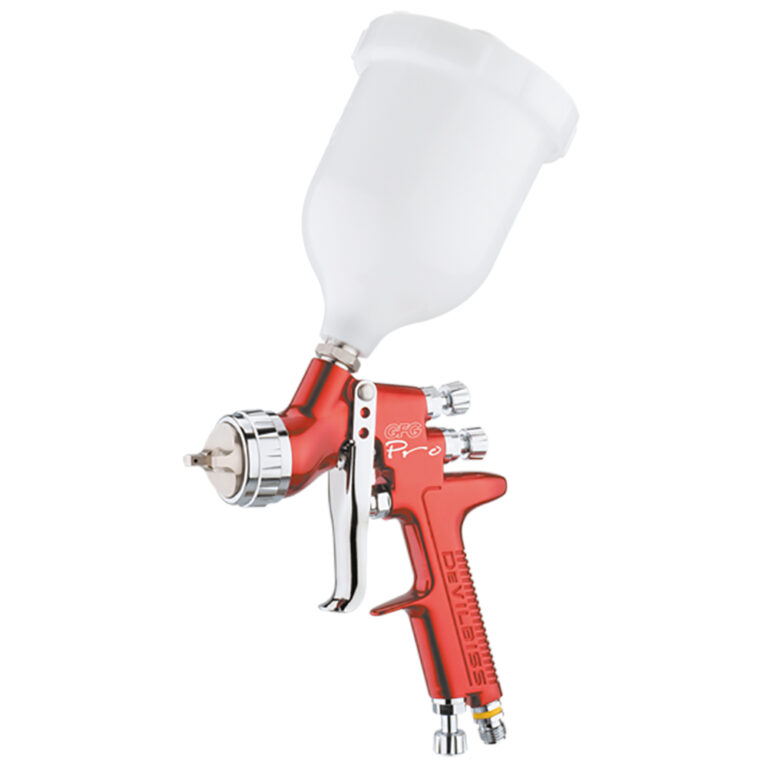

DeVilbiss GFG PRO Gravity Spray Gun

Our opinion:  THE gun for ultimate satisfaction.  Super smooth and super easy.  If you can’t get results with this beauty – forget it.

The DeVilbiss GFG Pro has a new ergonomic gun body with improved ‘fit and feel’. Offering first class atomisation and material distribution, and a newly designed air valve for smooth trigger control.

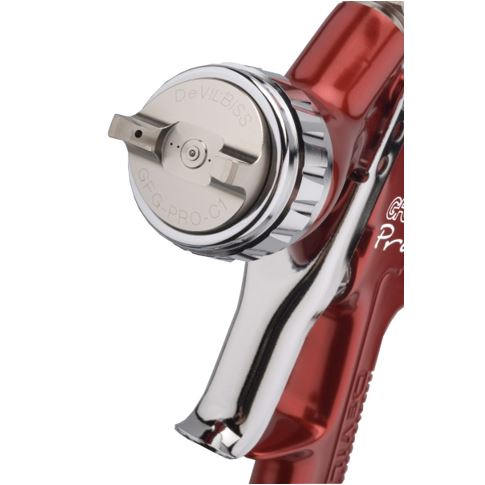

• The C1 Air Cap has been developed to replace the existing 186+.
  • With a greatly improved spray performance it’s ideally suited for all base and clearcoat applications, in conjunction with the new 1.4 and 1.6 fluid tips.
  • Also available with 1.8 though some higher flow set ups suit the C2.
• The C2 Air Cap has been developed to replace the traditional 30+ air cap.1.4 most suits basecoat / metallic
  • It is a great all rounder / general purpose set up.
  • It has a faster application rate than the C1 making it ideal for all primer or higher viscosity materials such as cellulose and synthetic.
  • Available with the 1.4, 1.6 & 1.8 Fluid Tip.  For 2K specific – C1 air cap may be more suited.
• 1.6 suits cellulose colour or synthetic / all purpose set up
• 1.8 suits primer

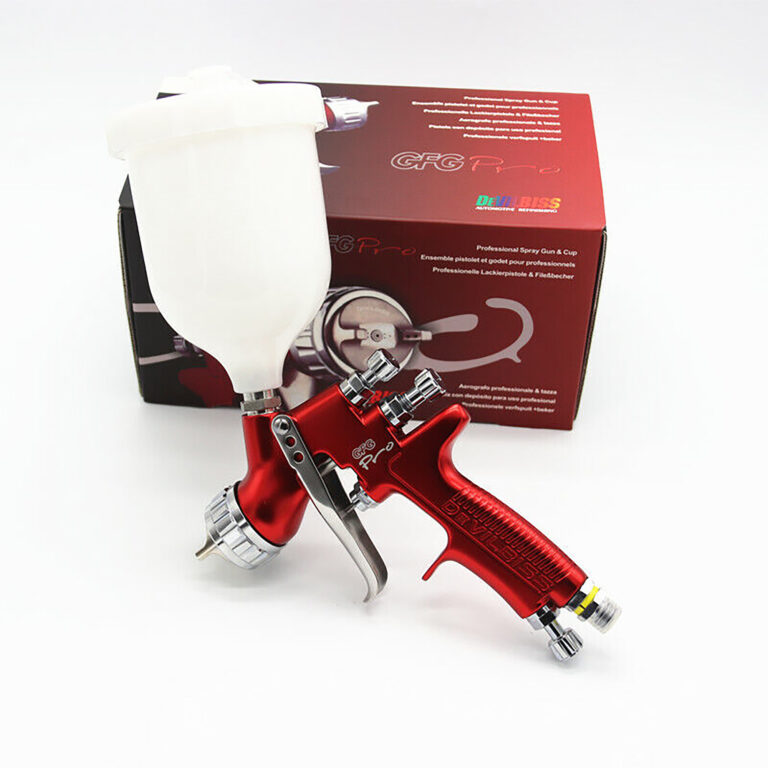

GFG PRO Refinishers Kit

The GFG Pro gravity feed spray gun is a complete ready to spray refinishers kit. The boxed kit includes:

• The complete red anodized spraygun
• Gravity cup with paint filter
• Set of four coloured identification rings
• Torx driver/screwdriver
• Cleaning brush
• Combination spanner
• Instruction manual

Materials of Construction

• Gun Body: Anodised aluminium
• Air Cap: Nickel plated brass
• Fluid Nozzle, Needle, Inlet: Stainless steel
• Spray Head: Anodized aluminium
• Springs / Clips, Screws: Stainless steel
• Seals / Gaskets: Solvent resistant
• Trigger: Chrome plated steel
• Other parts: Chrome plated brass
• Air Valve Assembly: Stainless Steel, HPDE

Technical Specifications

• Air Inlet Pressure:
  • C2 Aircap: 2.5-4.0 bar (30-60 psi)
  • C1 Aircap: 2.5-3.0 bar (30-45 psi)
• Air Consumption:
  • C2  Aircap: 305 L/min (12.8cfm) @ 3.0 bar
  • C1  Aircap: 300 L/min (10.6cfm) @ 3.0 bar
• Air Inlet Thread: 1/4” Universal
• Cup Capacity: 560ml
• Weight (gun & cup): 768g

For Adapters please follow the links below for selected adaptor and select the correct part number from the model part number dropdown.

– 3M PPS adapter Series 1.0 No.15 (16046)

3M PPS Preparation System Adaptor (Choice of 25 Adaptors) (16032 / 16759)
