    Description

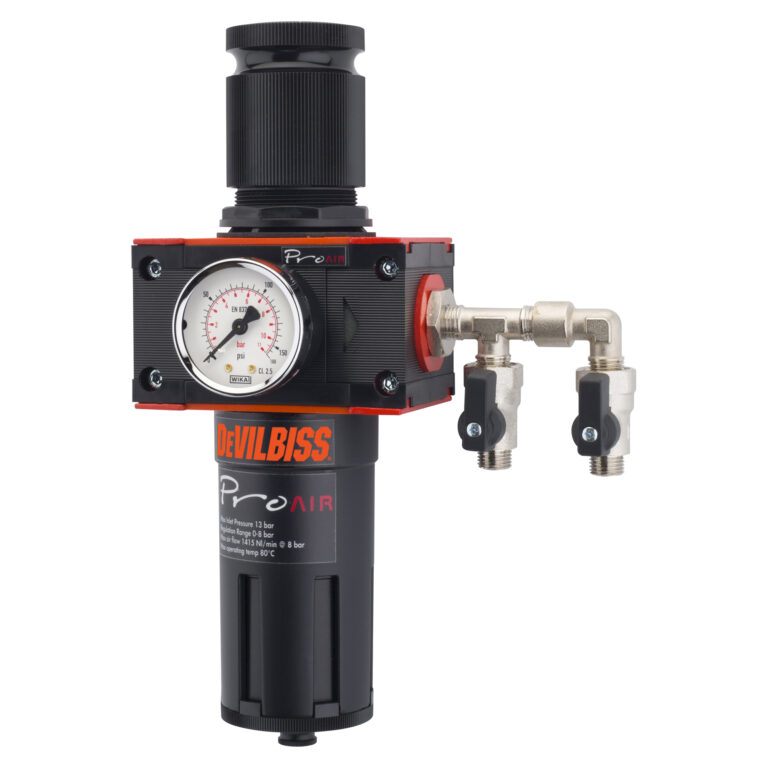

    DeVilbiss Pro Air 1 Filter Regulator

    • Air Inlet Thread 1/2” BSP (F)
    • Regulated Outlets 3 Valved
    • Unregulated Outlets NA
    • Air Outlets (Ball Valves) 1/ 4” BSP (M)
    • Width (Overall) 175mm (6.9”)
    • Height (Overall) 280mm (11”)
    • Weight 2500 gms (88oz)
    • Capacity (maximum air flow) 3500 l/min (124cfm)
    • Maximum Air Inlet Pressure 13 bar (189 psi)
    • Maximum Regulated Outlet Pressure 0-8 bar (0-116psi)
    • Maximum Operating Temperature 100°C (212°F)
    • Pressure Gauge 0-11 bar (0-160 psi)
    • Gauge port 1/8” BSP (F)
    • Air Filtration Down to 5 microns
    • Drain Valve Semi-Automatic
    • Maximum Pressure Drop 5% of Inlet Pressure



    Additional information

    Weight 3 kg
    Dimensions 18.5 × 28 cm
