    Iwata AZ3 HTE-S Chrome Flash Impact Gravity Spray Gun *Optimised for primer, sensible price (W0SPG91AG12C / W0SPG91AG20C)

    Our Price


    Our Price: £ 133.77
    Trade: £ 171.48
    VAT/TAX: £26.75
    Total: £160.52
    View Parts

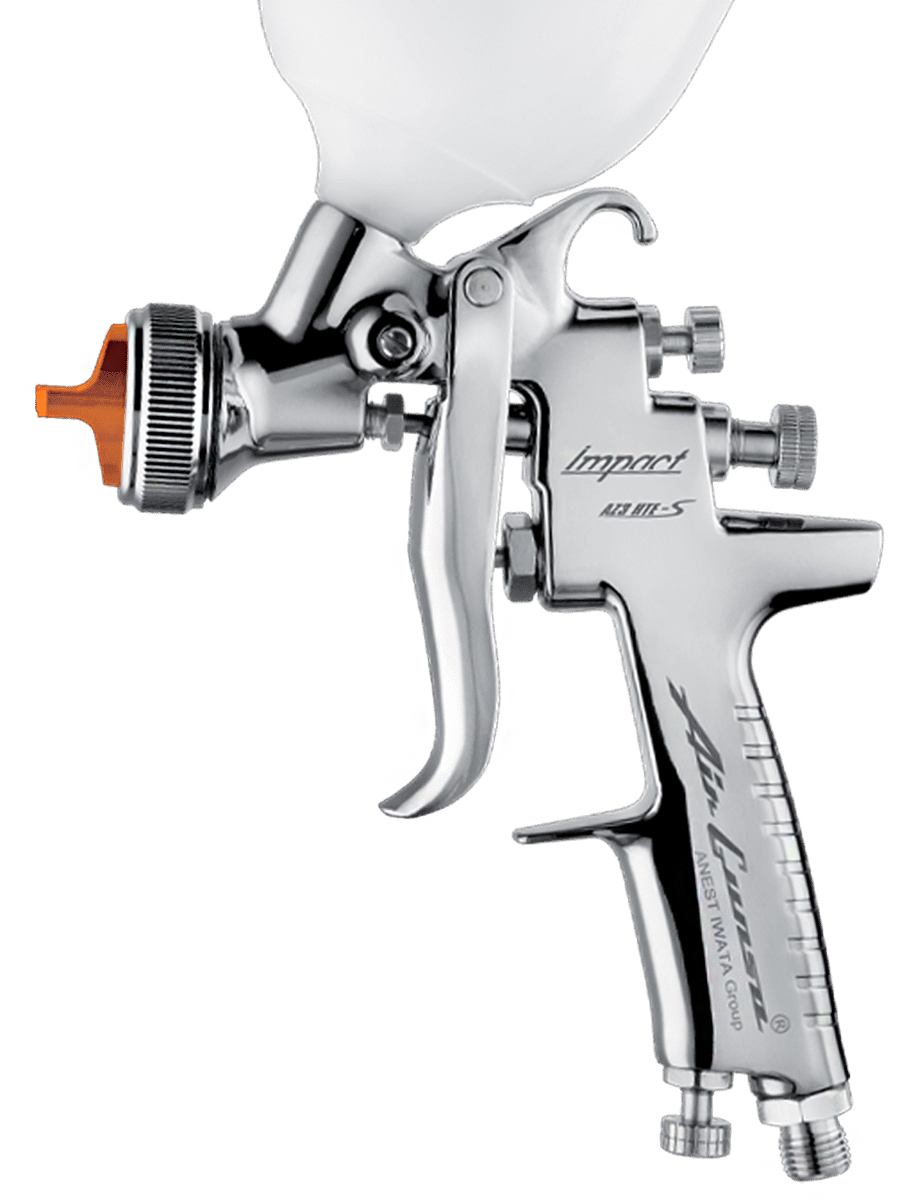

    Iwata AZ3 HTE S Impact Chrome Flash Gravity Spray Gun (W0SPG91AG12C / W0SPG91AG20C)

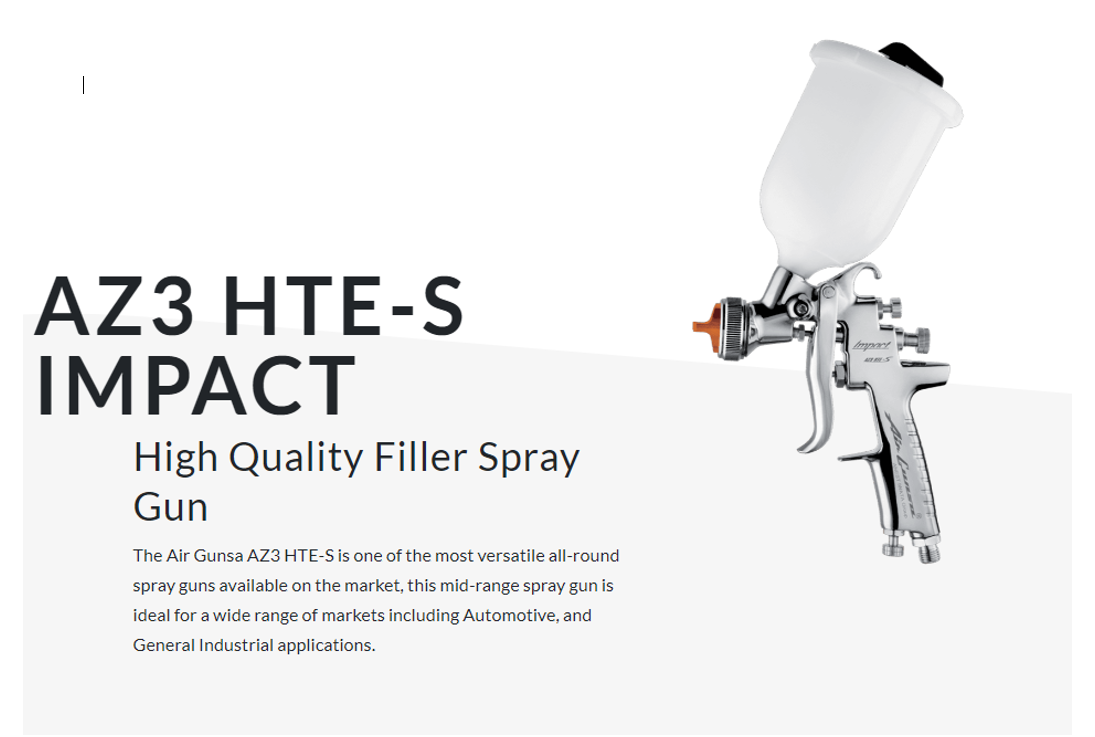

    Iwata AZ3 HTE S Impact is a High Quality Filler Spray Gun.

    The Air Gunsa AZ3 HTE-S is one of the most versatile all-round spray guns available on the market, this mid-range spray gun is ideal for a wide range of markets including Automotive and General Industrial Applications.

    • New Iwata AZ3 HTE S impact high-performance spray technology
    • Homogeneous and fine atomization with all modern WB and HS coatings
    • Parts in contact with fluid in stainless steel
    • Responsive trigger action
    • High quality chrome plated body
    • Comes With 600 cc Akulon Cup


    With an ergonomic, lightweight and balanced design, combined with the soft action of the trigger that helps reduce effort and fatigue even during prolonged use, the AZ3 HTE S gun is also a very economical gun thanks to its reduced air consumption of only 200 l / min (8 cfm)

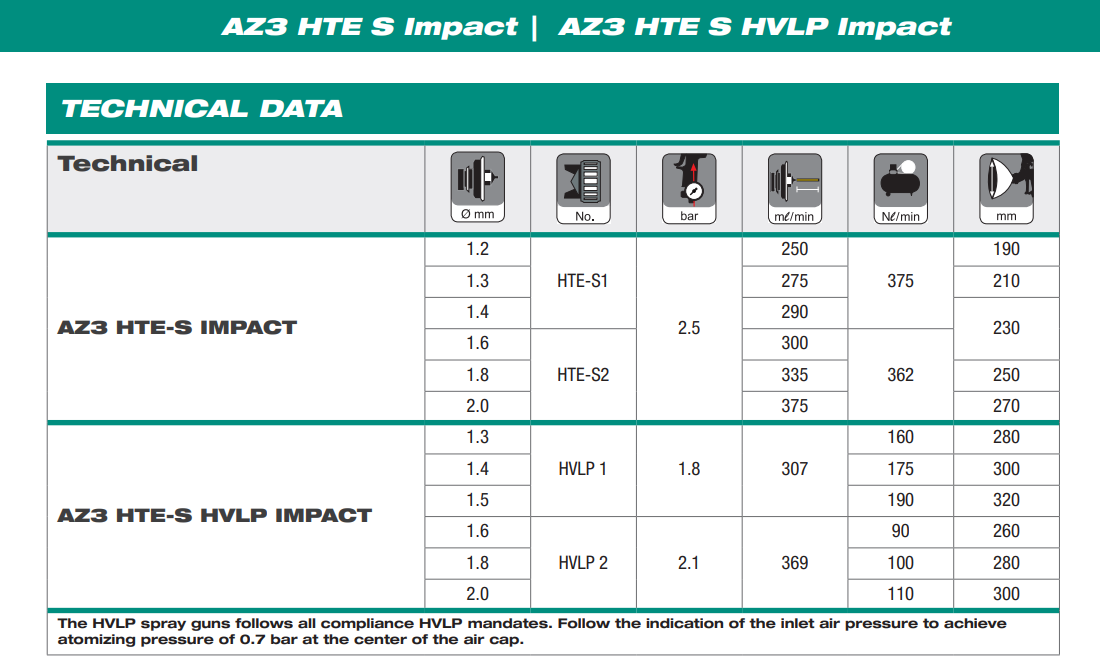

    Nozzle Range

    AZ3 HTE S has a wide range of nozzle configurations (from 1.2mm to 2.0mm diameter), which is able to offer the end user a wide range of opportunities thanks to its versatility in multiple applications.


    The AZ3 HTE-S is compatible, through the appropriate adaptors, with the most popular disposable cup series available on the market.

    New air caps (HTE-S1/S2):

    Designed for modern primer paints. Fine atomization and paint droplets well stretched and distributed give a wider spray fan pattern.

    Available with the following fluid tip/air cap combinations:

    • 1.2, HTE-S1
    • 1.3, HTE-S1
    • 1.4, HTE-S1
    • 1.8, HTE-S2
    • 2.0, HTE-S2


    For Spray Gun Adaptors please follow the Blue links below for selected adaptor.


    Brand Adaptor Number
    3M PPS Series 1 No.43 (50677)
    3M PPS Series 2 No. S43 (20677)
    DeVilbiss DeKups DPC-78
    SATA RPS No.4 (125278)
    Colad Snap Lid No.13 (9370A13)
    Sagola DPC PTDPC-32374-1
