Description

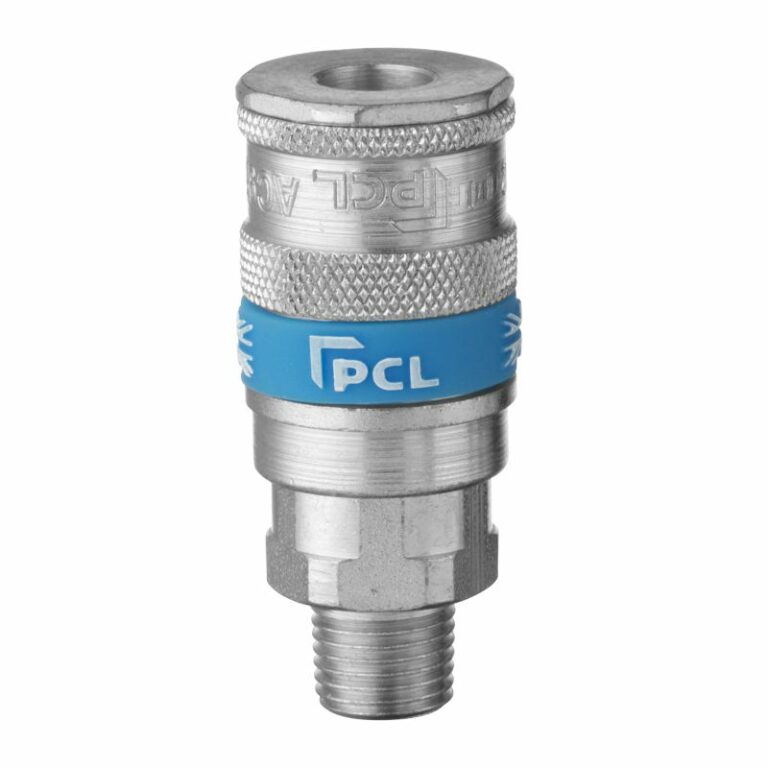

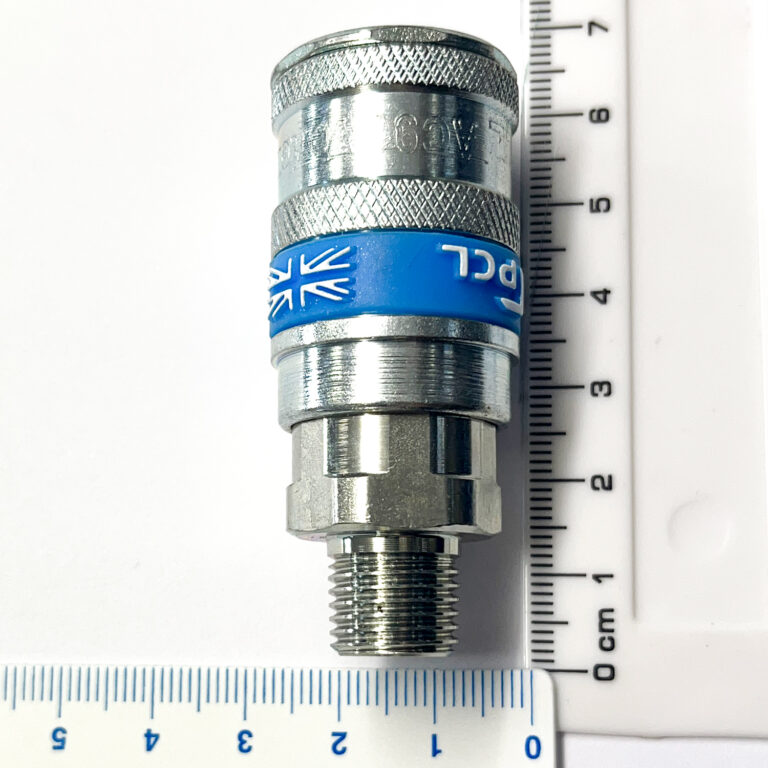

PCL 1/4″ BSP Male British/Standard Vertex Coupling MA1001 (was AC91CM)

PCL Vertex 1/4″ BSPT Male Coupling features a double action mechanism, is quick release and ideal for use in garages and tyre shops where operators are using air tools with trailing hose applications.

Key Benefits and Specifications

• • Compatible with Standard Adaptors
  • Designed for TRAILING HOSE applications
  • Available in 1/4″, 3/8″ 1/2″ BSP and 7mm, 8mm, 10mm sizes
  • Steel Construction – robust and hard-wearing, ideal for use in the engineering/workshop environment
  • Positive locking mechanism
  • Nominal bore: 4.8mm
  • Flow rate: 43 cfm @ 100 psi
  • Maximum working pressure:  14 bar / 200 psi
  • Temperature range: -40°C to 100°C
  • Interchangeability Rectus 19, Airflow, PCL Standard
