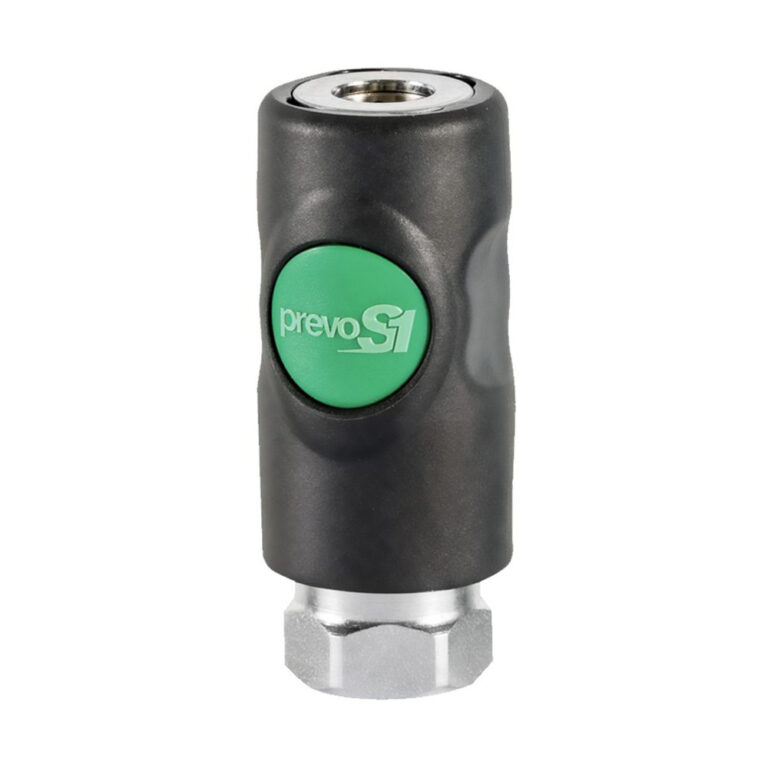

Prevost ESI 07 Female HVLP/Euro (1/4″, 3/8″ and 1/2″ Available) Coupling/Receiver (ESI 071101 / ESI 071102 / ESI 071103)

Description

Prevost ESI 07 Female HVLP/Euro (1/4″, 3/8″ and 1/2″ Available) Coupling/Receiver

• Brand: Prevost
• Thread: 1/4″ or 3/4″ or 1/2″ BSP
• Thread Gender: Female
• Profile: HVLP/Euro

Premium couplings from Prevost’s Prevo S1 range for use with all industrial compressed-air applications.

With an innovative and highly efficient patented design, flow rate is optimised for maximum efficiency, minimum loss of power.

The seal is reliable enough for the manufacturer to offer a three year guarantee of no leaks as the push button mechanism automatically vents pressure and disconnects. Simple, solid and safe to use, this securely eradicates any risk of hose whip, and disconnection on impact.

The body of the coupling is made of a reinforced composite that’s super heavy-duty. It is very highly impact and crush-resistant, as demonstrated in the video.

Lightweight, compact and ergonomic in form, the surface is warmer to the touch than metal couplings, and helps eliminate accidental scratches that cost labour and material.

Prevost’s Prevo S1 range covers a host of different types of couplings in different profiles and sizes.

***PLEASE NOTE: Prevost couplers will not receive DeVilbiss or Sata swivel type tails/plugs. They will accept normal non-swivel tails of any brand.

European, British, ISO 6150 B, ISO 6150 C, Truflate, and ARO 210 profile couplers are available in G 1/4, G 3/8, and G 1/2.

Specifications

• Temperature: -15°C + 70°C
• Construction: Composite
• Use: Pneumatic tools
• ID Passage: 7.2 – 7.4 mm
• Pressure: P.N. 12 bar
• Weight: 86 g (coupling for 13 mm hose)
• Colour: Black / Green
• Flow rate at 6 bar: 1 820 l/min – DP = 0.6 b

Additional information
