Description

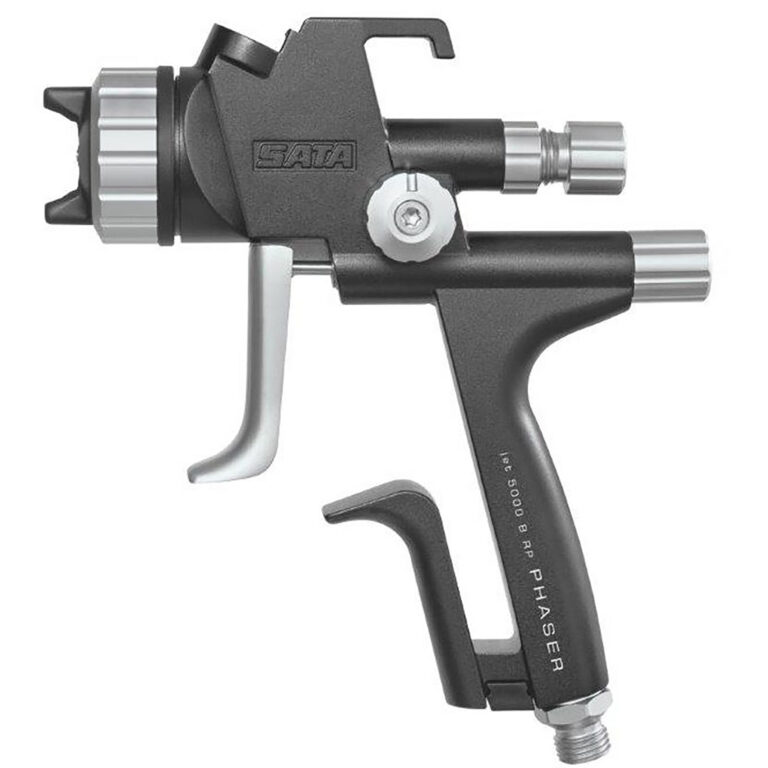

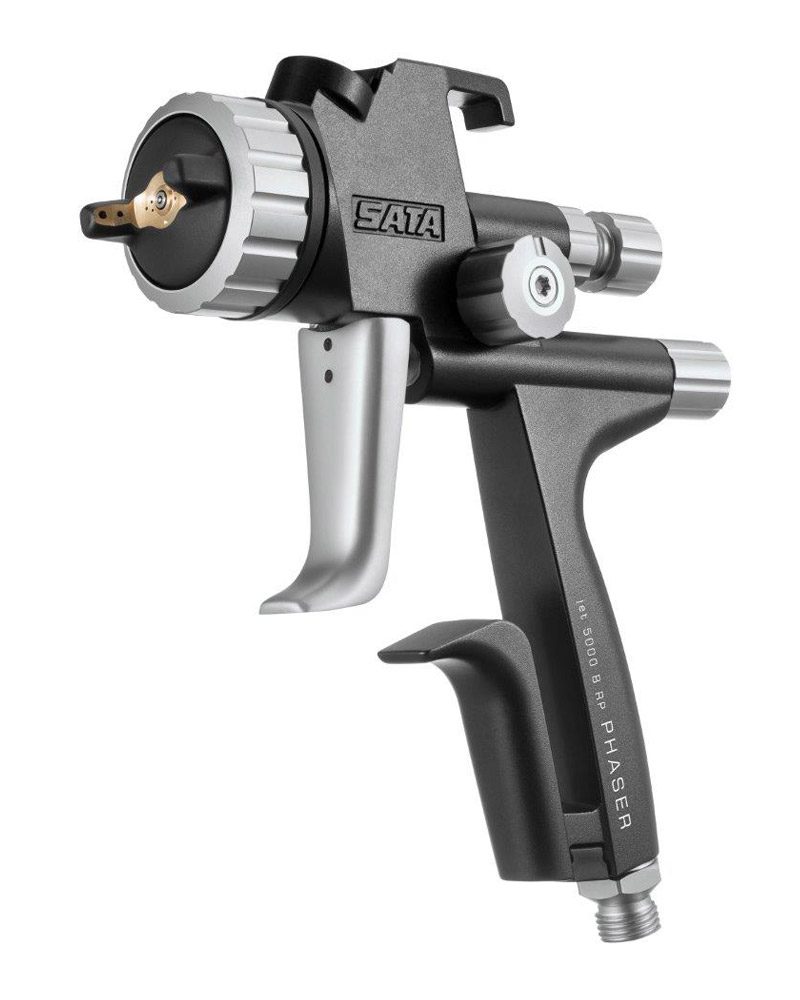

SATA 5000 B Phaser Gravity Spray Gun.  Designed by Porsche

This SATA 5000 B is an exclusive spray gun that has been developed in cooperation with the Porsche Design Studio. With exceptional optics, exceptional materials and an exceptional design concept, it makes the SATA Phaser very unique. Combining a different, unique look with high-quality materials and sophisticated technical solutions unusual for a spray gun, the Phaser offers a whole new view on the spray gun design.

Technologically, the Phaser is identical to the SATAjet 5000B spray gun. Utilising the same nozzle concept, it also has all other proven technical features which already define the SATAjet 5000B series as an outstanding spray gun. Due to the optimised shape of the gun handle, the spray gun fits perfectly in the palm of the hand. Robust but still low in weight, the Phaser offers a perfect combination of ease of application.

The Phaser is available in RP and HVLP versions. All Phaser spray guns come with RPS disposable cups in the box (reusable cups sold separately.

Supreme Flexibility – The SATA 5000 B

The premium spray gun SATAjet 5000 B sets new quality standards, while painting has become as easy as never before. Being extremely versatile in terms of application distance and inlet pressure, this new high-performance spray gun is leading the way. Now painters have the possibilities to set pressure and distance as required by the paint to be applied, the climatic conditions and the work method – to achieve perfect finishes.

Technical Specifications (RP)

• Inlet pressure
• Field of application: 0.5 bar – 2.4 bar
• Compliant: max 2.0 bar
• Air consumption at 2.0 bar: 10.2 cfm
• Application distance
• Field of application: 10 cm – 21 cm
• Recommended: 17 cm – 21 cm

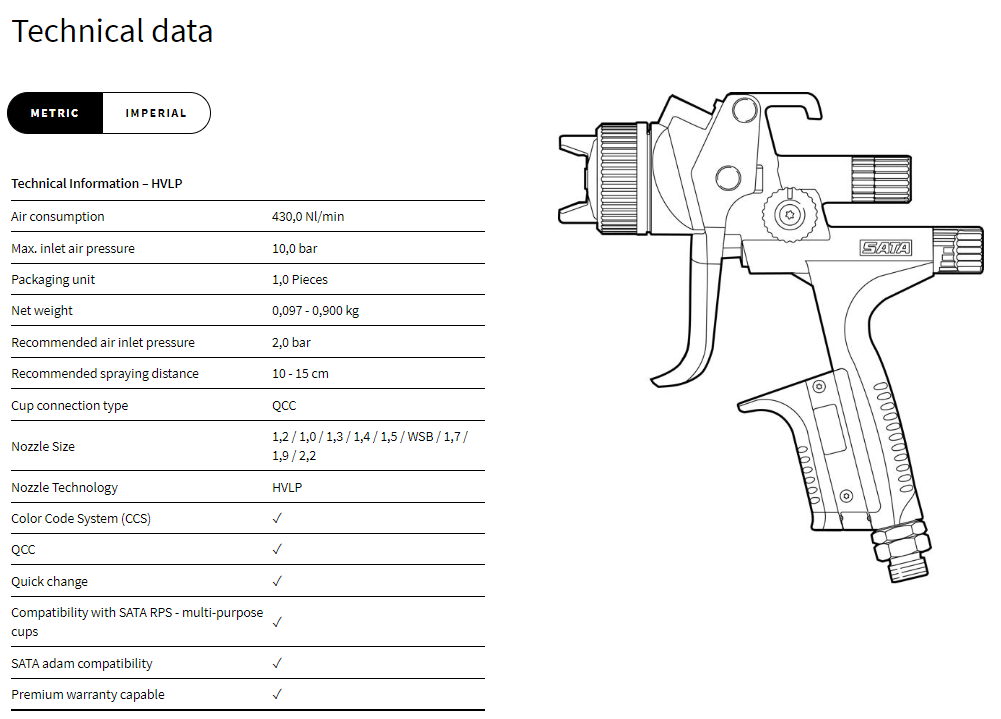

Technical Specifications (HVLP)

• Inlet pressure
• Field of application: 0.5 bar – 2.4 bar
• HVLP: max 2.0 bar
• Air consumption at 2.0 bar: 15.2cfm
• Application distance
• Field of application: 10 cm – 21 cm
• Recommended: 10 cm – 15 cm

For Adapters please follow the links below for selected adaptor and select the correct part number from the model part number dropdown.

– 3M PPS adapter Series 1.0 No.40 (16135)

3M PPS Preparation System Adaptor (Choice of 25 Adaptors) (16032 / 16759)

– 3M PPS adapter Series 2.0 No. S40A (26135)

3M PPS Preparation System Adaptor Series 2.0 (26003 / 26139)

– DeVilbiss (DPC-10)

DeVilbiss DeKup System Adaptor (Choice of 8 Adaptors)

– Colad (9370A04)

Colad Snap Lid Adaptor (choose in drop down. refer to ‘tech’ for right one) (9370A02 / 9370A22)
