Description

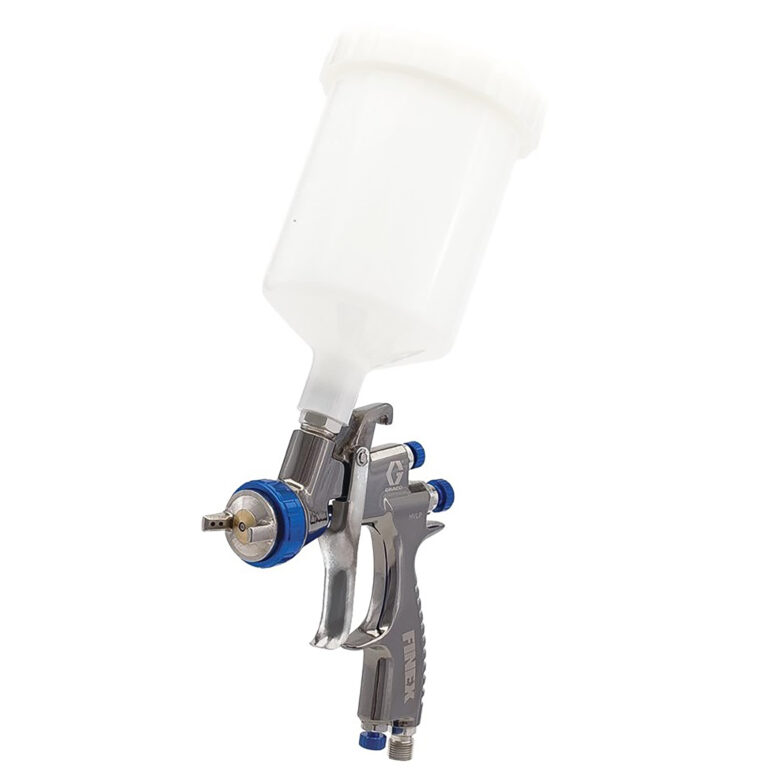

Graco Finex Gravity Feed HVLP Spray Gun (289238 / 289239 / 289240 / 289241)

Well-balanced and lightweight, the Finex spray gun design offers a more affordable way to spray.

Features

• Air Caps optimized for high-quality spray performance
• Lightweight, ergonomic gun
• Light trigger pull
• Integrated air inlet adjustment (cheater) valve
• Mini and Standard Gravity Feed offered in a wide variety of needle/nozzle sizes
• A plastic cup included with the gun
• 3M PPS and aluminium cups are available

Technical Specifications

• Maximum air inlet pressure: 7 bar (0.7 MPa, 100 psi)
• Maximum fluid working pressure: 7 bar (0.7 MPa, 100 psi)
• Maximum HVLP inbound air pressure: 2 bar (0.2 MPa, 29 psi)
• Air consumption: 269 lpm at 2.0 bar (0.2 MPa, 29 psi)
• Fluid and air operating temperature range: 0-43° C (32-109°F)
• Spray Gun Air inlet: 1/4 npsm (R1/4-19)
• Weight with cup: 0.5 kg (1.1 lb)
• Wetted parts: Aluminium, stainless steel, engineered plastic

For Spray Gun Adaptors please follow the Blue links below for selected adaptor.
