Description

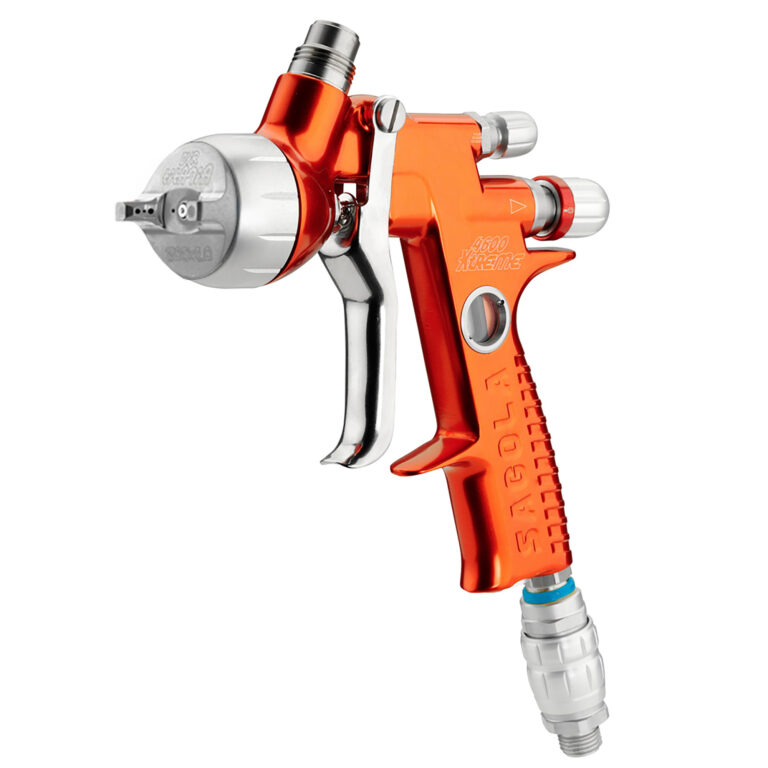

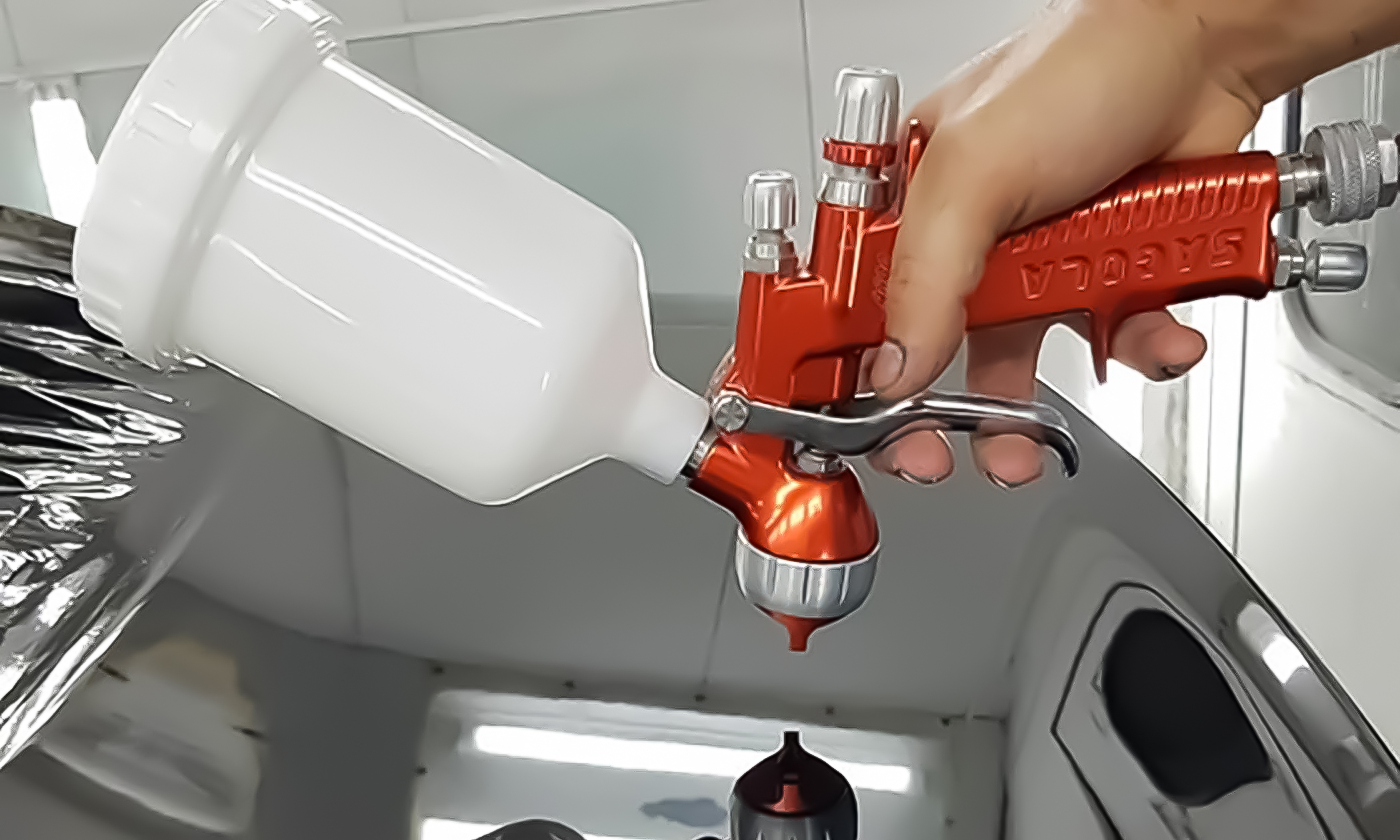

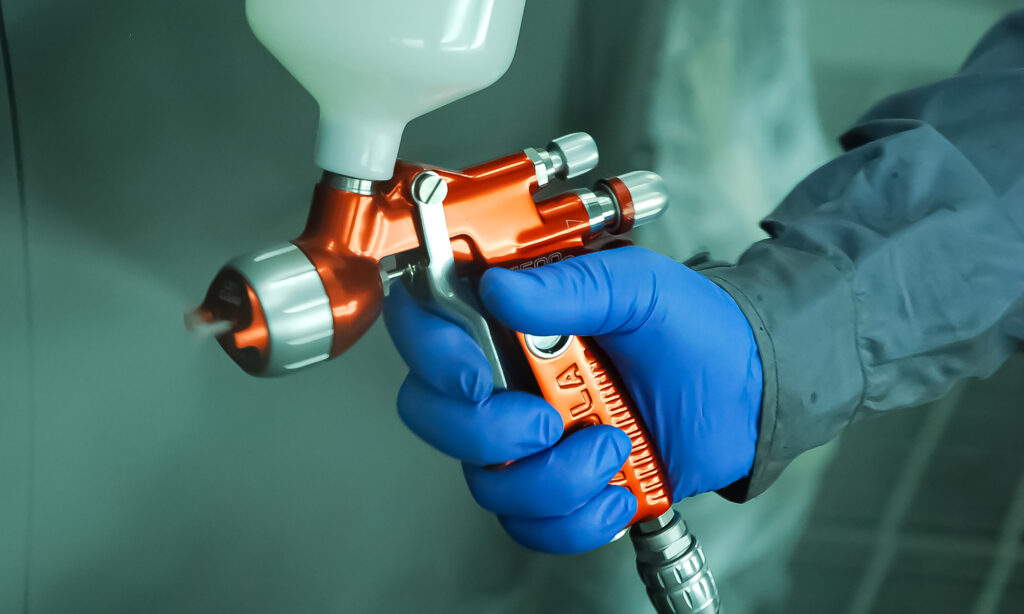

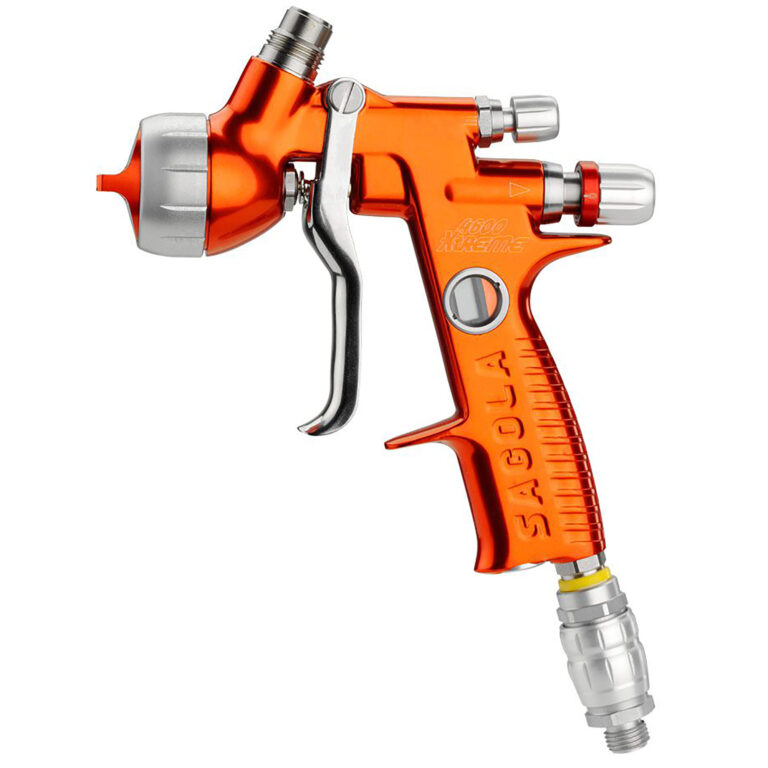

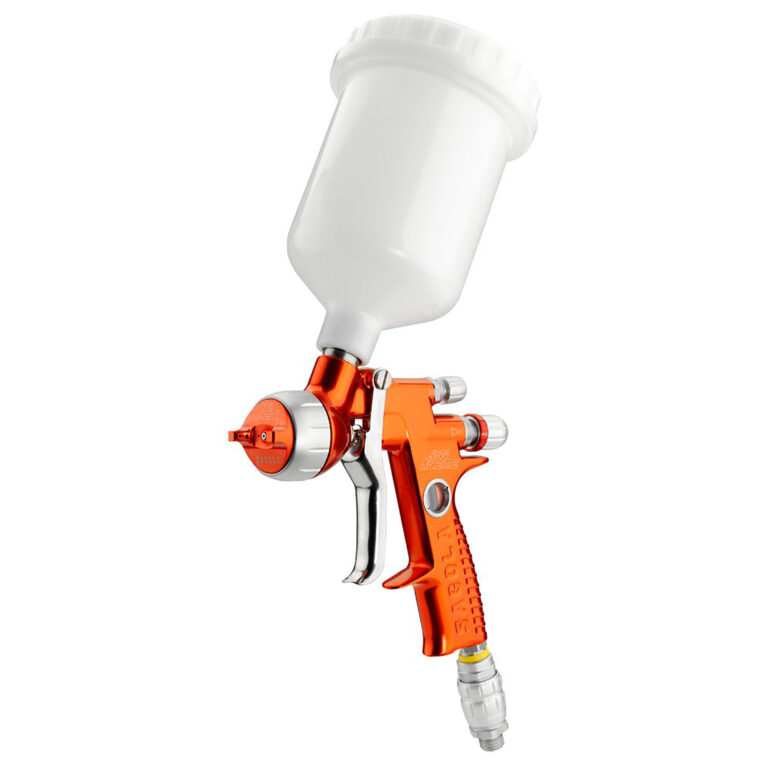

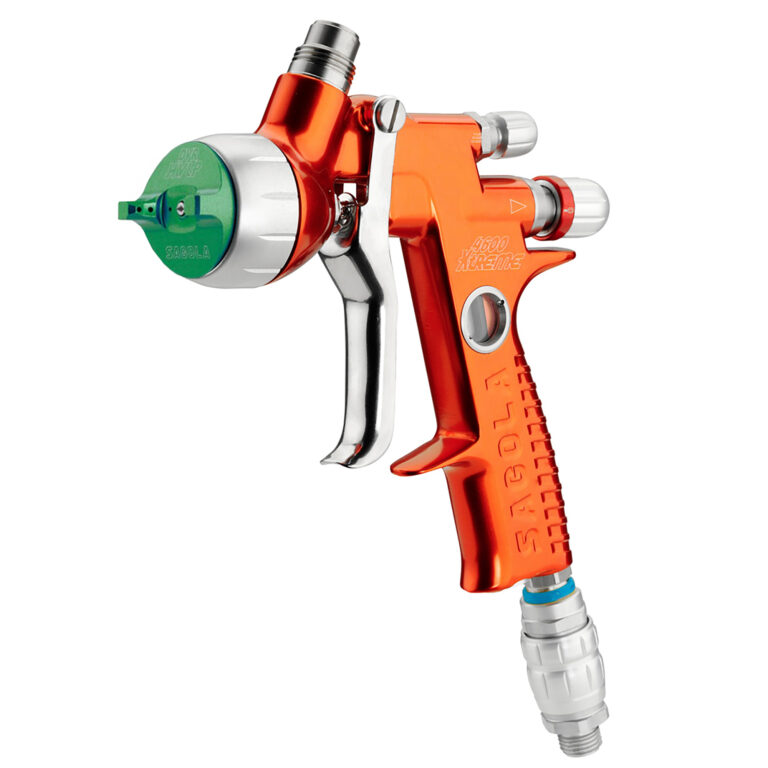

Sagola 4600 Xtreme Digital Gravity Spray Gun

• Sagola Product Catalogue

Our opinion:  Sagola steps up a level to compete at the very highest level with no design issues we can see.  Rated highly by ‘The Gunman’ (see video link above).

Sagola presents its top technological expression in bodywork finishing spray guns. With a smaller and lighter design, it gives the end-user optimal weight distribution and a more comfortable feel.

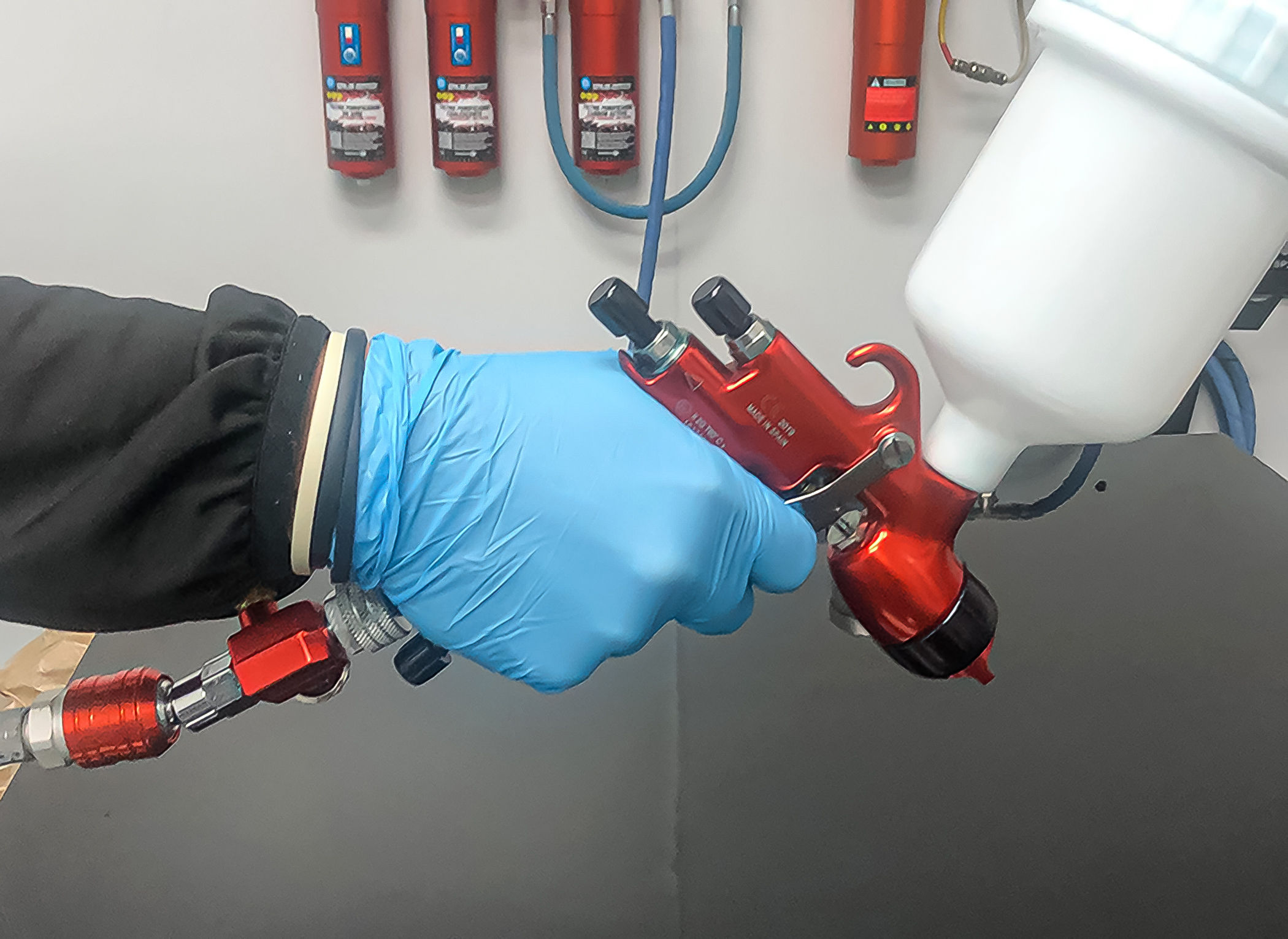

The new shiny and modern design looks the part. The carefully designed ergonomics offer enviable balance and usability and perfect mechanisation.

The 4600 Xtreme offers the widest range of solutions for all the new paints launched by the main paint brands for refinishing. It has one of the highest Sagola manufacturing standards, and competitive prices whilst maintaining a superb service.

– Perfect waterborne paint uniformity

– Economic in paint consumption

– Easy and smooth handling

– Maximum product transfer

Industry leading transfer efficiency

Independent testing* proves the Sagola 4600 Xtreme’s Conventional HTE aircaps provide significantly higher transfer efficiencies than traditional HVLP systems, whilst maintaining a very high quality finish.

Versatile – one gun does it all

The extensive range of needle, nozzle, and aircaps enables the Sagola 4600 to convert to an HVLP gun by quickly changing the aircap.

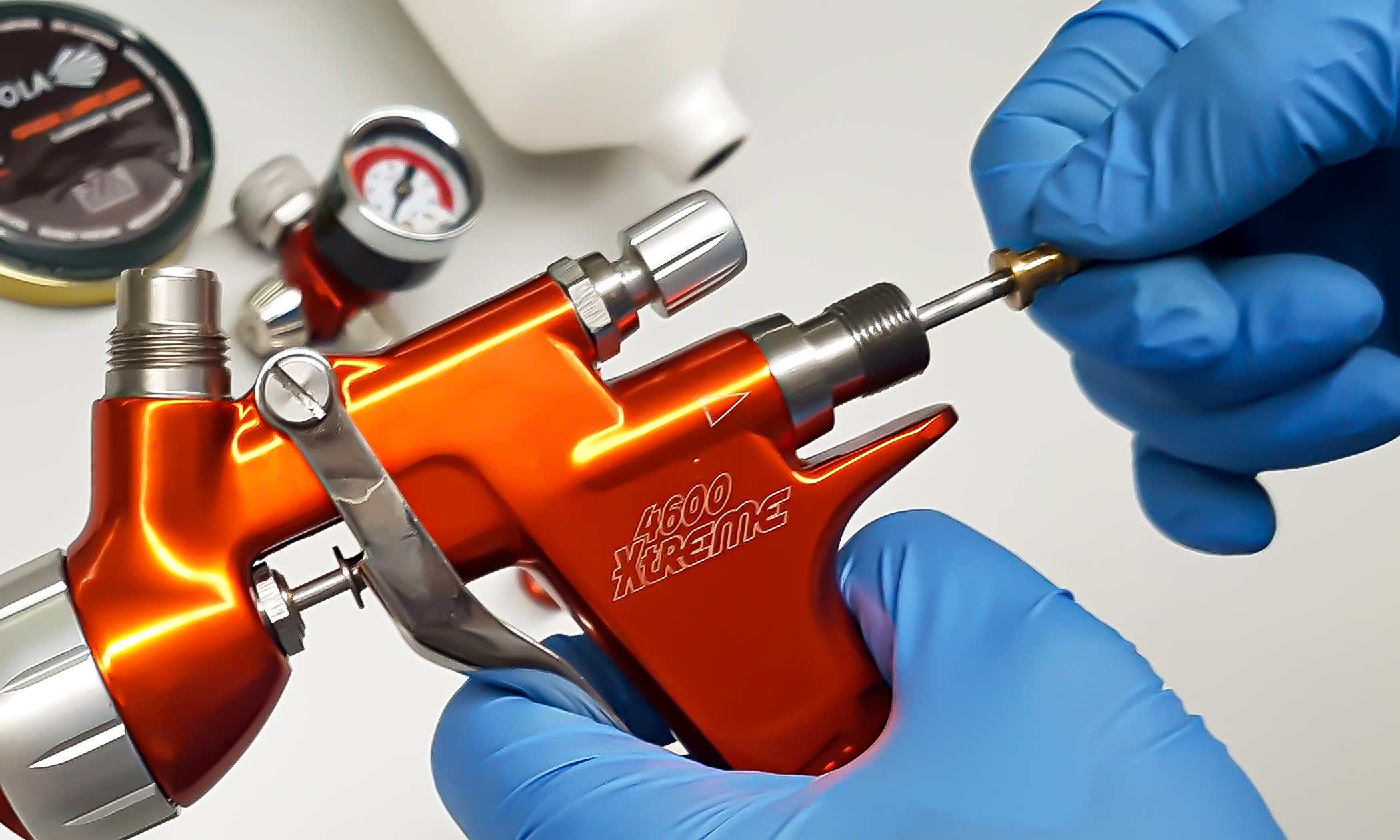

Extremely easy to clean and maintain

The Sagola 4600 has no air diffusers, blind chambers or threads in contact with paint, and no gaskets, seals or plastic parts in the product area – just metal on metal contact making it easier to clean and maintain.

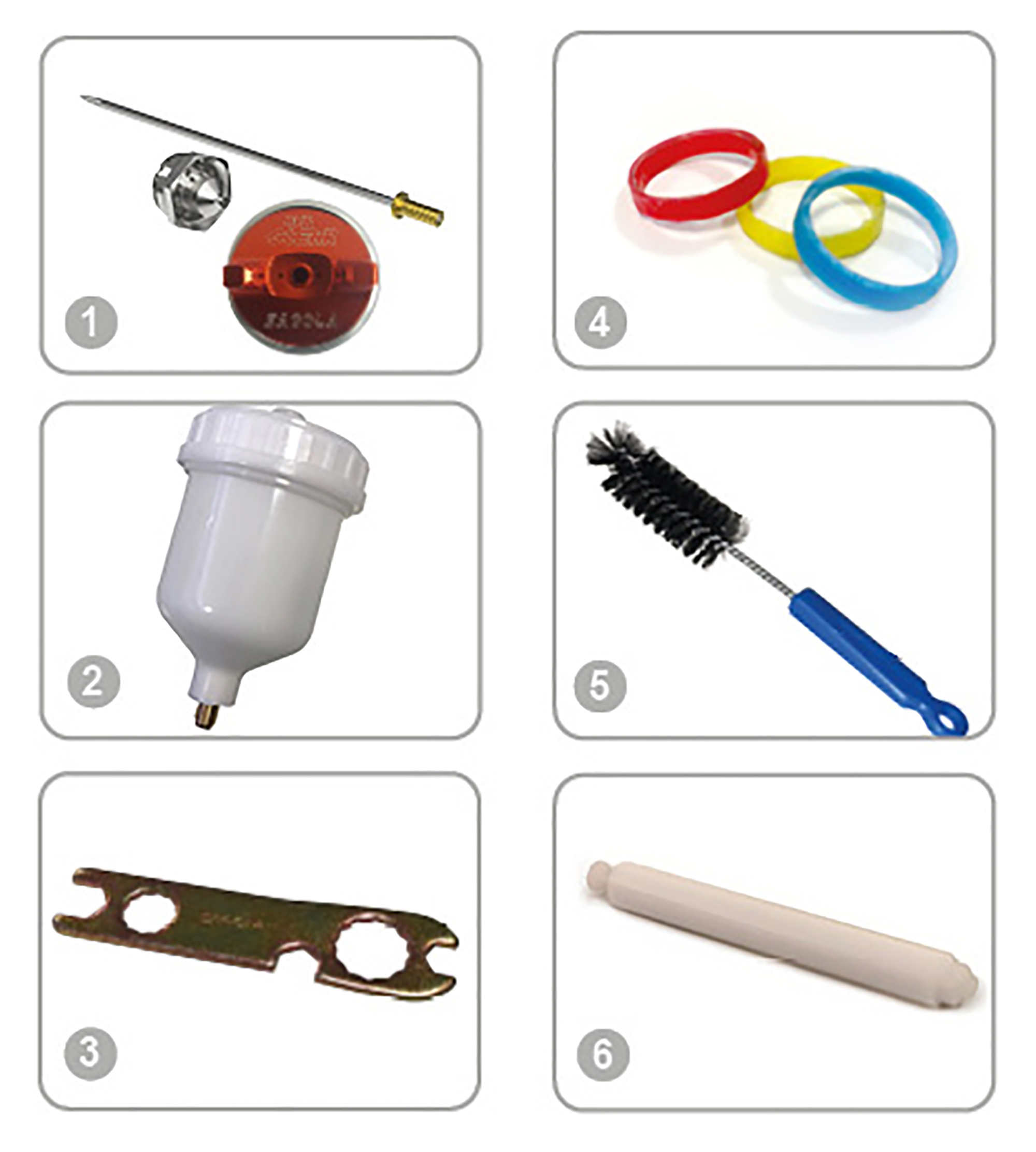

Sagola 4600 Xtreme Kit Contents

Each Sagola 4600 Xtreme is supplied complete with:

• Aircap, needle & nozzle kit (supplied fitted)

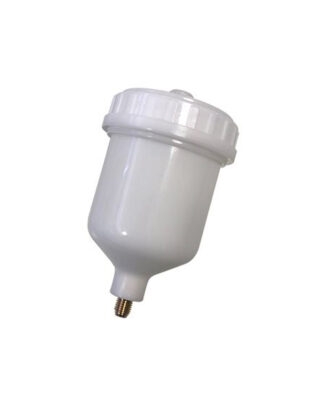

• 650ml (22fl oz) Reusable plastic gravity cup
• Wrench for removing and fitting the nozzle and all servicing needs
• Colour code identifiers perfect for identifying guns when there are multiple painters (x3)
• Cleaning brush
• Key Assembly for changing the air valve

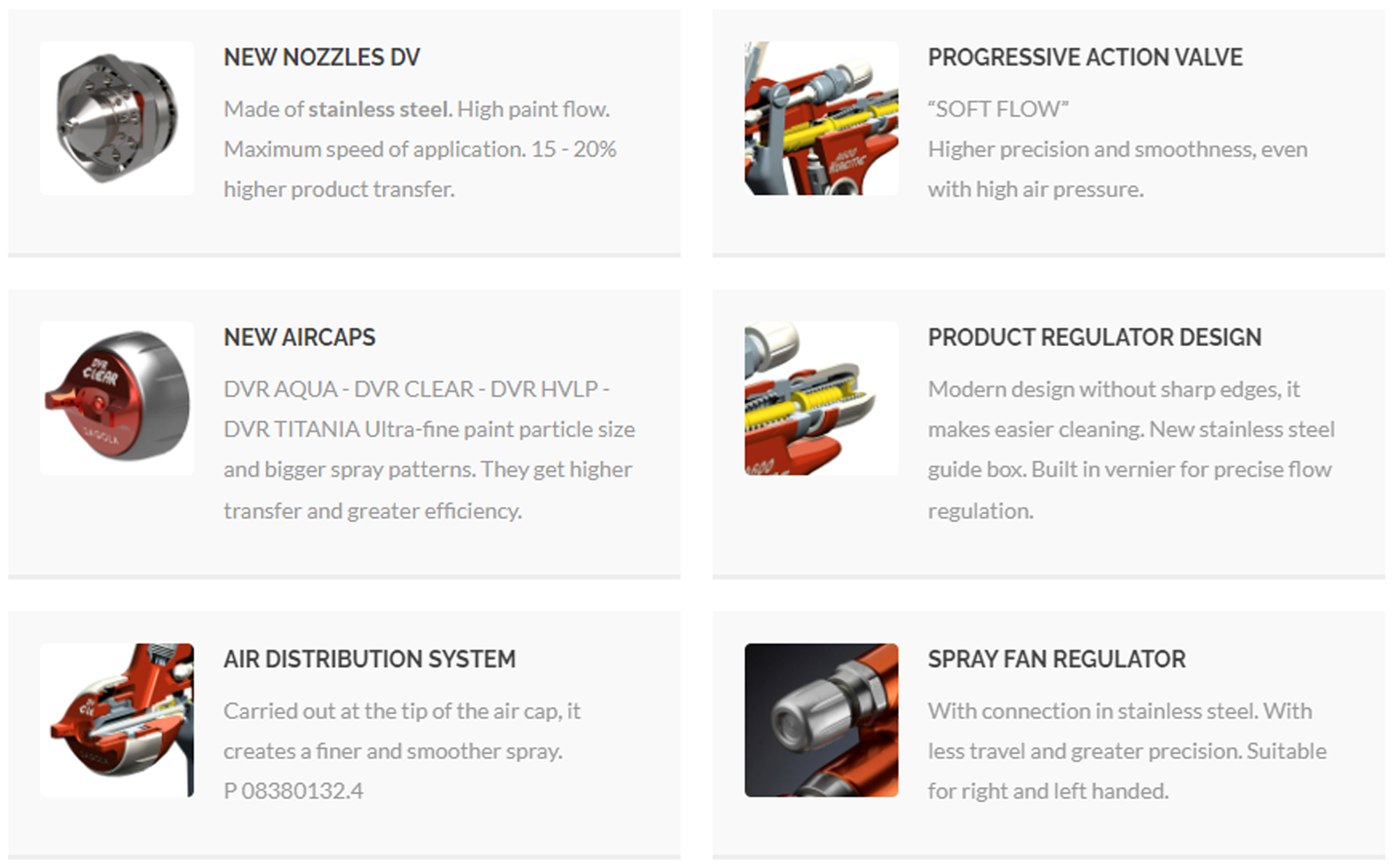

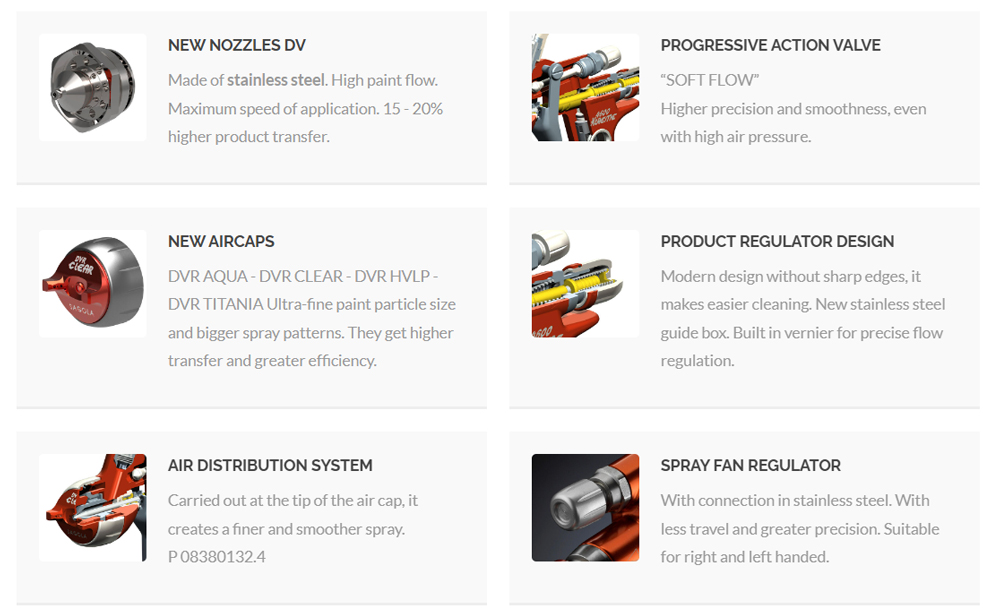

Features

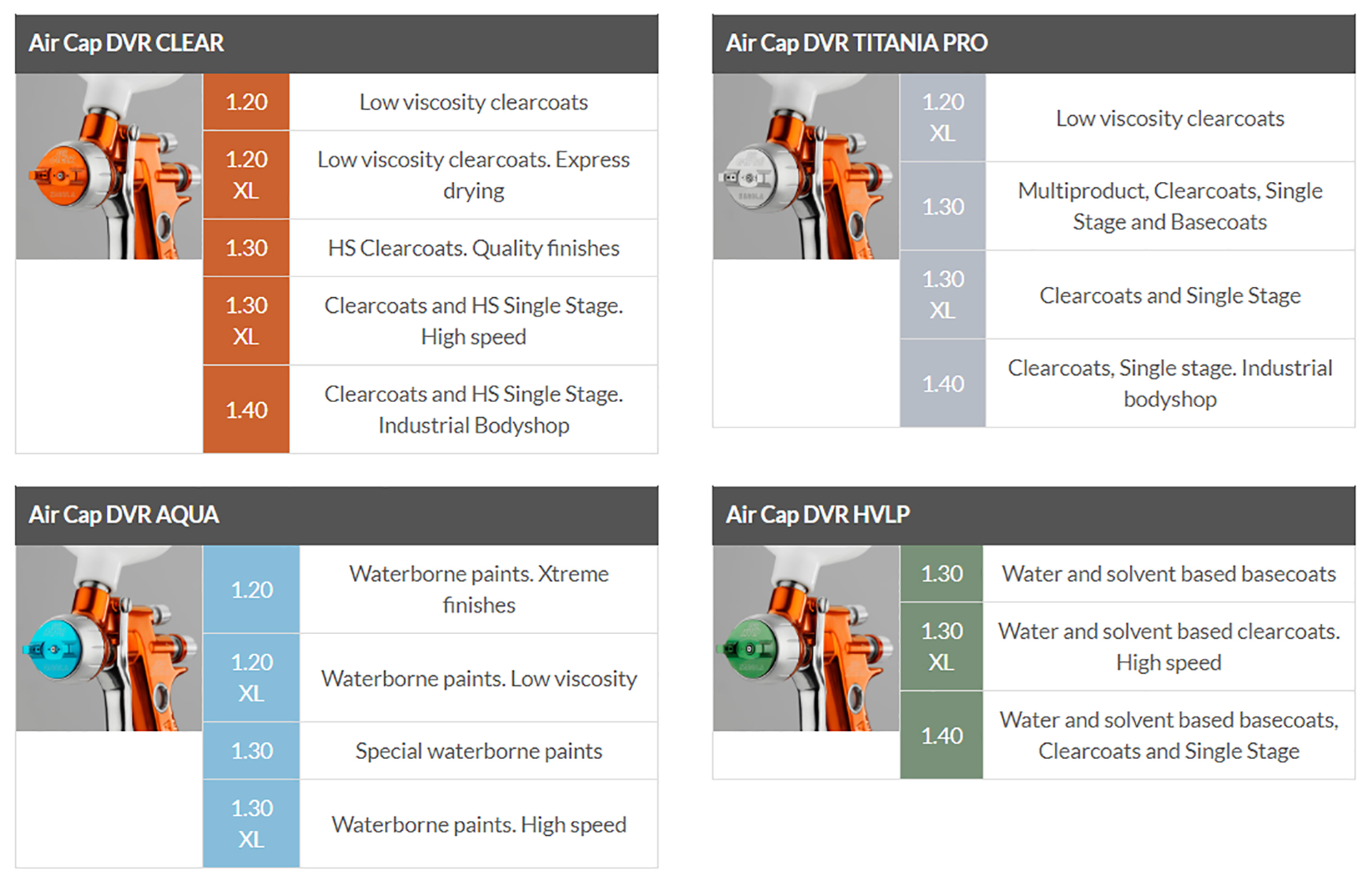

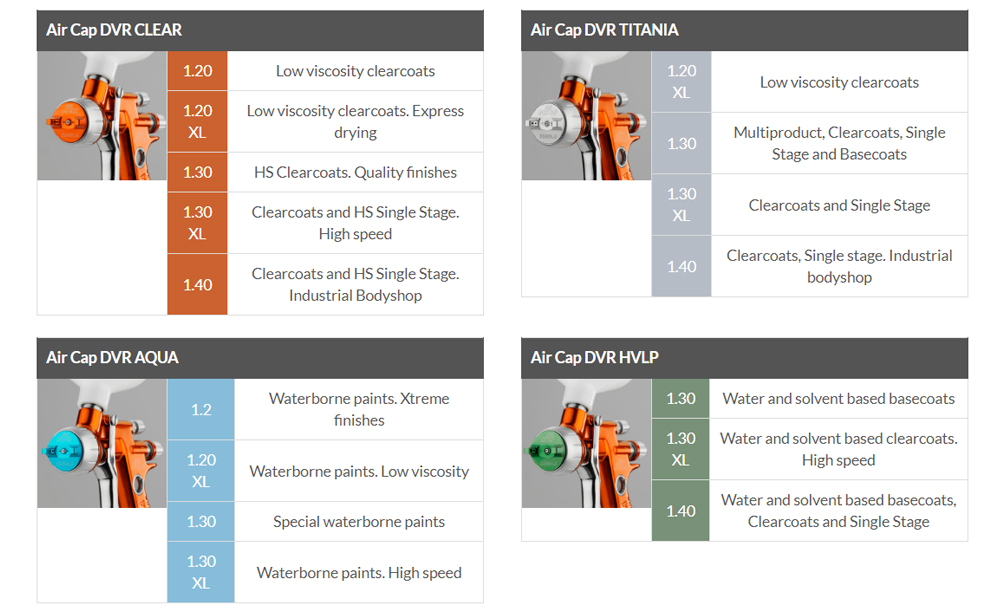

Aircaps

For Spray Gun Adaptors please follow the links below for selected adaptor and select the correct part number (shown in the brackets) from the model part number dropdown.

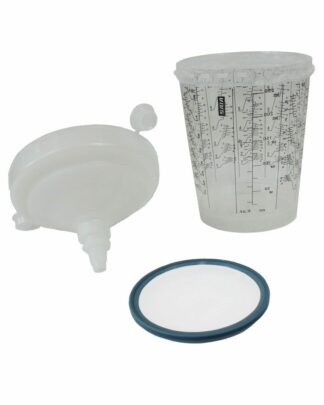

• 3M PPS adaptor Series 1.0 No.32 (50458) | 3M PPS Preparation System Adaptor Series 1.0 (Choice of 25 Adaptors) (16032 / 16759)
• 3M PPS adaptor Series 2.0 No.S32 (26458) | 3M PPS Preparation System Adaptor Series 2.0 (26003 / 26139)
•  Colad No.11 (9370A11) | Colad Snap Lid Adaptor (choose in drop down. refer to ‘tech’ for right one) (9370A02 / 9370A22)
• SATA RPS (188664) | SATA RPS System Adaptor (Choice of 12 Adaptors) (SATA-RPS)
• Sagola DPC (PTDPC-32373-1) – Sagola DPC S/Steel Adapter (PTDPC-32374-1 / PTDPC-32383-1)
