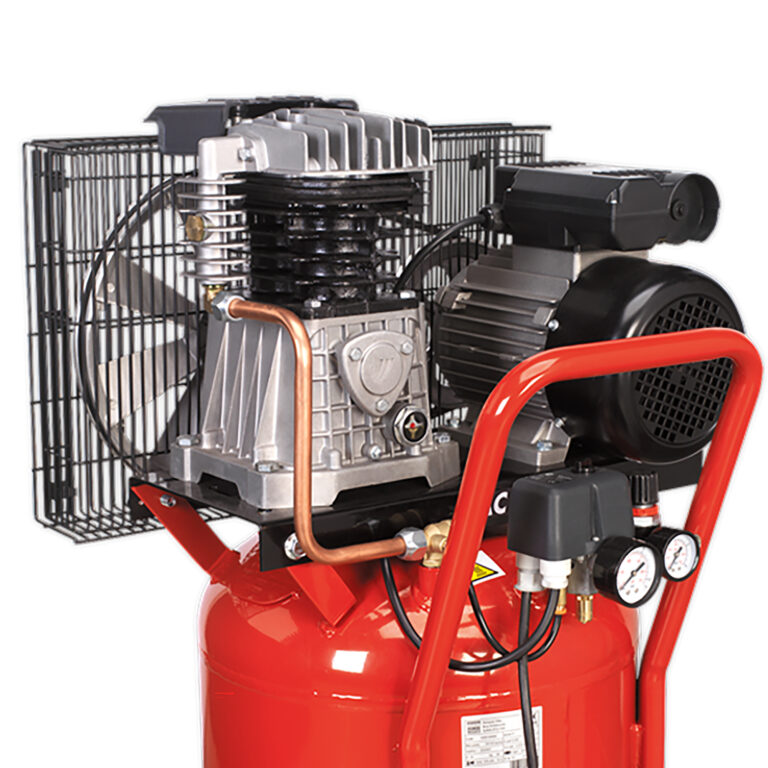

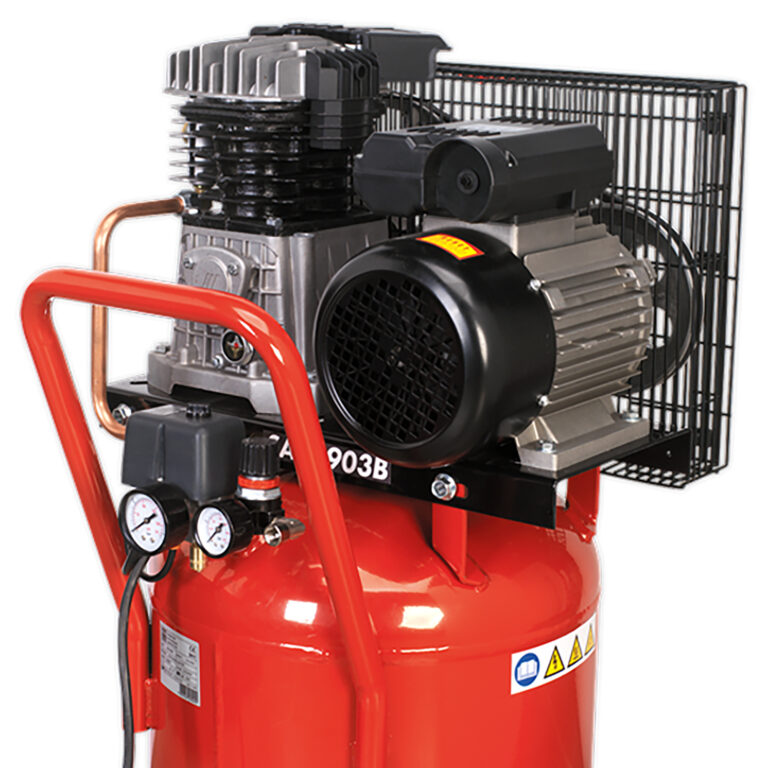

    Sealey Vertical Belt Drive Compressor (90 Litre, 3hp, 13.4cfm Displacement) (SAC1903B)

    Our Price


    Our Price: £945
    Trade: £1099.95
    VAT/TAX: £189
    Total: £1134


    Sealey Vertical Air Compressor (90 Litre, 3hp, 13.4cfm Displacement)

    Twin capacitors and a centrifugal switch aid trouble free start up on a 13amp supply.


    • Suitable for the professional workshop, these units are fitted with a genuine 3hp motor.
    • A vertical tank offers horizontal space saving without compromising any performance.
    • Twin capacitors and a centrifugal switch aid trouble-free start-up on a 13amp supply.
    • The pump features heavy-duty full-cast cylinders capped by alloy heads for improved heat dissipation and long life.
    • Heavy-duty drive guards protect the belt and flywheel, forcing air over the pump to aid cooling.
    • Supplied with full CE certification, test certificates and operation/maintenance manual.


    Technical Specifications

    • Model No: SAC1903B
    • Motor Output: 3hp
    • Voltage/Phase: 230V – 1ph
    • Rated Supply: 13A
    • Speed: 1636rpm
    • Air Displacement cfm(L/min): 13.4(380)
    • Maximum Free Air Delivery cfm(L/min): 9.7(275)
    • Maximum Pressure: 145psi/10bar
    • Receiver Capacity: 90 Litre
    • Dimensions (W x D x H): 525 x 495 x 1130mm
    • Weight: 65kg

    * Next Day Delivery British Mainland Only. All other locations Please call for details.

    Normal electrical supply suits 99% of the time, but when supply is weak or under strain, fuses may be blown regularly. If this happens, either an ‘RCD’ trip can be fitted instead / as well as the plug (approx. £15 – see electrical specialists, or a 16amp plug to a 20amp supply (see an electrician – approx.. £50-£100)

    Additional information

    Weight 70 kg
