Description

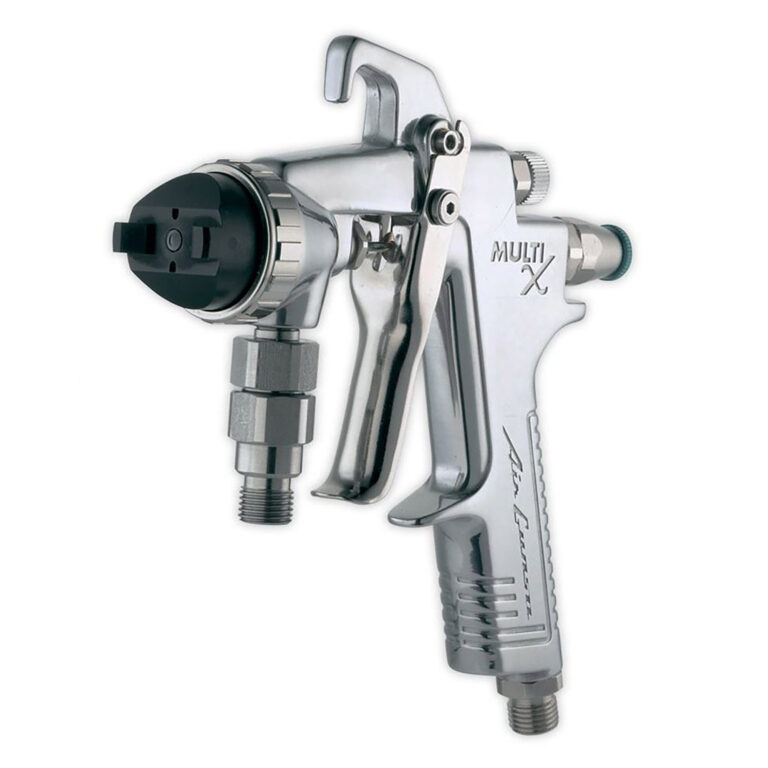

Iwata MultiX Pressure Spray Gun (W0SPG50AG10C / W0SPG51AG10C)

• Suitable for solvent and water base paints
• Air Assisted Airless Atomization
• Assisted air pressure: 1,5 Mpa
• Spray distance: 250mm
• Filter: 200 mesh
• Max. air pressure at gun handle: 7,0 bar
• Max. fluid pressure at gun inlet: 150 bar
• Air connection: G1/4M’’
• Fluid connection: G1/4M’’
• Needle valve in Tungsten Carbide
• Paint passage parts in Stainless Steel

Available with standard pressure connector, or with long filter

Available with the following tips:

• .007″ø orifice, 25° angle (W2TIP0725)
• .007″ø orifice, 35° angle (W2TIP0735)
• .007″ø orifice, 40° angle (W2TIP0740)
• .009″ø orifice, 40° angle (W2TIP0940)
• .009″ø orifice, 50° angle (W2TIP0950)
• .011″ø orifice, 25° angle (W2TIP1125)
• .011″ø orifice, 40° angle (W2TIP1140)
• .011″ø orifice, 50° angle (W2TIP1150)
• .011″ø orifice, 65° angle (W2TIP1165)
• .013″ø orifice, 25° angle (W2TIP1325)
• .013″ø orifice, 40° angle (W2TIP1340)
• .013″ø orifice, 65° angle (W2TIP1365)
• .015″ø orifice, 25° angle (W2TIP1525)
• .015″ø orifice, 40° angle (W2TIP1540)
• .015″ø orifice, 50° angle (W2TIP1550)
• .018″ø orifice, 25° angle (W2TIP1825)
• .018″ø orifice, 40° angle (W2TIP1840)
• .018″ø orifice, 50° angle (W2TIP1850)
