Description

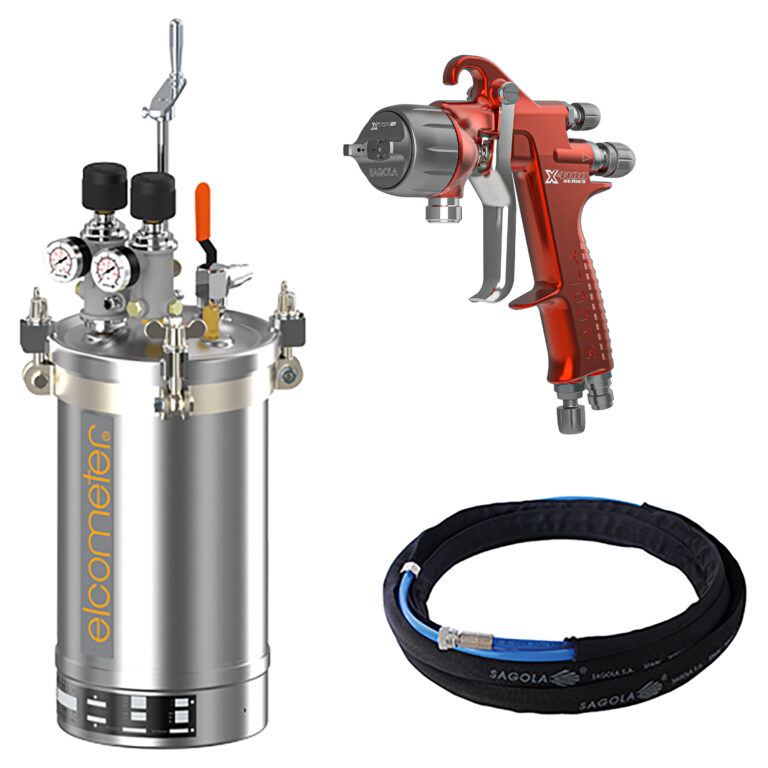

Sagola/Elcometer P10T Stainless Steel Pressure Pot with Manual Agitator; 10L (2.64 US Gal) (PP10T-MA) and X 4100 Pressure Spray Gun Kit

Elcometer P10T Stainless Steel Pressure Pot with Manual Agitator; 10L (2.64 US Gal) (PP10T-MA) Supplied complete with:

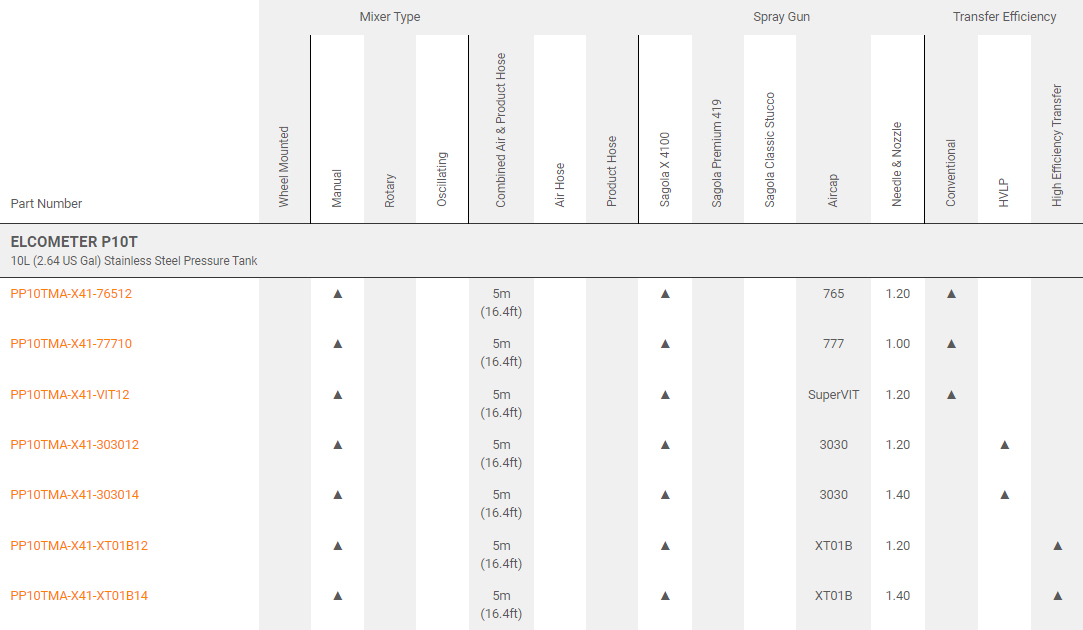

Option of Spray Gun:

• (PP10TMA-X41-76512) Sagola X 4100 Pressure with 765 Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit*
• (PP10TMA-X41-77710) Sagola X 4100 Pressure with 777 Aircap & 1.00mm Stainless Steel Needle & Nozzle Kit*
• (PP10TMA-X41-VIT12) Sagola X 4100 Pressure with Super VIT Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit*
• (PP10TMA-X41-303012) Sagola X 4100 Pressure with 3030 Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit*
• (PP10TMA-X41-303014) Sagola X 4100 Pressure with 3030 Aircap & 1.40mm Stainless Steel Needle & Nozzle Kit*
• (PP10TMA-X41-XT01B12) Sagola X 4100 Pressure with XT01B Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit*
• (PP10TMA-X41-XT01B14) Sagola X 4100 Pressure with XT01B Aircap & 1.40mm Stainless Steel Needle & Nozzle Kit*

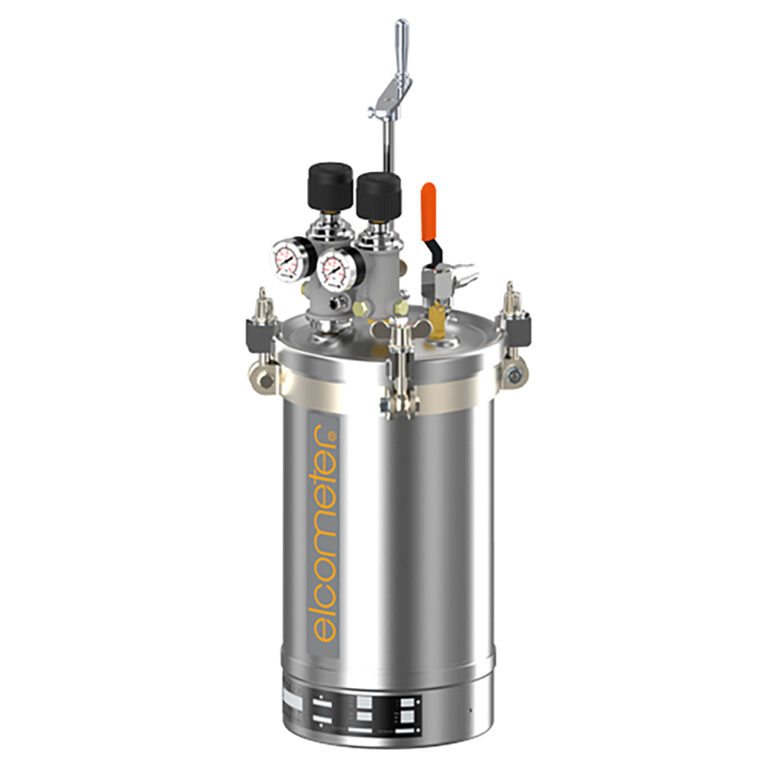

Elcometer P10T Pressure Tank

The dual air regulator with discharge valve, regulates spray guna nd pot pressure independently.

• Suitable for solvent and water-based paints.
• Safety compliant to International Standards.
• Body and lid in stainless Steel.
• Top outlet connection.
• Dual air regulator with discharge valve, to regulate spray gun and pot pressure independently.
• Ideal for use with two spray guns.
• Optional stainless steel reusable pressure pot liner.
• Manual mixer.

Full equipment kit available:

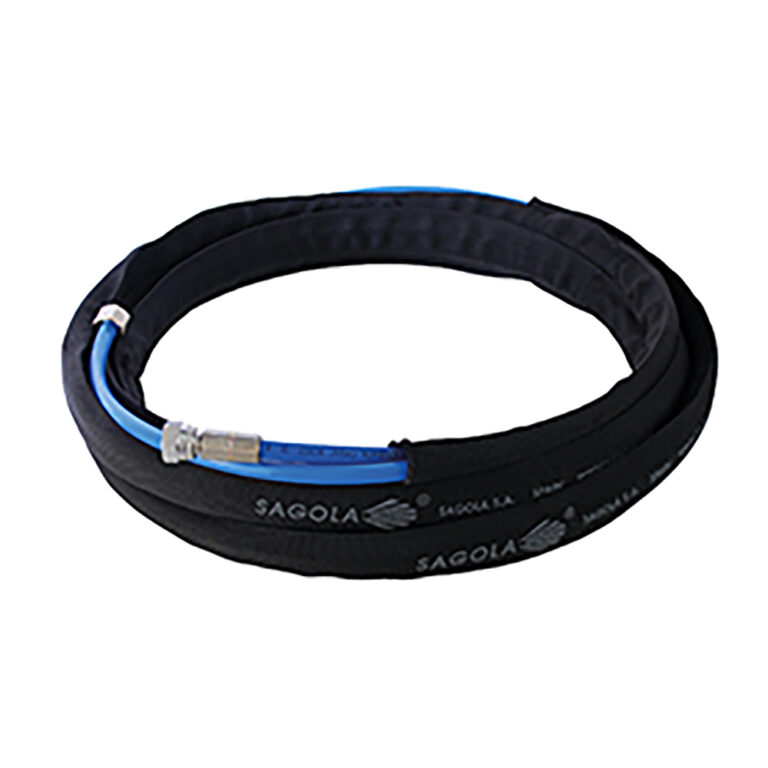

Elcometer P10TS Pressure Tank; 10 Litre (2.64 US Gal) & 5m (16.4ft) Combined Anti-Static Air & Product Hose

Compliance:
CE, UKCA
ATEX 2 II GX

Technical Specification

• Tank Capacity: 10l (2.64 US Gal)
• Agitator Type: None
• Product Outlet Position: Top
• Construction Material: Stainless Steel Body & Lid
• Working Pressure (Max): 4bar (58psi)
• Air Inlet Connection: 6.35mm (1/4”) BSP Male
• Product Outlet Connection: 9.52mm (3/8”) Male BSP
• Air Pressure Gauge: 0 – 4bar (0 – 58psi)
• Product Pressure Gauge: 0 – 8bar (0 – 116psi)
• Operating Temperature: 0 – 50°C (32 – 122°F)
• Dimensions (up to lid): 208 x 208 x 375mm (8.19 x 8.19 x 14.76”)
• Weight (Empty): 10.0kg (22.04 lbs)
• Packing List: Elcometer P10TS Pressure Tank; 10 Litre (2.64 US Gal) & 5m (16.4ft) Combined Anti-Static Air & Product Hose2
• Suitable for: Solvent & waterbased products

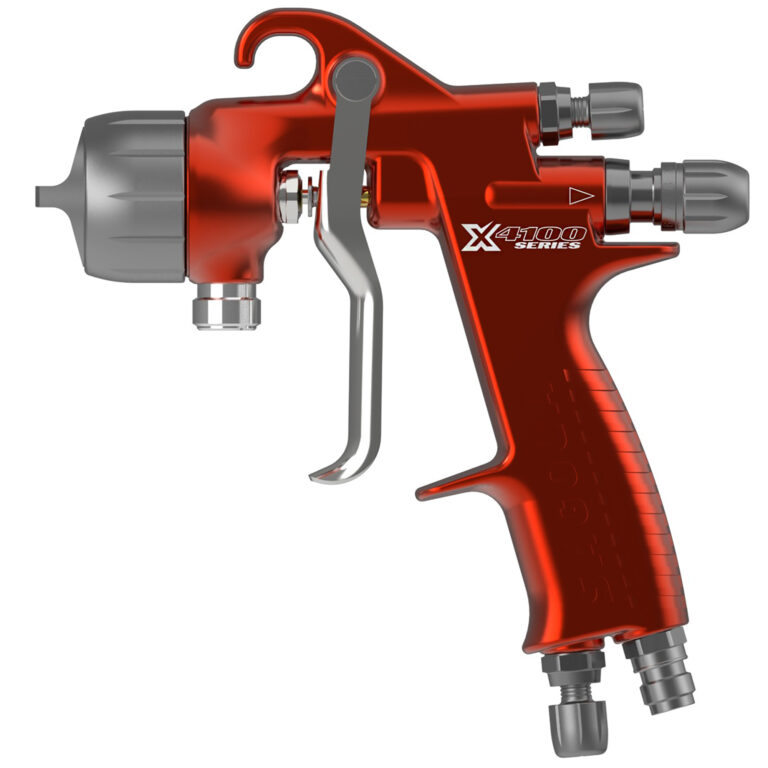

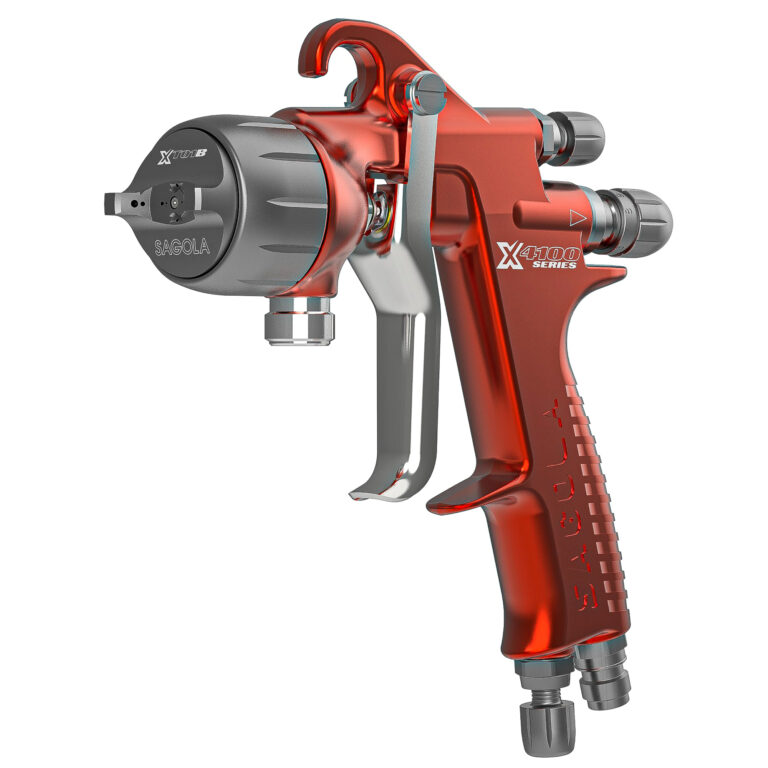

Sagola X 4100 Series Pressure Spray Gun

Engineered for the most demanding industrial bodyshop the Sagola X 4100 Series Pressure Spray Gun is ergonomic, robust and offers unbeatable finish quality.

Small, light and easy to use

To reduce fatigue and improve usability the size and weight of the Sagola X 4100 has been reduced and the centre of gravity optimised to make it more comfortable.

Versatile – one gun does it all

You can use any aircap with any nozzle. So if you need to increase your nozzle size, change your nozzle and keep your aircap. You can also change your aircap and keep your nozzle.

Turn your Sagola X 4100 into a HVLP spray gun by changing the aircap. Unique in the market.

Metal on metal contact

No gaskets, rubber or plastic parts on product area. Designed without air diffusers. Easy to maintain and clean.

X 4100 Series

Ideal for continuous use the Sagola X 4100 Series Pressure Spray Gun offers a high quality spray, whatever the coating.

• Ergonomic and easy to use: Perfectly balanced and comfortable use over long periods.
• Minimal Maintenance: With no seals or plastic parts in the product area it is easy to clean and maintain.
• Interchangeable aircaps and needles & nozzles: For high quality spraying, whatever the coating.

With high product transfer efficiency giving better coverage saving paint and time, the Sagola X Series Aircaps offer one of the highest performances and lowest air consumption in their category.

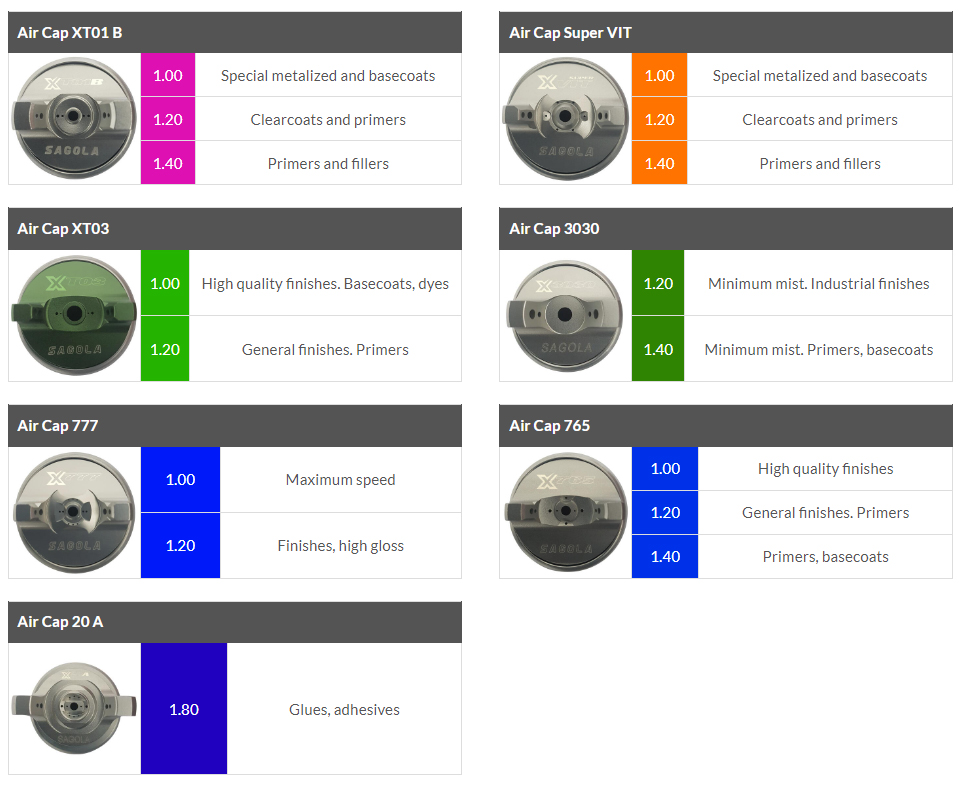

The Sagola X 4100 Series Aircap range consists of high transfer conventional (CA) and HVLP aircaps for perfect colour matching and finish for basecoats, clearcoats and one coat systems.

The Sagola X 4100 Series is available to purchase as a complete kit with the aircap, needle and nozzle specified supplied and fitted.

Alternatively, as the spray gun is universal it can be used with any of the aircaps in the X Series, all items can be purchased separately to meet your specific requirements.

Consistent quality finish guaranteed

1. Interchangeable stainless steel nozzles for optimum paint flow, fast and smooth application.

2. Interchangeable colour coded aluminium aircaps available in high transfer Conventional (CA) and HVLP, perfect for colour matching and finish for basecoats, clearcoats and one coat systems.

3. There are no metallic or plastic external parts used for air distribution, making the cleaning process easier.

4. High precision “soft flow” air valve allows accurate set up of air pressure without wasting paint.

NO PAINT SPRAYING IS REQUIRED- meaning no paint is wasted whilst setting up optimal spray pattern.

Low maintenance

5. Manufactured without gaskets or seals in product area. No air diffusers, blind chambers or threads in contact with the paint/product/material. Just metal in contact with metal. Easy to clean and maintain.

6. Manufactured with only one single piece automatic paint packing gland minimising potential damage and breakage and much easier to remove when cleaning the gun.

Making the spray painter’s job easier

7. Anodized forged aluminium body; ergonomic, light and perfectly balanced. Great robustness and high protection against corrosion.

8. Ergonomically designed stainless steel trigger reducing operator discomfort and fatigue.

9. Product regulator. Great sensitivity in adjusting the amount of material to apply.

10. Optional filter holder with swivel coupling.

Technical Specification

Model: Sagola X 4100
Dimensions: 20 x 17 x 4.2cm (7.87 x 6.7 x 1.65”)
Weight (with Filter Holder): 645g (1.42lbs)
Air Inlet Couplings: 6.35mm (1/4”) Male BSP
Paint Filter: 80 mesh
Product Inlet Coupling: 9.5mm (3/8”) Male BSP
Design Pressure: 8bar (116psi)
Working Pressure: 2 – 3bar (29 – 43.5psi)
Sound Pressure Level (Average): 80 dB
Compliance: ATEX II 2G x (Directive 2014/34/EU)
