DeVilbiss DV1S Mini/Midi Spray Gun showing fan pattern when applying lacquer. (adjustable by changing spray gun controls) mini spray guns are used for smaller areas, panel, alloy wheel and smart repairs.
Sprayer using the Sagola X 4100 Series Pressure Spray Gun in most cases used for commercial vehicles, trains, coaches, lorries or large panel sections.
Suction spray guns usually come with a 1 litre capacity pot so used if you have a larger surface paint area (old school sprayers some times prefer this method).
For (None Digital) gravity fed spray guns a gauge control is used to regulate the amount of air,
enabling an accurate predictable atomisation (mix of air and paint). Works in combination with spray fan pattern size control (knob adjustment). This means you can work slowly with a small fan or faster with a larger fan.
Air control is usually in conjunction with wall filter regulators.
Assuming you have mixed paint and your spray gun cup is attached the next stage is making sure your air pressure and fan pattern is correct for type of application.
Use your Spray gun air pressure gauge (fig 1.0) and material flow knob (fig 2.0) to adjust the amount of paint and air mixed to form the desired atomization.
Fig1.0
Spray Gun Gauge Air Pressure Adjustment.
Fig 2.0
Spray Gun Material Flow Controller.
Tip size choice & fan control and Knob functions on a spray gun.
Spray Gun Fan Pattern Adjustment
Iwata WS400 Fan Pattern
(adjustable by changing spray gun controls)
The below – example shows the fan pattern typically achieved with the SATAjet X 5500 spray gun.
SATAjet X 5500 Digital Spray Gun internals, paint & airflow creates atomization which can be adjusted according to right application needed.
Can I use a spray gun (paint sprayer) with my compressor?
Yes, but the compressor size and it’s CFM (Free Air) is what matters.
Large compressor = many spray gun options
Small compressor = mini/midi spray guns.
A 24 litre compressor is suitable for *low free air spray guns or airbrushes* ( < 4.5 cfm).
A 50 Litre compressor would be suitable for most smart repair mini midi spray applications.
A typical full sized spray gun would require a larger compressor > 50 litre.
What compressor do I need to paint a car. How to choose the correct air compressor for my spray gun (paint sprayer)?
Connect the compressor and wait for full working pressure. you can then adjust the pressure via a gun gauge which is connected to your spray gun.
Compressors are measured by their displacement in CFM (Cubic Feet per Minute). Spray guns are measured by the free air they use, the maths is for example a 12cfm displacement less a third equals the free air available.
The simple sum is (12cfm displacement minus 1/3 = 8cfm free air).
How to use a spray gun with an air compressor?
A spray gun that is driven by compressed air must be connected via an airline; it can be directly screwed to a threaded airline but is usually used with quick release connectors.
What connectors do I need to connect my spray gun to air hose and compressor?
What airline and connectors do I need for my spray gun?
Typically 3/8” (8mm) is the minimum airline internal diameter/bore. We recommend using pre-made airline that includes ¼” BSP female threaded nuts at either end.
Quick release connectors screw in to the end of the airline primarily to pair/interconnect with a tail-piece. The spray gun tail-piece would have a female thread.
Male and Female thread (originates from the animal kingdom).
Example: ¼” BSP male thread screws into ¼” BSP female thread and forms a seal. Spray guns and fittings supplied by us in BSP >> with NPT >>
Quick release coupling connectors tube type tails that push in to small barrel like receivers (sometimes confused or described as male and female BUT not in SprayGunsDirect language).
Euro (HVLP) high flow connectors are best practice for use with a spray gun. Traditional / old-fashioned British connectors (often misleadingly referred to as PCL style) do not suit optimal air delivery for a spray gun.
Below shows HVLP connectors used to connect the spray gun to air hose and then to the compressor. This method is quick release which is simple and very easy to use especially when changing devices using compressed air. For a full compressed air system a second air hose would be included along with a filter regulator. Air flow would typicaly follow this direction.
Compressor >> Air Hose >> Filter Regulator (1,2 or 3 stage) >> Air Hose >> Spray Gun Gauge (non-digital) >> Spray Gun
HVLP Explained
High Volume Low Pressure has no restrictions on airflow with a wider male and female connection. This is the choice for most professional paint sprayers.
PCL Explained
PCL Connectors are usually used for air tools such as sanders, polishers, drills and grinders as 100% air flow can differ. The below image shows the Prevost Flexair 10m Hose *British Style PCL Connector* with Prevost Air Blow Gun.
Above image shows (compressor connectors)
Prevost Flexair 20m Hose (Male) connecting to a Female HVLP Coupling/Receiver
Below & bottom right image shows the Prevost ESI 07 (female) HVLP quick connector with DeVilbiss MPV-5 (male) tailpiece. This is connected to the spray gun gauge and spray gun.
With air filtration down to 0.01 microns and activated carbon removing contaminants and odours down to 0.003 ppm for both breathing and spraying. Compressed air filtration is designed to remove liquid, oil and water from flowing compressed air.
For working spray booths filters should be replaced every 3 months.

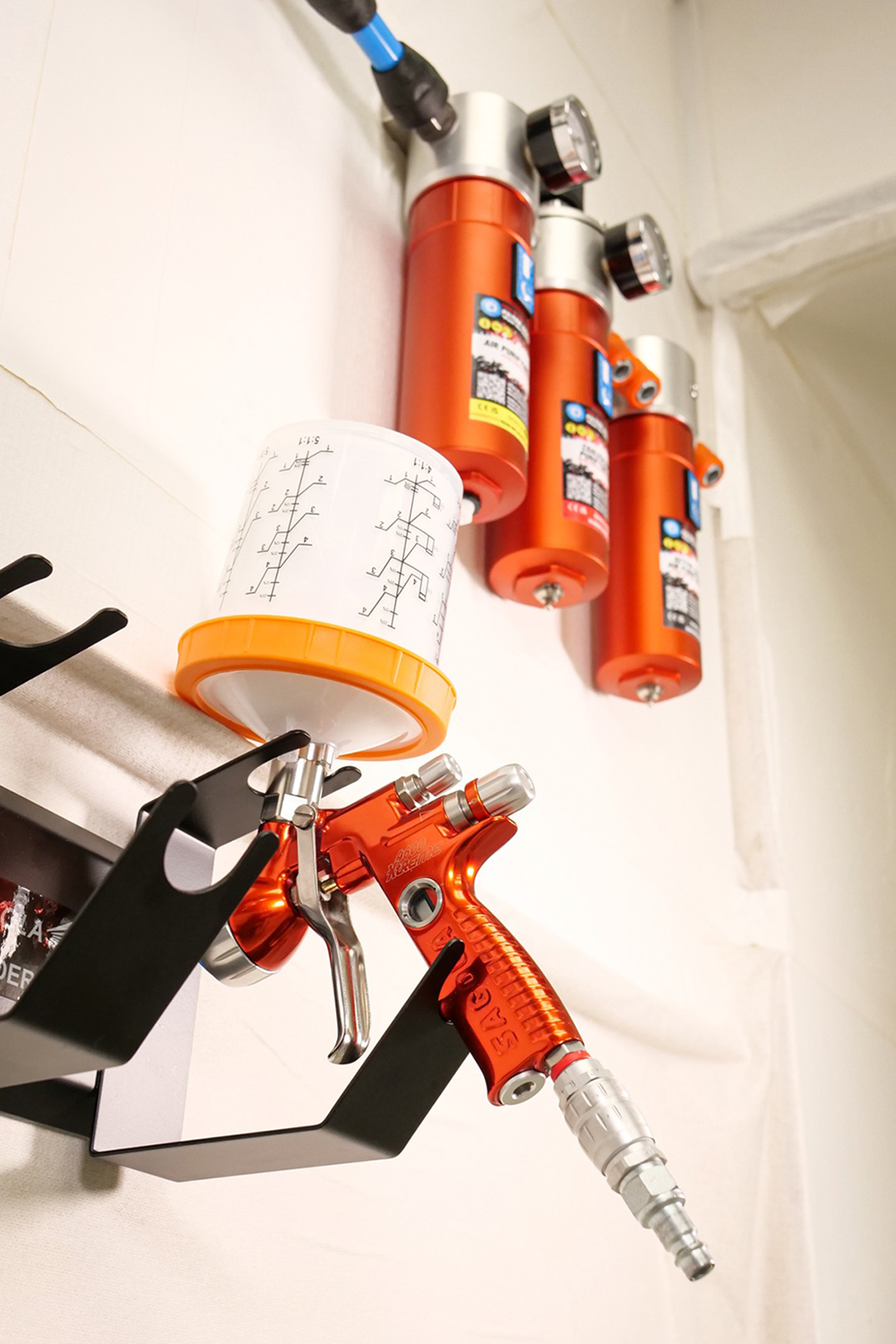

You must install a wall mounted filter regulator to remove water and oil otherwise paint defects e.g. craters emerge.
A simple solution is to run a 10-metre airline from the compressor to the wall filter then add another line to the outlet to run to the spray gun.
See figure 1.0 (part no. AH117317 for filtration) – showing a typical compressed air configuration.
What filter regulator do I need?
Single stage brings the air down to 0.5 microns which is clean enough to spray with.
Two stage 0.01 micron and greater capacity for long life span. Sufficient for 1-man air fed mask.
Three stage for minimal contaminants including odour; so the ultimate for air fed mask operation.
European made spray guns are the best and Iwata from Japan.
The gun brands that are used by most body shop professionals are ANi (Italian) DeVilbiss (UK except the SLG), SATA (German), Iwata, Sagola (Spain).
Arguments over which is best are common; SprayGunsDirect offer all the main brand contenders. There are characteristics that suit specific requirements that may make direction a no-brainer, but a similar question would be: which is best? BMW, Mercedes, Audi, Jaguar or Lexus?
If you have evolved your style around one and it has worked for you then avoid switching brands unless you have the budget to experiment, we do encourage variety if you want to test drive scenarios, you can always sell on via an online preloved sales platform.
All gun manufacturers have multiple options that go way beyond simplification but if we are going to be forth right and opinionated then here it is. All robust challenges with feedback are welcomed.
ANi – exceptional value for money, the Volkswagen option at Dacia prices. Perfect for beginners and the price conscious. Flagship guns now stand up with the top tier priced options.
DeVilbiss – straightforward and predictable, easy to get started with.
Iwata – often a little slower so patience is its nature and your requirement.
Sagola – the new contender at the upper end. Adapting and evolving existing technology. Fast and full. For the professional in a rush.
SATA – considered precision engineering with dedicated loyalist users. Many bespoke options.
Employees of SprayGunsDirect have been at one time or other users of all five and cannot be shifted from their favourite spray gun brand. We have career sprayers, ex-employees of spray gun manufacturers and ex-managers of body shops resident. We have 3 spray rooms for trials. We test everything. For fully independent guru level testing, reviews and engagement, we recommend the videos section of The Gunman on YouTube.
Firstly, Disconnect the Air and Remove pot lid, pour any left over paint content to a waste container whilst holding the trigger down to release any left material left in the spray gun, pour a small amount of thinners in to the cup swish around in pot, then pull the trigger to spray through spray gun to clean and remove any excess in to a paint can.
Remove the spray gun gauge and pot, clean with thinners or water depending on material.
Clean any excess from air cap whilst on the gun then remove to fully clean, Holding the trigger down to remove needle. Clean with care.
Remove the fluid tip & clean again using small amount of thinners with preferably a brush provided in the Colad Premium Cleaning Kit.
Take time to clean & wipe down the spray gun body and all components, DO NOT leave components to soak in thinners, this is commonly done which damages body seals and components.
Re-assemble using a spray gun lube on needle when re-housing for fluent smooth trigger motion.
The images below show the steps to follow (guide based on gravity spray gun) for cleaning & maintaining your spray gun.
Below were sharing the love for limited edition and new Spray Guns, for the professional and hobbyist featuring spray guns from 3M, ANi, DeVilbiss, Iwata, Sagola and SATA. Yes we have our favourites, but that’s our secret that we can not share with you 🙂
If you would like to talk to us about “anything spray guns” “airbrush” “compressors” “air systems” get in touch by email info@spraygunsdirect.co.uk
or call +44 (0)1332 611893
“we’re here to help”
DeVilbiss PROLite & GPG Carbon Edition Spray Guns
The exclusive Limited Edition gun design is inspired by the sleek aesthetics, design flexibility and lightweight strength of carbon fibre.
THE PROLITE CARBON EDITION
SPRAY GUN PERFORMANCE REDESIGNED
This Carbon Limited Edition gun builds upon the legacy of
the precision-built PROLite spray gun range. The gun delivers unparalleled performance in automotive refinishing – a uniform spray pattern and atomisation distribution for an exceptional quality finish and a drop-forged aluminium, anodised body with a removable air baffle for an extended working life.
THE GPG CARBON EDITION
SPRAY GUN ATOMISATION REDESIGNED
This Carbon Limited Edition gun enhances the GPG’s legendary combination of fit, feel and performance. It seamlessly answers the body shop’s demand for a cost-effective, multi-purpose spray gun, providing a solid performance that is durable and
of exceptional value

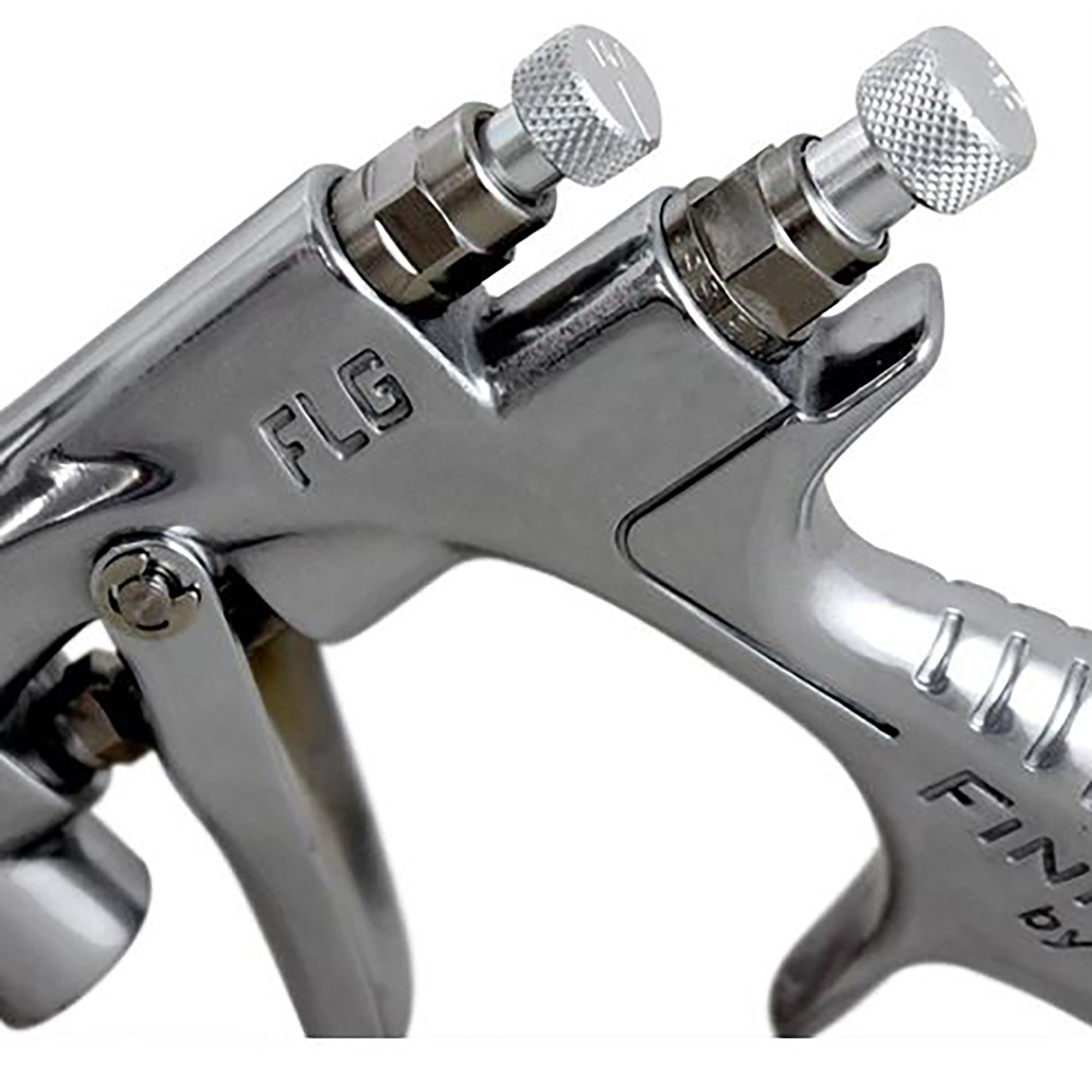

Our opinion: Best selling spray gun. Best performer under £145 + VAT.
It’s the LOW COST solution from DEVILBISS!
FLG-5 is suitable for most routine spray jobs in the workshop and can also be used by DIY enthusiasts. This budget range of spray guns are available as spray gun kits in Suction and Gravity versions and there is a Pressure gun option for the larger areas requiring fast coverage without the added down time of re-filling small cups.
Typical Applications
• Many General Industry applications
• Small Workshops
• DIY Enthusiasts
• Jobbers – Stove Enamellers
• Furniture Manufacturers (Wood and Metal)
Suitable for these fluids
• Solvent Based Paints and Materials
• Lacquers
• Adhesives
• Oils
• Stains and Varnishes
• Sealers and Undercoats
• Wax Based Materials
• Plus Many Others
• Low cost spray guns for use with a wide range of general industrial paints and materials
• FLG-5 employ DeVilbiss Trans-Tech® atomisation for paint saving efficiency, superb finishes plus compliance with EPA legislation
• Ultra lightweight, strong, cast aluminium gun body
• Ergonomically shaped gun handle for balance, grip and comfort
• Precision engineered brass air cap and stainless steel fluid tips and needles for long service life
Fantastic performance from the designers of almost every modern Ferrari and more, Pininfarina!
Tailored set ups for all applications. An easy gun to get on with – never seems to have a critic.
New HD (High Delivery) ideal for solvent application.
Supernova has a long flat fan pattern with paint material delivered evenly across it, this gives you a superb overlap on modern paints. Essential for mottle-free basecoat application and a flat and even lay down on clears.
Fluid control is essential for colour reproduction of waterbourne basecoats, the combination of consistent stable fluid output and flat even fan pattern gives you an unmatched appilcation of modern paints. The new responsive trigger action makes application of basecoats even easier.
Weight and balance makes this spray gun an excellent choice for a comfortable repetitive strain free day in a busy modern body shop enviroment. The SUPERNOVA state of the art ergonomic design helps you achieve the results you require in todays demanding work place.
This superb spray gun delivers a consistent droplet size when atomizing, combine this with the spray guns flat even fan pattern and this will help reduce the common issues ie: boil and pin holing on HS clear coats. These issues are due to too much clear coat in one area caused by centre heavy fan patterns.
This gun takes spraying modern day HS clear coats to another level.
Fantastic performance from the designers of almost every modern Ferrari and more, Pininfarina!
Tailored set ups for all applications. An easy gun to get on with – never seems to have a critic.
When we talked about a new spray gun, we decided we needed to be innovative, and our customers needed something new, so we enlisted the help of the world-renowned design firm Pininfarina famous for their state-of-the-art automobile design. Anxious to see how they would handle a spray gun, the Pininfarina design far exceeded our expectations. After the gun design was complete, we incorporated our advanced atomising technology, and the Supernova was born. This premium gun combines our superior atomisation control with production speed and ergonomics.
Performance: The Supernova delivers a consistent droplet size when atomising. This, combined with the flat even Supernova pattern, helps reduce common application issues. All Supernova guns are equipped with stainless steel fluid passages ideal for any type of material, solvent-borne or waterborne.
Perfect Balance: The Supernova cup angle design guarantees perfect balance regardless of what cup size you choose.
Quick Release Air-Cap: The larger thread pattern of the air cap makes it both robust and easy to remove and is designed with low maintenance in mind. The new larger grip points outside the air cap ring facilitate quick removal and refitting after cleaning.
Responsive Trigger: The responsive trigger action gives the painter stable air flow control during application. Accurate air pressure can now be set with either the air stroke or the fluid stroke.
Ergonomic Grip: An in-depth study by the University of Pavia into perfect balance and optimal ergonomics was closely considered by Pininfarina designers and Anest Iwata engineers to produce this state-of-the-art spray gun. The slim ergonomic grip of the Supernova spray gun helps distribute weight and balance through the wrist, reducing the risk of repetitive strains.
our opinion – The DeVilbiss DV1 Clearcoat Spray Gun is one of the leading clearcoats in spraying that’s on the market. offers the most refined spray pattern yet and a top spray gun if you want consistency.
our opinion – Revolutionary new airflow design for 2021 in mini form, taking the proven efficiencies from the established DV1 full-sized. THE premium choice for the auto refinishes shop for factory finish replication.
Joining the lineup of DeVilbiss DV1’s is the DV1 Basecoat in its silver / olive design.
Professional painters understand the importance of proven spraying equipment. It is critical to have tools that not only deliver optimal performance, but also enable painters to be more successful at their trade.
The leading technicians, engineers, and designers at DeVilbiss have worked with these professional painters to create a spray gun designed specifically for painters who demand consistent, exceptional performance from their spray gun.
Introducing the DV1 – a revolutionary spray gun platform from DeVilbiss Automotive Refinishing – and a new standard in basecoat spray painting equipment.

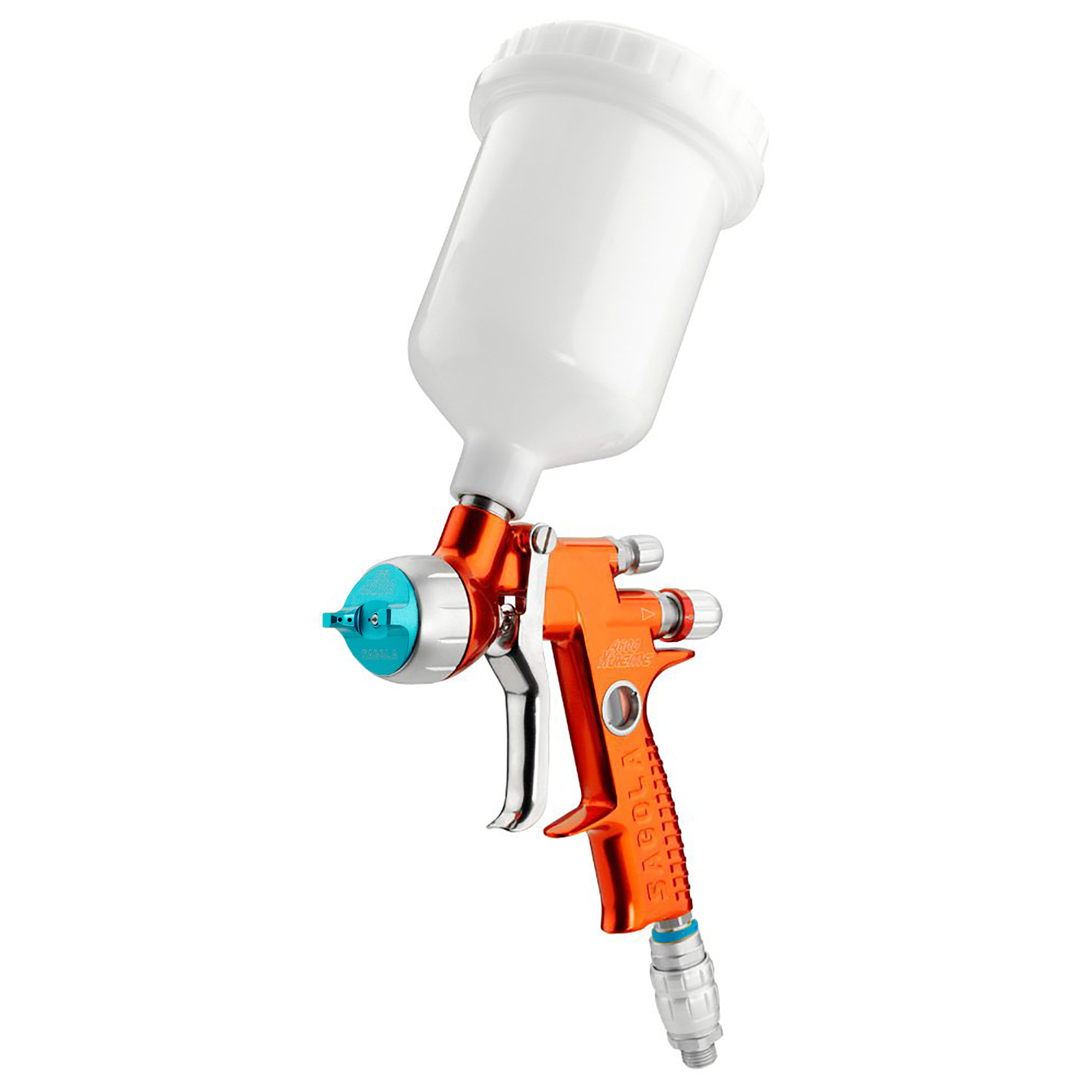

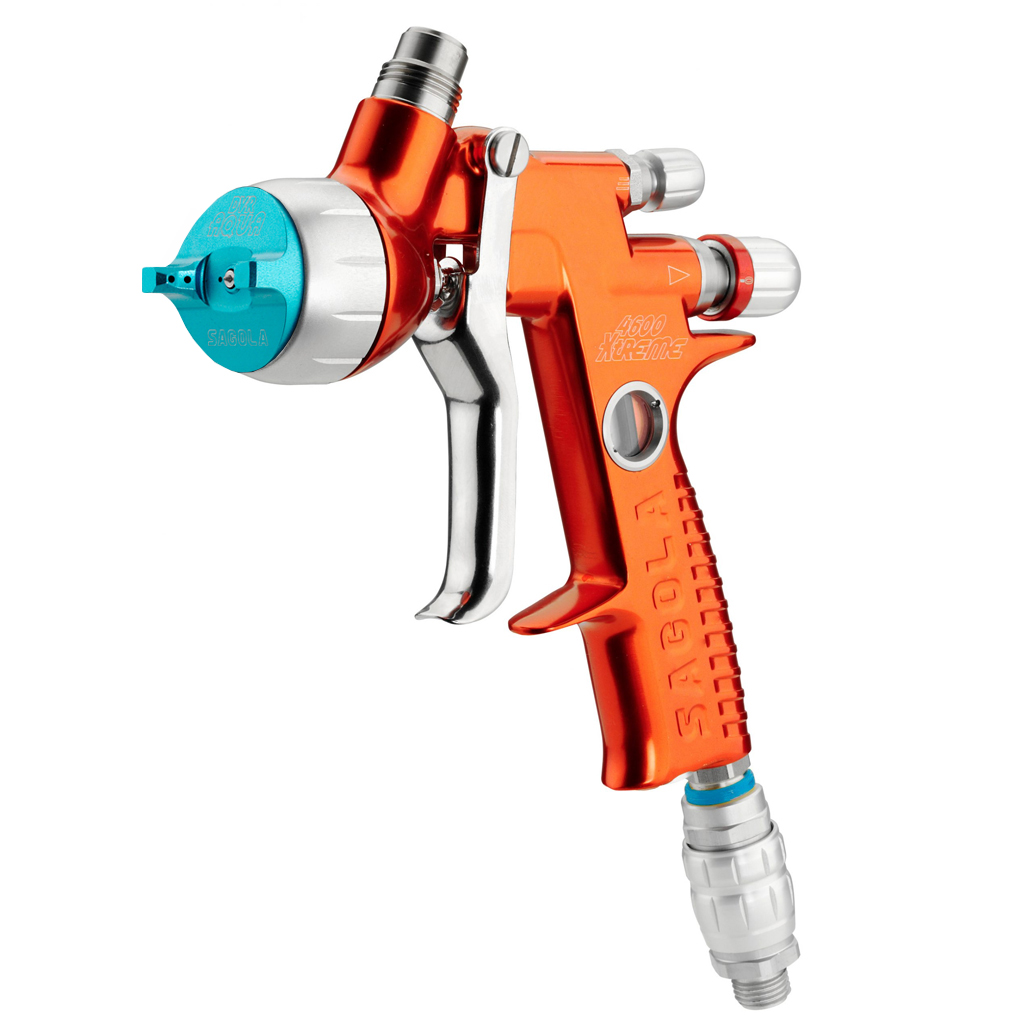

The Sagola 4600 Gravity Spray Gun – Our best spray guns just got better!
Efficient
Ultra-fine atomization and less overspray for an industry leading transfer efficiency.
Easy
Stable fan pattern, uniform from top to bottom, for precise colour matches, seamless transitions, and blends with easier overlapping.
Effortless
It’s so easy to use, you get a professional finish every time, with minimal effort.
Even
A flawless finish with even particle distribution with minimal patching.
Ergonomic
Designed to be so comfortable you forget you are holding it.
Economic
Less air, less bounce back for the same
flawless result with Dynamic Flow Technology™
Dynamic Flow Technology™
Dynamic Flow Technology™ harnesses the ambient air around the aircap allowing the Sagola 4600 spray gun to provide a flawless finish even at lower working pressures.
DFT ™ Gives you:
• Greater fan stability.
• Superior atomization.
• Uniform fan from top to bottom.
• Less bounce back, less overspray.
• A more precise application with easier overlapping.
• Less painting defects such as shadowing, patch coats and striping.
• An even paint distribution – ideal for difficult base colours such as metallics, silvers, pearls.
Dynamic Flow Technology™:
Dynamic Flow Technology (DFT™) harnesses the ambient air around the aircap allowing the Sagola 4600 spray gun to provide a flawless finish even at lower working pressures.
Experience enhanced performance with the Sagola 4600, featuring greater fan stability, superior atomization, and a uniform fan pattern from top to bottom. Benefit from less bounce back and overspray, allowing for a more precise application with easier overlapping. Say goodbye to painting defects like shadowing, patch coats, and striping, as the Sagola 4600 ensures an even paint distribution, perfect for challenging base colors such as metallics, silvers, and pearls.
Metal to Metal Technology (M2M™):
With fewer joints and wear parts, M2M™ technology ensures easy maintenance and low costs over time, offering reliability and robustness in every application.
SATAjet 5500 Spray Guns
Solidly Engineered for Factory Finish Replication
SATAjet X 5500

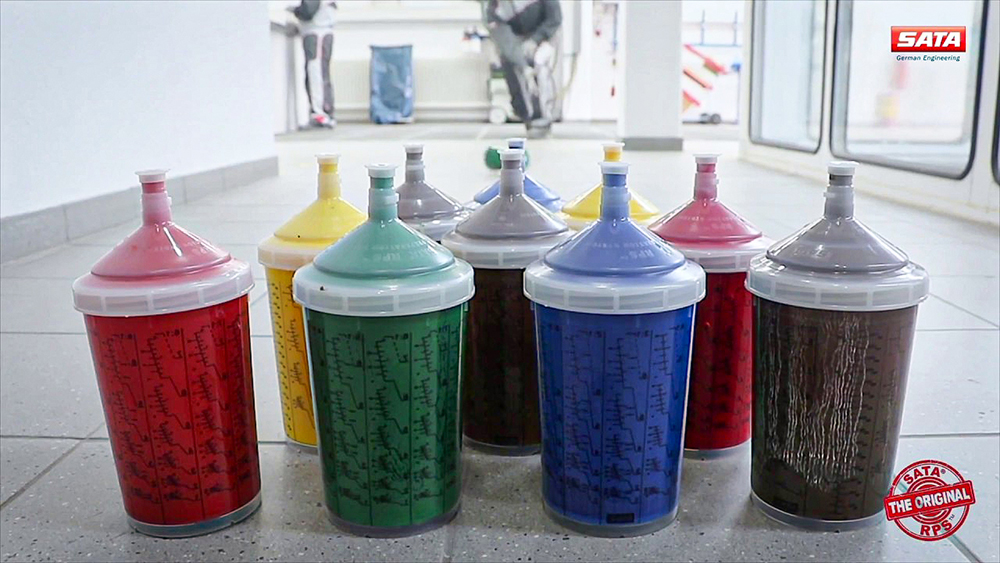

Digital with RPS Cup
The latest SATA paint spray gun for highest demands. With the X nozzle system, painters are able to cope with all paint systems and application recommendations. In addition, the whispering nozzle significantly reduces noise and gives bodyshops a more pleasant painting experience – all while using less material.
SATAjet X 5500 PHASER Spray Gun Designed by Porsche
Developed with its outstanding design, materials and a unique concept for your very special projects. The unusually elegant design was developed in cooperation with Porsche Design Studio. Technically the PHASER is identical to the top model SATAjet X 5500. It has the same nozzle concept and all the other convincing features that make the SATAjet X 5500 an outstanding spray gun.
Impresses with its newly developed, special nozzle set for clear coat application. The optimised material distribution in combination with a finer atomisation allows users to achieve closed wetting even at a low layer thickness.
The ANi Compact 1.3mm Spray Gun “The GAME CHANGER”
It’s Small Compressor Friendly* A Midi Gravity Spray Gun – Sprays Custom-Smooth like a £300 gun, the real gem is this Midi Spray Gun performs like a full size Spray Gun with very nice fan pattern consistency for a professional finish.
Our opinion: A compliant (passes transfer efficiency regulation tests) superbly engineered mid sized spray gun with a fan that opens up beyond 20 cm yet runs off a small compressor. The only gun of its type: smooth applier that is engineered to require less air yet at a sensible price. P.S. appealing to owners of even bigger compressors, a game-changer.
Suitable for Water Based & Solvents paints, 1K & 2K Clearcoats.
A.N.I. (ANI) HPS Compact Midi Gravity Spray Gun is a medium sized, lightweight and highly detailed Spray gun that is designed for spraying jobs of a scope and scale that is as good as you can get from a small compressor whilst still spraying custom smooth. Comes complete with a 500ml cup.
Top-quality product at this price point.
LUXURY GOLD – The Iwata LPH-80
In the field of painting equipment, the extraordinary LPH-80 spray gun stands out, an icon of performance and precision in the world of Spot Repair. Today we focus on its special edition, the “Luxury Edition”, a masterpiece that combines the technical excellence of the classic LPH-80 with a touch of unparalleled luxury.
The LPH-80 Luxury Edition presents itself with an extraordinary design and a golden coating, a symbol of refinement and exclusivity. Every detail, from the ergonomic grip to the articulated body of the gun, has been carefully shaped to combine elegance and functionality. This jewel is not just a working tool, but a work of art that reflects commitment to aesthetics and performance.
our opinion – A spray gun which is ideal for backgrounds, spot repair, blending, shading and touch up. The best selling touch up spray gun.
Three Brand New Additions to the DeVilbiss DV1 Family.
SHOW YOUR TRUE COLOURS.
DeVilbiss DV1 Old School *Limited Edition* Spray Gun
The DeVilbiss Old School Spray Gun with a throwback, taking inspiration from the DeVilbiss GTi Pro Lite VIGILANTE Spray Gun.
A new addition to the DV1 Family, this time in the form of a limited edition spray gun with a ‘circuit’ design etched into the distinctive matte black body of the original DV1 Clearcoat.
Each kit featured a 1.2mm and 1.3mm fluid nozzle, tool kit, a digi pro digital BAR gauge and a choice between C1+ and a C2+ Aircaps.
The C1+ is a slower, controlled application and it is easy to get a flat, glasslike finish – ideal for lower viscosity clears. The C2+ has a faster application speed and it is easier to achieve an OEM finish with – ideal for higher viscosity clears.
EXPERIENCE THE NEXT GENERATION OF CLEARCOAT APPLICATION
Silent-action trigger designed to remove sideways and rotary play to deliver a soft, smooth pull • Quick-release air cap for quick and easy changes and easy access to the fluid tip • Integrated digital gauge placed in-line at eye level for quick, easy checking while providing precise inlet pressures for optimal gun performance • Streamlined gun body with an ultra-comfortable ergonomic fit and feel to provide sprayers balance, optimal control and less fatigue • Reconfigured air adjusting valve placed in an ergonomic location for more comfort and 12 times the sensitivity for precise air control adjustments and smoother air flow • Simplified air valve for maximized fluid needle alignment and durability, minimized component wear and easier removal and serviceability

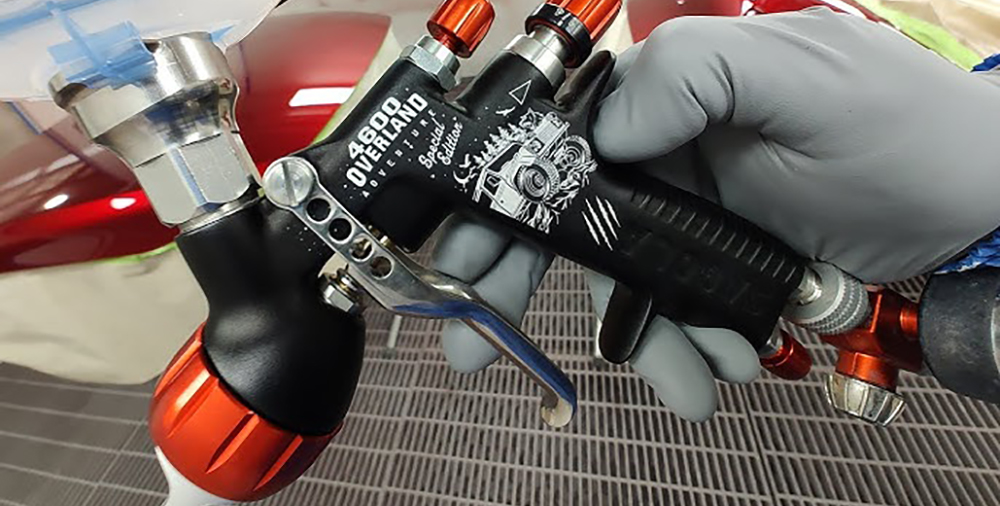

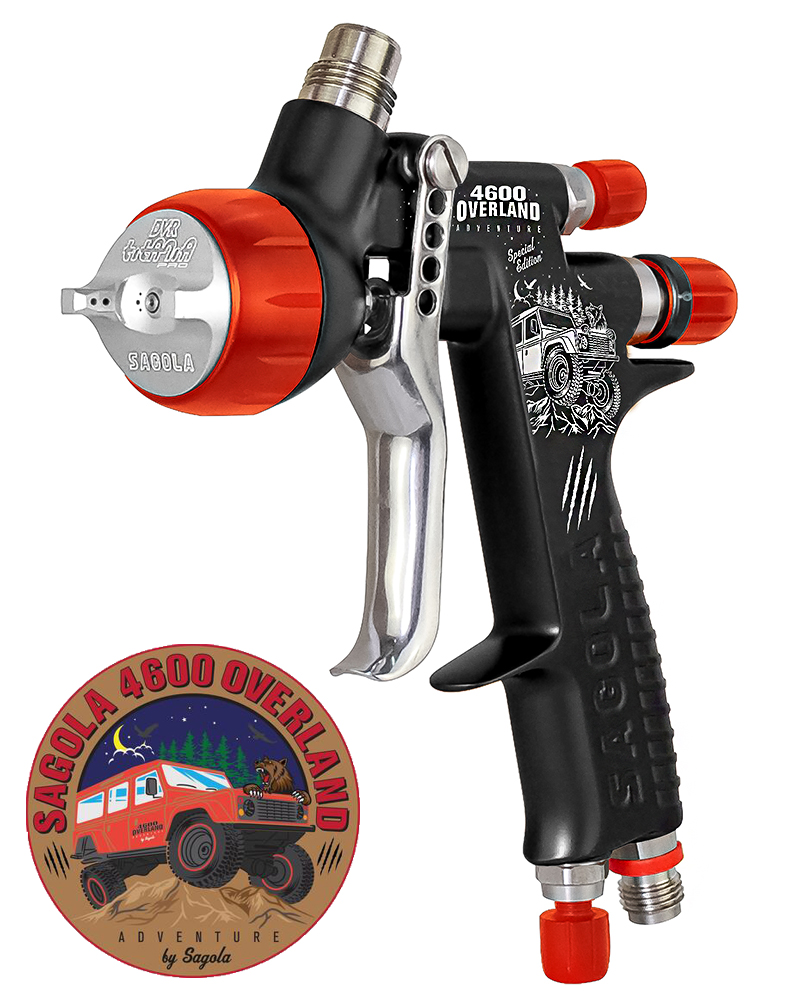

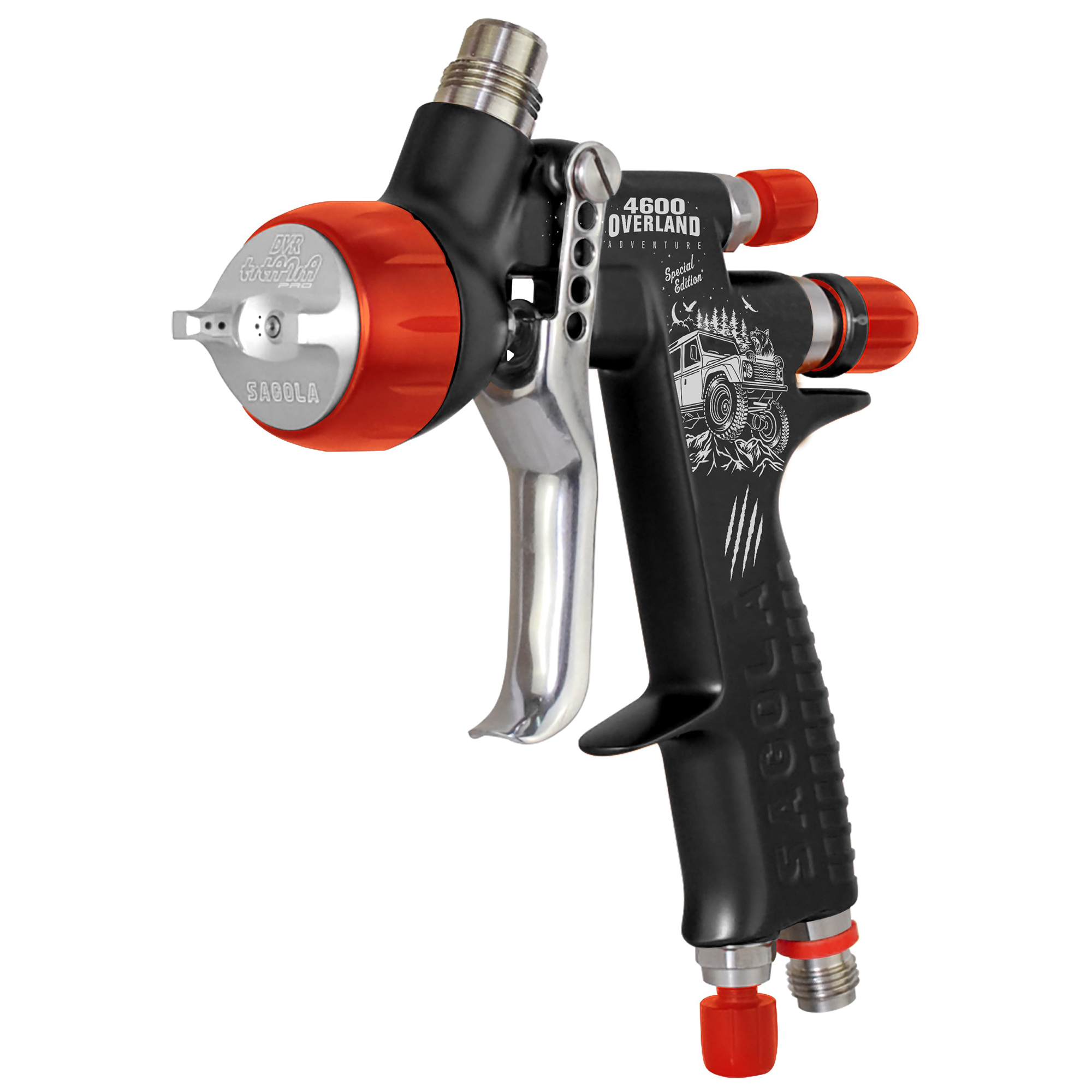

Welcome to Sagola’s new special edition 4600 Overland Adventure. Designed to replace the successful 4600 Trophy Truck.
This gun features different fluid tips, including the 1.2, 1.2XL, 1.3, 1.3XL, 1.4 and the Titania Pro aircap, which is highly appreciated by professional painters due to its large fan and mirror finish, especially suitable for fast drying and last generation clears.
The Sagola 4600 Overland Adventure has all the qualities of the Sagola 4600 Xtreme, such as excellent atomisation, precise control system and low noise level. In addition, thanks to Sagola’s Metal To Metal technology, it has no plastic seals, making it extremely easy to clean and maintain in top condition.
But what makes this gun unique and special is its design inspired by overland culture and adventure. If you are a lover of automotive paint and the great outdoors, the Sagola 4600 Overland Adventure is the perfect gun for you. Plus, its overland-inspired design will make you feel like you’re on an epic adventure every time you use it.
So don’t wait any longer and get the Sagola 4600 Overland Adventure gun to take your paint job to new territories.
ANi Skull Spray Gun
An Exclusive Limited Edition Spray Gun to us here at SprayGunsDirect.
An Exclusive to us here at SprayGunsDirect. This Spray Gun is unique to us and is not available to purchase anywhere in the world.
This new paint gun designed by ANi, allows you to have professional painting in 3 different ways, simply by changing the cap and adjusting the air pressure according to the cap used. It works like a classic gun, except that with a simple gesture it is possible to change the painting mode, optimizing working times as much as possible. With this innovation, ANi is increasingly responding to the multiple demands of today’s bodybuilders.
Available to purchase as the spray gun on its own or as a kit which comes with the 1.3mm Skull Spray Gun, a WB (Water-Based) Aircap, a HVLP (High Voltage Low Pressure) Aircap, a Clear (Clearcoat) Aircap, a TMD1 Digital Gauge, 600ml Gravity Cup, a service kit and the ANi Skull Carry Case.
An ANi Skull Trucker Cap and T-Shirt are also available with some variants of this spray gun.
THE WORLD’S FIRST THREE FOR ONE SPRAY GUN WB – CLEAR – HVLP! This new paint gun designed by ANI, allows you to have professional painting in 3 different ways, simply by changing the cap and adjusting the air pressure according to the cap used. It works like a classic gun, except that with a simple gesture it is possible to change the painting mode, optimizing working times as much as possible. With this innovation, ANI is increasingly responding to the multiple demands of today’s bodybuilders.
The exclusive Limited Edition gun design inspired by the sleek aesthetics, design flexibility and lightweight strength of carbon fibre. This contemporary finish not only enhances the gun’s appearance, but also symbolises the synergy of style and functionality at the heart of DeVilbiss Automotive Refinishing.
THE PROLITE CARBON EDITION
SPRAY GUN PERFORMANCE REDESIGNED
This Carbon Limited Edition gun builds upon the legacy of
the precision-built PROLite spray gun range. The gun delivers unparalleled performance in automotive refinishing – a uniform spray pattern and atomisation distribution for an exceptional quality finish and a drop-forged aluminium, anodised body with a removable air baffle for an extended working life.
THE GPG CARBON EDITION
SPRAY GUN ATOMISATION REDESIGNED
This Carbon Limited Edition gun enhances the GPG’s legendary combination of fit, feel and performance. It seamlessly answers the body shop’s demand for a cost-effective, multi-purpose spray gun, providing a solid performance that is durable and
of exceptional value
What are the benefits to disposable paint preparation and spraying systems?
Hygiene & Cleanliness
There are many benefits to disposable paint spraying systems for use with spray guns such as disposable cups eliminate the need for solvent cleaning, reducing exsposure to potentially harmful chemicals and also promoting a cleaner work environment.
Versatility
Disposable paint spraying systems are very versatile as they are compatible with various types of paint such as water-based, oil-based or solvent-based which makes them suitable for a wide range of paint projects.
Reduce Waste & Environmental Impact
While disposable paint cup systems generate waste, they can also contribute to reducing overall waste production. Traditional paint cups require regular cleaning, which consumes water and cleaning agents. Disposable cups eliminate the need for these resources and reduce the environmental impact associated with cleaning and maintenance.
Cost Effective & Time Saving
Designed to offer a cost-effective and time-saving option, this paint systems provide quick colour changes and exceptional convenience.
What are the different disposable paint spraying systems available?

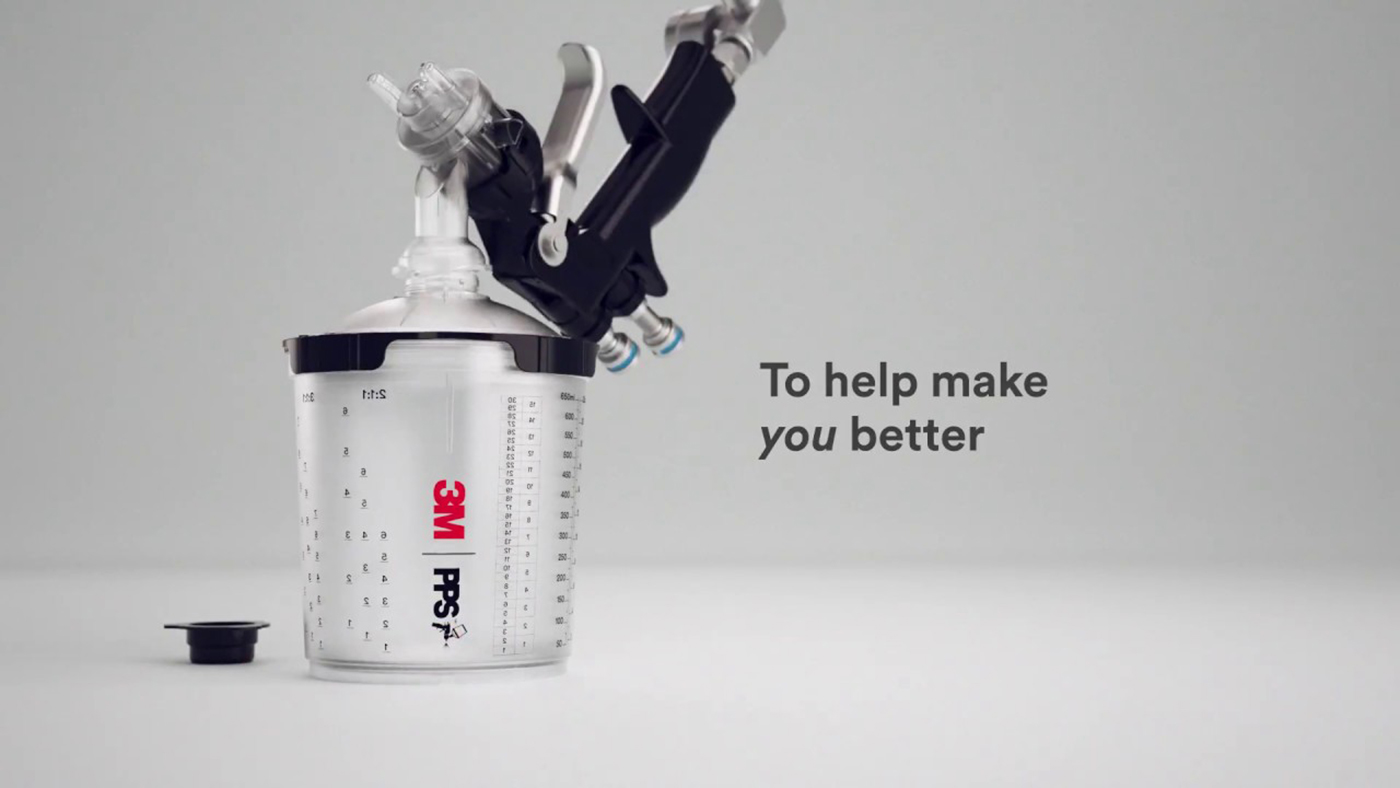

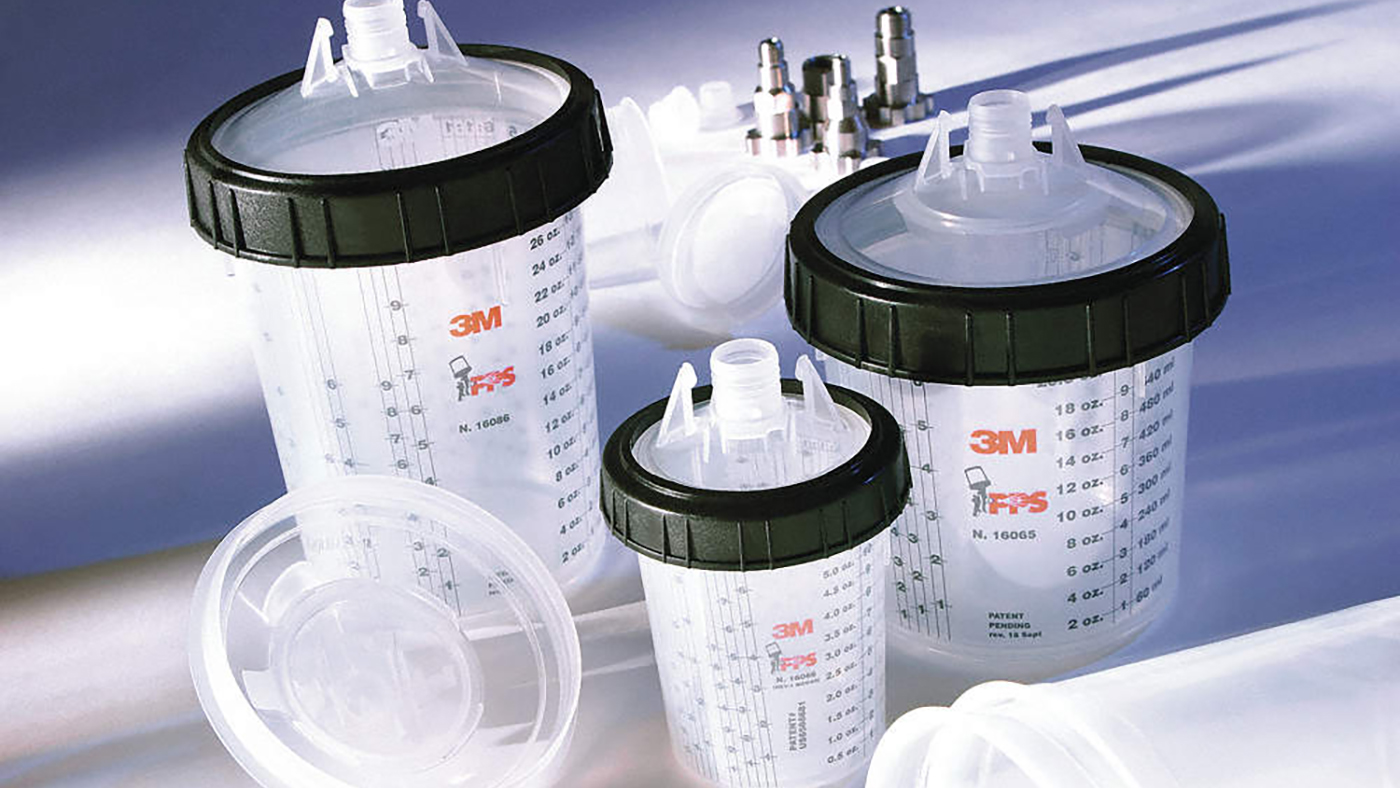

3M PPS (Paint Preparation System) Series 1
Innovation. Efficiency. Productivity. These are the values you’ve come to expect from 3M.
A well establised and trusted system for the mixing and preparation of refinish paint prior to spraying. Disposable, closed paint mixing system which eliminates the need for separate traditional spray gun mixing pots and paper filters.
Disposable liners and lids with built-in filters form a closed system allowing the spray gun to function at any angle. No cup cleaning, only the spray gun needs cleaning, saving time and cleaning fluid, increasing paintshop efficiency.
3M delivers all 3 values with the PPS™ Paint Preparation System. This innovative system increases efficiency by eliminating the need for traditional mixing cups and paint strainers.
– Unlike traditional spray cups, paint is mixed and sprayed out of the same PPS™ liner with a lid and built-in filter.
– Specifically designed adapters allow painters to use the PPS™ system with virtually any spray gun.
– Safe from outside contamination, the PPS™ system offers a cleaner, more efficient solution for all repairs.
The key benefits of the 3M PPS Paint Preparation System include:
• Only one PPS™ cup for mixing and spraying
• Enables painters to mix less paint
• Used for all painting applications such as Primer, Base Coat and Top Coat
• Up to 70% saving of cleaning solvent
• Closed system – no outside contamination
• Faster system – from mixing to disposal
• Less operator exposure to solvents and reduction in VOCs
• Spray gun functions at any angle

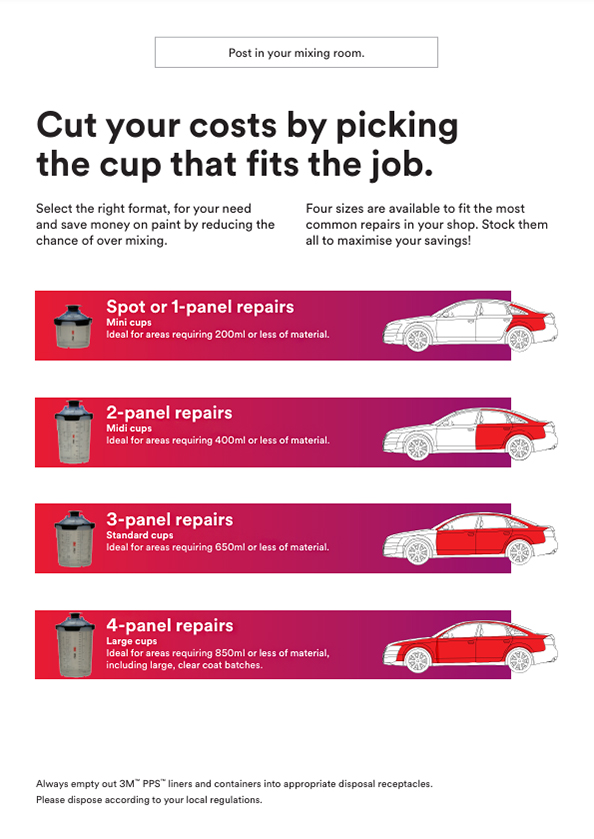

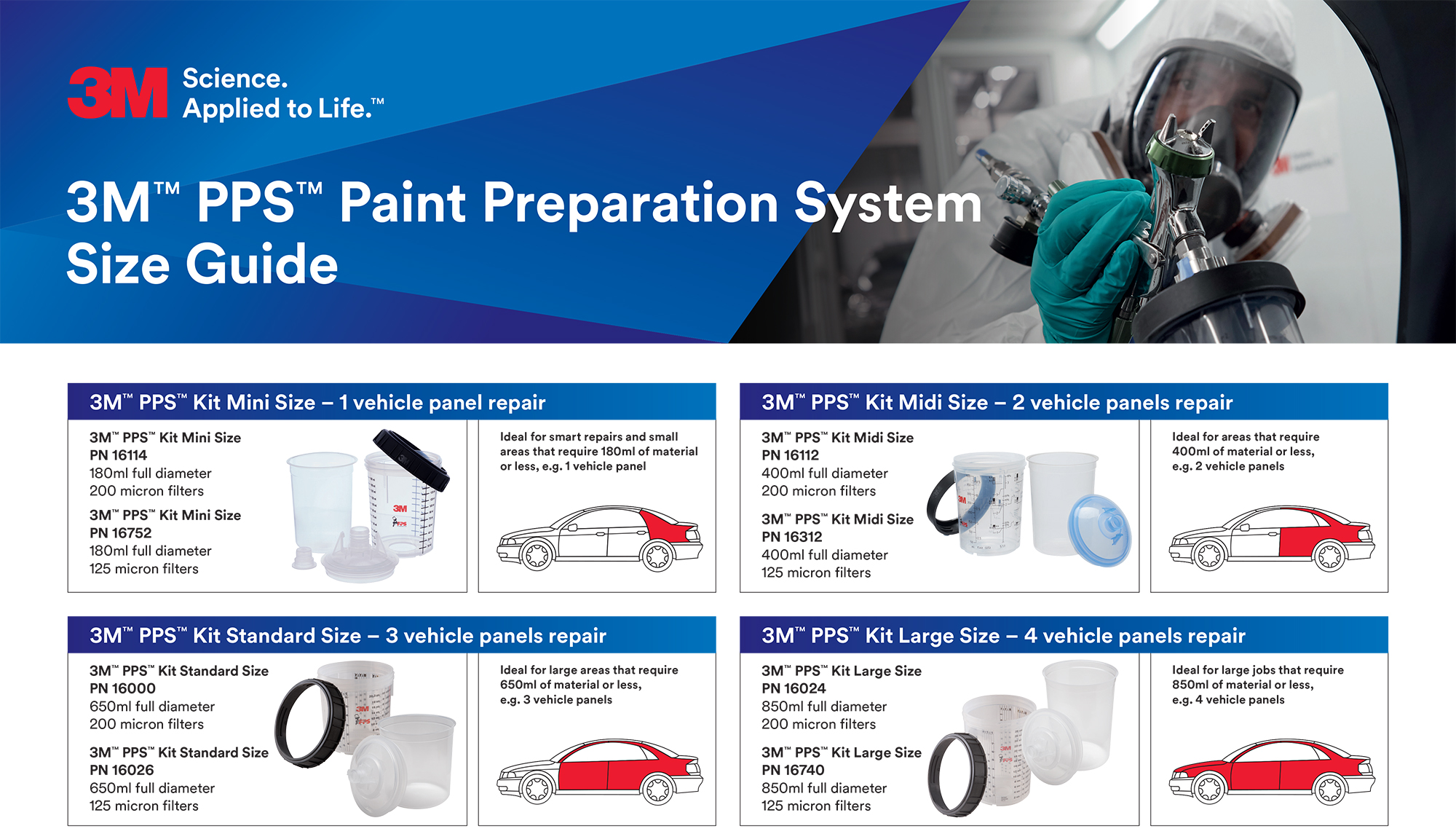

• Available in 4 sizes: 180, 400, 650 & 850ml
3M PPS (Paint Preparation System) Series 2
Innovation. Efficiency. Productivity. Upgraded. These are the values you’ve come to expect from 3M.

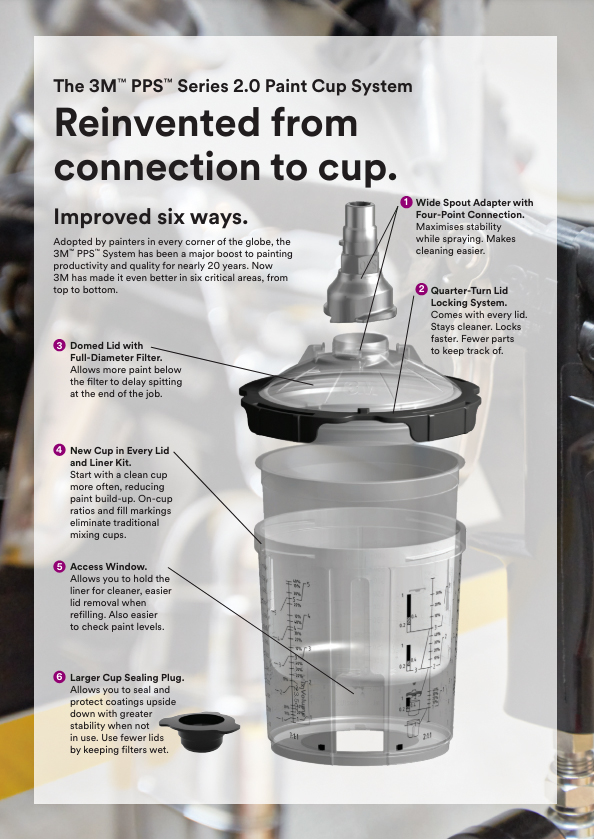

3M™ PPS™ Series 2.0 Kits is our next generation, highest performing disposable spray cup system for mixing/measuring, filtering, spraying in any direction (360° spray rotation) and protecting coatings not in use. Each lid and liner kit contains 50 disposable lids with integrated collars and full diameter filters, 50 disposable liners, 1 reusable hard cup and 32 sealing plugs.
3M™ PPS™ Series 2.0 Kits contains 50 disposable lids with 200 micron or 125 micron filters, 50 disposable liners, 1 reusable hard shell cup and 32 sealing plugs. They are great for mixing/measuring, filtering and spraying in any direction (360° spray rotation) and for temporary sealing and protection of sprayable coatings. Lid and liner sizes include: 3M™ PPS™ Series 2.0 Lid & Liner Kit Mini Size for use with 200 ml 3M™ PPS™ Cups Series 2.0 – excellent for spot repairs and 1-panel repairs 3M™ PPS™ Series 2.0 Lid & Liner Kit Midi Size for use with 400 ml 3M™ PPS™ Cups Series 2.0 – great for 2-panel repairs 3M™ PPS™ Series 2.0 Lid & Liner Kit Standard Size for use with 650 ml 3M™ PPS™ Cups Series 2.0 – excellent for 3-panel repairs 3M™ PPS™ Series 2.0 Lid & Liner Kit Large Size or use with 850 ml 3M™ PPS™ Cups Series 2.0 – ideal for 4-panel repairs.

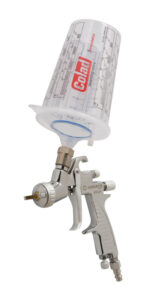

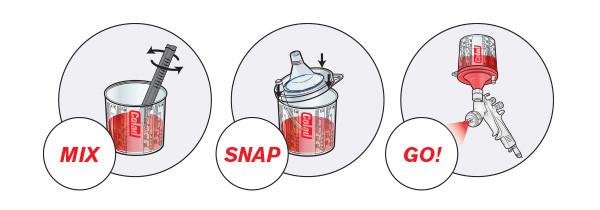

Colad Snap Lid System
Lets Make it Simple
Are you ready to speed up your paint process and achieve high-quality results? Our Snap Lid System® offers the fastest and easiest solution for preparing and spraying paint.
Lay it on Thick or Thin

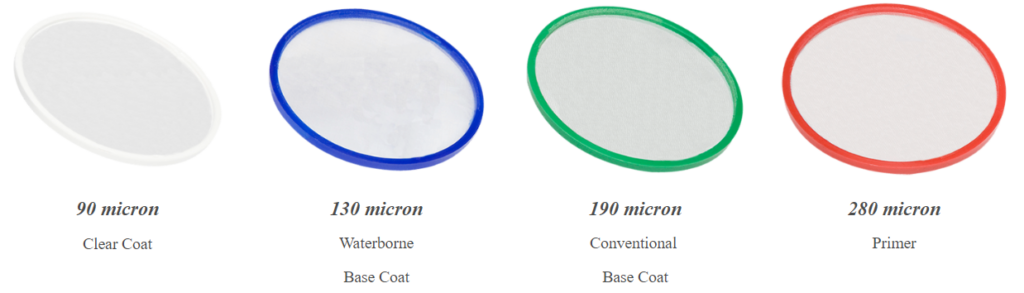

Snap Lid System is suitable for any type of paint, thanks to the four different types of filters. Use one system for clear coat, waterborne & conventional base coat and primer. With Snap Lid System you can choose the right micron filter for the desired paint result.

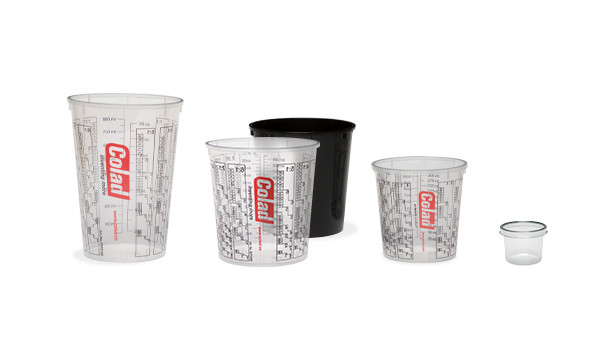

Size Does Matter
Colad Snap Lid System comes in different sizes, making it a paint application system suitable for every job. With our medium cup for smaller paint surfaces, our standard cup for average paint jobs and the large cup for the big jobs there’s an efficient solution for every paint job.

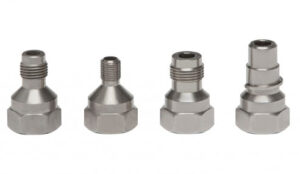

Connect Any Spray Gun
Our Snap Lid System is suitable for almost all types of spray guns. Use our Snap Lid Adapter tool to find the right adapter for your spray gun. Can’t find the right adapter? Contact us and we’ll help you connect Snap Lid to your spray gun!

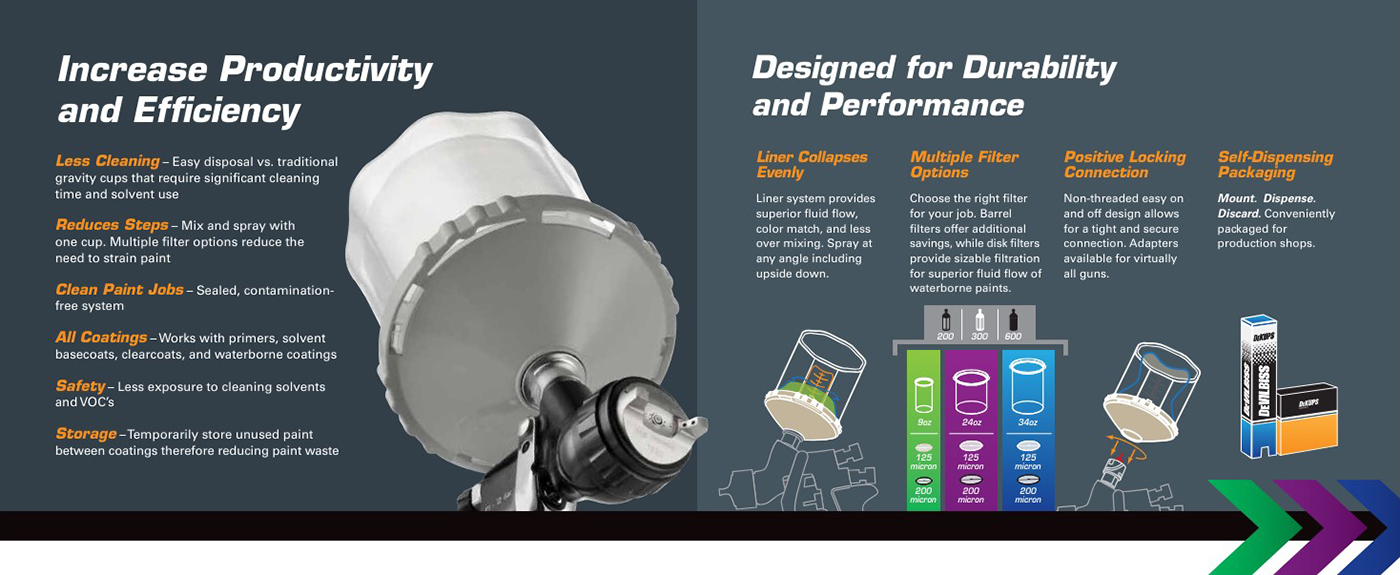

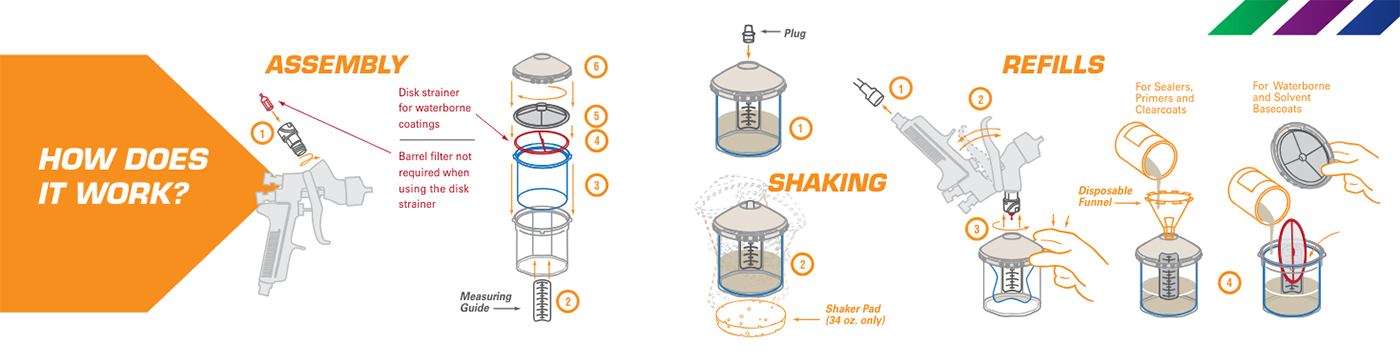

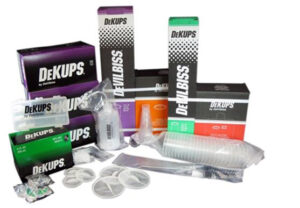

The DeVilbiss DeKups disposable cup system is the quick, easy and secure way to spray. The lightweight cup liner collapses easily providing a constant paint flow and minimal paint wastage which is better for your spray shop and the environment. With the full DeKups disposable cup system kit available, we also stock adaptors.
The ultimate in productivity – Saves Time and Money
• Better fluid fow for great color match
• Positive locking gun connection
• Refill without opening the cup
• Increase productivity and efficiency with DeKups

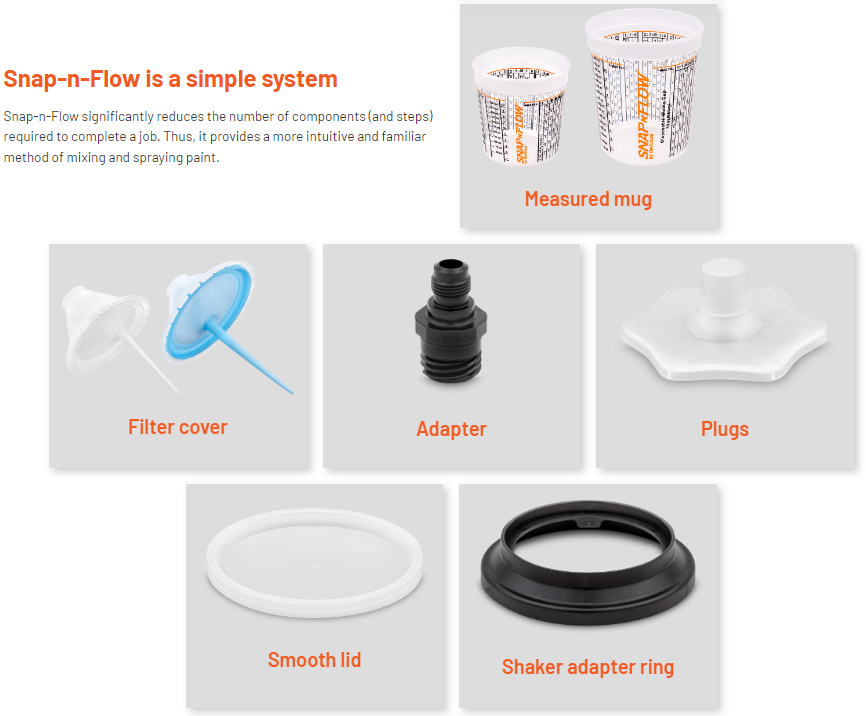

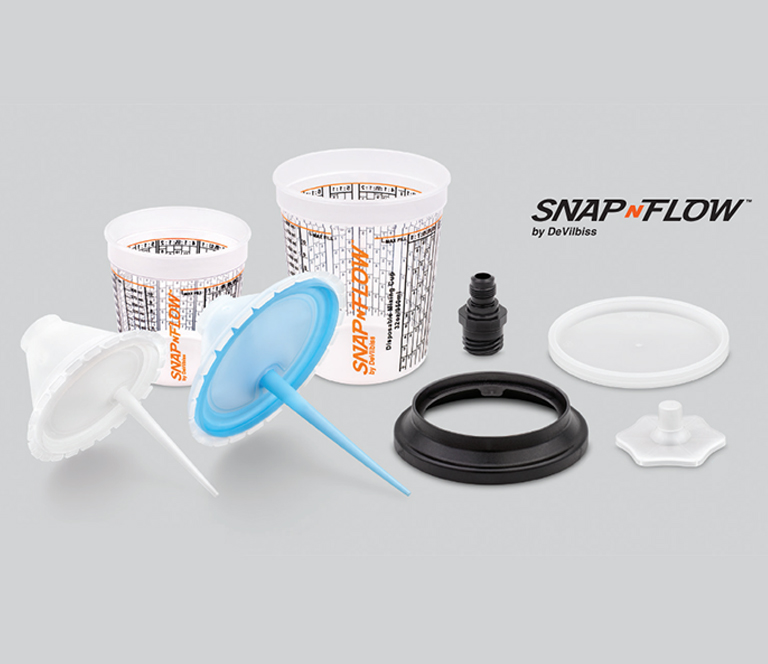

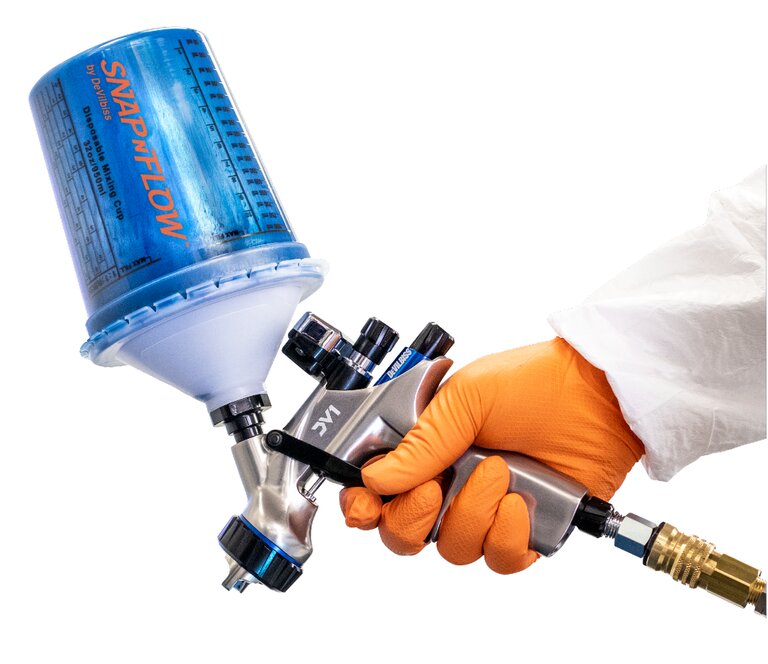

DeVilbiss Snap ‘N’ Flow
Snap-n-Flow is as quick as the blink of an eye!
By using the Snap-n-Flow disposable mug system, your automotive refinishing work will be faster, more efficient, and easier.
The system offers many benefits to workshops and painters, including:
• Requires fewer steps
• Improves colour matching
• Minimizes ink usage
• Creates less mess and cleaning is faster
• Provides easy options for storing paint
• Offers greater savings in materials and time

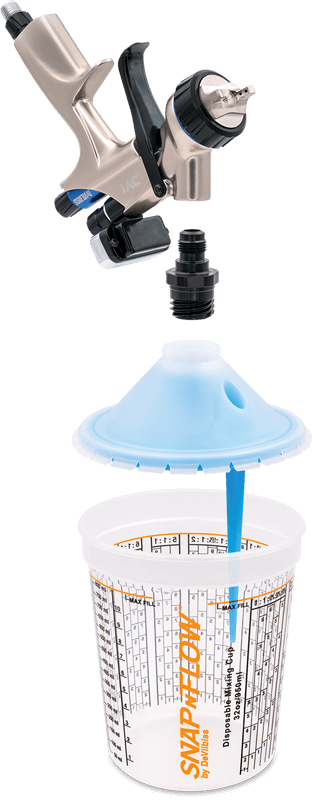

1) Mix
Mix the paint inside the mug. Use the flat lid to shake.

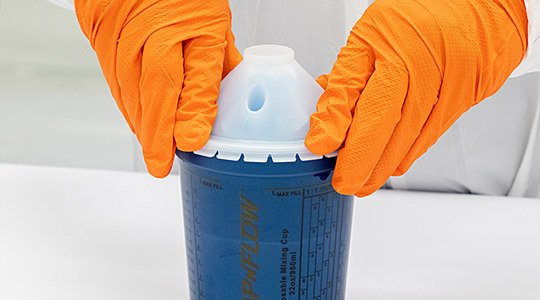

2) Connect
Fit the lid onto the mug. Install the adapter on the spray gun, if necessary. Hold the trigger, and adjust the gun into the cover by turning it to the lock position.
3) Paint
Turn the gun to normal position and start painting. You already know how to do this very well!

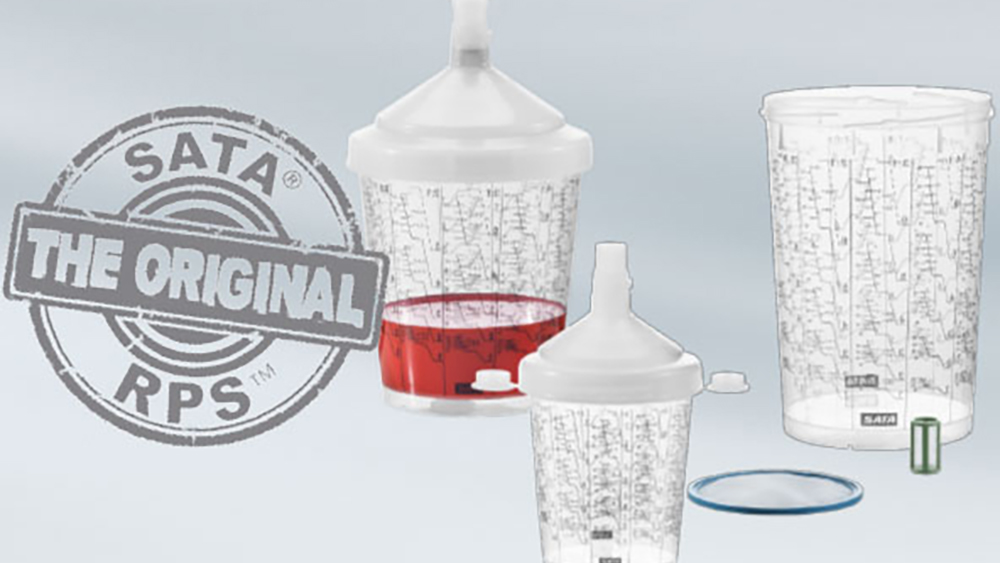

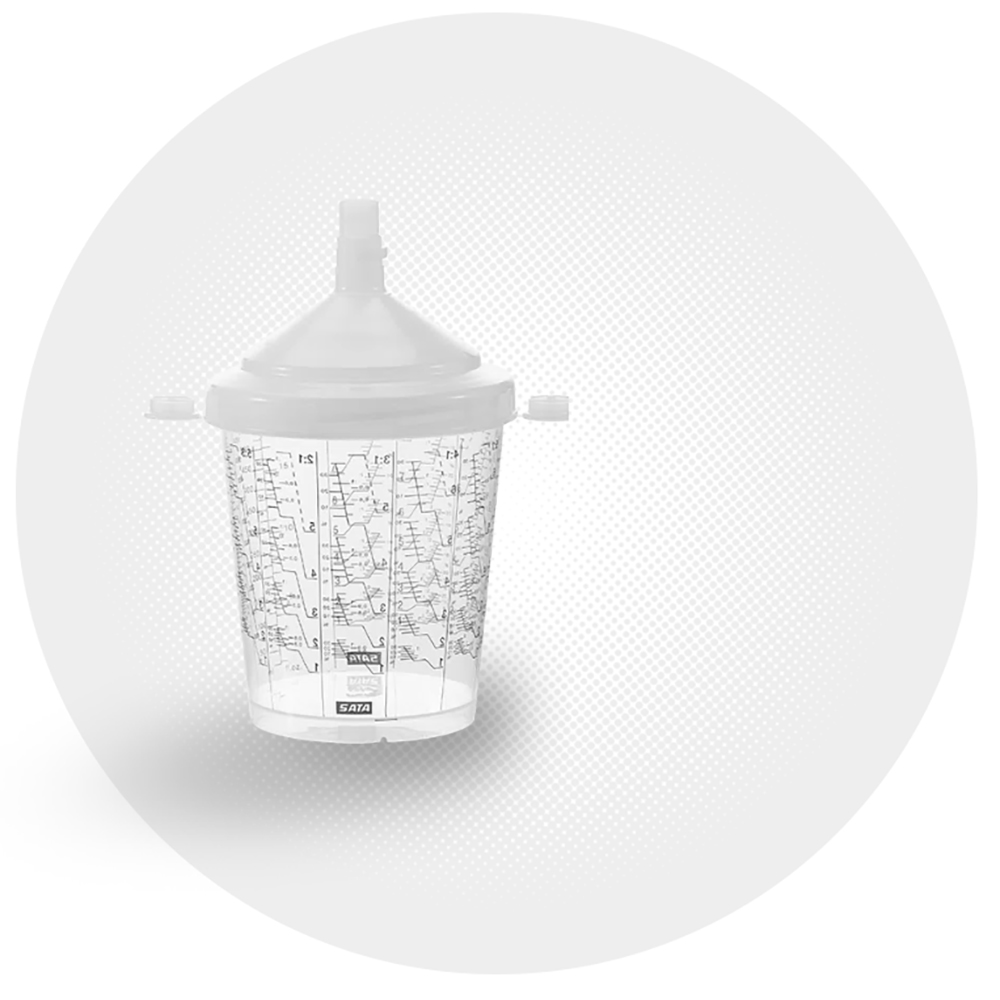

SATA RPS (Rapid Preparation System)
Multi-functional. Simple. No compromises.
The SATA RPS (Rapid Preparation System) multi-purpose cup system fulfils four functions: mixing, painting, refilling and storing. The handling of SATA RPS is so simple because it consists of only three parts: SATA RPS fits directly onto your SATA spray gun with QCC connector (Quick Cup Connector) without any disturbing adapters. Due to the short colour channel and without unnecessary corners and edges, material deposits in the colour channel are prevented.
Product Benefits
♦ Bendable – allows the painting of sill areas or wheel arches “overhead” ♦ Stable – due to the screw connection between cup and lid, the cup always remains on the lid and gun even when touching obstacles. ♦ Easy removal of the lid in case of emergency – without soiling the working area ♦ Clean removal of the cup – by pressing the cup in, vacuum is created, which empties the material passage when pulling the trigger. ♦ Constant material flow – helps the painter to achieve perfect coating results just like child’s play ♦ Very quick colour change – Cleaning becomes a minor matter ♦ Available in 3 cup sizes: 0.3 l, 0.6 l and 0.9 l ♦ Available as UV version: 0.6 l
Suitable Areas of Application

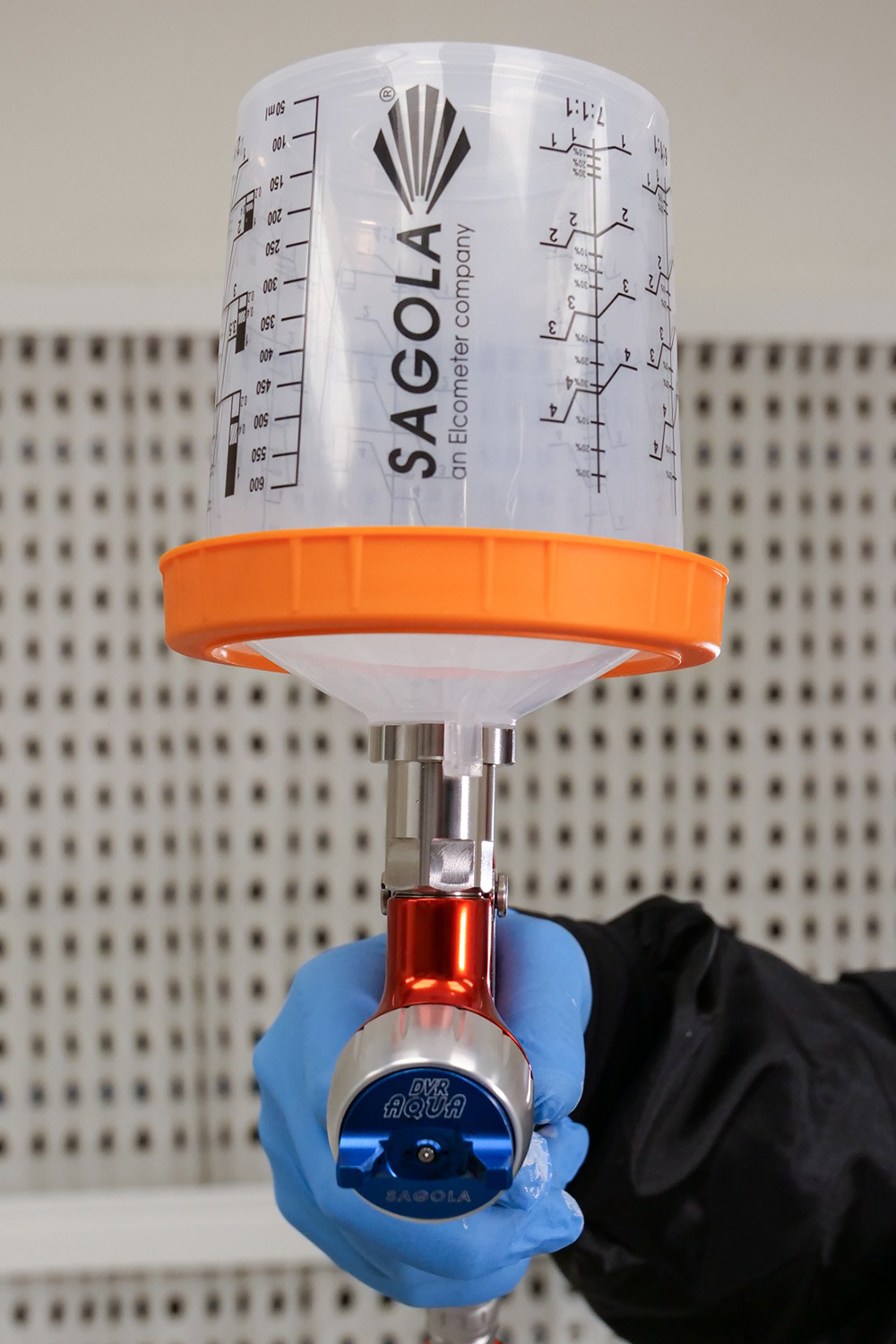

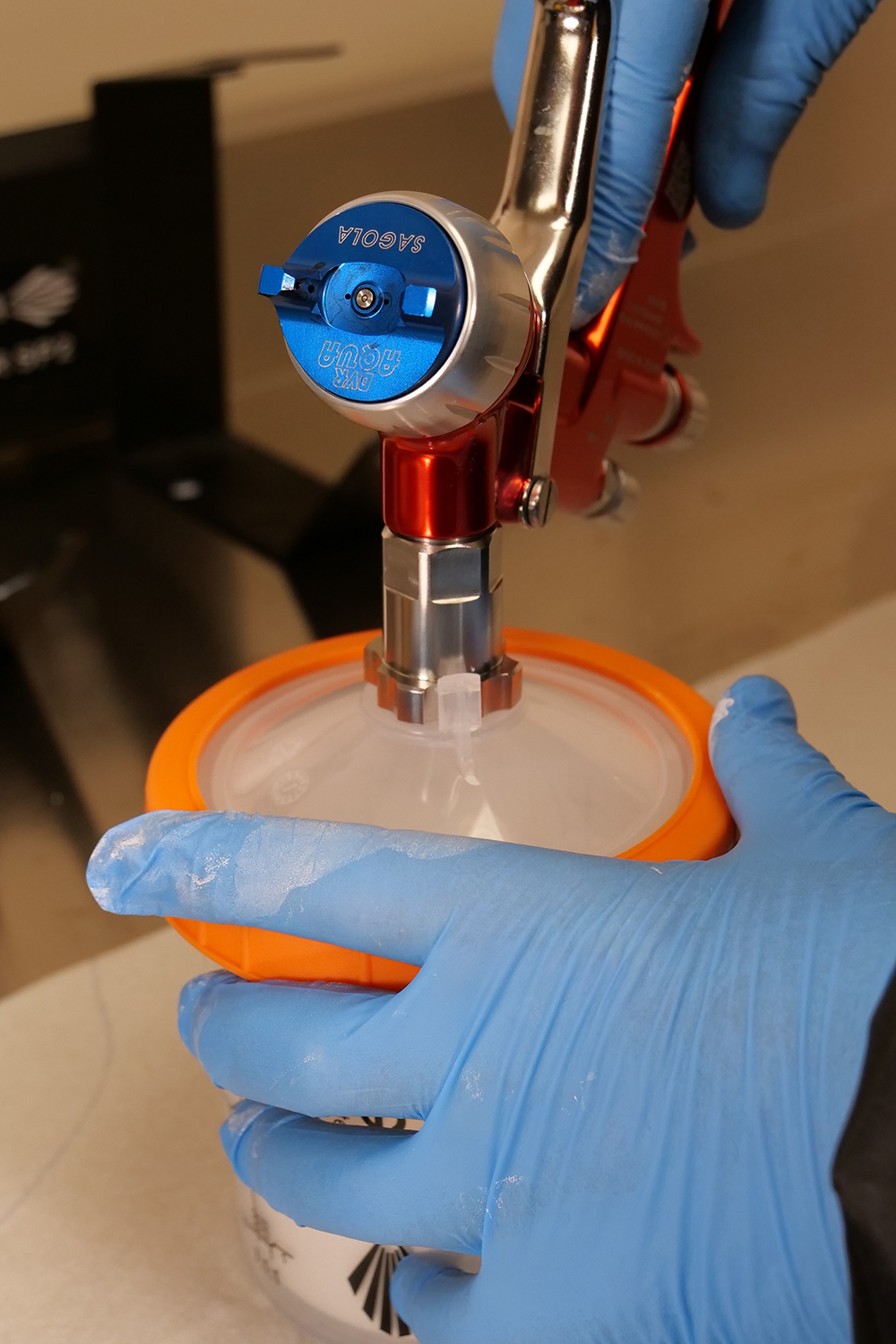

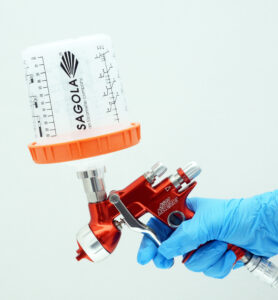

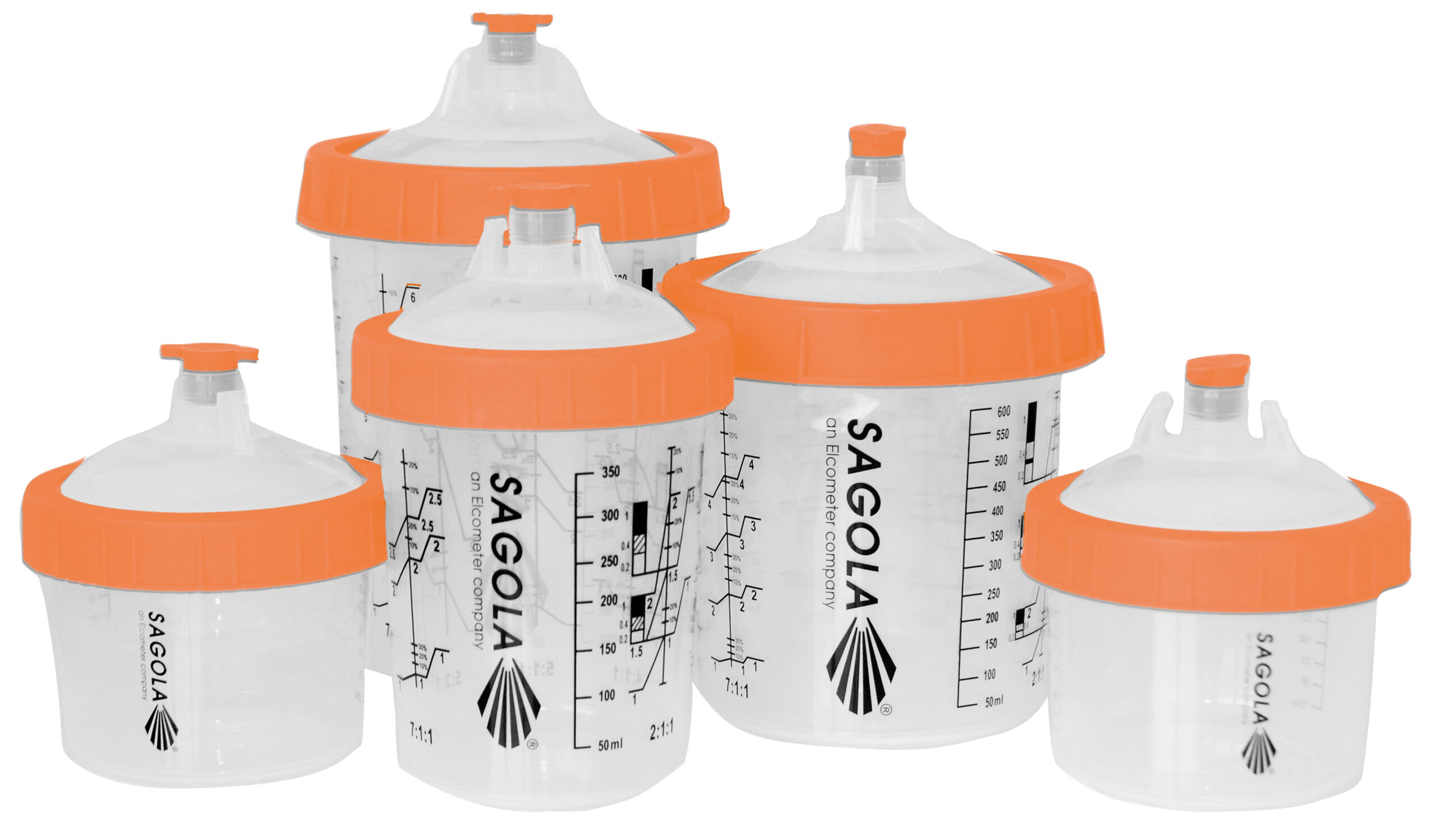

Sagola DPC (Disposable Paint Cup) System
The Sagola DPC™ Disposable Paint Cup System by Elcometer offers a cost effective, time saving, quick colour change solution for today’s busy spray shop professionals.
Sagola DPC™ Disposable Paint Cup System
• Easy to Use: On-cup ratios and fill markings reduce the reliance on traditional mixing cups, just fill, mix and spray!
• Easy to Store: To store unused paint between coats simply fit the Cup Seal Plug and store it upside down to keep the filter wet.
• Easy to Change: With a range of adaptors to fit Sagola Gravity Spray Guns as well as other manufacturers’ guns, starting to use Sagola DPC™ System couldn’t be easier
• Easy to Clean: Compared to traditional gravity cups the Sagola DPC™ System significantly reduces cleaning time and solvent use.

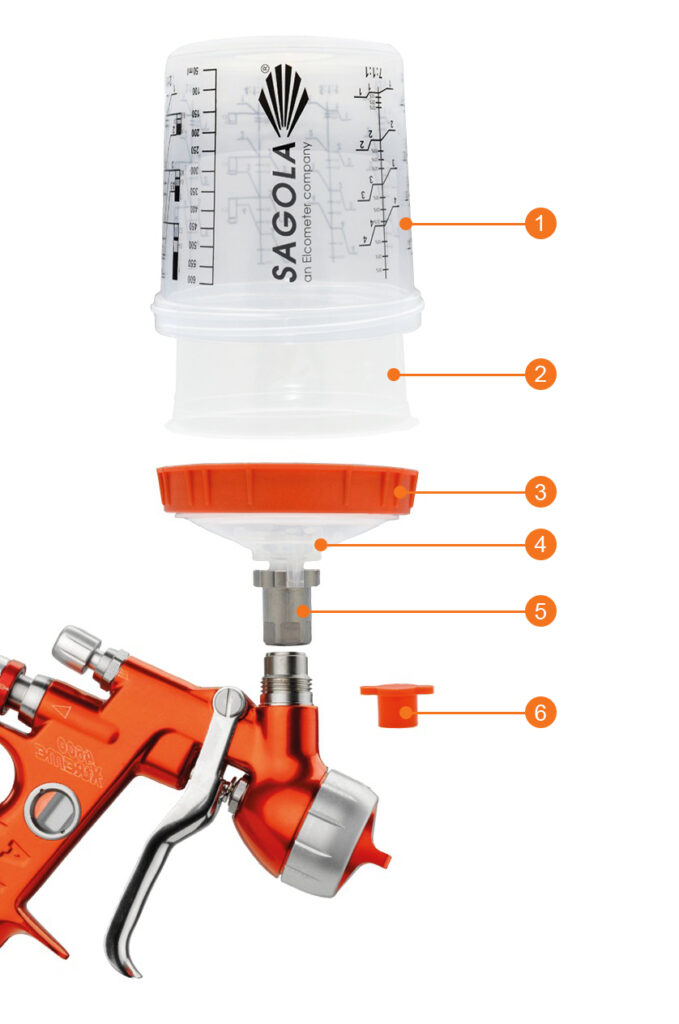

1 – Tough Plastic ABS Cup
with integrated measuring guides. Available in a range of volumes from 100ml – 800ml (3.38 – 27 fl oz).
2 – Disposable Liner
recyclable and designed to collapse evenly.
3 – Screw Collar
with integrated cup seal.
4 – Domed Lid & Filter
integrated, full-diameter filter for consistent paint flow.
5 – Adaptor
with enhanced twist lock connector. Compatible with all Sagola spray guns as well as other manufacturers’ guns.
6 – Cup Seal Plug
for storing paint whilst not in use.

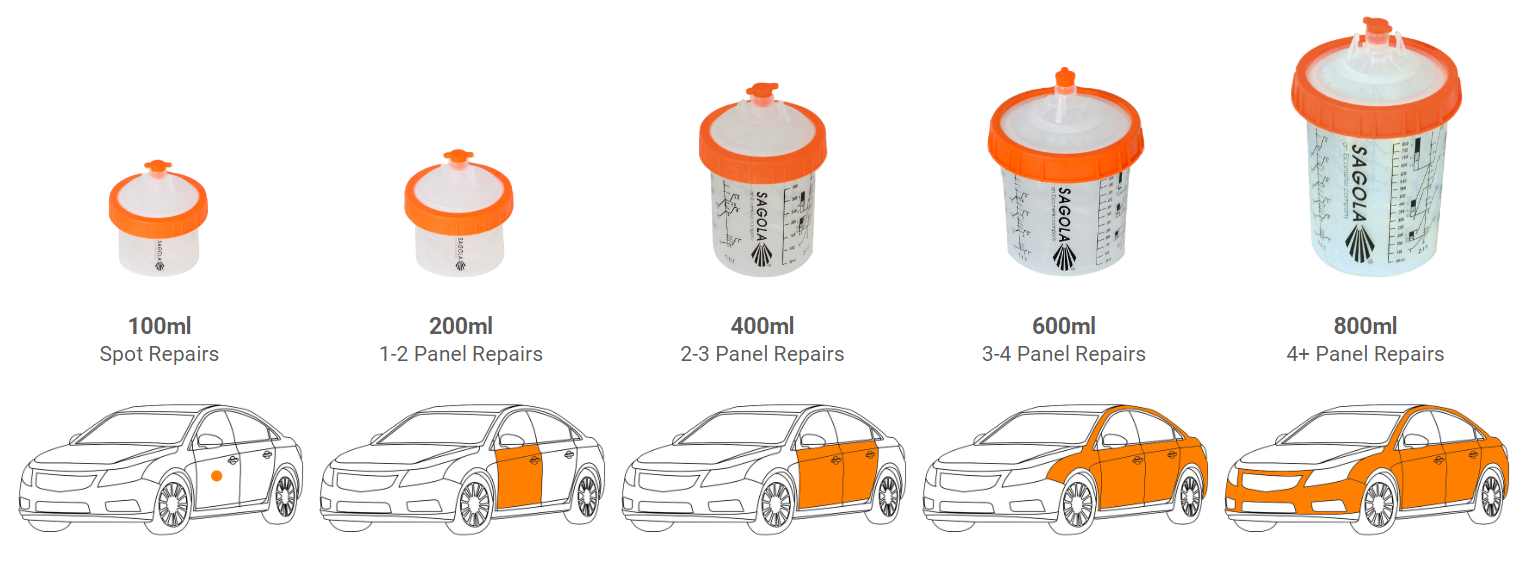

Sagola DPC Size Guide
Switching to the Sagola DPC™ System is hassle-free with a range of adaptors available to fit Sagola Gravity Spray Guns as well as other manufacturers’ guns. Start enjoying the benefits of this innovative paint cup system today.
Choose Sagola DPC™ for a cost-effective, time-saving, and easy-to-use solution that meets the demands of busy spray shop professionals. Experience the convenience and efficiency it offers, and take your painting projects to the next level.
The disposable liner is not only recyclable but also designed to collapse evenly, making clean-up a breeze. With the domed lid and integrated full-diameter filter, you can enjoy consistent paint flow for seamless spraying results.
The screw collar with an integrated cup seal ensures a secure and leak-free connection, while the enhanced twist lock connector on the adaptor guarantees compatibility with all Sagola spray guns. You can rely on the Sagola DPC™ System to work seamlessly with your equipment.
For those who prefer efficiency, the Sagola DPC™ System allows you to store unused paint by simply fitting the Cup Seal Plug and storing the cup upside down to keep the filter wet. No more wasted paint or messy clean-ups between applications.
Featuring a tough plastic ABS cup with integrated measuring guides, the Sagola DPC™ ensures accurate paint mixing every time. Available in a range of volumes from 100ml to 800ml (3.38 – 27 fl oz), you can choose the perfect size for your specific needs.
When it comes to storage, the cup seal plug allows you to store paint safely between coats, while the easy-to-clean design reduces cleaning time and solvent use significantly compared to traditional gravity cups.
Using the Sagola DPC™ System is a breeze. The on-cup ratios and fill markings eliminate the need for traditional mixing cups. Just fill, mix, and spray! Its user-friendly features make it suitable for both experienced professionals and beginners.
Welcome to Sagola’s new special edition 4600 Overland Adventure. Designed to replace the successful 4600 Trophy Truck, this gun features different fluid tips, including the 1.2, 1.2XL, 1.3, 1.3XL, 1.4 and the Titania Pro aircap, which is highly appreciated by professional painters due to its large fan and mirror finish, especially suitable for fast drying and last generation clears.
The Sagola 4600 Overland Adventure has all the qualities of the Sagola 4600 Xtreme, such as excellent atomisation, precise control system and low noise level. In addition, thanks to Sagola’s Metal To Metal technology, it has no plastic seals, making it extremely easy to clean and maintain in top condition.
But what makes this gun unique and special is its design inspired by overland culture and adventure. If you are a lover of automotive paint and the great outdoors, the Sagola 4600 Overland Adventure is the perfect gun for you. Plus, its overland-inspired design will make you feel like you’re on an epic adventure every time you use it.
So don’t wait any longer and get the Sagola 4600 Overland Adventure gun to take your paint job to new territories.
Our opinion: Bestseller. Best performer under £145 + VAT.
The FLG5 is a fantastic value spray gun with the assurance of the DeVilbiss brand. As popular as a gun can be – never a dissatisfied customer.
DeVilbiss FLG5 gravity feeds a general-purpose spray gun for a wide range of automotive materials and coatings.
An all-metal construction includes a high-grade aluminium drop-forged gun body.
The FLG5 employs compliant technology, ensuring low overspray and reduced consumption.
Proven DeVilbiss controls and a light, smooth trigger action.
Spare FLG Gravity Cup is available for this gun, please see GFC-501 (1PT) in parts breakdown.
Suitable for solvent and water-based materials.
This gun is made from a cast and is not milled (machined) like the DeVilbiss guns that cost hundreds of pounds. This keeps the cost down but means that there are minor imperfections where the casts are joined together. This is merely aesthetic. The functionality of the internals is top class.
Setups available:
1.3mm – suits clearcoat / thinner basecoats
1.4mm – suits basecoat / cellulose / synthetic / 2K and lower viscosity material; a great all-rounder.
1.8mm – suits higher build materials such as thick topcoats application and primers.
Technical Specifications
Air Inlet Thread: 1/4″ Universal
Cup Capacity: 560ml
Weight Gun & Cup: 692g
Air Cap: Brass
Retaining Ring: Aluminium
Fluid Tip: Stainless Steel
Fluid Needle: Stainless Steel
Air Inlet Pressure: 1.6 bar (23 psi)
Air Consumption: only 9.8 cfm 277l/min
For Spray Gun Adapters please follow the links below.
Our opinion: Sagola steps up a level to compete at the very highest level with no design issues we can see. Rated highly by ‘The Gunman’ (see video link above).
Sagola presents its top technological expression in bodywork finishing spray guns. With a smaller and lighter design, it gives the end-user optimal weight distribution and a more comfortable feel.
The new shiny and modern design looks the part. The carefully designed ergonomics offer enviable balance and usability and perfect mechanisation.
The 4600 Xtreme offers the widest range of solutions for all the new paints launched by the main paint brands for refinishing. It has one of the highest Sagola manufacturing standards, and competitive prices whilst maintaining a superb service.
– Perfect waterborne paint uniformity
– Economic in paint consumption
– Easy and smooth handling
– Maximum product transfer
Industry leading transfer efficiency
Independent testing* proves the Sagola 4600 Xtreme’s Conventional HTE aircaps provide significantly higher transfer efficiencies than traditional HVLP systems, whilst maintaining a very high quality finish.
Versatile – one gun does it all
The extensive range of needle, nozzle, and aircaps enables the Sagola 4600 to convert to an HVLP gun by quickly changing the aircap.
Extremely easy to clean and maintain
The Sagola 4600 has no air diffusers, blind chambers or threads in contact with paint, and no gaskets, seals or plastic parts in the product area – just metal on metal contact making it easier to clean and maintain.
Sagola 4600 Xtreme Kit Contents
Each Sagola 4600 Xtreme is supplied complete with:
Aircap, needle & nozzle kit (supplied fitted)
650ml (22fl oz) Reusable plastic gravity cup
Wrench for removing and fitting the nozzle and all servicing needs
Colour code identifiers perfect for identifying guns when there are multiple painters (x3)
Spray painting knowledge using compressed air comes with experience and it’s easy to make the wrong assumption when purchasing products.
Along with the guidance above we are always available to help and support you via
email: info@spraygunsdirect.co.uk
Tel: +44 (0) 1332 611893
WhatsApp : +44 (0) 7951 032490
